Wallboard Forming Loader Cranes for Sale and Rent
Wallboard Forming Loader Cranes Specifications
Wallboard Pallet Fork Loader Cranes are ideal for handling stacked or palletized material such as drywall, gypsum plaster, brick, and glass.
Wallboard Cranes are designed... Show More
Sort By:
Used 2007 Cormach 30000 WB55 on Used 2007 Sterling LT9500 For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB55 |
| Tons | 3.70 |
| Year | 2007 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 38600 (daN/m), 279250 (lbs/ft)
Hyd. boom length: 16750 (mm), 54' 11" (in)
Weight (without oil and fitting): 4800 (kg), 10580 (lbs)
Lifting capacity: 3370 (kg), 7410 (lbs)
Slew torque: 4000 (daN/m), 28938 (lbs/ft)
Slewing speed: 360° - 36 (° – sec)
Outriggers extension: 1750 + 1750 (mm), 5' 9" + 5' 9" (in)
Outriggers width: 5765 (mm), 18' 11" (in)
Pump delivery: 100 (lit/min), 26 (gal/min)
Pressure: 290 (bar), 4120 (Psi)
Oil tank capacity: 250 (lit), 66 (us gals)
Used 2007 PM WB 610.24 on Used 2008 Sterling LT9513 For Sale
| Location |
Hampton, New Jersey US 1236 miles |
|---|---|
| Make | PM |
| Model | 610.24 |
| Tons | 3.09 |
| Year | 2007 |
Price On Request
FeaturesPM PW 610.24 wallboard boom truck
- Rotational Torque: 27,850 FT/LBS
- Lifting Capacity: 168095 FT/LBS
- Maximum Horizontal Reach: 61’
- Maximum Horizontal Weight Capacity: 2,090
- Maximum Vertical Reach: 71’ 6”
- Maximum Vertical Weight Capacity: 6,170
- Pump Capacity: 16+16 gal/min
- Working Pressures 4,200 psi
- Oil Tank capacity: 53 Gallons
- Outrigger Spread: 22’ 1"
- Supplementary Outrigger Spread: 16’ 9”
- Supplementary Outrigger Weight: 950
- Degree of boom Elevation: 14
- Rotation Degrees: 408
- Crane Weight Dry: 9,920 lbs.
Used 2006 PM WB 610.24 on Used 2006 Western Star 4700SB For Sale
| Location |
Hampton, New Jersey US 1236 miles |
|---|---|
| Make | PM |
| Model | 610.24 |
| Tons | 3.09 |
| Year | 2006 |
Price On Request
FeaturesPM PW 610.24 wallboard boom truck
- Rotational Torque: 27,850 FT/LBS
- Lifting Capacity: 168095 FT/LBS
- Maximum Horizontal Reach: 61’
- Maximum Horizontal Weight Capacity: 2,090
- Maximum Vertical Reach: 71’ 6”
- Maximum Vertical Weight Capacity: 6,170
- Pump Capacity: 16+16 gal/min
- Working Pressures 4,200 psi
- Oil Tank capacity: 53 Gallons
- Outrigger Spread: 22’ 1"
- Supplementary Outrigger Spread: 16’ 9”
- Supplementary Outrigger Weight: 950
- Degree of boom Elevation: 14
- Rotation Degrees: 408
- Crane Weight Dry: 9,920 lbs.
New IMT 16000 Series III For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | IMT |
| Model | 16000 Series III |
| Tons | 2.91 |
| Year | 2025 |
Price On Request
FeaturesThe IMT 16000 hydraulic loader is capable of lifting 3300 lb at its maximum horizontal reach of 42’.
Specifications:
Crane Rating: 160,000 ft-lb (22.1 tm)
Horizontal Reach from centerline of rotation: 42'0" (12.8 m)
Hydraulic Extension (double): 87" + 87" (221.0 cm + 221.0 cm)
Lifting Height from base of crane: 54'3" (16.5 m)
Crane Weight (base unit with platform and chair): 10,500 lb (4762 kg)
Outrigger Span at ground level: 17'6" (5.3 m)
Crane Storage Height: 13'2" (4.0 m)
Mounting Space Required (crane base): 36" (91 cm)
Optimum Pump Capacity tandem pump (each section): 16 + 16 U.S. gpm (60.5L/min + 60.5L/min)
Oil Reservoir Capacity: 40 gallon (151 L)
Center of Gravity (horizontal...
New IMT 16000 Series III For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | IMT |
| Model | 16000 Series III |
| Tons | 2.91 |
| Year | 2025 |
Price On Request
FeaturesThe IMT 16000 hydraulic loader is capable of lifting 3300 lb at its maximum horizontal reach of 42’.
Specifications:
Crane Rating: 160,000 ft-lb (22.1 tm)
Horizontal Reach from centerline of rotation: 42'0" (12.8 m)
Hydraulic Extension (double): 87" + 87" (221.0 cm + 221.0 cm)
Lifting Height from base of crane: 54'3" (16.5 m)
Crane Weight (base unit with platform and chair): 10,500 lb (4762 kg)
Outrigger Span at ground level: 17'6" (5.3 m)
Crane Storage Height: 13'2" (4.0 m)
Mounting Space Required (crane base): 36" (91 cm)
Optimum Pump Capacity tandem pump (each section): 16 + 16 U.S. gpm (60.5L/min + 60.5L/min)
Oil Reservoir Capacity: 40 gallon (151 L)
Center of Gravity (horizontal...
Used 2004 IMT 24562 on Used 2014 Freightliner 114SD For Sale
| Location |
Olathe, Kansas US 179 miles |
|---|---|
| Make | IMT |
| Model | 24562 |
| Tons | 2.50 |
| Year | 2004 |
$139,500 USD
FeaturesSpecs
- Rating: 131,655 ft-lb (18.2 tm)
- Max Horizontal Reach: 62' 3" (19 m)
- Lift Capacity: 5000 lb (2270 kg)
- Max Vertical Lift Height: 75' 6" (23 m)
- Operating Weight: 12,060 lb (5470 kg)
The IMT 24562 loader features a maximum lift capacity of 5,000 pounds (2,270 kilograms), up to 62 feet 3 inches (19 meters) of horizontal reach and a maximum vertical reach of 71 feet 4 inches (21.8 meters). The loader offers standard radio remote control with the information center, with manual backup controls from the top seat.
New Cormach 50000 WB95 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 50000 WB95 |
| Tons | 3.06 |
| Year | 2025 |
Price On Request
FeaturesCORMACH 50000 WB Series Booms
With three inner boom sections and either two, three or four outer boom sections (depending on model) the boom is able to reach higher than any other boom on the market with greater capacities. The inner boom can reach to over 72’ before the extending the outer boom. This higher range will allow you to reach places other manufacturers’ booms can’t, permitting you to accomplish higher and more accurate picks. The inner boom can be activated on a zero degree horizontal plane allowing a trailer to feed the boom drywall constantly throughout the job if necessary. Even with the greater heights and longer extensions, the 95’ boom will collapse for transportation...
New Cormach 50000 WB95 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 50000 WB95 |
| Tons | 3.06 |
| Year | 2025 |
Price On Request
FeaturesCORMACH 50000 WB Series Booms
With three inner boom sections and either two, three or four outer boom sections (depending on model) the boom is able to reach higher than any other boom on the market with greater capacities. The inner boom can reach to over 72’ before the extending the outer boom. This higher range will allow you to reach places other manufacturers’ booms can’t, permitting you to accomplish higher and more accurate picks. The inner boom can be activated on a zero degree horizontal plane allowing a trailer to feed the boom drywall constantly throughout the job if necessary. Even with the greater heights and longer extensions, the 95’ boom will collapse for transportation...
New Cormach 50000 WB95 For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 50000 WB95 |
| Tons | 3.06 |
| Year | 2025 |
Price On Request
FeaturesCORMACH 50000 WB Series Booms
With three inner boom sections and either two, three or four outer boom sections (depending on model) the boom is able to reach higher than any other boom on the market with greater capacities. The inner boom can reach to over 72’ before the extending the outer boom. This higher range will allow you to reach places other manufacturers’ booms can’t, permitting you to accomplish higher and more accurate picks. The inner boom can be activated on a zero degree horizontal plane allowing a trailer to feed the boom drywall constantly throughout the job if necessary. Even with the greater heights and longer extensions, the 95’ boom will collapse for transportation...
New Cormach 50000 WB95 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 50000 WB95 |
| Tons | 3.06 |
| Year | 2025 |
Price On Request
FeaturesCORMACH 50000 WB Series Booms
With three inner boom sections and either two, three or four outer boom sections (depending on model) the boom is able to reach higher than any other boom on the market with greater capacities. The inner boom can reach to over 72’ before the extending the outer boom. This higher range will allow you to reach places other manufacturers’ booms can’t, permitting you to accomplish higher and more accurate picks. The inner boom can be activated on a zero degree horizontal plane allowing a trailer to feed the boom drywall constantly throughout the job if necessary. Even with the greater heights and longer extensions, the 95’ boom will collapse for transportation...
New Cormach 50000 WB95 For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 50000 WB95 |
| Tons | 3.06 |
| Year | 2025 |
Price On Request
FeaturesCORMACH 50000 WB Series Booms
With three inner boom sections and either two, three or four outer boom sections (depending on model) the boom is able to reach higher than any other boom on the market with greater capacities. The inner boom can reach to over 72’ before the extending the outer boom. This higher range will allow you to reach places other manufacturers’ booms can’t, permitting you to accomplish higher and more accurate picks. The inner boom can be activated on a zero degree horizontal plane allowing a trailer to feed the boom drywall constantly throughout the job if necessary. Even with the greater heights and longer extensions, the 95’ boom will collapse for transportation...
New Cormach 50000 WB95 For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 50000 WB95 |
| Tons | 3.06 |
| Year | 2025 |
Price On Request
FeaturesCORMACH 50000 WB Series Booms
With three inner boom sections and either two, three or four outer boom sections (depending on model) the boom is able to reach higher than any other boom on the market with greater capacities. The inner boom can reach to over 72’ before the extending the outer boom. This higher range will allow you to reach places other manufacturers’ booms can’t, permitting you to accomplish higher and more accurate picks. The inner boom can be activated on a zero degree horizontal plane allowing a trailer to feed the boom drywall constantly throughout the job if necessary. Even with the greater heights and longer extensions, the 95’ boom will collapse for transportation...
New Cormach 50000 WB95 For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 50000 WB95 |
| Tons | 3.06 |
| Year | 2025 |
Price On Request
FeaturesCORMACH 50000 WB Series Booms
With three inner boom sections and either two, three or four outer boom sections (depending on model) the boom is able to reach higher than any other boom on the market with greater capacities. The inner boom can reach to over 72’ before the extending the outer boom. This higher range will allow you to reach places other manufacturers’ booms can’t, permitting you to accomplish higher and more accurate picks. The inner boom can be activated on a zero degree horizontal plane allowing a trailer to feed the boom drywall constantly throughout the job if necessary. Even with the greater heights and longer extensions, the 95’ boom will collapse for transportation...
New Manitex PL 74 S on New Freightliner 114SD+ For Sale
| Location |
Olathe, Kansas US 179 miles |
|---|---|
| Make | Manitex |
| Model | PL 74' S |
| Tons | 4.19 |
| Year | 2023 |
Price On Request
Features- Maximum lifting moment: 187,480 ft lbs
- Maximum hydraulic reach
- Horizontal: 61’2”
- Vertical: 73’8”
- Hydraulic system
- Recommended oil flow: 16+ 16 gals/min
- Rated pressure: 4420 PSI
- Tank capacity: 53 gals
- Slewing system
- Slewing angle: 410º
- Slewing moment: 32,450 ft-lbs
- Max. working heel: 8.7% (5º)
- Standard crane weight: 9,240 lbs
- Max. power absorbed by hydraulic pump: 45
New Manitex PL 74 S on New Freightliner 114SD+ For Sale
| Location |
Olathe, Kansas US 179 miles |
|---|---|
| Make | Manitex |
| Model | PL 74' S |
| Tons | 4.19 |
| Year | 2023 |
Price On Request
Features- Maximum lifting moment: 187,480 ft lbs
- Maximum hydraulic reach
- Horizontal: 61’2”
- Vertical: 73’8”
- Hydraulic system
- Recommended oil flow: 16+ 16 gals/min
- Rated pressure: 4420 PSI
- Tank capacity: 53 gals
- Slewing system
- Slewing angle: 410º
- Slewing moment: 32,450 ft-lbs
- Max. working heel: 8.7% (5º)
- Standard crane weight: 9,240 lbs
- Max. power absorbed by hydraulic pump: 45
New Manitex PL 74 S For Sale
| Location |
Olathe, Kansas US 179 miles |
|---|---|
| Make | Manitex |
| Model | PL 74' S |
| Tons | 4.19 |
| Year | 2023 |
Price On Request
Features- Maximum lifting moment: 187,480 ft lbs
- Maximum hydraulic reach
- Horizontal: 61’2”
- Vertical: 73’8”
- Hydraulic system
- Recommended oil flow: 16+ 16 gals/min
- Rated pressure: 4420 PSI
- Tank capacity: 53 gals
- Slewing system
- Slewing angle: 410º
- Slewing moment: 32,450 ft-lbs
- Max. working heel: 8.7% (5º)
- Standard crane weight: 9,240 lbs
- Max. power absorbed by hydraulic pump: 45
Used 2015 Fassi F280SE.22 on Used 2015 Peterbilt 365 For Sale
| Location |
Olathe, Kansas US 179 miles |
|---|---|
| Make | Fassi |
| Model | F280SE.22 |
| Tons | 3.45 |
| Year | 2015 |
$169,750 USD
FeaturesLIFTING CAPACITY:
up to 186732 lbs ft
MAX OUTREACH:
up to 50’ 3”
OVERALL DIMENSIONS:
l 3' 2", w 8' 2", h 9' 2"
HYDRAULIC EQUIPMENT
LMI hydraulic control unit
Walvoil SD8 double distributor bank
top seat control station
CHARACTERISTICS:
rotation 420° with rack and pinion
not foldable behind cab
New Cormach 30000 WB66 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB66 |
| Tons | 2.62 |
| Year | 2025 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)
Hyd. boom length: 20,060 (mm); 66' 10" (in)
Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)
Lifting capacity: 2,380 (kg); 5,250 (lbs)
Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)
Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)
Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)
Outriggers width: 5,765 (mm); 18' 11" (in)
Pump delivery: 100 (lit/min); 26
Pressure: 290 (bar); 4,120 (Psi)
Oil tank capacity: 250 (lit); 66 (us gal)
New Cormach 30000 WB66 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB66 |
| Tons | 2.62 |
| Year | 2025 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)
Hyd. boom length: 20,060 (mm); 66' 10" (in)
Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)
Lifting capacity: 2,380 (kg); 5,250 (lbs)
Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)
Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)
Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)
Outriggers width: 5,765 (mm); 18' 11" (in)
Pump delivery: 100 (lit/min); 26
Pressure: 290 (bar); 4,120 (Psi)
Oil tank capacity: 250 (lit); 66 (us gal)
New Cormach 30000 WB66 For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB66 |
| Tons | 2.62 |
| Year | 2025 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)
Hyd. boom length: 20,060 (mm); 66' 10" (in)
Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)
Lifting capacity: 2,380 (kg); 5,250 (lbs)
Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)
Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)
Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)
Outriggers width: 5,765 (mm); 18' 11" (in)
Pump delivery: 100 (lit/min); 26
Pressure: 290 (bar); 4,120 (Psi)
Oil tank capacity: 250 (lit); 66 (us gal)
New Cormach 30000 WB66 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB66 |
| Tons | 2.62 |
| Year | 2025 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)
Hyd. boom length: 20,060 (mm); 66' 10" (in)
Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)
Lifting capacity: 2,380 (kg); 5,250 (lbs)
Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)
Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)
Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)
Outriggers width: 5,765 (mm); 18' 11" (in)
Pump delivery: 100 (lit/min); 26
Pressure: 290 (bar); 4,120 (Psi)
Oil tank capacity: 250 (lit); 66 (us gal)
New Cormach 30000 WB66 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB66 |
| Tons | 2.62 |
| Year | 2025 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)
Hyd. boom length: 20,060 (mm); 66' 10" (in)
Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)
Lifting capacity: 2,380 (kg); 5,250 (lbs)
Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)
Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)
Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)
Outriggers width: 5,765 (mm); 18' 11" (in)
Pump delivery: 100 (lit/min); 26
Pressure: 290 (bar); 4,120 (Psi)
Oil tank capacity: 250 (lit); 66 (us gal)
New Cormach 30000 WB66 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB66 |
| Tons | 2.62 |
| Year | 2025 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)
Hyd. boom length: 20,060 (mm); 66' 10" (in)
Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)
Lifting capacity: 2,380 (kg); 5,250 (lbs)
Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)
Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)
Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)
Outriggers width: 5,765 (mm); 18' 11" (in)
Pump delivery: 100 (lit/min); 26
Pressure: 290 (bar); 4,120 (Psi)
Oil tank capacity: 250 (lit); 66 (us gal)
New Cormach 30000 WB66 For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB66 |
| Tons | 2.62 |
| Year | 2025 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)
Hyd. boom length: 20,060 (mm); 66' 10" (in)
Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)
Lifting capacity: 2,380 (kg); 5,250 (lbs)
Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)
Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)
Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)
Outriggers width: 5,765 (mm); 18' 11" (in)
Pump delivery: 100 (lit/min); 26
Pressure: 290 (bar); 4,120 (Psi)
Oil tank capacity: 250 (lit); 66 (us gal)
New Cormach 30000 WB66 GC For Sale
| Location |
Houston, Texas US 563 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB66 |
| Tons | 2.62 |
| Year | 2025 |
Price On Request
FeaturesTechnical Specifications:
Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)
Hyd. boom length: 20,060 (mm); 66' 10" (in)
Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)
Lifting capacity: 2,380 (kg); 5,250 (lbs)
Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)
Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)
Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)
Outriggers width: 5,765 (mm); 18' 11" (in)
Pump delivery: 100 (lit/min); 26
Pressure: 290 (bar); 4,120 (Psi)
Oil tank capacity: 250 (lit); 66 (us gal)
Manufacturers

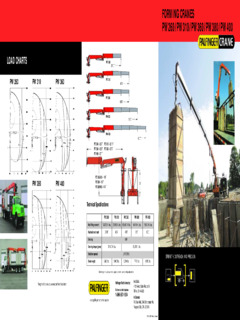

Palfinger PW 400
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Palfinger PW 360
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Palfinger PW 260
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Palfinger PW 380
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Palfinger PW 310
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F375SE.14
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F375SE.13
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F425SE.04
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F240SE.22
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F240SE.21
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F240SE
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F8SE
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F600SE.44
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F330SE.24 G.C.
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F230SE.22
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
IMT 426/84
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F 390SE.24 G.C.
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Cormach 30000 WB66
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F 360SE.24 GC
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F 360SE.24
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F 360SE
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Manitex PL 74' SP
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Manitex PL 74' S
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Manitex PL 65' SP
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Manitex PL 65' S
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Wallboard Pallet Fork Loader Cranes are ideal for handling stacked or palletized material such as drywall, gypsum plaster, brick, and glass.
Wallboard Cranes are designed for the residential and commercial sectors. A 4-story model is ideal for residential smaller projects and a 6-story to 10-story wallboard models are ideal for larger commercial projects in larger metropolitan areas.
Hydraulic wallboard loader cranes provide excellent lift capacity, extensive reach, precise maneuverability, and exceptional operator visibility — even in tight places.
Wallboard Cranes are similar to articulating knuckle boom cranes, however, they are designed to bend only in the middle and are stowed unfolded on a boom rest on a commercial truck chassis.
Wallboard Cranes are the safest and most efficient lifting solution to deliver pallet loads directly to the floor on which pallets will be used.
For buildings exceeding 10 stories, palletized loads can be delivered to the floor the crane can reach and then broken down and moved up to the upper levels.
