Wallboard Forming Loader Cranes for Sale and Rent
Wallboard Forming Loader Cranes Specifications
Wallboard Pallet Fork Loader Cranes are ideal for handling stacked or palletized material such as drywall, gypsum plaster, brick, and glass.
Wallboard Cranes are designed... Show More
Sort By:
NEW Manitex/PM POWERLIFT PL-74 REAR-MOUNTED ON NEW FREIGHTLINER 114SD For Sale
| Location |
Milford, Massachusetts US 2554 miles |
|---|---|
| Make | Manitex |
| Model | PL 74' S |
| Tons | 4.20 |
| Year | 2023 |
Price On Request
BOOM DETAILS
New – PM Powerlift-74 Wallboard Series Boom 8th Floor Lift Installed at rear – Best Capacity in its Class
4- Hyd Extensions to 62’ horizontal reach (74’ vertical )
Vertical Boom Capacity:
7,360 lbs – 70’ up & 23’ out
5,180 lbs – 65’ up & 33’ out
3,930 lbs – 58’ up & 43’ out,
Internal cylinders on all boom extensions, Outer boom cylinder guard
Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit
Power...
2024 Cormach 50000 WB95 10-Story Wallboard Crane For Sale
| Location |
New Jersey US 2401 miles |
|---|---|
| Make | Cormach |
| Model | 50000 WB95 |
| Tons | 3.06 |
| Year | 2024 |
Price On Request
Ready to WorkCormach Wallboard Unloader Model 50,000 WB 95• 95’ 2” of horizontal reach - approx 106’ 6” vertical reach to tip of boom
• 3 main boom extensions – 4 outer boom extensions
• Top seat controls with 2 levers each right and left side of operators seat, and 3 foot pedals.
• Radio Remote Control system installed
• Crane has 360° continuous rotation
• Main base hyd. out and down outrigger spread of 25 feet
• Auxiliary hydraulic out and down rear outrigger spread of 19&...
2024 Cormach 30000 WB65 6-Story Wallboard Crane For Sale
| Location |
Somerville, New Jersey US 2402 miles |
|---|---|
| Make | Cormach |
| Model | 30000 WB65 |
| Tons | 2.62 |
| Year | 2024 |
Price On Request
Like NEW Cormach 30000 WB 65
Horizontal reach of 65'1", Vertical reach approx. 77'
Electro-hydraulic Load Limiting Overload Protection
Danfoss proportional valve block
Top Seat and Radio Remote Controls
Sunfab variable displacement, pressure-compensated load-sensing pump
Hydraulic outriggers w/25' span
360 degree continuous boom rotation
66 gallon hydraulic tank
Material handling fork with continuous hydraulic rotator
Boom/fork rest
(2) oversized removable sand pads w/mounting brackets
New 2016 Freightliner114sd
Detroit Dd13 12.8l 410 Hp @ 1800 Rpm, 2080 Gov Rpm, 1450 Lb/Ft @ 1100 Rpm
Allison 4500 Rds Automatic Transmission
20,000# Single Front Axle
20,000# Flat...
Manufacturers
Hyva HA100 E2
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hyva HA100 E1
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hiab XS 255 K-3
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hiab 255 K-3 CLX
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hiab 255 K CLX
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hiab 255 K
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hiab 255 K-3 HiPro
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hiab 255 K-3 PRO
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hiab 255 K-2 HiPro
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Hiab 255 K-2 PRO
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Palfinger PK 800 TK
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Palfinger PK 800 TBKB
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Palfinger PK 600 TK
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Palfinger PK 600 TAKB
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
IMT 16000 Series III
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F360SE.23
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F280SE.23
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Fassi F250SE.21
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)

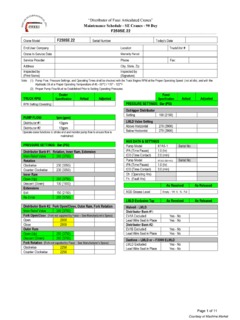

Fassi F250SE.22
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)

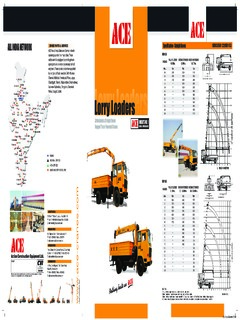

ACE (Action Construction Equipment) SB153
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
ACE (Action Construction Equipment) SB83
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Tadano TM-ZR566(EF)
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Tadano TM-ZR564S(HEF)
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Tadano TM-ZR565S(HEF)
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Tadano TM-ZR566S(HEF)
(Cranes, Hoists & Material Handlers : Wallboard Forming Loader Cranes)
Wallboard Pallet Fork Loader Cranes are ideal for handling stacked or palletized material such as drywall, gypsum plaster, brick, and glass.
Wallboard Cranes are designed for the residential and commercial sectors. A 4-story model is ideal for residential smaller projects and a 6-story to 10-story wallboard models are ideal for larger commercial projects in larger metropolitan areas.
Hydraulic wallboard loader cranes provide excellent lift capacity, extensive reach, precise maneuverability, and exceptional operator visibility — even in tight places.
Wallboard Cranes are similar to articulating knuckle boom cranes, however, they are designed to bend only in the middle and are stowed unfolded on a boom rest on a commercial truck chassis.
Wallboard Cranes are the safest and most efficient lifting solution to deliver pallet loads directly to the floor on which pallets will be used.
For buildings exceeding 10 stories, palletized loads can be delivered to the floor the crane can reach and then broken down and moved up to the upper levels.
