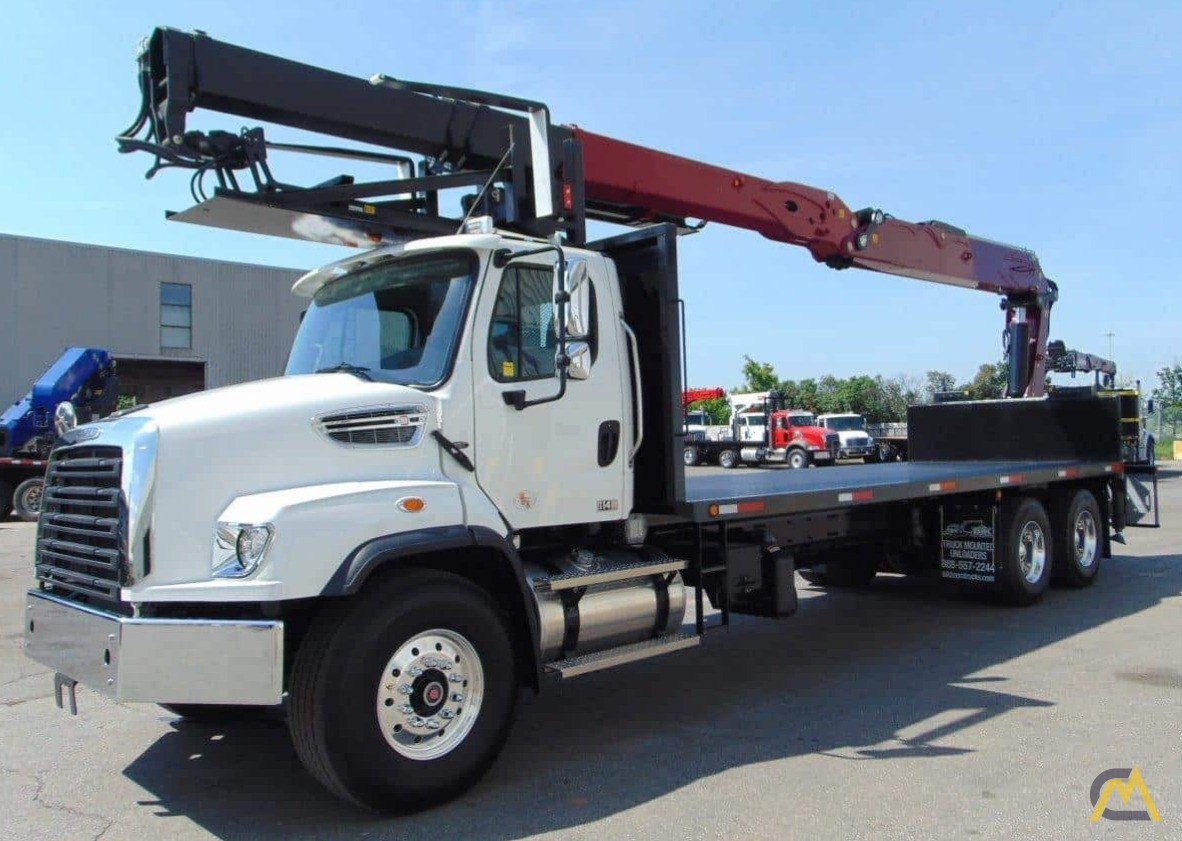

NEW Manitex/PM POWERLIFT PL-74 REAR-MOUNTED ON NEW FREIGHTLINER 114SD For Sale

BOOM DETAILS

New – PM Powerlift-74 Wallboard Series Boom  8^th Floor Lift  Installed at rear  – Best Capacity in its Class

• 4- Hyd Extensions to 62’ horizontal reach  (74’ vertical )

• Vertical Boom Capacity:

  • 7,360 lbs – 70’ up &  23’ out

  • 5,180 lbs – 65’ up & 33’ out

  • 3,930 lbs – 58’ up & 43’ out,

• Internal cylinders on all boom extensions, Outer boom cylinder guard

• Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit

• Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout

• Extra Wide Stabilizers – 24’ 3” span, hydraulic out and down type, – Front Aux Stabilizers – Hyd out & down type 16’ span

• Flanged holding valves, double acting check valve for the down movement of the stabilizers

• Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom

• DANFOSS Valve – At Ground level  &  SCANRECO Proportional  Radio Remote Control

• Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord, Continuous rotation Drywall Forks

• Installed at rear, with integral pre-engineered sub-frame and specialized torsion bracing, Final Tests Stability Certified by Independent Engineer

DECK DETAILS

NEW– 24.5’  X 102” DECK:

• Installed on truck with 50” of main sill overhang at rear for Sub-Frame of Knuckle Boom

• Your choice of or Steel Checker Plate Deck surface

• 60”  Headboard with Drywall Forks rest over cab

• Reverse rail sliding winch track on pass side with 6-winches and straps

• Conspicuity Tape and Reflectors

• Headboard and all other steel painted Gloss Black

TRUCK DETAILS

New – Freightliner 114SD 3-Axle Diesel Truck:    66,000 lb GVWR

• Truck cab white colour, 12L Cummins Diesel 460 hp

• Eaton Ultrashift Plus 18spd Automated

• 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims

• 46,000 LB Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims

• Double frame chassis

• 54” spread at tandems

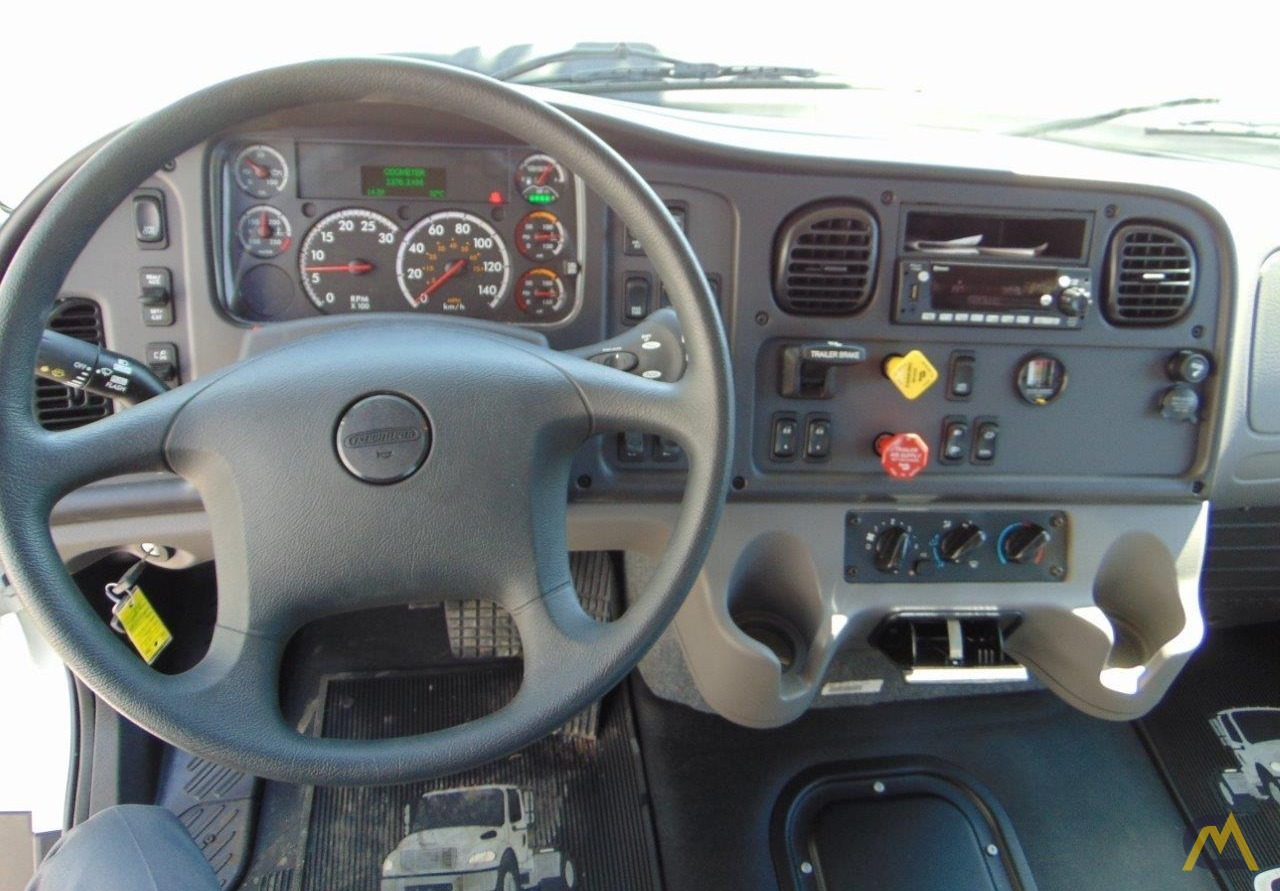

• Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM  stereo,  cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill,  power and heated mirrors, dual chrome hood mtd  mirrors,  eng block heater,   painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…

Also Included:

• Activate Extra Remote Features to operate: engine start/stop, RPM  & truck horn alert

• 36” aluminum storage box,

• Safety Cones (2 pcs) with holders and wheel chucks

• Pair of PVC stabilizer pads with holders on each side at front of deck,

• 1” Draw plate at rear of frame (for possible pintle hook)
