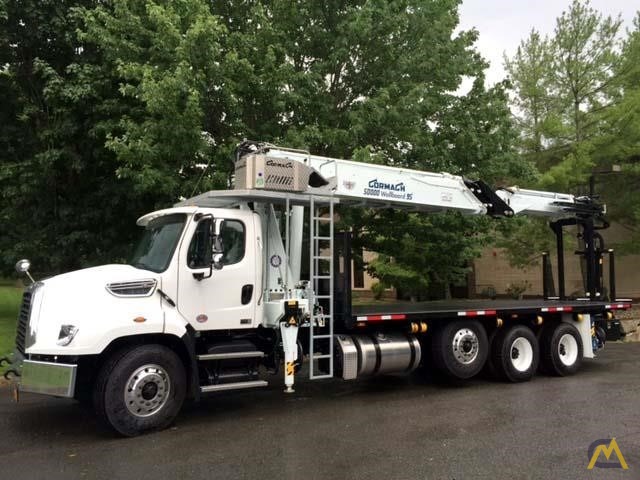

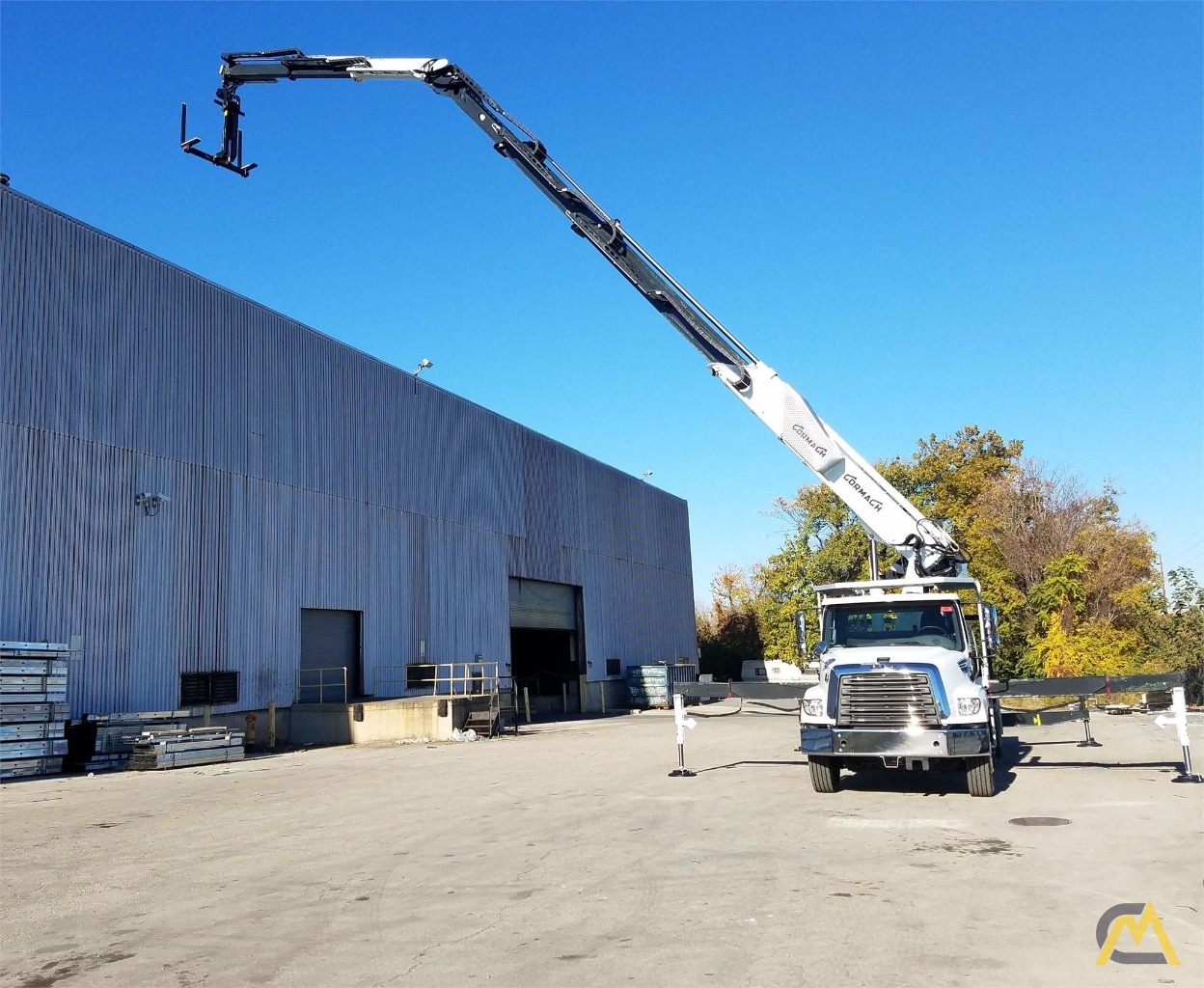

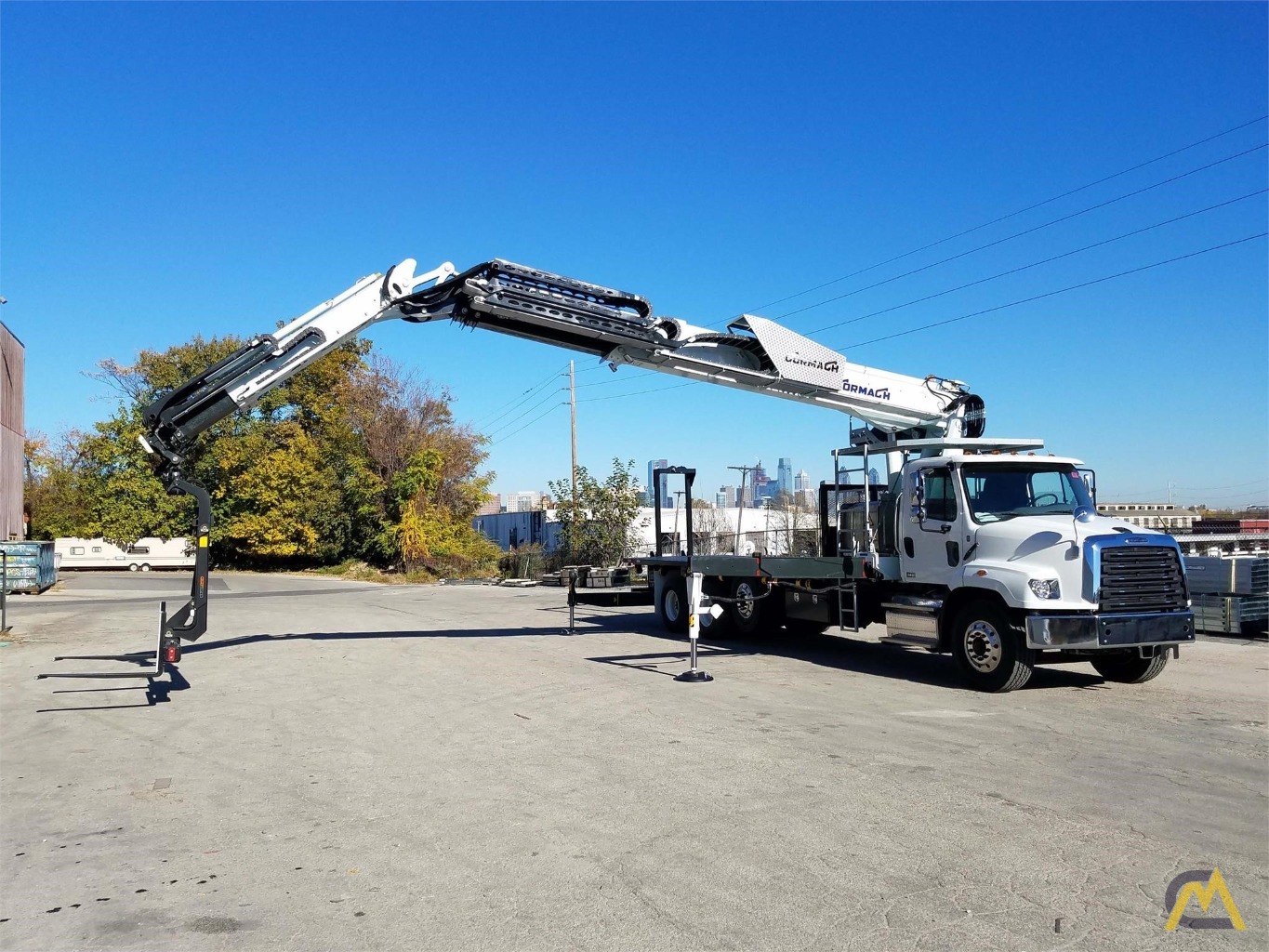

2024 Cormach 50000 WB95 10-Story Wallboard Crane For Sale

Ready to Work

Cormach Wallboard Unloader Model 50,000 WB 95

•    95’ 2” of horizontal reach   -  approx  106’ 6” vertical reach to tip of boom
•    3 main boom extensions – 4 outer boom extensions
•    Top seat controls with 2 levers each right and left side of operators seat, and 3 foot pedals.
•    Radio Remote Control system installed
•    Crane has 360° continuous rotation
•    Main base hyd. out and down outrigger spread of 25 feet
•    Auxiliary hydraulic out and down rear outrigger spread of 19’ 2”
•    Danfoss control valves set up for use with variable displacement piston pump
•    Electro-hydraulic load limited device with time reset system
•    High pressure filter plus return filter
•    Crane base centralized greasing system
•    Walk around platform with access ladders
•    Mount bolt kit
•    Four (4) oversize ground plates
•    Unloader painted standard Cormach blue and white
•    Air shift PTO for variable displacement piston pump
•    Variable displacement, load sensing, pressure compensating piston pump
•    72”  Wallboard fork w/ continuous rotation
•    Full length 6” x  4”  subframe torque box including top and bottom skin
•    24’ 6” x 102”  GSE&E structural wallboard body, 48” high front  headboard with 24” vision screen, 3/16” steel TPX floor all LED body lights,  Boom and Fork rest, and mud flaps. Body primed and painted Gloss Black.
•    Six ( 6 ) under body sliding ratchets, straps, and hook bar.
•    One (1) 36”x 18”x 18” underbody steel tool box
•
Installation onto our Freightliner, Volvo, or customer supplied truck chassis, behind cab onto a full sub-frame with wallboard body, walk around platform and ladder, rear boom and fork rest, all LED body lights, mud flaps, fabrication and installation of 4 brackets to hold oversize ground plates, and perform OSHA Inspection.
Additional options available

Selection of Freightliner and Volvo chassis.
