Harry Fry & Associates
Tower Cranes for Sale and Rent

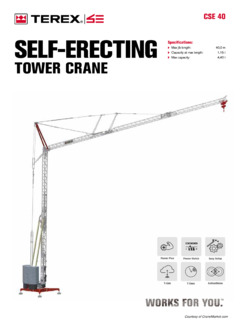

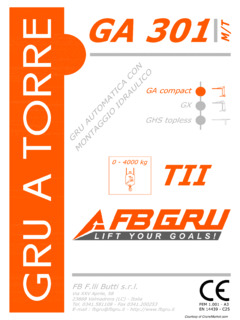

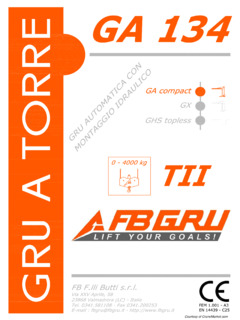

Tower Cranes Specifications
Tower Cranes range from small mobile self-erecting tower cranes up to large fixed based hammerhead tower cranes that are used for large scale industrial projects.
Tower cranes are... Show More
Manufacturers
Sort By:
Potain HDT 80 6.6-ton Self Erecting Tower Crane For Sale or Rent
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | HDT 80 |
| Tons | 6.60 |
| Year | 2003 |
The Potain HDT 80 self-erecting hydraulic tower crane has a max lift capacity of 6 metric tons (6.6 U.S. tons), a maximum hook height with horizontal jib reaches out to 34.2 m (112 ft), a maximum hook height of 53.7 m (176 ft) with 45 m (148 ft) length with a raised jib. The operating hook radius of the crane works within 45 m (148 ft). This crane is very versatile and offers 3 different mast heights and 10 different jib configurations to get any job done.
The HDT 80 uses a 480-volt power system and uses variable frequency drives for all main functions, for smoother and progressive speed changes. Hydraulic cylinders...
Favelle Favco M440D 55.1-Ton Luffing Boom Tower Crane For Sale
| Location |
South Plainfield, New Jersey US 194 miles |
|---|---|
| Make | Favelle Favco |
| Model | M440D |
| Tons | 55.10 |
| Year | 2017 |
Price On Request
2017 Favelle Favco M440D Luffing Boom Tower Crane (Freestanding)
Towers (25 5): 25 standard tower sections and 5 reinforced tower sections
Collars (5): 5 Collars included in price
External Climbing Frame: Included with Purchase
Location: Equipment is located in South Plainfield, NJ
Pricing: Available upon discussion (All taxes are buyers responsibility)
Specifications:
Boom: 195ft. maximum working radius. 150ft of Boom Supplied with purchase.
Tail Radius: 26.9 feet
Machinery Deck: Split machinery deck designed to reduce weight and prevent need for street cranes during erection and dismantling
Pump Drive Gearbox: Multiple output – spur gear & splash lubricated
...
Potain GTMR 331 B 4,000 kg Self Erecting Tower Crane For Sale
| Location |
Ganderkesee, Lower Saxony DE 3980 miles |
|---|---|
| Make | Potain |
| Model | GTMR 331 B |
| Tons | 4.40 |
| Year | 1991 |
Price On Request
Capacity at the end of the boom is 1-ton
Linden Comansa 5 LC 5010 5.50 Tower Flat Top Tower Crane For Sale
| Location |
Pichincha EC 2709 miles |
|---|---|
| Make | Comansa |
| Model | 5 LC 5010 |
| Tons | 5.50 |
| Year | 2011 |
$95,000 USD
2011 Linden Comansa 5010 (5 Metric Ton Flat Top Tower Crane)60 Meter Tower, 4 x 12 Meter, 4 x 3 Meter (Tower Sections), Base Section Included, 50 Meter Jib, 440 Volt Operating Voltage.
2021 Saez H324 4.41-Ton Self-Erecting Tower Crane For Sale or Rent
| Location |
Brighton, Colorado US 1453 miles |
|---|---|
| Make | Saez |
| Model | H-32 |
| Tons | 4.41 |
| Year | 2021 |
Price On Request
Max. Hook Radius: 105'
Capacity @ Max. Hook Radius: 2,205 lbs.
Max. Capacity 4-Part Operation: 8,800 lbs.
Hook Height: 72'.
Power Requirement: 240V or 480V, Single or 3-Phase
Benazzato 193 S 1.65-Ton Self-Erecting Tower Crane For Sale
| Location |
Freedom, California US 2394 miles |
|---|---|
| Make | Benazzato Gru |
| Model | 193 S |
| Tons | 1.65 |
| Year | 2003 |
$29,000 USD
Max Hook Radius: 65',
Capacity @ Max Hook Radius: 1,100 lbs,
Max Capacity 2 Part Operation: 2,650 lbs,
Hook Height: 50',
Power Requirement: 240V Single Phase,
Outriggers: Screw Jacks,
Axles: Job Site
Remotes: Radio & Corded,
Potain MR 608 35-ton Luffing Jib Tower Crane For Sale
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | MR 608 |
| Tons | 35.00 |
| Year | 2014 |
Price On Request
The Potain MD 689 M40 is a top-slewing crane, perfect for large infrastructure, high rise job sites, crowded urban areas, or wide-open sites, they make it possible to hoist and distribute loads high and far. Equipped with state of the art technology that makes operating the crane intuitive and productive. This model has Power Control, which allows the operator to limit the maximum electric power that is required for operating a crane without impacting low-load and no-load working speeds.
This tower crane has a max lift capacity of 40 metric tons (44.1 U.S. tons). The main boom length reaches out to 80 m (262 ft) and max. lift height is up to 89.4 m (293.30 ...
Potain MD 689 M40 44.1 Hammerhead Tower Crane For Sale or Rent
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | MD 689 M40 |
| Tons | 44.10 |
| Year | 2017 |
Price On Request
The Potain MD 689 M40 is a top-slewing crane, perfect for large infrastructure, high-rise job sites, crowded urban areas, or wide-open sites, they make it possible to hoist and distribute loads high and far. Equipped with state-of-the-art technology that makes operating the crane intuitive and productive. This model has Power Control, which allows the operator to limit the maximum electric power that is required for operating a crane without impacting low-load and no-load working speeds.
This tower crane has a max lift capacity of 40 metric tons (44.1 U.S. tons). The main boom length reaches out to 80 m (262 ft) and max. lift height is up to 89.4 m (293.30 ...
Liebherr 550 HC 20 22-ton Hammerhead Tower Crane For Sale
| Location |
Houston, Texas US 1202 miles |
|---|---|
| Make | Liebherr |
| Model | 550 HC 20 |
| Tons | 22.00 |
| Year | 1993 |
Price On Request
The Liebherr 550 HC 20 is a freestanding tower crane with up to 3 different configurations. This crane has a maximum lift capacity of 20 metric tons (22 U.S. tons). The horizontal jib has a maximum length of 80.8 m (265 ft). Different heights and tower combinations are available as well.
2015 Potain MDT 218A-J10 11-Ton Tower Crane For Sale
| Location |
Manchester, Connecticut US 321 miles |
|---|---|
| Make | Potain |
| Model | MDT 218 A J10 |
| Tons | 11.00 |
| Year | 2015 |
Price On Request
One (1) Used 2015 Potain MDT218A-J10, S/N: 605436, Topless “City” Tower Crane Equipped As Shown Below:- 11 U.S. Ton Maximum Capacity
- 213 Ft Maximum Radius
- 2 U.S. Ton Capacity at Maximum Radius
- Qty (4) Four - K439A 5m Mast Sections
- Qty (4) Four – K437A 5m Mast Section
- Qty (1) K60/K50 Transition Mast Section
- Qty (2) KR649A 5m Mast Sections
- Counter-Jib
- Counterweights for Counter Jib
- Electric Slip Ring Collector
- 50LVF25 Optima Hoist
- 7DVF4 Trolley Winch
- SM/DM Trolley (2 or 4 parts of line)
- RVF162 Optima Slewing Drive
- Potain “Ultra-View Cab”
- Anemometer for Wind Speed
- Auxiliary Winch for Service Deck
- Motorized Greasing...
Potain MDT 219 J10 11-ton Flat Top Tower Crane For Sale or Rent
| Location |
Houston, Texas US 1202 miles |
|---|---|
| Make | Potain |
| Model | MDT 219 J10 |
| Tons | 11.00 |
| Year | 2018 |
Price On Request
The Potain MDT219 J10 is part of a new series, Potain MDT CCS City Range cranes help you get more work done faster and with greater precision. This tower crane has a max lift capacity of 10 metric tons (11 U.S. tons), a maximum hook height with a horizontal jib that reaches out to 65 m (213 ft). The height of the lattice mast reaches 70.4 m (231 ft). There is a jib counterbalance needed for the crane when carrying heavier loads at higher altitudes. The jib is fully assembled and cabled on the ground. The hoist motor at the base of the jib allows the complete cabling of the hoist and trolley mechanisms.
The Potain MDT219 J10 uses a 480...
Potain MDT 219 J10 11-ton Flat Top Tower Crane For Sale or Rent
| Location |
Houston, Texas US 1202 miles |
|---|---|
| Make | Potain |
| Model | MDT 219 J10 |
| Tons | 11.00 |
| Year | 2017 |
Price On Request
The Potain MDT219 J10 is part of a new series, Potain MDT CCS City Range cranes help you get more work done faster and with greater precision. This tower crane has a max lift capacity of 10 metric tons (11 U.S. tons), a maximum hook height with a horizontal jib that reaches out to 65 m (213 ft). The height of the lattice mast reaches 70.4 m (231 ft). There is a jib counterbalance needed for the crane when carrying heavier loads at higher altitudes. The jib is fully assembled and cabled on the ground. The hoist motor at the base of the jib allows the complete cabling of the hoist and trolley mechanisms.
Potain MDT 219 J10 11-ton Flat Top Tower Crane For Sale or Rent
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | MDT 219 J10 |
| Tons | 11.00 |
| Year | 2018 |
Price On Request
The Potain MDT219 J10 is part of a new series, Potain MDT CCS City Range cranes help you get more work done faster and with greater precision. This tower crane has a max lift capacity of 10 metric tons (11 U.S. tons), a maximum hook height with a horizontal jib that reaches out to 65 m (213 ft). The height of the lattice mast reaches 70.4 m (231 ft). There is a jib counterbalance needed for the crane when carrying heavier loads at higher altitudes. The jib is fully assembled and cabled on the ground. The hoist motor at the base of the jib allows the complete cabling of the hoist and trolley mechanisms.
Potain MDT 219 J10 11-ton Flat Top Tower Crane For Sale or Rent
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | MDT 219 J10 |
| Tons | 11.00 |
| Year | 2016 |
Price On Request
The Potain MDT219 J10 is part of a new series, Potain MDT CCS City Range cranes help you get more work done faster and with greater precision. This tower crane has a max lift capacity of 10 metric tons (11 U.S. tons), a maximum hook height with a horizontal jib that reaches out to 65 m (213 ft). The height of the lattice mast reaches 70.4 m (231 ft). There is a jib counterbalance needed for the crane when carrying heavier loads at higher altitudes. The jib is fully assembled and cabled on the ground. The hoist motor at the base of the jib allows the complete cabling of the hoist and trolley mechanisms.
Potain MDT 109 6.6-ton Flat Top Tower Crane For Sale or Rent
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | MDT 109 |
| Tons | 6.60 |
| Year | 2019 |
Price On Request
The Potain MDT 109 is part of the CCS City Range line cranes that have been redesigned using the latest technology and machinery to ensure better performance. This crane has a maximum lifting capacity of 6 metric tons (6.6 U.S. tons). The jib can extend to 55 m (180.4 ft.) and the height of the mast reaches up to 55.1 m (180.8 ft.). The MDT 109 can lift up to 1.35 metric tons (1.5 U.S. tons) while at its maximum length. The bases, mast, and climbing equipment are interchangeable with some other top-slewing tower crane models.
Potain MDT 109 6.6-ton Flat Top Tower Crane For Sale or Rent
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | MDT 109 |
| Tons | 6.60 |
| Year | 2018 |
Price On Request
The Potain MDT 109 is part of the CCS City Range line cranes that have been redesigned using the latest technology and machinery to ensure better performance. This crane has a maximum lifting capacity of 6 metric tons (6.6 U.S. tons). The jib can extend to 55 m (180.4 ft.) and the height of the mast reaches up to 55.1 m (180.8 ft.). The MDT 109 can lift up to 1.35 metric tons (1.5 U.S. tons) while at its maximum length. The bases, mast, and climbing equipment are interchangeable with some other top-slewing tower crane models.
Potain MDT 109 6.6-ton Flat Top Tower Crane For Sale or Rent
| Location |
Houston, Texas US 1202 miles |
|---|---|
| Make | Potain |
| Model | MDT 109 |
| Tons | 6.60 |
| Year | 2018 |
Price On Request
The Potain MDT 109 is part of the CCS City Range line cranes that have been redesigned using the latest technology and machinery to ensure better performance. This crane has a maximum lifting capacity of 6 metric tons (6.6 U.S. tons). The jib can extend to 55 m (180.4 ft.) and the height of the mast reaches up to 55.1 m (180.8 ft.). The MDT 109 can lift up to 1.35 metric tons (1.5 U.S. tons) while at its maximum length. The bases, mast, and climbing equipment are interchangeable with some other top-slewing tower crane models.
Potain Igo M 14 1.98-ton Self Erecting Tower Crane For Sale
| Location |
Houston, Texas US 1202 miles |
|---|---|
| Make | Potain |
| Model | Igo M 14 |
| Tons | 1.98 |
| Year | 2021 |
Price On Request
The Potain Igo M 14 is a self-erecting tower crane with a maximum lift capacity of 2USt, a maximum jib length of 72.2ft, a maximum height under hook of 62.3ft, and a maximum capacity at tip of 0.7USt.
The Potain Igo M 14 has the full capabilities to have a fast but safe erection, equipped with hydraulic leveling and a new, improved erection check. Other features include considerable maneuverability with the steering chassis, steering axles with +/- 20-degrees, and multiple jib positions.
Potain HDT 80 For Sale or Rent
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | HDT 80 |
| Year | 2001 |
Price On Request
Potain MR 405 B H24 26.4-ton Luffing Jib Tower Crane For Sale or Rent
| Location |
Los Angeles, California US 2270 miles |
|---|---|
| Make | Potain |
| Model | MR 405 B H24 |
| Tons | 26.40 |
| Year | 2007 |
Price On Request
FINANCE YOUR EQUIPMENT FROM BIGGE WITH OUR EXCLUSIVE FINANCING PROGRAM
Bigge’s program is built from our experience selling the most cranes in the industry as well as buying and financing cranes for Bigge’s own Perfect Fleet™ of over 1,500 units. Our process is quick, easy, and flexible. We offer a range of competitive financing options to match your needs.
Potain MDT 219 J10 11-ton Flat Top Tower Crane For Sale or Rent
| Location |
Salt Lake City, Utah US 1817 miles |
|---|---|
| Make | Potain |
| Model | MDT 219 J10 |
| Tons | 11.00 |
| Year | 2019 |
Price On Request
The Potain MDT219 J10 is part of a new series, Potain MDT CCS City Range cranes help you get more work done faster and with greater precision. This tower crane has a max lift capacity of 10 metric tons (11 U.S. tons), a maximum hook height with a horizontal jib that reaches out to 65 m (213 ft). The height of the lattice mast reaches 70.4 m (231 ft). There is a jib counterbalance needed for the crane when carrying heavier loads at higher altitudes. The jib is fully assembled and cabled on the ground. The hoist motor at the base of the jib allows the complete cabling of the hoist and trolley mechanisms.
Potain MDT 219 J10 11-ton Flat Top Tower Crane For Sale or Rent
| Location |
San Leandro, California US 2397 miles |
|---|---|
| Make | Potain |
| Model | MDT 219 J10 |
| Tons | 11.00 |
| Year | 2017 |
Price On Request
The Potain MDT219 J10 is part of a new series, Potain MDT CCS City Range cranes help you get more work done faster and with greater precision. This tower crane has a max lift capacity of 10 metric tons (11 U.S. tons), a maximum hook height with a horizontal jib that reaches out to 65 m (213 ft). The height of the lattice mast reaches 70.4 m (231 ft). There is a jib counterbalance needed for the crane when carrying heavier loads at higher altitudes. The jib is fully assembled and cabled on the ground. The hoist motor at the base of the jib allows the complete cabling of the hoist and trolley mechanisms.
Potain Igo T 130 For Sale
| Location |
Houston, Texas US 1202 miles |
|---|---|
| Make | Potain |
| Model | Igo T 130 |
| Year | 2021 |
Price On Request
Potain Igo MA 21 For Sale
| Location |
Houston, Texas US 1202 miles |
|---|---|
| Make | Potain |
| Model | Igo MA 21 |
| Year | 2021 |
Price On Request
Potain Igo 50 For Sale
| Location |
Houston, Texas US 1202 miles |
|---|---|
| Make | Potain |
| Model | Igo 50 |
| Year | 2021 |
Price On Request
Manufacturers
ACE (Action Construction Equipment) (27)
ALFA (30)
Alpha Services (3)
Anupam-Alfa (2)
Arcomet (7)
BBL Cranes (5)
BCT (Baltic Crane Technologies) (2)
BPR (39)
BPR-Cadillon (28)
Benazzato Gru (80)
Betox Oy (3)
CINOmatic (6)
CMAX (12)
Cadillon (3)
Canduela (6)
Cattaneo (32)
Cibin (10)
Comansa (100)
Comedil (27)
Condecta (19)
Dalbe (23)
ENG Cranes (23)
ALFA (30)
Alpha Services (3)
Anupam-Alfa (2)
Arcomet (7)
BBL Cranes (5)
BCT (Baltic Crane Technologies) (2)
BPR (39)
BPR-Cadillon (28)
Benazzato Gru (80)
Betox Oy (3)
CINOmatic (6)
CMAX (12)
Cadillon (3)
Canduela (6)
Cattaneo (32)
Cibin (10)
Comansa (100)
Comedil (27)
Condecta (19)
Dalbe (23)
ENG Cranes (23)
EUROGRU (26)
Everdigm (2)
FAGECO Groupe ENMTP (3)
FB Gru (9)
FMGru (84)
Fari (9)
Favelle Favco (57)
Ferro (2)
Frick Krane (5)
GCI (1)
GC spa Peiner System (16)
Gelco Clever Crane (25)
Giraffe Crane (13)
Grove (3)
Gru Benedini (27)
HKTC (21)
Huba (1)
ITCRANES (38)
JOST (12)
Jaso (129)
KSD Kransysteme (18)
Koenig Cranes (3)
Everdigm (2)
FAGECO Groupe ENMTP (3)
FB Gru (9)
FMGru (84)
Fari (9)
Favelle Favco (57)
Ferro (2)
Frick Krane (5)
GCI (1)
GC spa Peiner System (16)
Gelco Clever Crane (25)
Giraffe Crane (13)
Grove (3)
Gru Benedini (27)
HKTC (21)
Huba (1)
ITCRANES (38)
JOST (12)
Jaso (129)
KSD Kransysteme (18)
Koenig Cranes (3)
Konig-Krane (47)
Kroll Cranes (28)
LUXcranes (11)
Liebherr (421)
Link-Belt (1)
Manitowoc (1)
Mantis Cranes (5)
Masol (7)
Metalbo (13)
Mitte Gru (9)
Montarent (1)
Omega Construction Equipment PVT (2)
Pecco (9)
Peiner (7)
Pekazett (31)
Pi Makina (5)
Potain (784)
RDLIFT (3)
Raimondi (87)
Recom S.R.L. (6)
RimaGru (5)
Saez (82)
Kroll Cranes (28)
LUXcranes (11)
Liebherr (421)
Link-Belt (1)
Manitowoc (1)
Mantis Cranes (5)
Masol (7)
Metalbo (13)
Mitte Gru (9)
Montarent (1)
Omega Construction Equipment PVT (2)
Pecco (9)
Peiner (7)
Pekazett (31)
Pi Makina (5)
Potain (784)
RDLIFT (3)
Raimondi (87)
Recom S.R.L. (6)
RimaGru (5)
Saez (82)
ACE (Action Construction Equipment) TC 5040-T
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) TC 5540-T
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) TC 6040B
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) TC 6544
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) TC 7054
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) TC 7074
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) LC 228B
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) LC 160B
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) LC 120
(Cranes, Hoists & Material Handlers : Tower Cranes)
ACE (Action Construction Equipment) LC 85
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M-4011
(Cranes, Hoists & Material Handlers : Tower Cranes)
Canduela MI2475
(Cranes, Hoists & Material Handlers : Tower Cranes)
Canduela MI1750
(Cranes, Hoists & Material Handlers : Tower Cranes)
Canduela C332
(Cranes, Hoists & Material Handlers : Tower Cranes)
Canduela C625
(Cranes, Hoists & Material Handlers : Tower Cranes)
Canduela C565
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M 1924
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M-3010
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M-3575
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M-4017
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M-4513
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M-5010
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M-6015
(Cranes, Hoists & Material Handlers : Tower Cranes)
Metalbo M-6020
(Cranes, Hoists & Material Handlers : Tower Cranes)
Raimondi LRH174
(Cranes, Hoists & Material Handlers : Tower Cranes)
Tower Cranes range from small mobile self-erecting tower cranes up to large fixed based hammerhead tower cranes that are used for large scale industrial projects.
Tower cranes are erected and tower crane operators lift concrete, steel beams and building materials from the ground to heights sometimes higher than 100 stories.
There are key parts to making a tower crane fully operationally.
To erect a hammerhead, flat top, luffing jib tower crane, a heavy concrete pad must be laid where the base of crane will be. Then the base of the crane is bolted down with massive bolts and the base of the tower crane is secured to the concrete pad.
The concrete paid is poured weeks in advance. The concrete pad ensures the tower cranes stability.
For largest of tower cranes, the pad may be up to 30' by 30' and 4' deep with a pad weight up to 400, 000 lb.
The large tower section that reaches upward in the sky is primarily referred as the mast sections by the crane industry.
At the very top of the mast, you will find the slewing unit, which allows the crane to rotate.
The boom section that extends out from the top of the crane is known among crane professionals as the jib section.
On the other side of the lifting jib, you will the concrete counterweight concrete slab. The counterweight ensures the crane stays balanced and lifts properly.
The crane operator’s cab, where an operator who is professionally trained operates the crane from.
Typically when a crane is anchored to a concrete slab a tower crane will not exceed more than 265' of mast for safety reasons. When a tower crane is secured to the side of a building, mast sections can be added as the building rises to increase the height of a tower crane.
The maximum a tower crane jib section crane reach is around 230', and the maximum allowable tonnage to be lifted at the end of the jib section is it 19.8 tons, or 18 metric tons.
Most Cranes come equipped with “load moment indicators (LMI)" which stop the crane from being overloaded. The switch monitors the load to ensure it doesn’t exceed the maximum load rating A secondary switch ensures the load, does not extend to an unsafe distance along the jib.
Outside of smaller self erecting tower cranes, the components of a tower crane are hauled to the job site and typlically a Mobile All Terrain Crane is used to assemble the jib section, the slewing unit and counterweights on the machinery arm and lifted atop the mast section.
Everyone always asks, how does the crane increase in height from the base up. Well, that is a complicated procedure and a “climber” is used. The climber jacks up the top section of the crane leaving enough space for a section mast’s latticework to slide in, which is done with the jib by the tower crane itself. Once the lattice is in place it is secured and the process with the climber is repeated.
Crane Market has a wide selection of Tower Cranes for Sale.
