Lattice Boom Cranes for Sale and Rent

Lattice Boom Specifications

Truck Mounted Cranes are in use worldwide by crane hire and rental companies as daily taxi cranes or as long-term rentals on steel erection, general construction job sites, and... Show More
  • Cranes For Sale (50)
  • Specifications (280)
  • Sold (46)
Manufacturers
American (7)
Bucyrus Erie (1)
Clark Lima (2)
Demag (2)
Grove (2)
Liebherr (1)
Lima (3)
Link-Belt (21)
Lorain (1)
Manitowoc (4)
P&H (6)
Sort By:
1989 Link-Belt HC-78B 35-Ton Lattice Boom Truck Crane; CranesList ID: 810

1989 Link-Belt HC-78B 35-Ton Lattice Boom Truck Crane; CranesList ID: 810 For Sale

Location California US
2311 miles
Make Link-Belt
Model HC-78B
Tons 35.00
Year 1989

$39,900 USD

by CranesList

1989 Link-Belt HC78B, 35 Ton Lattice Boom Truck Crane; CranesList ID: 810, 70' Main Angle Boom with 4 sheave boom tip, No Jib, Retractable High Gantry, Re-powered with a John Deere Diesel Up, Main and Auxiliary Winches with 5/8” on Main and 1/2” on Auxiliary wire rope, Drum Rotation Indicators, Power Load Lowering, Boom Angle Indicator, Four Sheave Hook Block, 15,200# Counterweights removable and held in position by T bolts - SUBJECT TO FINAL CONFIRMATION DURING TIME OF INSPECTION, 9' Wide Link-Belt 8 x 4 Carrier, Detroit Diesel Engine, Eaton Fuller Roadranger 13 Speed Forward and 3 Reverse Transmission - SUBJECT TO FINAL CONFIRMATION...
1970 Link-Belt HC-138 65-Ton Lattice Boom Truck Crane

1970 Link-Belt HC-138 65-Ton Lattice Boom Truck Crane For Sale

Location Brighton, Colorado US
1453 miles
Make Link-Belt
Model HC-138
Tons 65.00
Year 1970

$15,000 USD

by Creative Lifting Services

140' Main Tubular Boom, 30' Jib, Detroit Diesel Engine Up, Boom Angle Indicator, Planetary Boom Lowering, Weight Indicator, Boom Hoist Limiting Device, Hook Block and Ball, 18,000# Counterweights. Power hydraulic raised or lowered in seconds - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION, 11' Wide Link-Belt 8 x 4 Carrier, Detroit Diesel Engine, Eaton Fuller Roadranger 15 Speed Forward and 3 Reverse Transmission with Two Speed direct and low Auxiliary - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION, Front and Rear Tires: 14:00 X 20J 18 Ply - AS PER LINK-BELT SPECIFICATIONS & ...
Lorain MC 7125 125-ton Lattice Boom Conventional Truck Crane

Lorain MC 7125 125-ton Lattice Boom Conventional Truck Crane For Sale

Location Memphis, Tennessee US
743 miles
Make Lorain
Model MC-7125
Tons 125.00
Year 1973

$35,000 USD

by Barnhart Crane & Rigging

Lorain MC 7125 125-ton Lattice Boom Conventional Truck Crane for Sale Contact Barnhart for boom/jib configuration and current hours/miles.
Link-Belt HC-248H 200-ton Lattice Boom Conventional Truck Crane

Link-Belt HC-248H 200-ton Lattice Boom Conventional Truck Crane For Sale

Location Middletown, Connecticut US
308 miles
Make Link-Belt
Model HC-248H
Tons 200.00
Year 2000

Price On Request

by Barnhart Crane & Rigging

2000 Link-Belt HC-248H 200-ton Lattice Boom Truck Crane for Sale Detroit Series 60 engine Eaton RTO12908LL transmission 280' main boom 100' jib 88,440lbs counterweight 2 winches (main & aux. both good) Johnson 60T 2 sheave block, 3T 1 sheave 385/95R tires (all good) Close to East Coast Ports
Grove HL150T 150-ton Conventional Lattice Boom Truck Crane

Grove HL150T 150-ton Conventional Lattice Boom Truck Crane For Sale

Location Tampa, Florida US
818 miles
Make Grove
Model HL150T
Tons 150.00
Year 1991

Price On Request

by Sky Blue Trucking & Cranes. LLC

1991 150-ton Grove HL150T Conventional Lattice Boom Truck Crane for Sale. 190' Main Boom 100 Ton Hook Block Main and Aux drum Detroit 6V92 upper and lower engines Certified/Current annual inspection Clean Machine very good condition Joystick controls, Trimble LMI Painted to look like newer Grove GMK cranes Easy to assemble and easy to transport Hydraulic machine- not a friction crane. Very smooth running machine, good for a yard crane and good for long term job on site. Se habla español.
1966 Bucyrus Erie 30-B 60-Ton Lattice Boom Truck Crane

1966 Bucyrus Erie 30-B 60-Ton Lattice Boom Truck Crane For Sale

Location Cleveland, Ohio US
280 miles
Make Bucyrus Erie
Model 30-B Series Three
Tons 60.00
Year 1966

$45,000 USD

by Cleveland Crane & Shovel Sales, Inc.

1966 Bucyrus 60T S/N 128933 -130’ lattice Boom -Henderson Truck Chassis -Cummins Diesel -7k Miles ; 5k Hours -New boom hoist cable
Clark Lima 990-TC 90-Ton Lattice Boom Truck Crane

Clark Lima 990-TC 90-Ton Lattice Boom Truck Crane For Sale

Location Nuevo Leon MX
1603 miles
Make Clark Lima
Model 990-TC
Tons 90.00
Year 1975

$43,000 USD

by GRUAS GARCIA

Good running condition, complete boom and jib, cummins engines
1978 American 5530 75-Ton Lattice Boom Truck Crane; CranesList ID: 766

1978 American 5530 75-Ton Lattice Boom Truck Crane; CranesList ID: 766 For Sale

Location Mississippi US
812 miles
Make American
Model 5530
Tons 75.00
Year 1978

$54,900 USD

by CranesList

1978 American 5530, 75 Ton, Lattice Boom Truck Crane; CranesList ID: 766, 120' 47H Main Tubular Boom, No Jib, Cummins Diesel Engine with Three Stage Torque Converter UP, Main and Auxiliary Winches with Third Drum, Power Load Lowering on Main Drum, Hook Block, 26,500# Counterweights - SUBJECT TO FINAL CONFIRMATION, 11’ Wide 8 X 4 Carrier, Cummins Diesel Engine, Manual Transmission, Front and Rear Tires: 14:00 X R24 18-PR - SUBJECT TO FINAL CONFIRMATION, Hydraulic Outriggers, Crane has not worked in a few years, Certified. http://www.CranesList.com, LOCATED IN MISSISSIPPI!
1966 Link-Belt HC-108B 45-Ton Lattice Boom Truck Crane; CranesList ID: 748,

1966 Link-Belt HC-108B 45-Ton Lattice Boom Truck Crane; CranesList ID: 748, For Sale

Location Virginia US
129 miles
Make Link-Belt
Model HC-108B
Tons 45.00
Year 1966

$34,500 USD

by CranesList

1966 Link Belt HC 108B, 45 Ton, Lattice Boom Truck Crane; CranesList ID: 748, 80’ Main Angle Boom...Alloy Steel main angle chords consisting of a 1 x 20' x 34" x 34" base, 1 x 20' x 34" x 34" and 40' of various length boom inserts, 30' Angle Jib, Cummins Diesel Engine (Upper)  Main and Auxiliary Winches With 3/4” Wire Rope, Third Drum, Hook Ball and Block - To Be Discussed, 19,200# standard counterweights - SUBJECT TO FINAL CONFIRMATION, 11’ Wide 8 X 4 Link Belt Carrier, Cummins Diesel Engine  (Lower)  Manual Transmission, Front and Back Tires: 14...
1980 American 5530 75-Ton Lattice Boom Truck Crane

1980 American 5530 75-Ton Lattice Boom Truck Crane For Sale

Location Virginia US
129 miles
Make American
Model 5530
Tons 75.00
Year 1980

Price On Request

by Atlantic Coast Cranes & Machinery, Inc. (ACC)

190' 47H Tubular Boom GM4-71 Diesel Engine w/ 3-stage Torque Converter
1968 American 4450 40-Ton Lattice Boom Truck Crane; CranesList ID: 743

1968 American 4450 40-Ton Lattice Boom Truck Crane; CranesList ID: 743 For Sale

Location Virginia US
129 miles
Make American
Model 4450
Tons 40.00
Year 1968

$17,500 USD

by CranesList

1968 American 4450, 40 Ton, Lattice Boom Truck Crane; CranesList ID: 743, 150' 47S Main Tubular Boom, No Jib, GM4-71 Diesel Engine with Three Stage Torque Converter UP - Needs to be rebuilt, Main and Auxiliary Winches with Third Drum, Control Load Lowering, Hook Ball or Hook Block - SUBJECT TO FINAL CONFIRMATION, Front tow hooks, 11’ Wide 8 X 4 Carrier, GM 6-71 Diesel, Manual Transmission, Front and Rear Tires: - SUBJECT TO FINAL CONFIRMATION, Crane has been sitting for 3 to 4 years. http://www. CranesList.com, LOCATED IN VIRGINIA!
P&H 790-TC 70-Ton Lattice Boom Truck Crane

P&H 790-TC 70-Ton Lattice Boom Truck Crane For Sale

Location Lancaster, Pennsylvania US
92 miles
Make P&H
Model 790-TC
Tons 90.00
Year 1978

$38,000 USD

Was

$45,000 USD

by Steel Fab Enterprises, LLC

400 Cummins motors - lower & upper 200' of boom 62' of jib Full rigging box 15,459 miles Runs Near the Port of Baltimore for Shipping
Link-Belt HC-238H 150-ton Lattice Boom Conventional Truck Crane:CranesList ID: 659

Link-Belt HC-238H 150-ton Lattice Boom Conventional Truck Crane:CranesList ID: 659 For Sale

Location Colorado US
1508 miles
Make Link-Belt
Model HC-238H
Tons 150.00
Year 1999

$383,900 USD

Was

$393,900 USD

by CranesList

1999 Link-Belt HC238H, 150 Ton, Lattice Boom Truck Crane; CranesList ID: 659, 200' Tubular Main Boom consisting of: 1 x 20' Base Section + 1 x 30' Open Throat Top Section + Various Length Boom Inserts, 50' Tubular Jib, Isuzu A-6SD1TQB Six Cylinder 207 HP Diesel Engine UP, Main and Auxiliary winches with 7/8" Wire Rope, Drum Rotation Indicators, Power Load Lowering, Load Moment Indicator, Anti–Two Block, Hook Ball and Hook Block, Upper Counterweight: 23,000#. “A” counterweight, 19,330# “B” counterweight, 27,000# “C”, Aluminum Diamond Plate Decking, 11' Wide 8 x 4 Link-Belt Carrier...
1995 Link-Belt HC-248H 200-Ton Lattice Boom Truck Crane; CranesList ID: 690

1995 Link-Belt HC-248H 200-Ton Lattice Boom Truck Crane; CranesList ID: 690 For Sale

Location Utah US
1790 miles
Make Link-Belt
Model HC-248H
Tons 200.00
Year 1995

$199,900 USD

Was

$210,000 USD

by CranesList

1995 Link-Belt HC248H, 200 Ton Lattice Boom Truck; CranesList ID: 690, 235' Tubular Main Boom including 1 X 20' Base, 1 X 25' Tip and various lengths of inserts, 100' Basic Jib Offsettable at 5, 15, 25 degrees, 30' Boom Live Mast - long supports the boomhoist bridle and boom pendants, and is required for all boom lengths and combinations. Isuzu 6SD1TQB-01, Six Cylinder, 248 HP, Diesel Engine UP, Main and Auxiliary Winches with 8 Parts Of Line and 1" Wire Rope, Boom Angle Indicator, Drum Rotation Indicator, Power Load Lowering with Freefall, 2 Speed on Main,  Anti-Two Block, PAT DS-350 Rated Capacity Limiter, Hook Ball ...

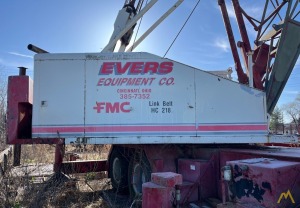

1978 Link-Belt HC-218 82-Ton Lattice Boom Truck Crane; CranesList ID: 689

1978 Link-Belt HC-218 82-Ton Lattice Boom Truck Crane; CranesList ID: 689 For Sale

Location Texas US
1349 miles
Make Link-Belt
Model HC-218
Tons 82.00
Year 1978

$34,900 USD

Was

$39,500 USD

by CranesList

1978 Link-Belt HC218, 82 Ton, Lattice Boom Truck Crane; CranesList ID: 689, 200' Main Tubular Boom, Mid point Pendant Lines, 45' Jib, Cummins Diesel Engine Up, Twin Disc Torque Convertor, Main and Auxiliary Winches with 3/4" wire rope, Boom Angle Indicator, Drum Rotation Indicator, Cranesmart Load indicator, Hook Ball, Five Sheave Hook Block, 21,000# A Upper Counterweights, 11' Wide Link-Belt 8 x 4 Carrier, Cummins Diesel Engine, Eaton Fuller Roadranger RTO-915 15 Speed Forward and 3 Reverse Transmission - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION, Front and Rear Tires: 14:00 X 24J 18 Ply - SUBJECT TO FINAL...
Liebherr LG 1750 SX 850-ton Lattice Boom Truck Crane

Liebherr LG 1750 SX 850-ton Lattice Boom Truck Crane For Sale

Location US
1000 miles
Make Liebherr
Model LG 1750 SX
Tons 850.00
Year 2023

Price On Request

by SAS Cranes and Logistics, LLC

STOCK PHOTOS This BRAND NEW Liebherr LG 1750 SX is available only with a Rental Purchase Option. The estimated delivery from the Liebherr factory is early 2023. The SX boom system increases lifting capacities by as much as 30%.  Metric Measurements Max capacity 750 mt  Max load moment 9864 tm  Crane carrier Frame  8 Axles, 16x8 drive, 18.00 R25 tires  Motor drive  Exhaust system with a spark arrester  ZF TC-Tronic automatic gearbox  Torque converter and retarder  Single-stage transfer case  Hydropneumatic suspension  ZF hydraulic steering, 2 circuits  Steered rear axle, crab ...
1982 Link-Belt HC-238B 140-Ton Lattice Boom Truck Crane; CranesList ID: 688

1982 Link-Belt HC-238B 140-Ton Lattice Boom Truck Crane; CranesList ID: 688 For Sale

Location Texas US
1349 miles
Make Link-Belt
Model HC-238B
Tons 140.00
Year 1982

$79,900 USD

Was

$99,900 USD

by CranesList

1982 Link-Belt HC238B, 140 Ton Lattice Boom Truck Crane; CranesList ID: 688, 200' Pin Connected Tubular Main Boom, Mid-Point Pendant Lines, 45' Jib, Cummins Diesel Engine Up, Three Stage Torque Convertor, Main and Auxiliary winches with 1" Wire Rope, Drum Rotation Indicator,  Overhaul Ball, Three Sheave Hook Block, Five Sheave Hook Block, A&B Counterweights 30,000# each - 60,000# Total - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION, 11' 10" Wide Link-Belt 8 x 4 Carrier, Cummins Diesel Engine, Eaton Fuller 10 speed Forward and 3 Reverse Transmission - AS PER LINK-BELT SPECIFICATIONS & SUBJECT...
Link-Belt HC-238 125-ton Conventional Lattice Boom Truck Crane

Link-Belt HC-238 125-ton Conventional Lattice Boom Truck Crane For Sale

Location Cincinnati, Ohio US
378 miles
Make Link-Belt
Model HC-238
Tons 125.00
Year 1973

$60,000 USD

by Evers Steel Construction, LLC.

1973 Link-Belt HC-238 125-ton Conventional Lattice Boom Truck Crane for Sale Cummins Up and Down Block and Ball Everything works and is ready to go May need a few tires  (2) owner Machine. We bought it from Hallamore in 1992
Manitowoc 3900T 140-ton Conventional Lattice Boom Truck Crane

Manitowoc 3900T 140-ton Conventional Lattice Boom Truck Crane For Sale

Location Texas US
1349 miles
Make Manitowoc
Model 3900T
Tons 140.00
Year 1973

Price On Request

by Montgomery Cranes

Manitowoc 3900T Lattice Boom Truck Crane for Sale  Comes with: 200’ boom No. 9A Boom,  60’ No 124 Fixed Jib, Blocks, and Ball Includes: Split Main and Auxiliary Drums, Vicon Controls, and 122,000 lbs Counterweight Upper - Cummins NT-855 Diesel Engine Lower – Cummins NTC-350,  Eaton – 13-speed Main transmission Eaton Aux. Transmission 12 x 6 Carrier 14:00 x  20 Tires Call for Great Pricing Ready to Sell
Manitowoc 2900T 70-ton Lattice Boom Truck Crane

Manitowoc 2900T 70-ton Lattice Boom Truck Crane For Sale

Location Pasco, Washington US
2147 miles
Make Manitowoc
Model 2900T
Tons 70.00
Year 1966

Price On Request

by Lampson International

MANITOWOC 2900T Lattice Boom Crawler Crane for Sale BOOM-TYPE NO. 16 TOTAL COUNTERWEIGHT 26,000# HYDRAULIC OUTRIGGER'S  CUMMINS UPPER AND LOWER 3 DRUM MACHINE 7/8 MAIN 3/4 AUX  1/2 THIRD DRUM USED  AS IS WHERE IS
Manitowoc 2900T 70-Ton Lattice Boom Truck Crane

Manitowoc 2900T 70-Ton Lattice Boom Truck Crane For Sale

Location Pasco, Washington US
2147 miles
Make Manitowoc
Model 2900T
Tons 70.00
Year 1965

Price On Request

by Lampson International

2900T MANITOWOC TOTAL COUNTERWEIGHT 26,000# BOOM TYPE NO. 16 CUMMINS UPPER AND LOWER HYD. OUTRIGGERS 3 DRUM MACHINE 7/8 MAIN 3/4 AUX 1/2 THIRD DRUM USED AS IS WHERE IS
P&H 670-TC 70-Ton Lattice Boom Truck Crane

P&H 670-TC 70-Ton Lattice Boom Truck Crane For Sale

Location Miami, Florida US
932 miles
Make P&H
Model 670-TC
Tons 70.00
Year 1973

$11,999 USD

Was

$17,999 USD

by Executive Branch, LLC

P&H 670-TC 70-Ton Lattice Boom Truck Crane For Sale This crane was Certified thru 2021 for a project that is now complete.  Cummins engines.  27,000 & 12,000 lbs. counterweights, Low Miles!! Work Ready!! Boom/jib combination.  50' lattice boom 40' lattice boom 30' lattice boom 27' jib 21' jib Lower Truck Carrier stored in Miami Upper Superstructure, Counterweights, Boom, Jib, stored in Orlando at Southeastern Rigging
1978 P&H 790-TC 90-Ton Lattice Boom Truck, Crane CranesList ID: 584

1978 P&H 790-TC 90-Ton Lattice Boom Truck, Crane CranesList ID: 584 For Sale

Location GT
1783 miles
Make P&H
Model 790-TC
Tons 90.00
Year 1978

$70,000 USD

by CranesList

1978 P&H 790TC, 90 Ton, Lattice Boom Truck, CranesList ID: 584, 120' Tubular pin connected Lattice Main Boom consisting of 1 x 20’ base, 1 x 20’ tip, 1 x 10', 1 x 20', 1 x 50' boom inserts, No Jib, Cummins Diesel Engine UP, Main and Auxiliary Winches with 7/8" wire Rope, Hook Ball, 90 Ton Hook Block, 11' Wide 8 x 4 P&H Carrier, Cummins 350 Big Cam Diesel Engine, Fuller Road Ranger Manual Transmission, Front and Rear Tires: 14:00 X 24 With 50% Left, http://www.CranesList.com, LOCATED IN GUATEMALA!
P&H 670-TC 70-ton Lattice Boom Conventional Truck Crane

P&H 670-TC 70-ton Lattice Boom Conventional Truck Crane For Sale

Location Pasco, Washington US
2147 miles
Make P&H
Model 670-TC
Tons 70.00
Year 1974

Price On Request

by Lampson International

P&H 70-ton 670-TC Lattice Boom Truck Crane for Sale 2 DRUM CRANE TUBULAR BOOM AS IS WHERE IS Contact Us for Current Hours and Miles Owned Since New Includes Full Service and Maintenance History
P&H 670-TC 70-ton Lattice Boom Truck Crane

P&H 670-TC 70-ton Lattice Boom Truck Crane For Sale

Location Pasco, Washington US
2147 miles
Make P&H
Model 670-TC
Tons 70.00
Year 1973

Price On Request

by Lampson International

P&H 670-TC LATTICE BOOM TRUCK CRANE WITH HYDRAULIC OUTRIGGERS 2 DRUM CUMMINS UPPER / LOWER ALL GLASS IS GOOD AS IS WHERE IS
  • 1
  • 2
1 to 25 from 50 Results
Manufacturers
American (29)
Bantam (1)
Bucyrus Erie (2)
Clark (1)
Clark Lima (2)
Coles (2)
Demag (15)
Gottwald (9)
Grove (2)
HSC Cranes (5)
Kobelco (7)
Liebherr (53)
Lima (6)
Link-Belt (86)
Lorain (13)
Manitowoc (8)
National OS (1)
P&H (16)
P&H Kobelco (13)
Sumitomo (1)
Tadano (4)
Terex Demag (4)

Gottwald AK 350

(Cranes, Hoists & Material Handlers : Truck Cranes)

Gottwald AK 350 Specifications

Liebherr LG 1750 SX

(Cranes, Hoists & Material Handlers : Truck Cranes)

Liebherr LG 1750 SX Specifications Liebherr LG 1750 SX Specifications

Coles Illustrious

(Cranes, Hoists & Material Handlers : Truck Cranes)

Coles Illustrious Specifications

Link-Belt 65HT

(Cranes, Hoists & Material Handlers : Truck Cranes)

Link-Belt 65HT Specifications Link-Belt 65HT Specifications

Manitowoc 3900T

(Cranes, Hoists & Material Handlers : Truck Cranes)

Manitowoc 3900T Specifications Manitowoc 3900T Specifications

Manitowoc 2900T

(Cranes, Hoists & Material Handlers : Truck Cranes)

Manitowoc 2900T Specifications

Sumitomo SQ500HD

(Cranes, Hoists & Material Handlers : Truck Cranes)

Sumitomo SQ500HD Specifications

Terex Demag TC 2500

(Cranes, Hoists & Material Handlers : Truck Cranes)

Terex Demag TC 2500 Specifications

Bantam T-350A

(Cranes, Hoists & Material Handlers : Truck Cranes)

Bantam T-350A Specifications

Lima 4700

(Cranes, Hoists & Material Handlers : Truck Cranes)

Lima 4700 Specifications

American 4450

(Cranes, Hoists & Material Handlers : Truck Cranes)

American 4450 Specifications

American 4460

(Cranes, Hoists & Material Handlers : Truck Cranes)

American 4460 Specifications American 4460 Specifications

Link-Belt HC-248J

(Cranes, Hoists & Material Handlers : Truck Cranes)

Link-Belt HC-248J Specifications

American 7460

(Cranes, Hoists & Material Handlers : Truck Cranes)

American 7460 Specifications American 7460 Specifications American 7460 Specifications

Tadano TG-500E

(Cranes, Hoists & Material Handlers : Truck Cranes)

Tadano TG-500E Specifications

P&H 435-TC

(Cranes, Hoists & Material Handlers : Truck Cranes)

P&H 435-TC Specifications

P&H 440-TC

(Cranes, Hoists & Material Handlers : Truck Cranes)

P&H 440-TC Specifications P&H 440-TC Specifications

Lorain MC-7125

(Cranes, Hoists & Material Handlers : Truck Cranes)

Lorain MC-7125 Specifications

Lorain MC-550A

(Cranes, Hoists & Material Handlers : Truck Cranes)

Lorain MC-550A Specifications

Lorain MC 1400

(Cranes, Hoists & Material Handlers : Truck Cranes)

Lorain MC 1400 Specifications

American 5460

(Cranes, Hoists & Material Handlers : Truck Cranes)

American 5460 Specifications

P&H 430A-TC

(Cranes, Hoists & Material Handlers : Truck Cranes)

P&H 430A-TC Specifications

Lima 990-TC

(Cranes, Hoists & Material Handlers : Truck Cranes)

Lima 990-TC Specifications

Liebherr LG 1500

(Cranes, Hoists & Material Handlers : Truck Cranes)

Liebherr LG 1500 Specifications

American 5510

(Cranes, Hoists & Material Handlers : Truck Cranes)

American 5510 Specifications

  • 1
  • 2
  • 3

Truck Mounted Cranes are in use worldwide by crane hire and rental companies as daily taxi cranes or as long-term rentals on steel erection, general construction job sites, and more.  This type of crane has either a hydraulic telescopic boom or a lattice tubular boom mounted on a truck chassis with a swing operator's cab.

The Conventional Type Lattice Boom Truck Crane was first developed in the middle part of the twentieth century.  The concept of mounting a Lattice Boom crane superstructure on a truck-mounted chassis stemmed from the need for a crane to be mobile so it could move to and from job sites without having to be fully disassembled.

Typically, the lower chassis carrier of a lattice boom truck crane drives to the job site, and sometimes the crane superstructure travels as well with the carrier depending on the total weight of the machine.

The lattice boom sections, counterweight and jib sections travel on flatbed trucks and are assembled on site. Once a lattice boom crane is assembled and ready to work it can be driven around the site and pick loads from various locations.

During the late 1960s, as telescopic boom hydraulic trucks were introduced to the crane marketplace, smaller model lattice boom cranes were phased out as telescopic cranes offered better mobility.

With the advent of Telescopic Hydraulic Boom Crane technology Lattice Truck Cranes have decreased in popularity but are still in use today because of their powerful lifting capacities, quick reave line speeds and mobility once fully assembled.  Lattice boom truck cranes are still used by steel erectors, port terminals, and bridge contractors because of their excellent load charts.

Lattice boom truck cranes can also be configured for dragline, clamshell, and pile driving work.

However, finding qualified crane operators that know how to run these fiction rigs is becoming increasingly rare.

The telescopic boom-type truck crane offers advantages over a conventional lattice boom truck crane despite a decrease in load capabilities throughout the range of the crane chart. The advantages are a telescopic boom truck crane can travel to and from job sites with the boom and is generally able to set up without an assist crane.

The telescopic boom truck crane can be found in most crane rental fleets and offers quick set-up times along with high-reach boom lengths and excellent highway travel speeds.  Stronger lifting charts than most boom truck these cranes can lift up 150 US tons.  The most common models in production are manufactured by Link-Belt, Terex, and Grove and range from 40-150 ton capacity and provide lifting heights up to 311 feet.

Search new or used Truck Mounted Cranes for Sale or Rent on cranemarket.com and buy direct from the crane dealers and owner-operators.

Crane Specifications, Load Charts, and Crane Manuals are for *Reference Only* and are not to be used by the crane operator to operate any type of crane, telehandler, lift truck or aerial access device. To obtain OEM Crane Service, Crane Parts or Crane Maintenance Manuals, contact the crane and or lifting manufacturer directly.

214-775-0104 | [email protected]

  • Who We Are
  • Pricing
  • Contact
  • Testimonials
  • Industry News
Crane Market
  • Terms & Conditions
  • ©2023 Machine Market LLC
Accepted Cards

Calculate Distance from:

Please Login or Register first.


Login   Register
