1994 Link-Belt HC-248, 200 Ton, Lattice Boom Truck Crane - CranesList ID: 1086 For Sale
Location: Utah, USA Get a Shipping Quote Get Finance QuoteNew Listing
| Status | For Sale |
|---|---|
| Year | 1994 |
| Manufacturer | Link-Belt |
| Model | HC-248H |
| Condition | Used |

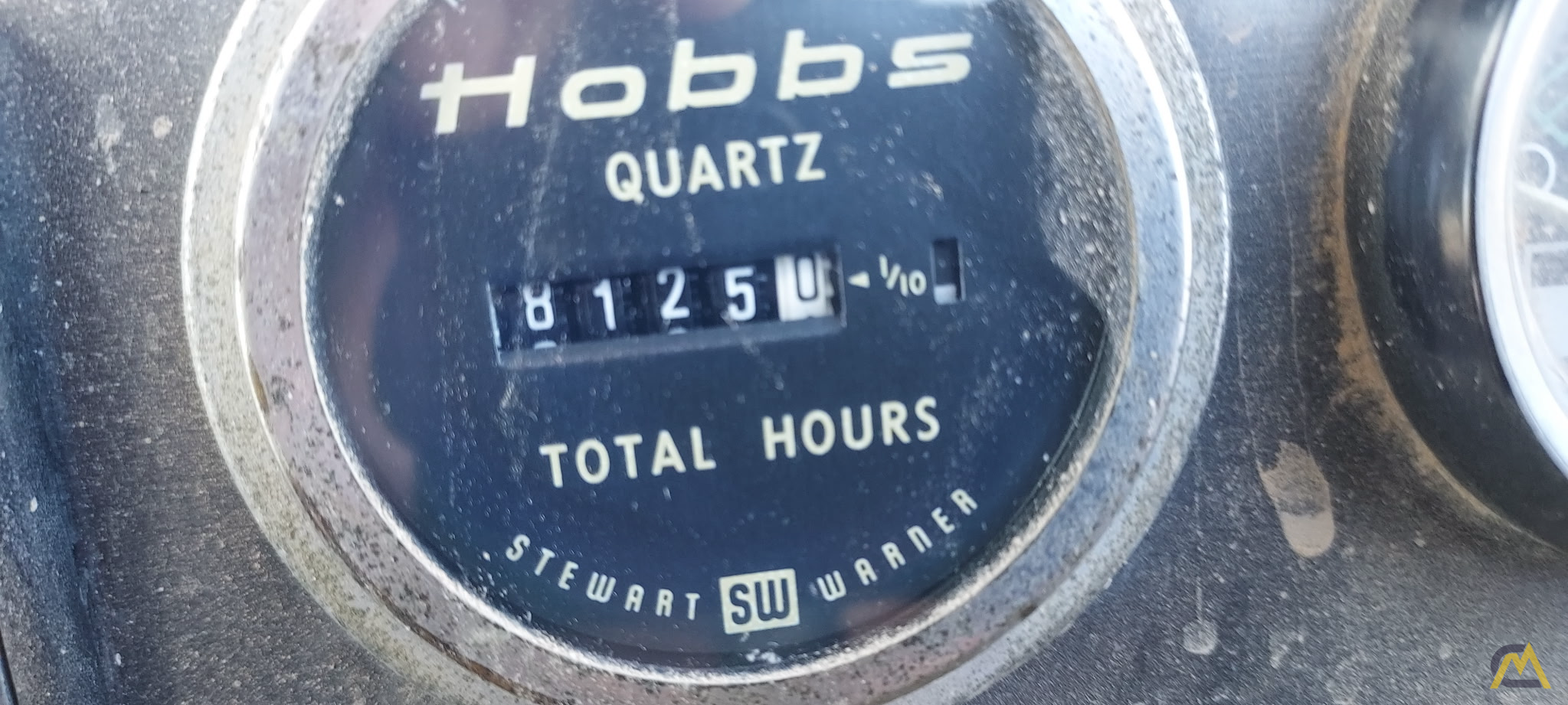

| Hours | 8,125 Down and 5,830 Up as of 8.2026 |
| Stock Unit # | 1086 |
| Ton (USt) | 200.00 |
| Lifting Capacity | 400,000 lbs. (181,500 kg) |
| Luffing Jib Length | Available |
| Traveling Speed | 58.5 mph (94.2 km/h) |
| Maximum Counterweight | 64,440 lbs. (29,229 kg) |
| Base Weight (GVW) | 93,167 lbs. (42,273 kg) |
| Transmission Type | Manual |
| Upper Superstructure Engine | Cummins |
| Lower Carrier Engine | Cummins |
| Category | Truck Cranes |
| Sub Category | Lattice Boom |
| Show More | |
| Hide |
DESCRIPTION

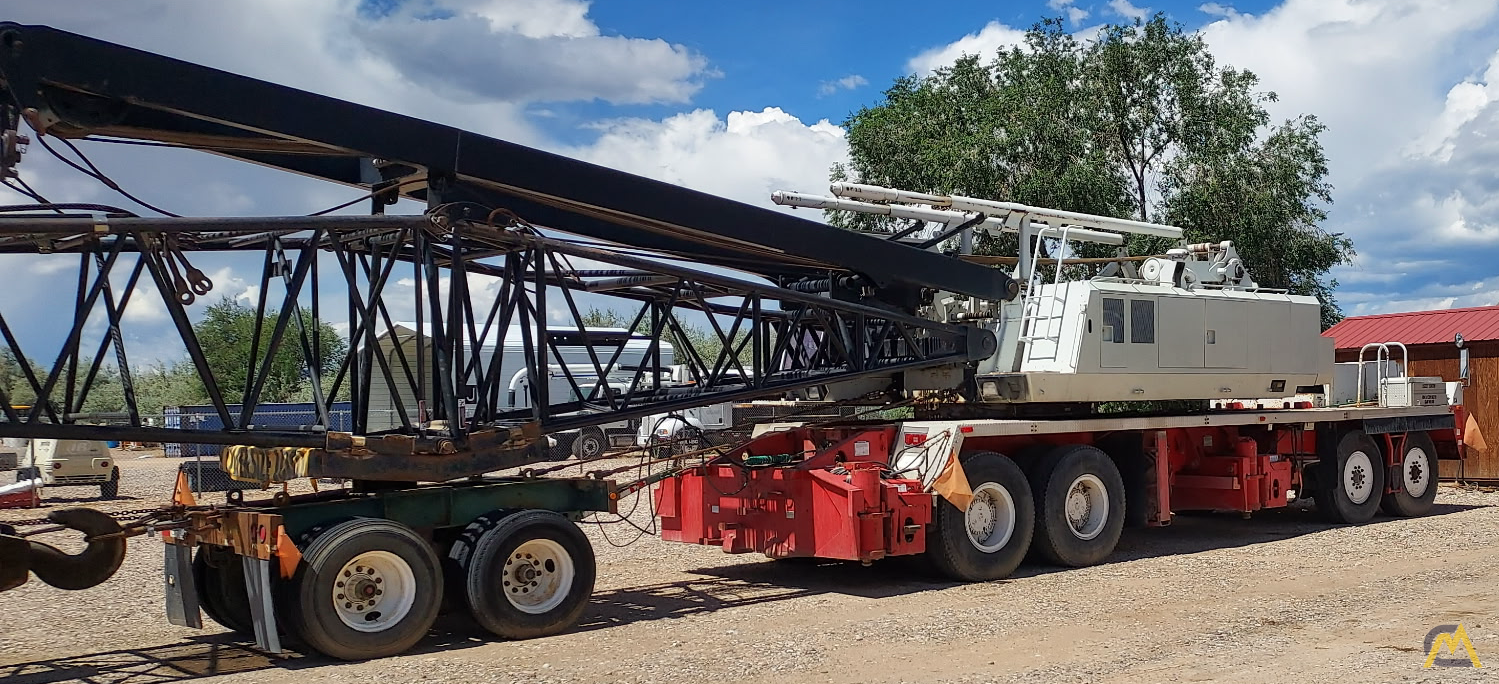

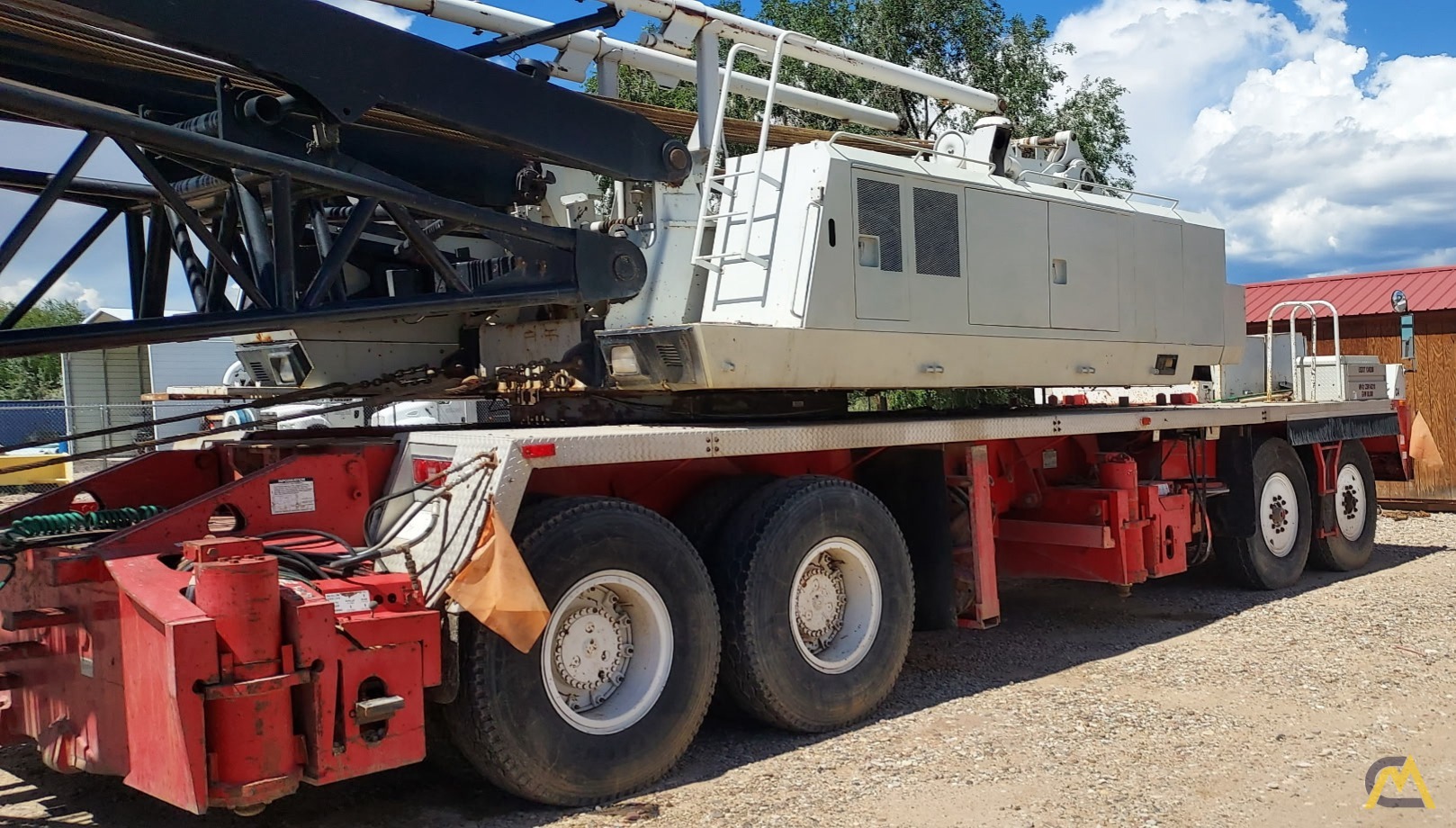

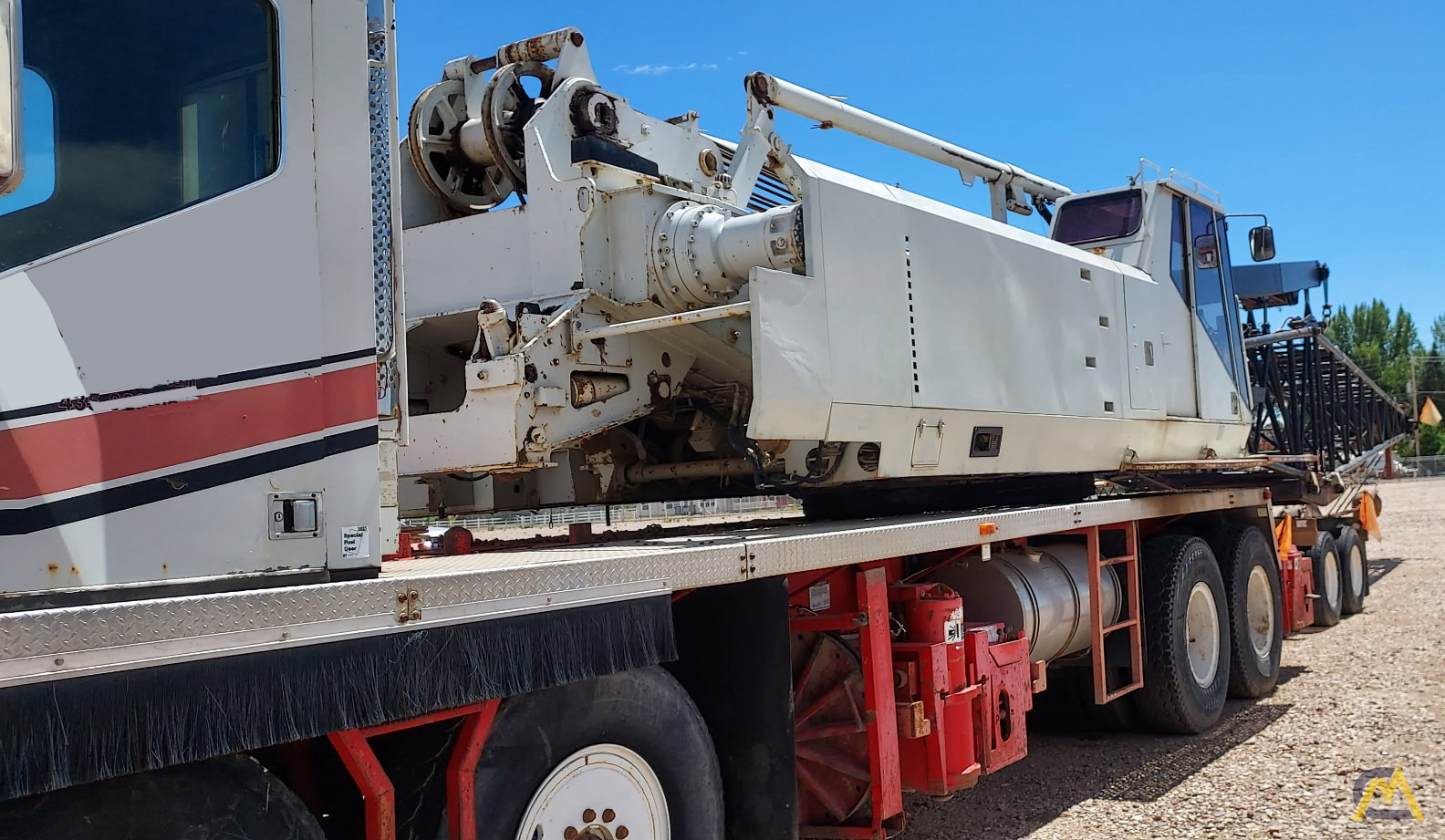

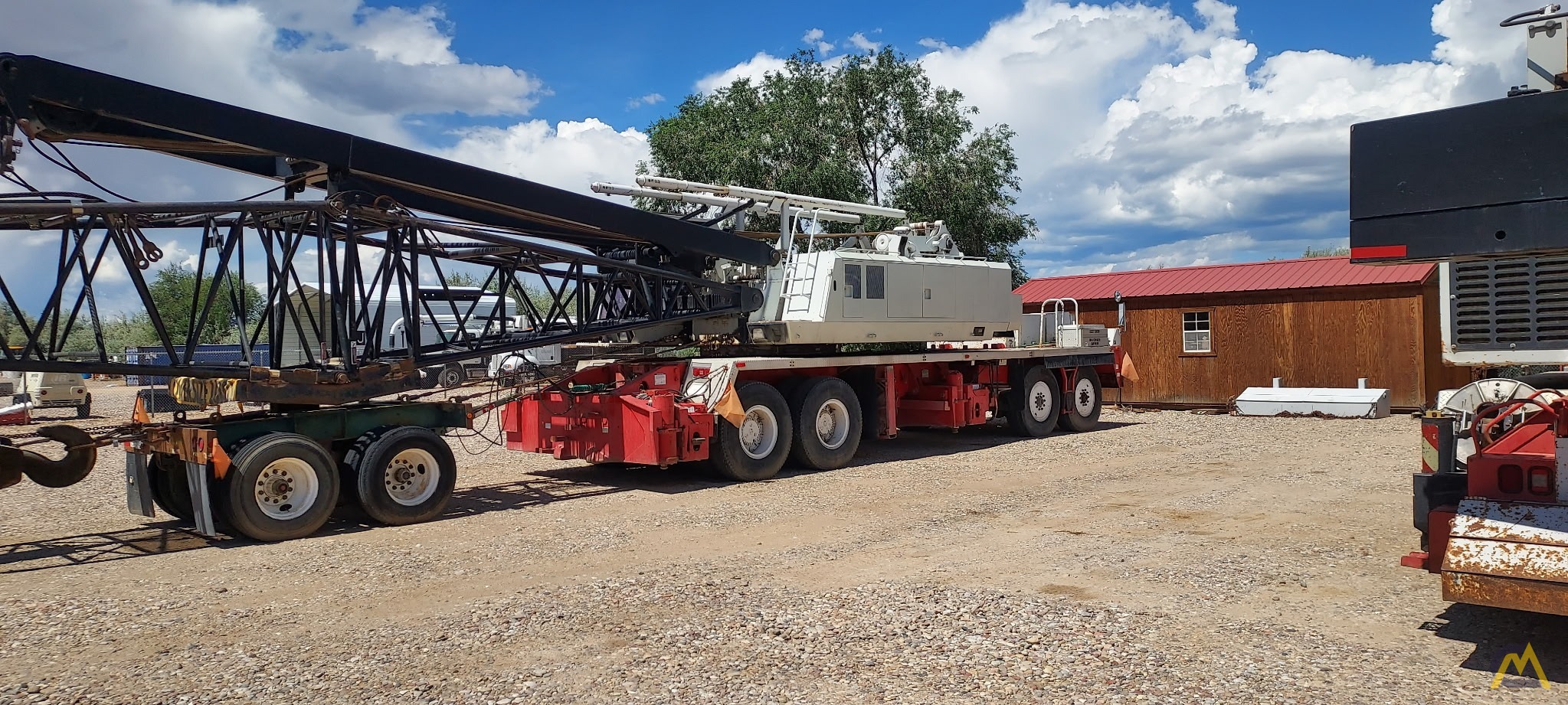

1994 Link-Belt HC-248H, 200 Ton, Lattice Boom Truck Crane; CranesList ID: 1086
- 200' Tubular Main Boom including 1 X 20' Base, 1 X 25' Tip and various lengths of inserts
- 80' Basic Jib Offsettable at 5, 15, 25 degrees
- 30' Boom Live Mast - long supports the boomhoist bridle and boom pendants, and is required for all boom lengths and combinations
- Isuzu 6SD1TQB-01, Six Cylinder, 248 HP, Diesel Engine UP
- Crane is hydro operated
- Main and Auxiliary Winches with 8 Parts Of Line and 1" Wire Rope,
- Boom Angle Indicator, Drum Rotation Indicator, Power Load Lowering with Freefall, 2 Speed on Main, Anti-Two Block, PAT DS-350 Rated Capacity Limiter,
- Hook Ball
- 75 Ton Hook Block
- 200 Ton Hook Block
- Three-piece "ABC"counterweight consisting of 23,000# "A" counterweight, 19,330# "B" counterweight, and 21,110# "C" counterweight. Total weight: 64,440#
- Rooftop access ladder to Machinery Cab
- Operators Cab - Fully enclosed, one person. Galvaneal steel construction lined with vinyl covered acoustical insulation. Equipped with: Swing-up roof window, Sliding right-side door, Sliding tinted left-side window, Door and window locks, Fire extinguisher, Sun visor, Dome light, Rubber floor mat

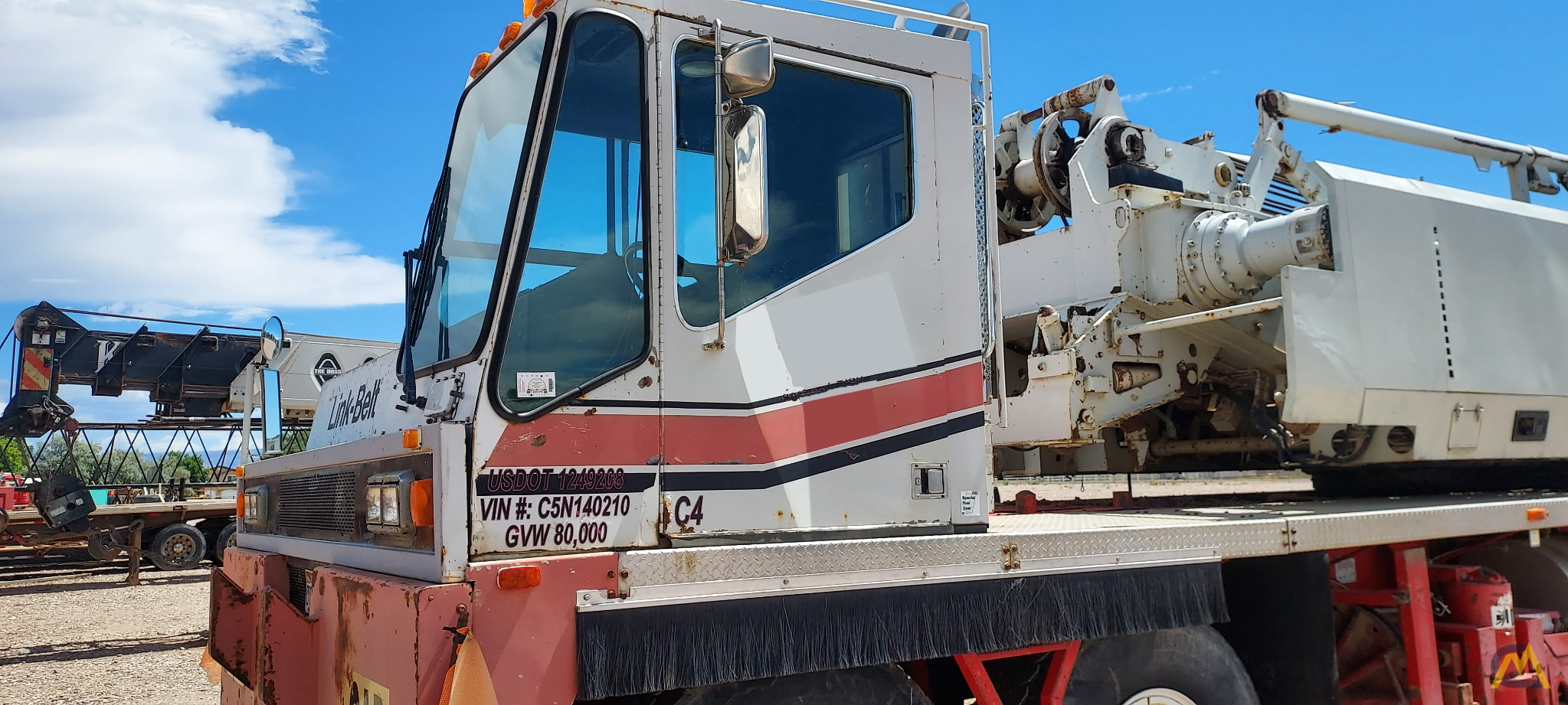

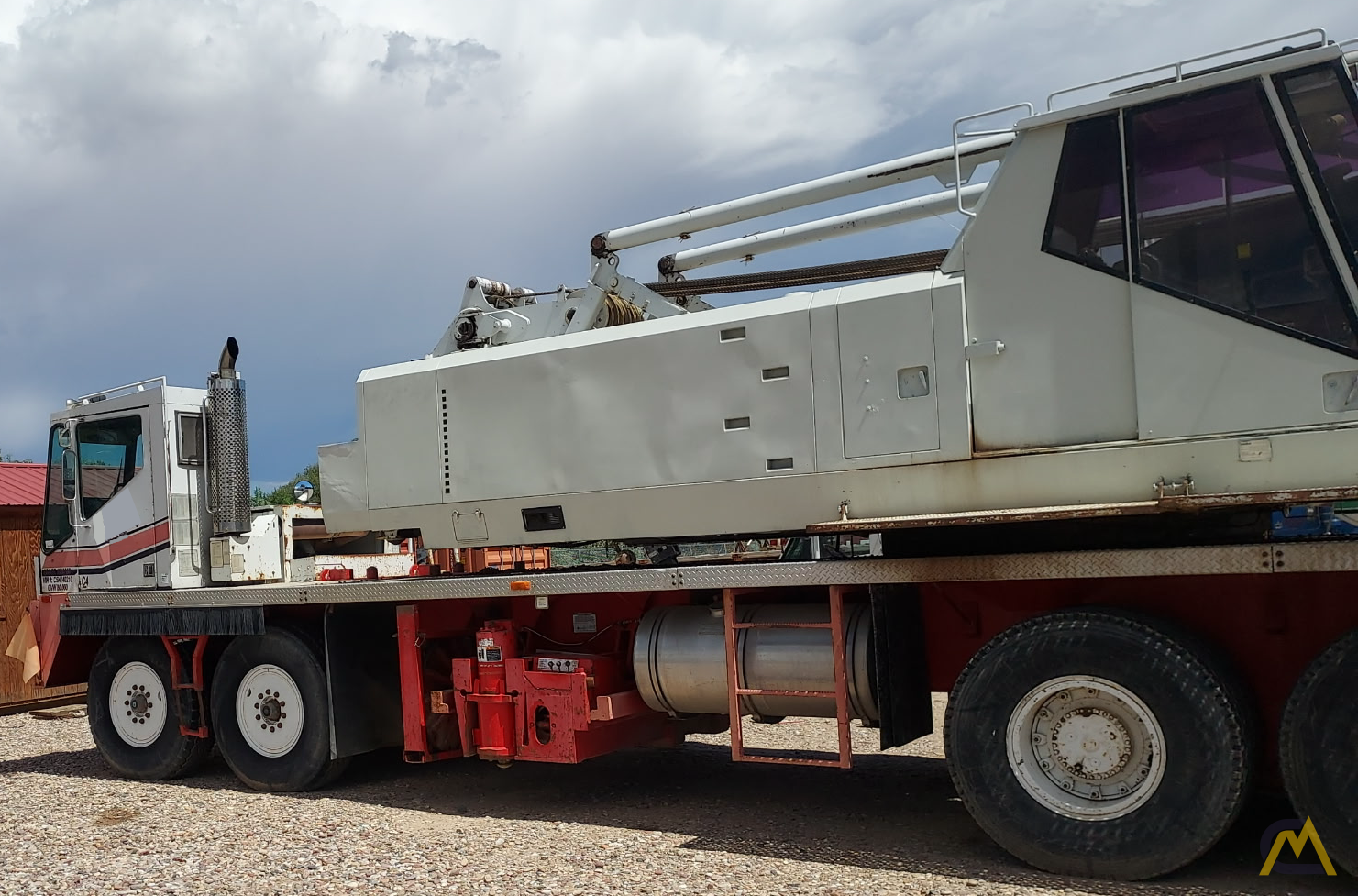

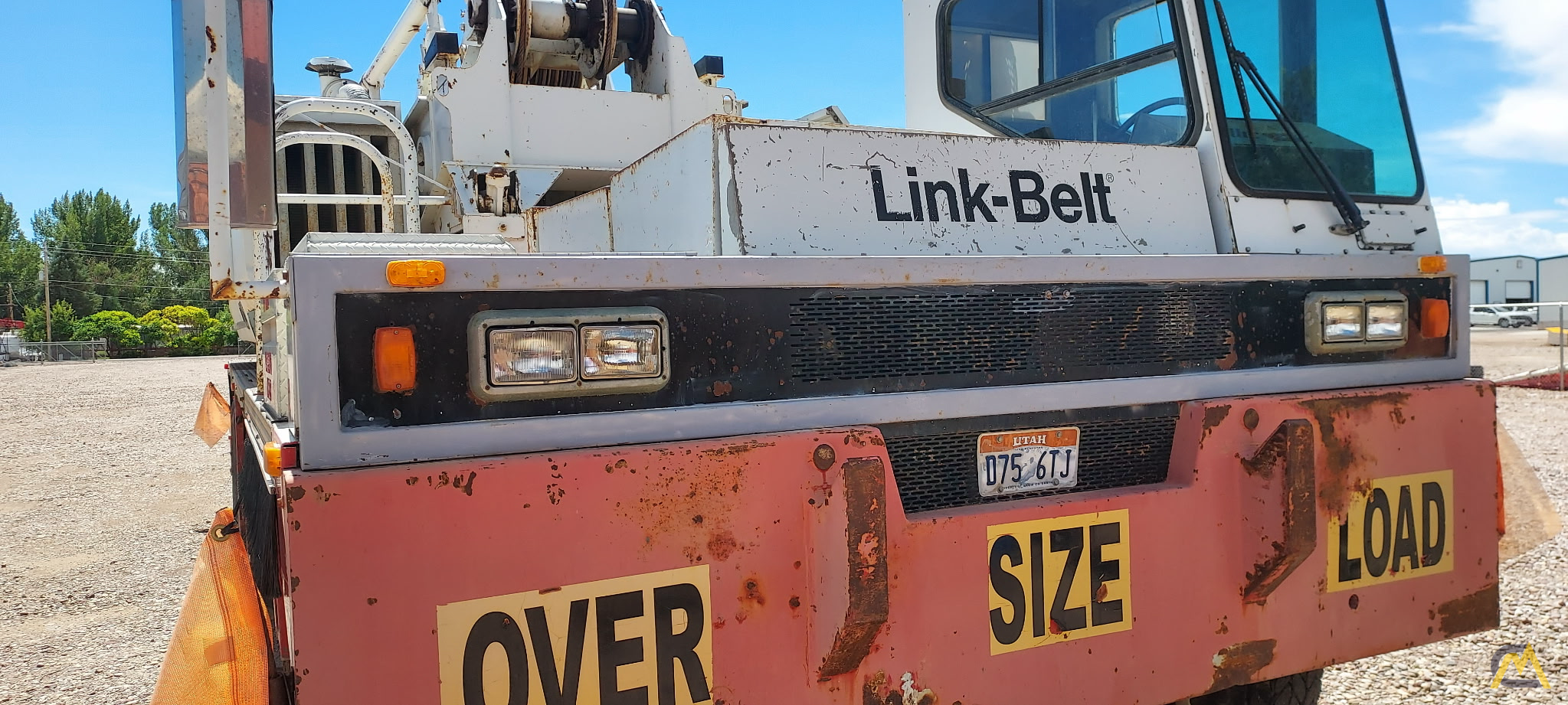

- 11' Wide 8 x 4 x 4 Link-Belt Carrier with Tilt-out cab
- Detroit Series 60 Six Cylinder Diesel Engine
- Jake Brake
- Eaton RTO14908LL Manual and Spicer Auxiliary with 8 progressive highway gears and 2 "super low" gears for 10 forward and 3 reverse speeds Transmission
- Front and Rear Tires: 14R24
- Outriggers: Double-box, dual beams front and rear, pin connected to carrier frame. Hydraulically operated beams and jack cylinders are individually controlled from each side of carrier
- 5th Front Outrigger
- Bumper Counterweight - Two-piece AB counterweight consisting of 13,500# A counterweight and 11,500# B counterweight. Total weight - 25,000#.

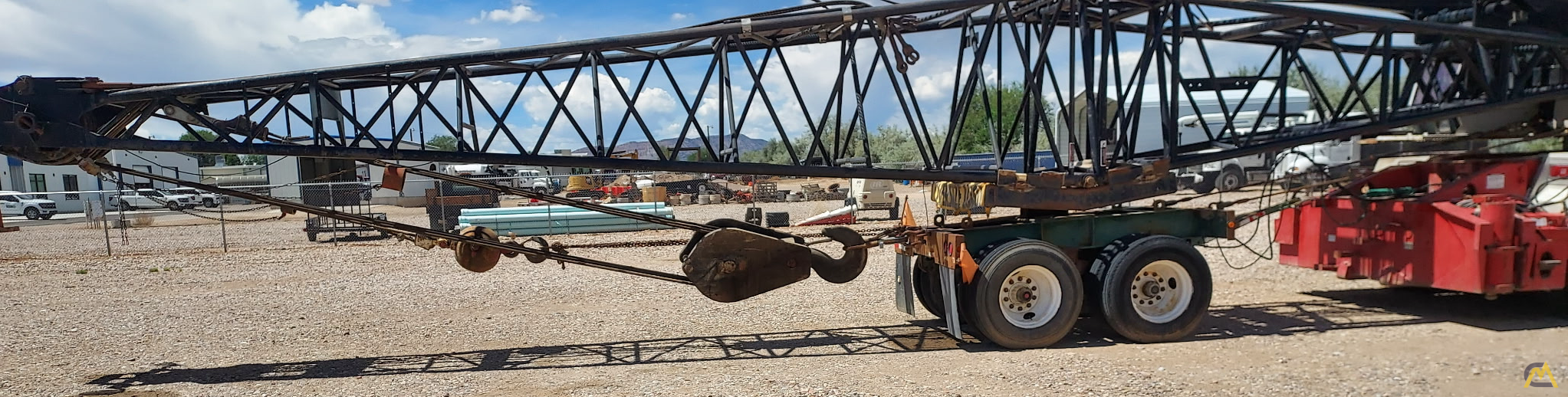

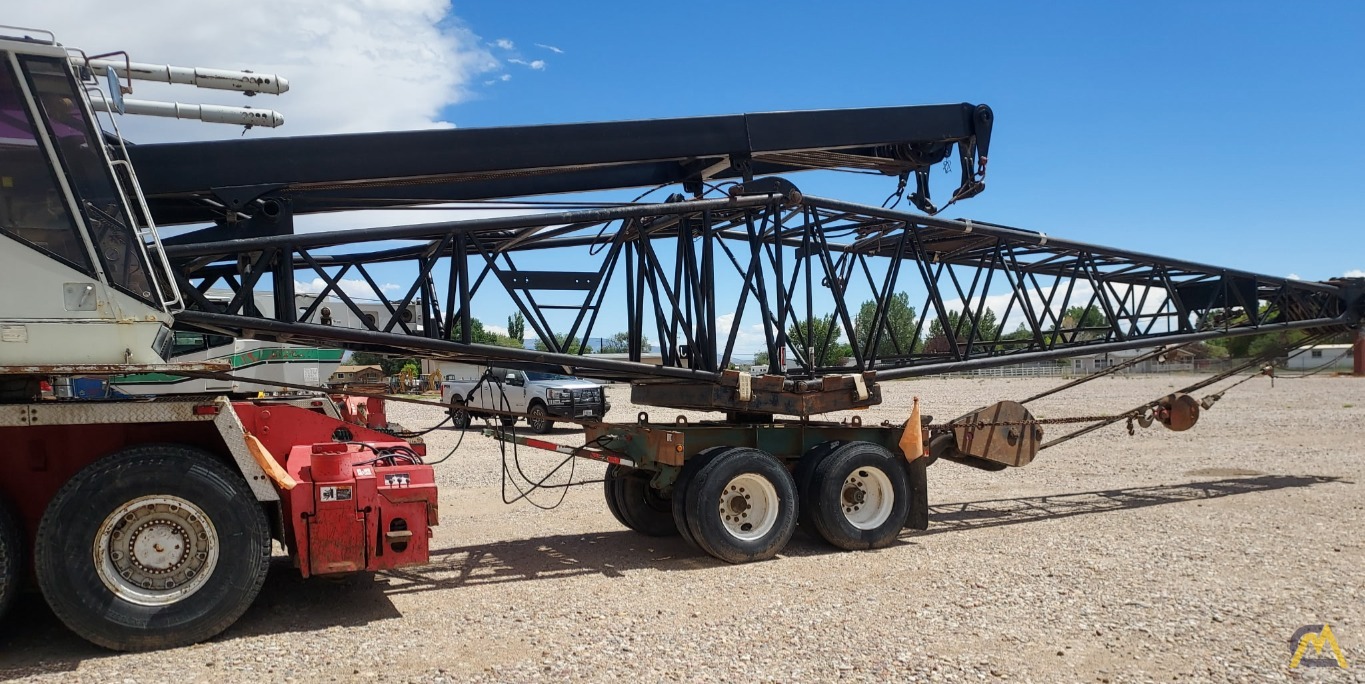

- Two Axle Boom Dolly
- Seller Reports Crane is in good condition
LOCATED IN UTAH!
$174,900 USD
