NEW PM 11523 KNUCKLE BOOM REAR MTD – FORD F550 For Sale
Location: Milford, MA 01757, USA Get a Shipping QuoteNew Listing PM Authorized Dealer
| Status | For Sale |
|---|---|
| Year | 2023 |
| Manufacturer | PM |
| Model | 11523 P |
| Condition | New |
| Ton (USt) | 4.20 |
| Lifting Capacity | 9,420 lbs. (4,272 kg) |
| Max. Outreach Capacity | 2,000 lbs. (907 kg) |
| Main Boom Length | 8' - 32.6' (2.4 - 9.9 m) |
| Max. Tip Height | 45' (13.7 m) |
| Base Weight (GVW) | 19,500 lbs. (8,845 kg) |
| Transmission Type | Automatic |
| Truck Chassis Make | Ford F550 |
| Category | Articulating Knuckle Boom Cranes |
| Sub Category | Stand Up |
| Show More | |
| Hide |
DESCRIPTION
BOOM DETAILS

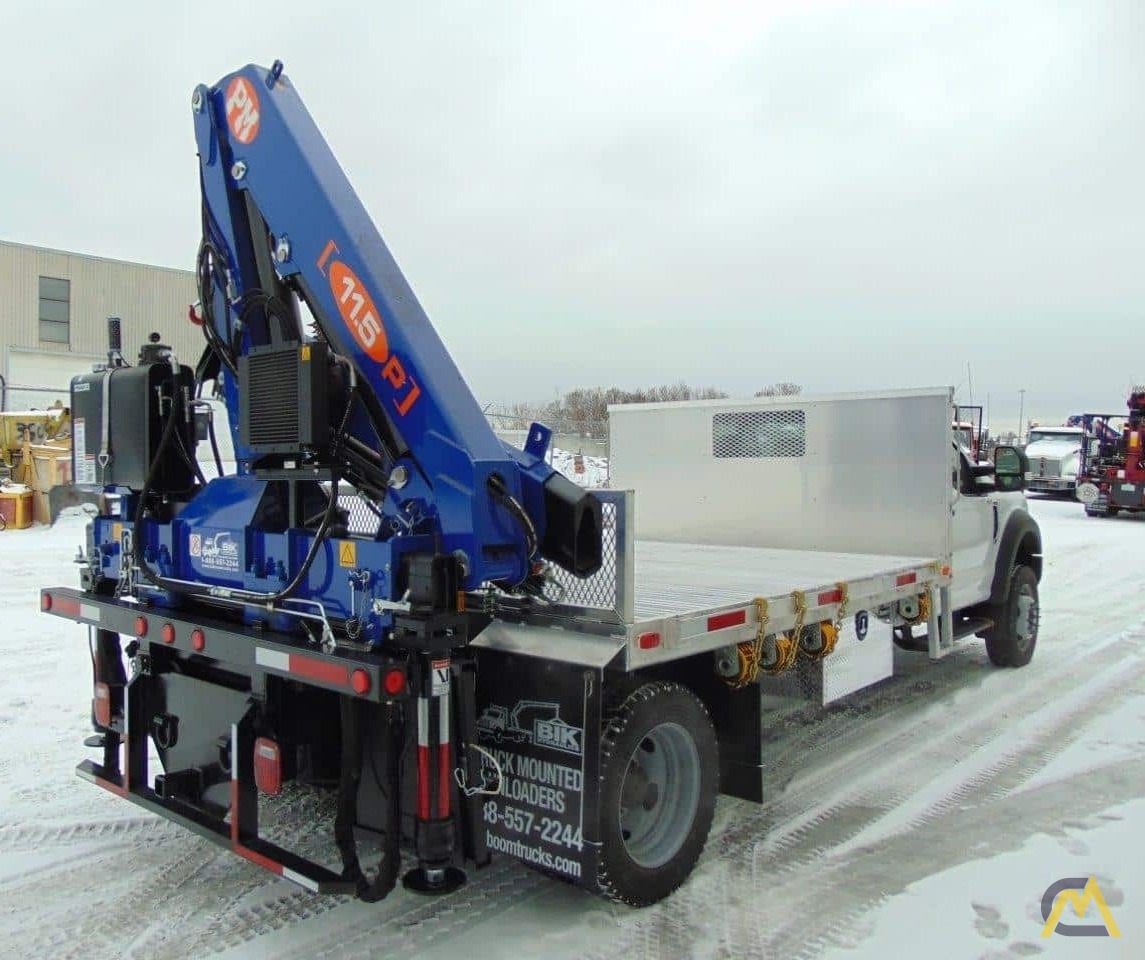

NEW – PM 11523 KNUCKLE BOOM
-

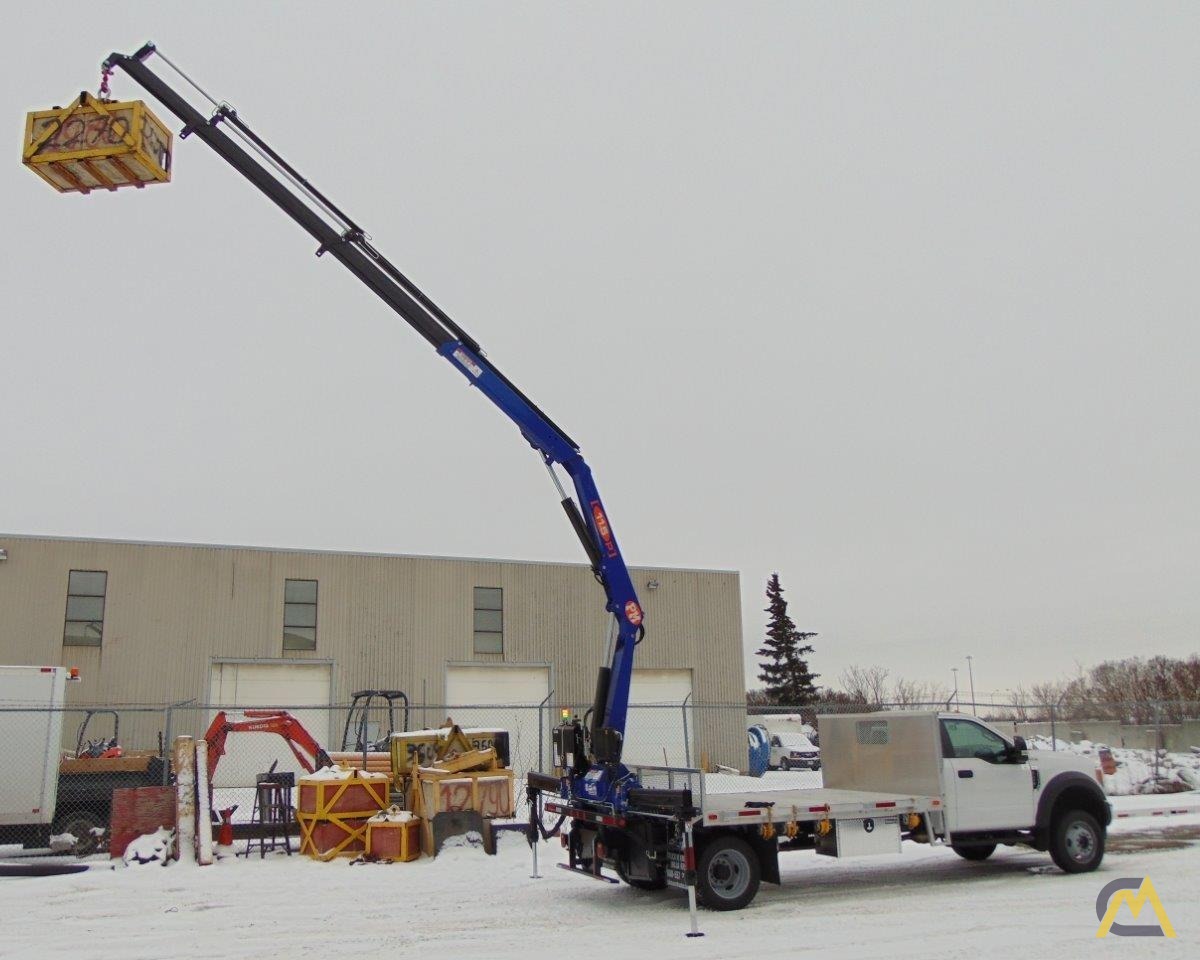

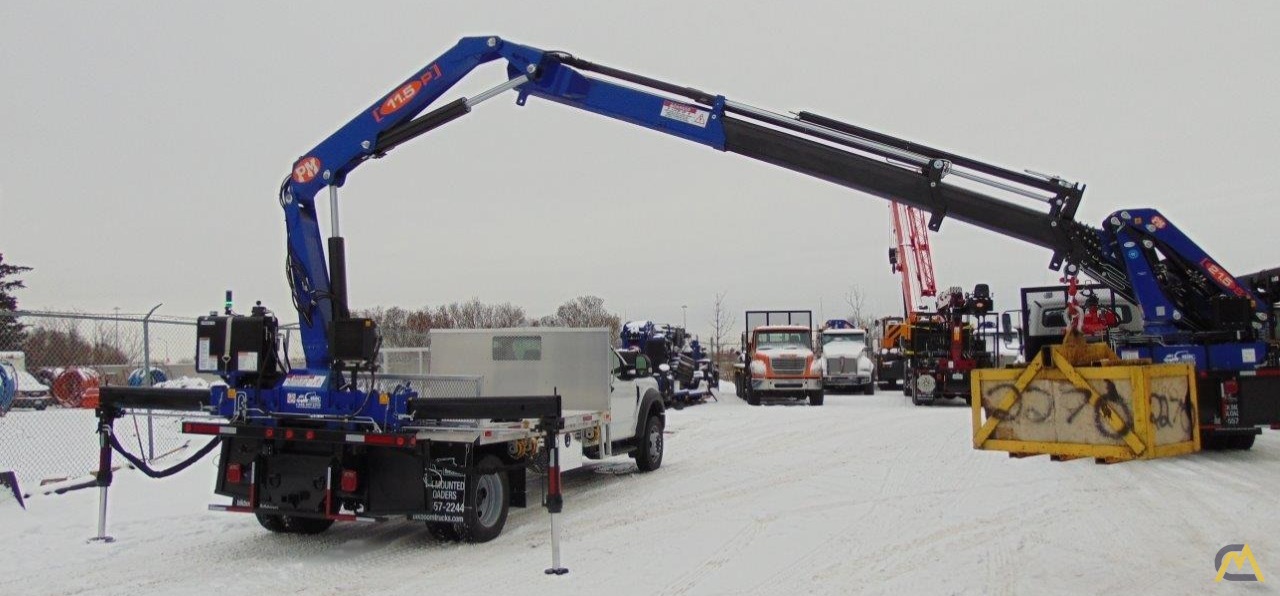

Folding Hydraulic Knuckle Boom 3 -Hyd Extensions to 32’ 6”’ Horizontal Reach, (45’ Vertical)
-

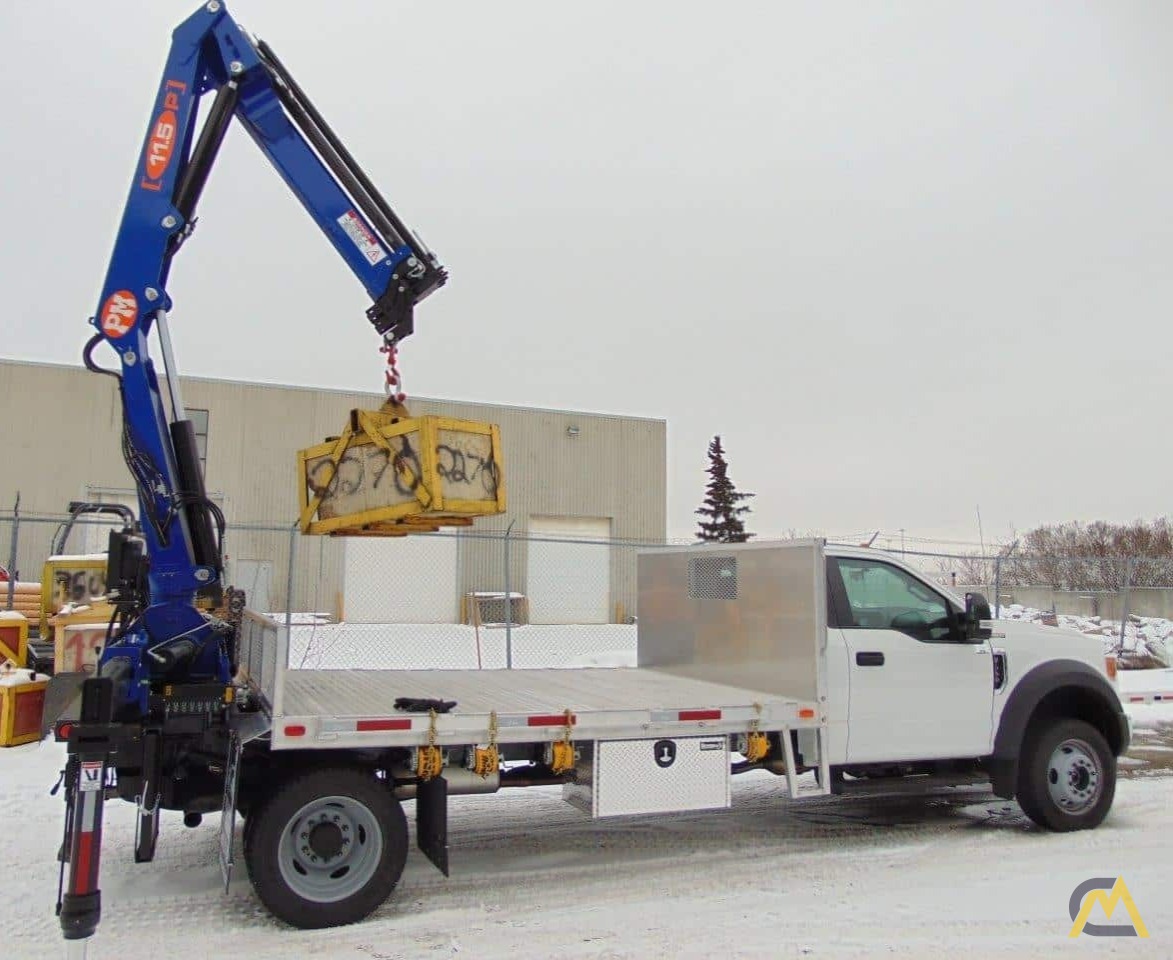

Horizontal Capacity:
-
9,420 lb @ 8’ 0”
-
6,940 lb @ 12’ 1”
-
3,640 lb @ 18’ 0”
-
2,600 lb @ 25’ 3”
-
2,000 lb @ 32’ 6”
-
-
408 Degrees Rotation on Main Hydraulic Slewing, Crane Painted PM Blue
-
Double Pilot Operated on Slewing and Pilot Operated Check Valves on all Cylinders
-
Hydraulic Extra Wide Main Outriggers at Pedestal – 14’ 10” Span
-
Hydraulic Oil Cooler, High Pressure Return Filter and Min. 40-Gallon Oil Tank for Boom
-
SCANRECO Wireless Radio Remote with Back-up Corded Remote with Hauve Proportional Control Valve / Manual Ground Level Controls
-
Hydraulic OUT and Hydraulic DOWN 2-Sided Stabilizers w/Round Foot Pads Welded to Bottom of Cylinder
-
Hydraulic Overload Protection – Simplified System That Prevents Boom from Overload
-
Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
-
Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear, and Improved Precision
-

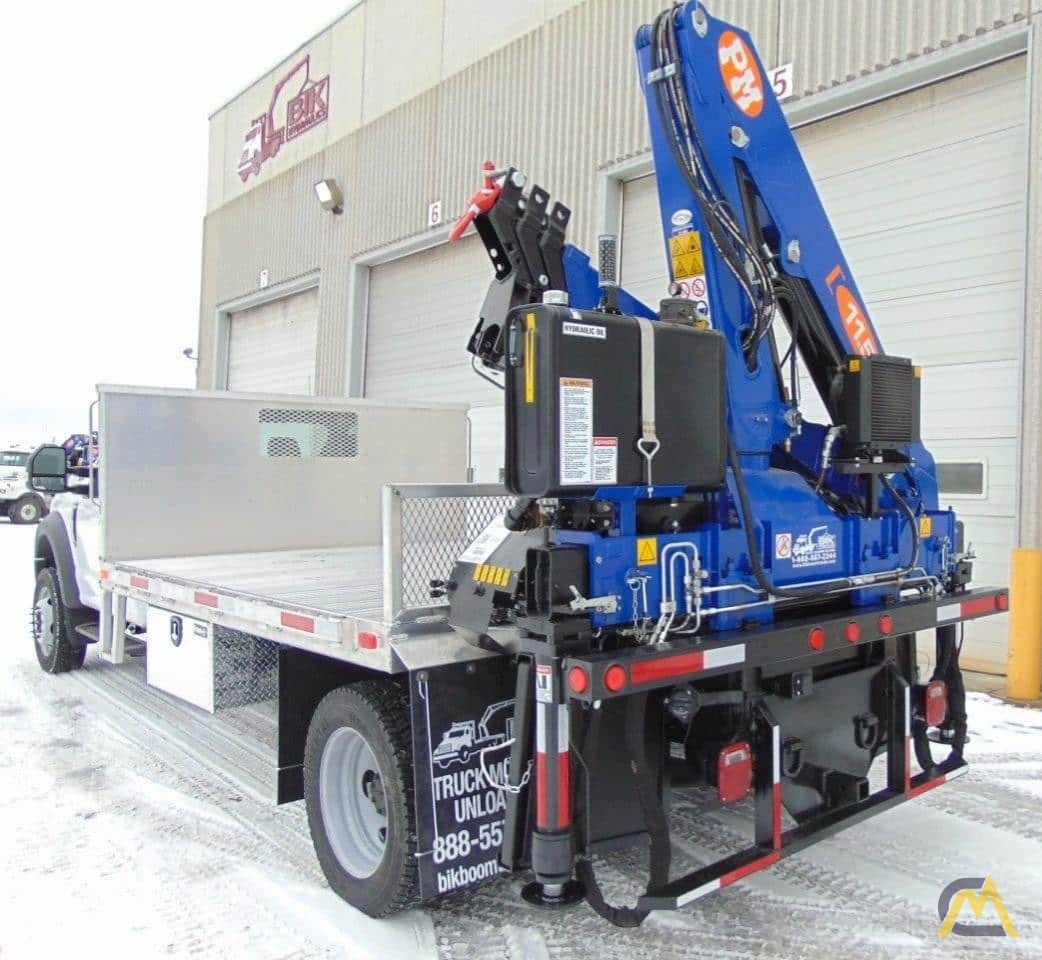

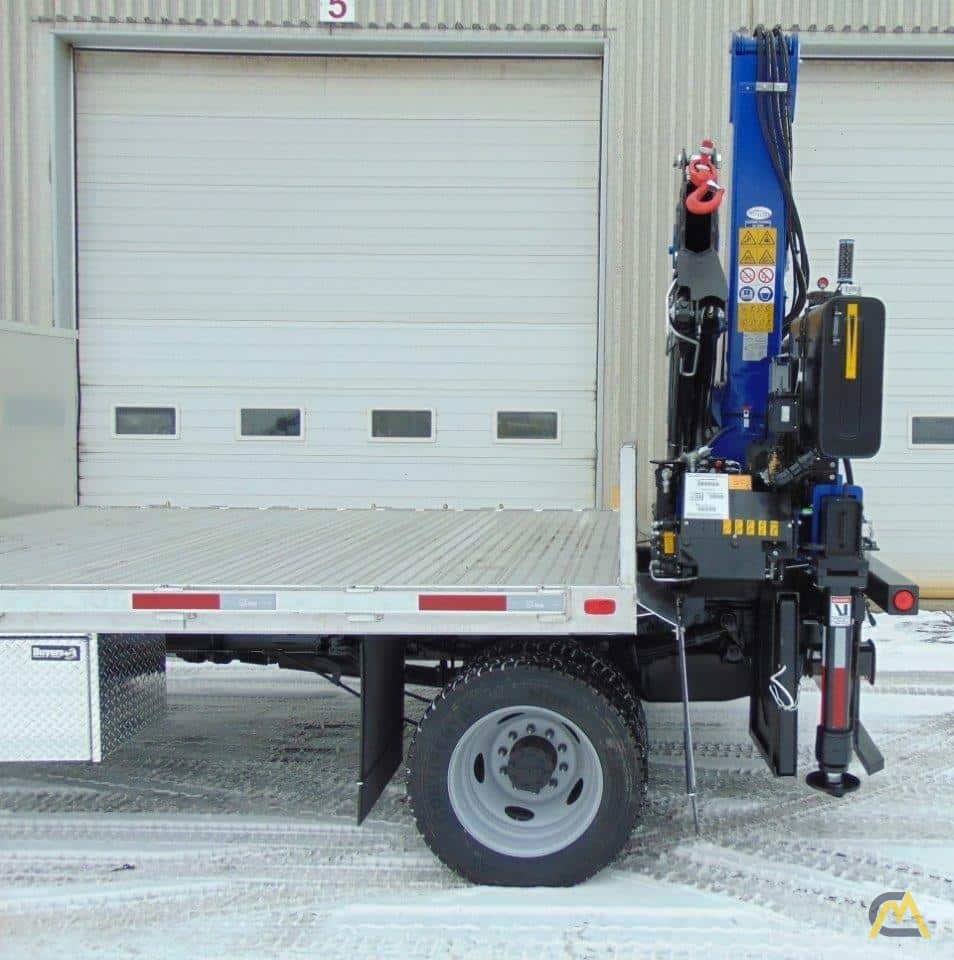

Boom Mounted at Rear of Truck on Engineered Sub Frame. Engineer Certified Stability Testing
DECK DETAILS
NEW – 10’ 6” ALUMINUM FLAT DECK
-
Sub Base / Torque Box Steel Tube with Cross Members, 8’ Wide Plus Rub Rail (102” Total Width)
-
4 Under-Deck Sliding Tie-Down Winch Straps, Aluminum Extruded Deck Surface
-
40” Aluminum Headboard Height with Smooth Alum Surface with Window Cut Out w/Mesh
-
DOT Tape and Reflectors, Dual Front Access Ladders, Primed and Painted Gloss Black, LED Side Clearance Lights
-
(Removable Sides are Available)
TRUCK DETAILS

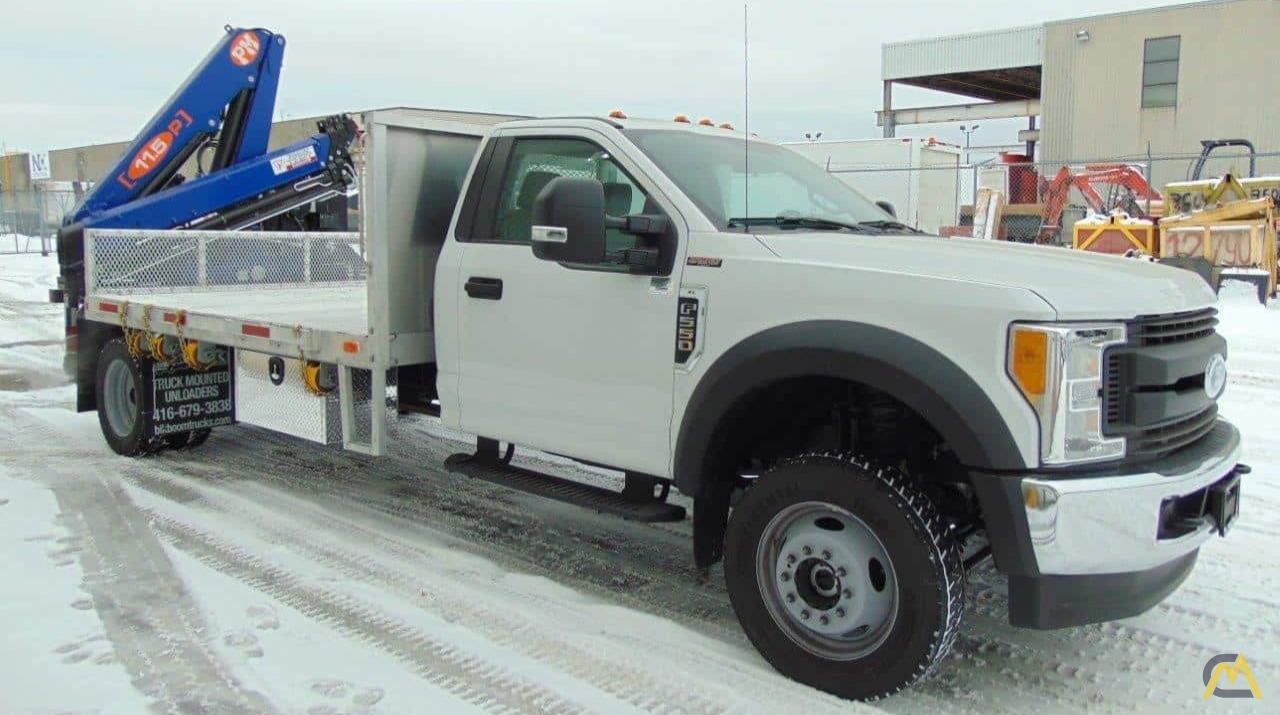

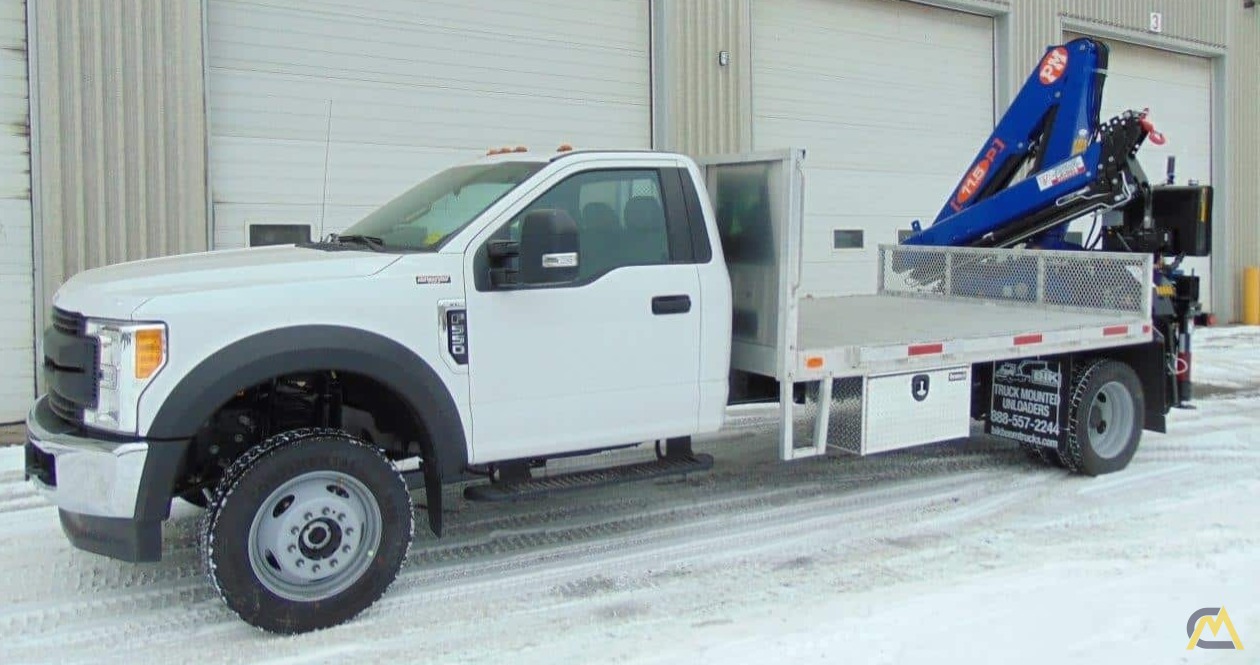

NEW – FORD F-550 2×4 OR 4×4 SINGLE-AXLE GAS FUEL TYPE TRUCK – 19,500 LBS GVWR PACKAGE
-
6.8L – V10 Gas (or) Diesel Available, 6 Spd Automatic Trans, 4.88 Limited Slip Rear Axle Ratio, Payload-Plus Package Upgrade
-
7,000 lb Front Axle with Steel Rims on 225/70R 19.5 Tires
-
12,700 lb Rear Multi-leaf Suspension with 225/70R 19 Tires, Steel Rims
-
Hydraulic Brakes, Transmission Cooler, A/C, Cruise Control, Power Windows & Locks, Driver Convenient Package, AM/FM Stereo, Bluetooth, Platform Running Boards, Chrome Bumper, etc…
Price On Request
