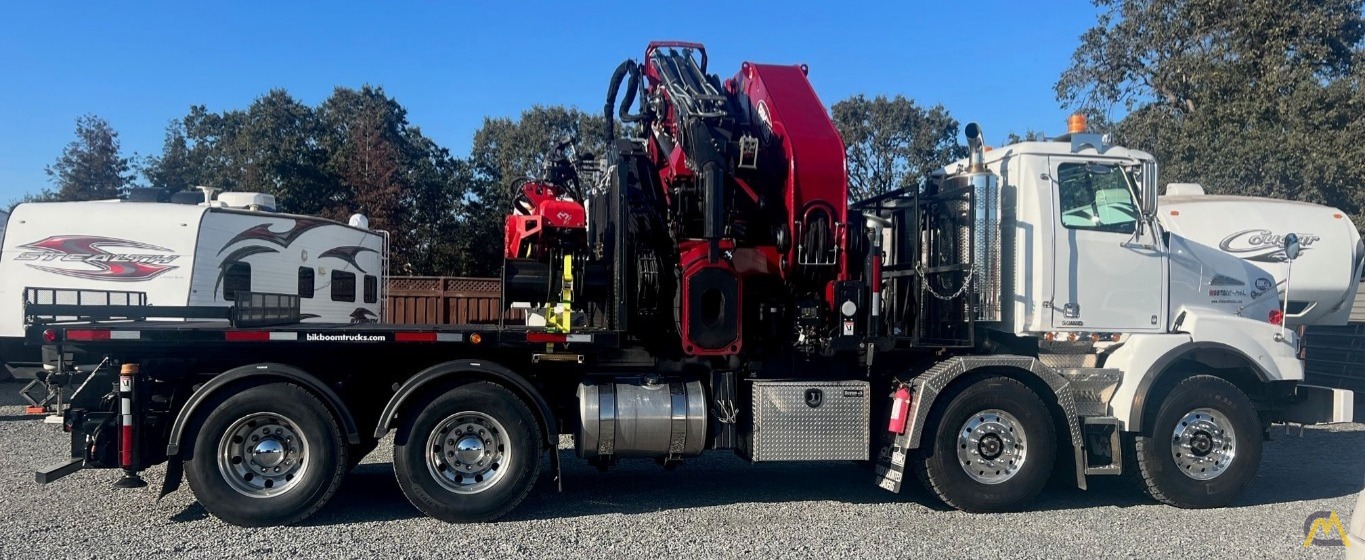

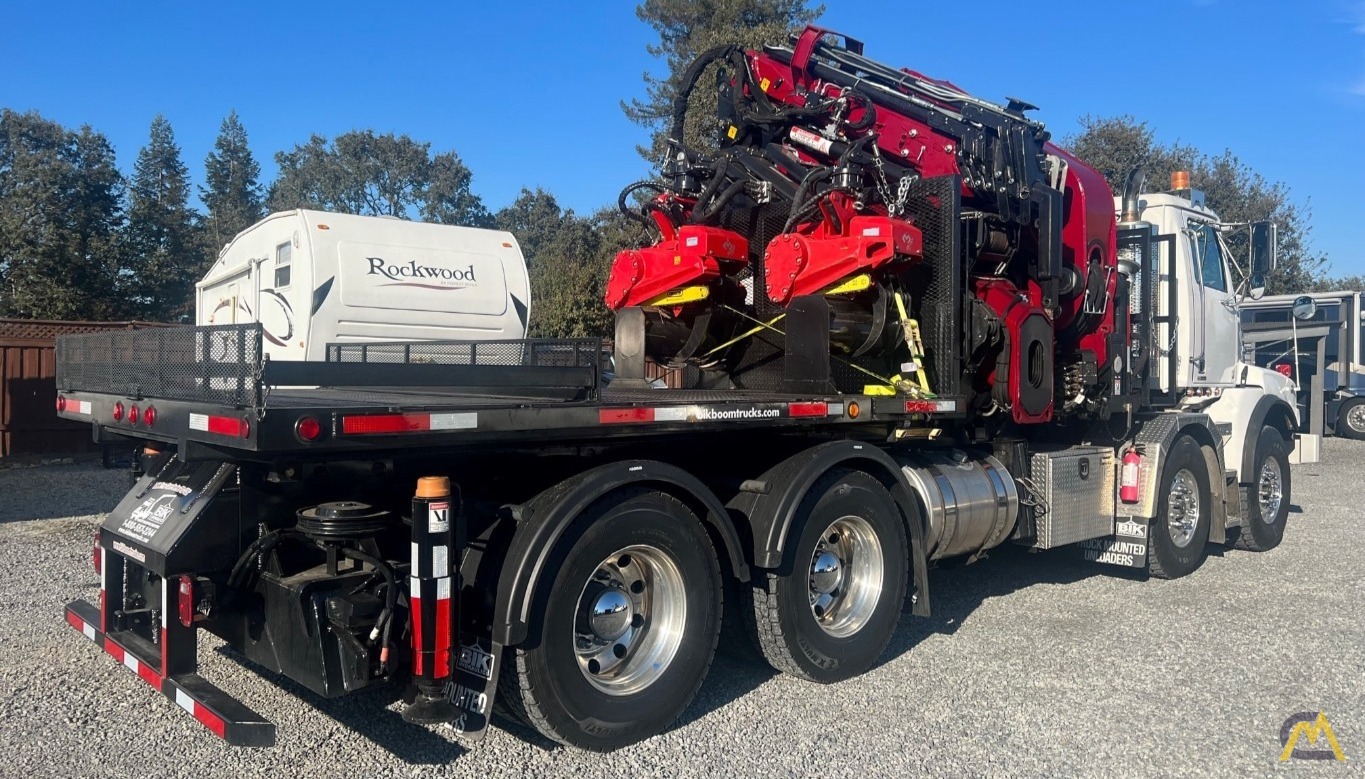

USED BIK TREE-CARE SERIES TC-126 ON WESTERN STAR 4800 TA For Sale
Location: Milford, MA 01757, USA Get a Shipping Quote Get Finance QuoteBIK Authorized Dealer
Status | For Sale |
---|---|
Year | 2020 |
Manufacturer | BIK |
Model | TC-126 |
Condition | Used |
Ton (USt) | 100.00 |
Lifting Capacity | 36,800 lbs. (16,329 kg) |
Max. Outreach Capacity | 2,060 lbs. (934 kg) |
Main Boom Length | 16' - 67' (4.8 - 20.4 m) |
Jib Extension Length | 76' - 110' (23.1 - 33.5 m) |
Transmission Type | Automatic |
Miles/KM | 10,000 lbs. Miles |
Truck Chassis Make | Western Star 4800 |
Engine | Detroit Diesel |
Horse Power/kW | 470 |
Category | Articulating Knuckle Boom Cranes |
Show More | |
Hide |
DESCRIPTION
BOOM DETAILS
BIK Tree-Care Series TC-126 – 100 ton/m Knuckle Boom
-
8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
-
Including (1) Grapple extention in jib
-
Boom Capacity of 2,050 lbs @ 126’ Vertical Reach
-
Main Boom Horizontal Capacity:
-
36,800 lb @ 16’
-
20,000 lb @ 23’
-
16,000 lb @ 33’
-
11,000 lb @ 47’
-
7,200 lb @ 67’
-
-
Jib Horizontal Capacity:
-
3,200 lb @ 76’
-
2,200 lb @ 100’
-
2,000 lb @ 104’
-
1,630 lb @ 110’
-
w/Grapple extn to 114’
-
-
PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st knuckle
-
25 degree negative angle at jib Continuous Rotation and Dual Planetary Gear Rotation
-
Special Extra High Tensile Steel Structure
-
Hydraulic Extra Wide Main outriggers at pedestal – 29’ – 6” span – hydraulic tilting when retracted. Radio controlled
-
Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom, – Lifting winch on boom plumbed to jib
-
DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
-
PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
-
Engineer Stability Certified to operate at 100% Full load chart in ALL area’s – 360 degree working area
-
Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, load chart in FT. & LBS.
TRUCK DETAILS
Used 2020 Western Star 4800 Sloped Short Nose T/A Steer-T/A Rear Tractor – 4 Axle: (was new in April 2021
-
DDC-13 Diesel – 470 hp with Jake
-
Eaton Ultrashift
-
18spd Automated Trans
-
Approx. 10,000 miles
-
(2) x 20,000 LB fronts with 425 / 65R22.5 tires
-
46,000 LB Rears on air ride Susp.
-
Double Frame
-
Polished ALCOA Aluminum Wheels front and outer rear
-
Chrome single polished Exhaust
-
Chrome Grille & Bumper
-
Dual 80 gallon aluminum fuel tank
-
Loaded with Options including: A/C, Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power window both sides, power mirrors & door locks, Air ride cab, trailer air tow package, truck cab white colour, 5th wheel on at tandems w/ramps, etc…
2’ x 102” Carry Deck
-
Mounted behind boom with 48” head board with built in airlines / electric for trailer supply
-
Checker plate steel surface, dual pull-oout type access ladders – one on each side
-
7.5’ Removable Deck over 5th wheel (behind 2’ carry deck)
Options Included:
-
(5) pcs – 2” PVC stab pads w/holders
-
Mat Rack mounted behind cab and at rear on top of deck
-
36” Alum Storage Box
-
(2) pcs – Mecanil Grapple Saws – 1-SG-280 and 1-SG-160
