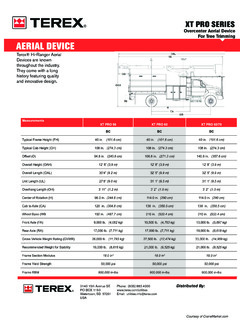

Terex XT PRO 60/70 Specifications

The Terex XT PRO 60/70 Overcenter Bucket Truck is equipped with Telescopic Articulating Boom with a working height of 75' (21.9 m) and is part of the Hi-Ranger XT PRO Series

This Terex Hi-Ranger Bucket Truck has the added benefit of an upper boom articulation beyond center. Overcenter aerials are primaryly used in the electric utility, municipal, construction, and forestry tree trimming industries.

Side-mounted jib options offer material handling up to 2, 000 lbs. Terex Hi-Ranger aerial devices are known for their smooth and responsive boom operation along with high reliability and uptime.

STANDARD EQUIPMENT

• Side-Mount 24” x 24” x 40” One-Person Platform
• Platform Capacity up to 400 lb (181 kg)
• Control-Plus “3-D” Single Stick Control At Platform
• Safety Harness with Attached Lanyard
• Continuous Unrestricted Worm Gear Rotation
• Category “C” Rating Per ANSI A92.2
• Rectangular, Bi-Axial Epoxy Resin, Filament Wound Fiberglass Booms
• Individual Lever Lower Controls
• Mechanical Platform Leveling
• Full Pressure, Open-Center Hydraulic System
• 33 Gallon Hydraulic Oil Reservoir
• Padded Boom Rest with Upper Boom Tie Down
• Outrigger Interlock
• Moving Outrigger Alarm
• Truck Level Indicator
• 10-Year Leveling Chain
• Dual Hydraulic Tool Outlet at Boom Tip
• Manual Platform Tilt
• Finish Painted
