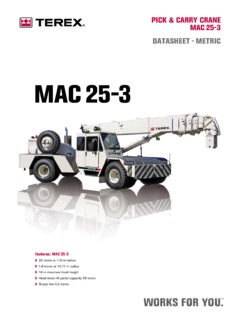

Terex MAC 25-3 Specifications

The Terex MAC 25-3 is a 25 ton capacity at 1.41 m radius Pick n Carry Crane.  It has a load rating of 1.8 metric tons at 15.71 m radius, 18 m maximum hook height, and the hook block is (6 parts) with a capacity of 25 tons.

The crane is powered by a 205 kW Mercedes OM 906 EUROMOT 3a turbocharged and intercooled diesel engine with hinged engine cover and mid cover for easy serviceability and comes standard with an Allison 3000 6-speed automatic transmission.

Pick and carry cranes do not have the highest rated lifting capacity, but crane operators can carry a load around the job site with relative ease with is the best feature of this type of crane.

What also makes the Terex MAC 25-3 appealing is the articulating frame which mitigates the need for an outrigger system. This increases efficiency and productivity because literally no set-up time is needed before using the crane. Simply park the crane and you're off and lifting.

The MAC 25-3 has a very good overall road speed. It gets crane operators from one job site to the next quickly and is easy to maneuver in traffic. It is a great mobile pick-and-carry solution in the 25 ton or less class crane.

Dimensions

The carrier itself measures 7, 155 mm from bumper to bumper. From the center of the cab to the tip of the boom the measurement is 4, 640 mm. End to end the entire package comes in at 9, 885 mm and the total width is 2, 720 mm.

The carrier consists of a two-piece orbital chassis mounted on dual Kessler heavy-duty axles. The front axle features a differential lock and reinforcement perfect for moving a load from one point to the next. The suspension is provided by semi-elliptic springs; the front axle as an automatic hydraulic spring lockout.

The crane's braking system gives the operator great flexibility both when driving and working. The main driving breaks are air operated and high-capacity with dual circuits to apply the braking mechanism on both axles. An additional engine exhaust brake can be deployed by the operator in all gears.

The MAC 25-3 has a four section boom consisting of a main box and three telescoping sections. Maximum height without the jib is 18m, with an offset angle ranging between -10° and 65°. Add the jib and you get an additional 22m of hook height.

A two-speed winch can operate at either 41 m/s or 82 m/s with a maximum 4.2-ton line pull. The hook block, which can be used in two, four, or six parts, is rated for a capacity of 25 tons.

The Cab

Another great feature of the MAC 25-3 is is roomy, two-man cab. The insulated locking cabin features two seats with full KAB suspension, radio and CD player, Blue-tooth support, backup camera, and dedicated heater and air conditioning.

Standard hand controls and a panel console are easy to see and use. An electronic warning system monitors boom and load parameters and uses both audio and visual systems to warn of potential problems. The electronic monitoring system includes motion cut-outs and other safety features.

The pick and carry Terex MAC 25-3 is a productive and efficient option. It is ideal for a shipping yard, dockyard, railroad or airport terminal and makes a great addition to any crane rental fleet as a daily use taxi crane.
