Elliott E145 Specifications

The Elliott E145 E-LINE is a telescopic boom truck mounted aerial work platform lift that has a 145' (44.2 m) working height. This model is equipped with a 9-ton Ust (18, 000 lbs. / 8, 165 kg) lifting capacity 31' - 126' five-section boom main and a 40″ x 72″ two-man attachable work platform with a capacity of 1, 200 lbs. (544 kg).

FEATURES

  • EZ Crib outriggers provide 30” more vertical penetration, to significantly reduce the amount of cribbing required, enabling faster setups with less lifting and twisting handling cribbing
  • Hydraulic tool circuit in platform with intensifier
  • Main boom material handling maximizes utilization
  • Smooth controls and tailored operating envelopes for outstanding performance at work height
  • Heavy-duty structural components provide exceptionally long life and controlled ride
  • 30 mph main boom wind rating
  • ANSI A92.2 compliance in all modes of operation
  • Backed by lifetime structural warranty

When lifting demands high performance, a long reach, and a material handling option,  look to the Elliott E145 which is available mounted on a variety of truck chassis and crawler track carriers.

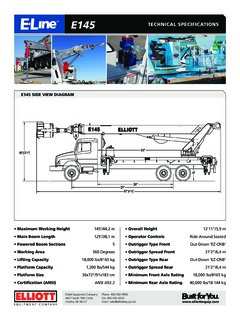

TECHNICAL SPECS

WORKING HEIGHT: 145′ / 44, 2 M

WORKING SIDE REACH: 80′ / 24, 4 M

BOOM SECTIONS: 5

PLATFORM TYPE: YOKE-MOUNT

PLATFORM CAPACITY: 1, 200 LB / 544 KG

PLATFORM SIZE: 36″X72″ / 91X183 CM

MAIN WINCH CAPACITY: 18, 000 LB / 8165 KG

OUTRIGGER TYPE FRONT: OUT-DOWN

OUTRIGGER SPREAD FRONT: 21’2″ / 6, 4 M

OUTRIGGER TYPE REAR: OUT-DOWN

OUTRIGGER SPREAD REAR: 21’2″ / 6, 4 M

OVERALL HEIGHT: 12’6” / 3, 8 M

RECOMMENDED CAB TO AXLE (CA): 204″/518 CM

RECOMMENDED GVWR: 58, 000 LB / 26 308 KG

FEATURES

  • 40” x 72” platform with hydraulic damping easily accommodates two workers and tools
  • EZ Crib outriggers provide 30” more vertical penetration, to significantly reduce the amount of cribbing required, enabling faster setups with less lifting and twisting handling cribbing
  • Hydraulic tool circuit in platform with intensifier
  • Main boom material handling maximizes utilization
  • Smooth controls and tailored operating envelopes for outstanding performance at work height
  • Heavy-duty structural components provide exceptionally long life and controlled ride
  • 30 mph main boom wind rating
  • ANSI A92.2 compliance in all modes of operation
