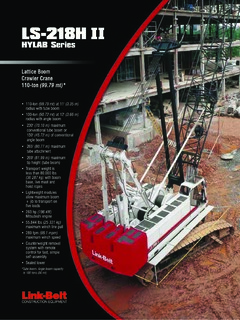

Link-Belt LS-218H II Specifications

No longer in production, the Link-Belt LS-218H II crawler crane is a 110-ton (99.79 mt) at 11' (3.35 m) radius with lattice tube boom and a 100-ton (90.72 mt) at 12' (3.66 m) radius with angle boom.

The crane has a 230' (70.10 m) maximum conventional tube boom or 150' (45.72 m) of conventional angle boom, a 265' (80.77 m) maximum tube attachment, and 269' (81.99 m) maximum tip height (tube boom).  The transport weight is less than 80, 000 lbs (36 287 kg) with a boom base, live mast, and hoist ropes.  Lightweight modules allow maximum boom + jib to transport on five loads.  It is powered by a 263 hp (196 kW) Mitsubishi engine with 55, 844 lbs (25 331 kg) maximum winch line pull and  289 fpm (88.1 mpm) maximum winch speed.

The Counterweight removal system with remote control is made for fast, simple self-assembly.

This model was superseded by the Link-Belt 218 HSL.
