Link-Belt Link-Belt Cranes for Sale and Rent
Link-Belt Specifications
The Link-Belt 138 HSL Lattice Boom Crawler Crane features a Cutting Edge winch package with wet brake design and matching front & rear drums (line pull).
• 3-piece... Show More
Sort By:
Link-Belt 138 HSL Lattice Boom Crawler Crane For Sale or Rent
| Location |
Chicago, Illinois US 1727 miles |
|---|---|
| Make | Link-Belt |
| Model | 138 HSL |
| Tons | 80.00 |
| Year | 2008 |
Price On Request

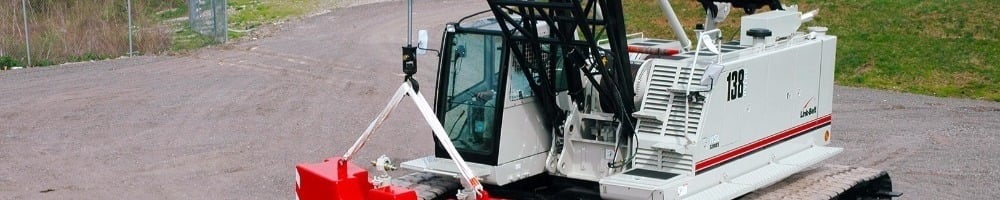

2008 80-ton Link-Belt LS-138 HSL Lattice Boom Crawler Crane For Sale or Rent
S/N P8J8-0294
Isuzu 6HK1, 18,791 Hours, 150’ Main Boom, 3rd Drum, Free Fall, Full Counterweight, Block and Ball
Located in Chicago, IL. Unit #10062
Link-Belt 138 HYLAB 5
(Cranes, Hoists & Material Handlers : Crawler Cranes)
Link-Belt 138 HSL
(Cranes, Hoists & Material Handlers : Crawler Cranes)
The Link-Belt 138 HSL Lattice Boom Crawler Crane features a Cutting Edge winch package with wet brake design and matching front & rear drums (line pull).
• 3-piece counterweight system, designed with innovative counterweight removal system
• 40’ - 200’ (12.19 - 60.96 m) Tubular boom
• Maximum tip height of tubular boom + Jib: 242’ (73.76 m)
• HSL Capacity limiter with high visibility color graphic display
• Superior Capacities
• Dual Swing drive provides smooth swing control
• Transport complete crane with base section, drums with rope and self-assembly device, less counterweight under 90, 000 lbs.
• Optional 3rd & 4th drum
80 ton | 72.6 mt
| Base Rating | 80 US-ton @ 12' |
| Boom Lengths | Tube = 40'-200' Angle = 40'-150' |
| Fixed Jib Lengths | 30'- 60' |
| Fixed Jib Offsets | 5°, 15° & 25° |
| Maximum Tip Height (Fixed Jib) | Tube: 242';; Angle: 203' |
| Engine Make & Model | Cummins QSB 6.7 |
| Horsepower | 270 H.P. |
| Maximum Hoist Pull / Speed | 31, 182# / 345 fpm |
| Working Weight | 145, 403# |
| Main Transport Load | 88, 121 # |
