ETI ETC 37 IH Specifications

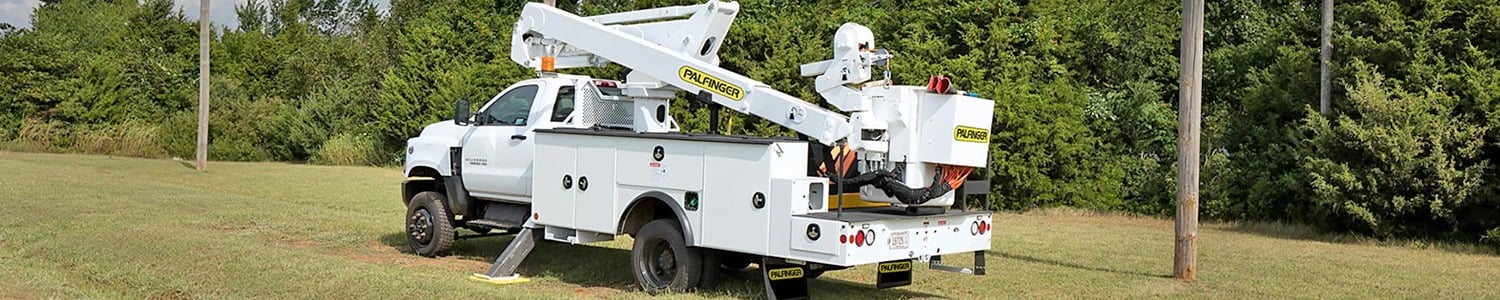

The ETI ETC 37 IH. now a Palfinger brand is a mounted aerial boom device with a basket designed for powerline, utility, and sign work.

Height to bottom of bucket 37 ft. - 1 in.

Working height 42 ft. - 1 in.

Side reach, End mount 28 ft. - 0 in.

Rotation Continuous

Lower boom articulation 0O to 93O degrees

Upper boom travel --17O to 75O degrees

Rated bucket capacity 350 lbs.

Options

• Emergency hydraulic power (12VDC)

• Engine start/stop at bucket

• Hydraulic tool circuit

• Two speed throttle

• Bucket liner

• Bucket cover

• Lower boom and compensating link inserts

• Electric tool circuit (non-insulated units)

• Oversized bucket (24“x 30“x 42“)

• Splicer bucket (non-insulated units)

• Hydraulic bucket rotator

• Outriggers

PALFINGER Bucket Trucks (ETI) are available in a range of articulated telescopic models in insulated and non-insulated configurations with working heights up to 50 ft.
