Grove TMS875C Specifications

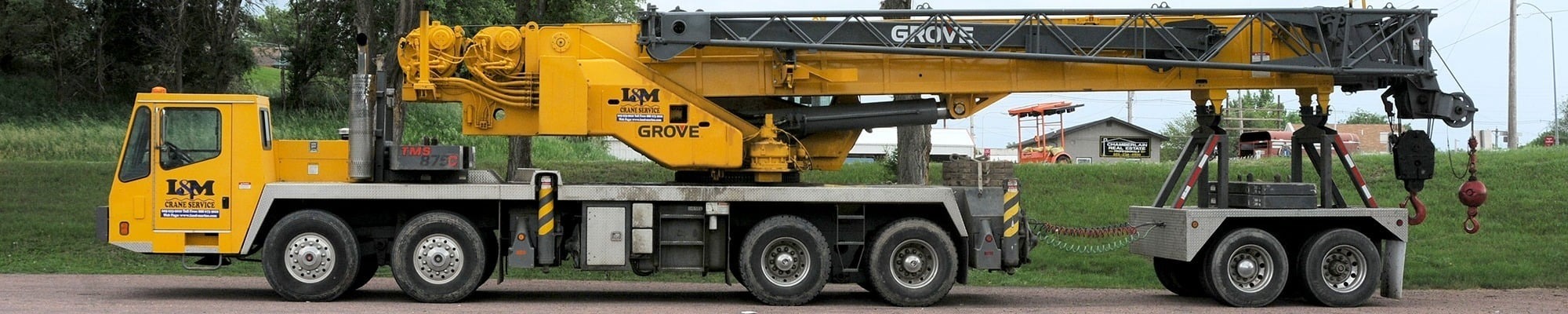

The four-axle Grove TMS875C is a 75-ton (65-ton metric) maximum lifting capacity Telescopic Boom Mobile Hydraulic Truck Crane with multiple main boom and jib combinations powered by a six-cylinder Cummins ISM 400 diesel, turbo-charged after-cooled, 661 cu. in. (10.8 L), 400 bhp (298 kW) @ 1500 RPM with a maximum torque of 1, 450 ft. lbs. (1966 Nm) @ 1200 RPM.

Main Boom (Standard) 36' - 110' (10.9 - 33.5 m) four-section full power boom. Equipped with an optional 31' - 56' (9.4 -17 m) folding lattice swingaway extension offsettable at 1.5°, 25° or 45°. Stows alongside base boom section. Maximum Tip Height: 172 ft. (52.4 m).

Main Boom (Option 1) 40' - 125 ' (12.2 - 38.1 m) four-section full power boom with an optional 35' - 60'  (10.7 - 18.3 m) telescoping lattice swingaway extension offsettable at 2° or 30° that stows alongside the base boom section. Maximum Tip Height: 191 ft. (58.2 m).

Main Boom (Optional 2) 35' - 138'  (10.8 - 42 m) five-section full power boom with an optional 31' - 56' (9.4 - 17 m) folding lattice swing away jib extension that is hydraulically offsettable from the upper crane superstructure with infinite offsets 1.5° through 45° that stows alongside the base boom section. Maximum Tip Height: 202 ft. (61.5 m).

While no longer in production, the TMS875C is supported by a global network of Authorized Manitowoc Group Grove Crane Distributors.
