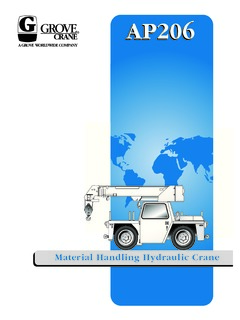

Grove AP206 Specifications

Discontinued the Grove AP206 is an industrial carry deck crane with a 9.5 ft. - 20 ft. (2.9 m - 6.1 m) three-section full power boom for a Maximum tip height of 25 ft. 5 in. (7.7 m).  With the 9 ft. (2.74 m) fixed swingaway extension that stows alongside base boom section the maximum tip height: 33 ft. 9 in. (10.3 m).  This 6 ton US lifting capacity crane has a gross vehicle weight of 11, 075 lbs. (5023 kg).

The standard engine is a Continental TMD27 diesel, four cylinders, 66.5 bhp (49.5 kW) (Gross) @ 3, 000 RPM. Maximum torque: 124 ft. lbs.(168 Nm) @ 2, 000 RPM.

The Optional engine is a Continental TM 2.7 L, four cylinder, 2.7 L gasoline engine, 70 bhp (52.3 kW) (Gross) @ 2, 800 RPM. Maximum torque: 147 ft. lbs.(199.3 Nm) @ 1, 600 RPM.
