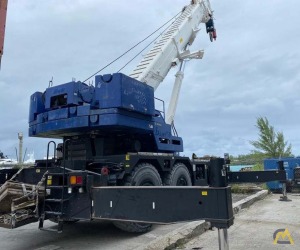

The Tadano GR-1600XL-2 rough terrain crane offers a 160-ton USt (145 metric ton) lifting capacity.

A 200-foot 6-section rounded boom delivers 201 feet of lifting height with a 185-foot load radius, and is powered by a single telescopic cylinder. A two-stage bi-fold lattice tilt-type jib extends the tip height to 257 feet with a 200-foot load radius.

The crane features Tadano’s first compact 3-axle carrier, which improves maneuverability on confined job sites via 6-by-4-by-6 drive, four steering modes, and a 32-foot 6-inch turning radius with 6-wheel steer. To ensure easy transport, the counterweight and outriggers are self-removable with no assist crane.

Standard features include the HELLO-NET system, which enables monitoring crane activity from a computer or mobile device; eco-mode and positive control systems for reduced fuel consumption; reduced CO2 emissions; an automatic moment limiter that allows the operator to present the working environment, including load radius, boom angle, tip height and swing range; and asymmetrical multi-position outrigger setups.

• Two-stage, folding lattice jib extends tip height to 257 ft. and load radius to 200 ft.
• Tadano’s first compact three-axle carrier
• Turning radius of 32 ft. 6 in. (9.9m) with a six-wheel steer
• Cab-tilt system improves operator visibility for high-reach operations
• HELLO-NET telematics monitor crane activity from a remote computer
• Automatic moment limiter (AML-C) displays key information and allows the operator to preset the load radius, boom angle, tip height, and swing range
• Tadano’s exclusive asymmetrical, multi-position outrigger setups allow maximum lift capacities when operating in confined areas
• AML-C adjusts load charts for the outrigger length and boom position
• AML-C's “soft stop” function brings the boom to a slow stop automatically before it reaches capacity limits
