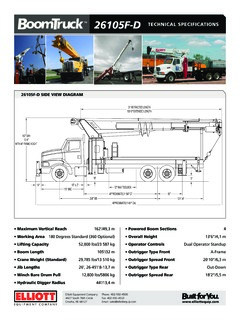

Elliott 26015F-D Boom Truck Crane For Sale

• Maximum Vertical Reach 162'/49,3 m • Working Area 180 Degrees Standard (360 Optional) • Lifting Capacity 52,000 lbs/23 587 kg • Boom Length 105’/32 m • Crane Weight (Standard) 29,785 lbs/13 510 kg • Jib Lengths 26’, 26-45’/ 8-13,7 m • Winch Bare Drum Pull 12,800 lbs/5806 kg • Hydraulic Digger Radius 44’/13,4 m • Powered Boom Sections 4 • Overall Height 13’6”/4,1 m • Operator Controls Dual Operator Standup • Outrigger Type Front A-Frame • Outrigger Spread Front 20'10”/6,3 m • Outrigger Type Rear Out-Down • Outrigger Spread Rear 18’2”/5,5 m

NEW ELLIOTT 30105 ON NEW WESTERN STAR 4700 T/A – 470 HP For Sale

BOOM DETAILS NEW ELLIOTT MODEL 30105F – 30-Ton Capacity @ 5 ft Load Radius 31’ – 105’ High Strength 4-Section Boom 117 ft Sheave Height Fully Extended – 3-Sheave Head 372 Degree Non-Continuous Rotation 2  Sets Hydraulic Out & Down Outriggers – 20 ft Span Each C/W Removable Ball Socket Aluminum Pads 120-Gallon Hydraulic Oil Tank Independent Individual Outrigger Controls – Mid and Full Span Outrigger Options Stand-up Operator Console & Platform – Rotates with Turret 9/16” Diameter Rotation-Resistant Wire Rope &ndash...

NEW ELLIOTT 1870F ON NEW FREIGHTLINER 108SD & 20’ DECK For Sale

BOOM DETAILS NEW – ELLIOTT MODEL 1870F: 18-Ton Front Mount Crane 27 – 70 Ft. 3-Section High Strength Proportional Boom PTO, Electronic Throttle Interface, 3-Section Gear Pump, 70-Gallon Hydraulic Fluid Reservoir 20’ 10” A-Frame Main Outriggers – 10’ 4” A-Frame Auxiliary Stabilizers Dual Operator Console Stations: w/ Engine Start/Stop, Load, Range, Electronic Foot Throttle 12,700 lb Bare Drum Pull Winch w/ 275’ 9/16” 6 X 37 IWRC EIPS Wire Rope – 9,600 lb Allowable Line Pull Rated 2-Sheave Boom Head, Std. Swivel Hook & Downhaul Ball Anti-Two Block, Load Moment Limiter w/Display...
