Demag AC 200-1 240-Ton All Terrain MobileCrane For Sale

2004 DEMAG AC200-1 200 Metric Ton All Terrain Crane With Following Working Spec:  - 40.7ft to 222.4ft (68m)  hydraulic boom with 1 base section and 6 telescopic sections - 29.5ft to 55.8ft swing away jib with extension - Maximum 100m system length using 33m extendable swing away jib - Most compact and agile 5-axle crane  - Most compact working area outrigger base and tail radius - Maximum 85 km/h travel speed for carrier without boom - Two winches - Upper has DaimlerChrysler OM906LA 6-cylinder DSL engine (231HP) - Lower has DaimlerChrysler OM502LA 8-Cylinder DSL engine (530HP)  - ZF AS-Tronic, electronically automated transmission with automatic clutch, 16-speeds...

Demag AC 80 All Terrain Crane-CranesList ID: 1061 For Sale

2001 Demag AC80, 80 Metric Tons, All Terrain Crane; CranesList ID: 1061, 35.8' - 164' Six Section Full Power Boom 39' Static Lattice Jib, Offsettable at 0°, 20° and 40° 80 Metric Ton and 100 US Tons Main and Auxiliary Winches with 18mm Wire Rope Electronic load indicator with digital read-out for hook load, rated load, boom length, boom angle, load radius, analog display to indicate the capacity utilization. Limit switches on hoist and lowering motions, pressure-relief and safety holding valves 17,600# Counterweights in sections of 11,250#, 3,750# and 2,650# (15,000# fitted on superstructure, 2,650# hydraulically stowed on carrier deck) Hook ...

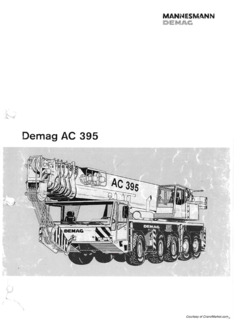

1996 Demag AC 395, 150 Ton All Terrain Crane-CranesList ID: 1051 For Sale

1996 Demag AC395, 150 Ton, All Terrain Crane; CranesList ID: 1051, 42.3’ - 197’  Six Section Full Power Boom 30’ 2"– 50’ 9” Fixed/Swing-Away Jib Off-settable to  0°, 20°, and 40° Mercedes OM 366, 6-Cylinder, 134 hp Diesel Engine Upper Main and Auxiliary Winches, 2-speed, with 7/8” rope Electronic safe load indicator with digital readout for hook load, rated load, boom length, boom angle, load radius, analog display to indicate the capacity utilization, limit switches on hoist and lowering motions, pressure-relief and safety holding valves 44,000# Self-Removable Counterweights Hook Block Demag 10 x 6 x 8 ...

1991 Demag HC 340 150 Ton Hydraulic Truck Crane-CranesList ID: 1058 For Sale

1991 Demag HC340, 150 Ton, Hydraulic Truck Crane; CranesList ID: 1058. 43' - 147.6 four-section full power boom with auxiliary boom head 39' - 66' two piece (bi-fold) fly (Jib), stowable, offsettable to 3 and 20 degrees 49' - 108' Luffing Jib equipped with Superlift (available for an additional cost of $12,500 USD) Main and Auxiliary Winches Electronic overload cutout (load limiting device) of Demag design with safe load and radius indicator; hoist and load lowering limit switches, relief and holding devices Daimler Benz Diesel Engine UP  -  AS PER DEMAG SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION Hook Block 64,000# Counterweights...

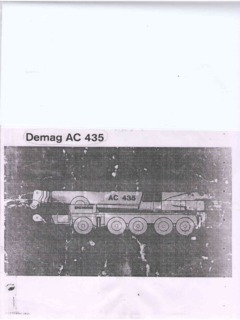

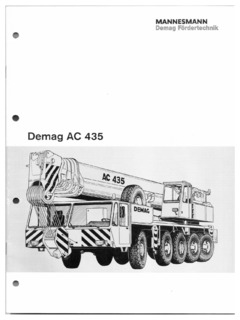

1996 Demag AC 435 180 Ton All Terrain Crane - CranesList ID: 1052 For Sale

1996 Demag AC435, 180 Ton, All Terrain Crane;  CranesList ID: 1052, 42' to 164' consisting of 1 base section and 4 telescopic sections Full Power Boom, No Jib,  Mercedes OM 366, 6-Cylinder, 163 hp, Water Cooled Diesel Engine Upper - SUBJECT TO FINAL CONFIRMATION, Main and Auxiliary Winches with 21mm wire rope, Two Speed, Electronic safe load indicator with digital readout for hook load, rated load, boom length, boom angle, load radius, analog display to indicate the capacity utilization, limit switches on hoist and lowering motions, pressure-relief and safety holding valves, 44,000# Self-Removable Counterweights, Hook Block, Demag 10 x 8 ...

Demag AC 650 All Terrain Mobile Crane For Sale

The Demag AC 650 is a powerful, 650-metric-ton capacity all-terrain mobile crane, known for its strong lifting performance and extensive reach capabilities. It was manufactured by Terex-Demag from 1998 to 2004. Tadano now supports the Demag line.  Key Specifications Max. Lifting Capacity: 650 metric tons (approx. 750 U.S. tons) at a 3-meter radius. Main Boom Length: A five-section telescopic boom with a length ranging from 15.5 meters (50.9 ft) to 60 meters (197 ft). Max. System Length: With an optional luffing jib extension of up to 96 meters, the maximum possible system length reaches 156 meters. Carrier: It is mounted on a 9-axle carrier (18x8x16 drive configuration...

Demag (Tadano) AC 100-4L (Long Boom) All Terrain Mobile Crane For Sale

This fleet owned Demag AC 100-4L 120-ton all-terrain crane is known for its compact size and ability to work in tight spaces powered by a Mercedes-Benz engine coupled with a ZF 14-speed transmission.  Crane Specifications Max Capacity: 120 US tons (100 mt) Main Boom Length: 194.9 ft (59.4 m) Maximum Boom/Jib Length: 268 ft (81.7 m) Overall Width: 8.37 ft (2.55 m) Maximum Counterweight: 54,000 lbs (24,500 kg) Max Road Speed: 53 mph (85 km/h)  Demag AT Cranes are now supported and produced by the Tadano Group.

Demag (Tadano) AC 300-6 All Terrain Mobile Crane For Sale

(1) Fleet Owned 2019 Demag AC 300-6 All Terrain Crane for Sale This Demag AC 300-6 all-terrain crane was rebranded as the Tadano AC 6.300-1 after Tadano Ltd. acquired the Demag Mobile Cranes business from Terex in 2019 Tonnage: 300t | 330 US Boom Length: 80m | 262’ Jib: 21m | 69’ Winch Count: 1 Hook/Block: Block & Ball Counterweight: 93.8t | 206,793 Hours Upper: 6,500 Chassis Engine: Engine 430-4 Euromot 4/Tier 4F Transmission: ZF-AS KM/Miles: 118,789 | 73,812 Tire Size: 385/95 R25 (14.00R25) Drive Standard: 12 X 6 X 10 Contact Us for Availability, Pricing, Current Hours, and Miles

Demag (Tadano) AC 500-8 All Terrain Mobile Crane For Sale

The Demag AC 500-8 (Tadano) is a staple in the all-terrain category. It has a maximum lifting capacity of 551 tons and a maximum boom length of 184 feet. The AC 500-8 is a powerful crane. The telescopic boom automatically telescopes with a single cylinder telescoping system. 8 metal sheaves integrated into the boom head allow for an increased lifting capacity. The increased lifting capacity gives the crane the ability to complete any lift. The crane is powered by a 653 horsepower Tier III compliant powerhouse of an engine. This engine can complete any job thrown at it. The AC 500-8 was also designed with maneuverability in mind. The steering system includes a dual circuit hydro semiblock...

Demag (Tadano) AC 500-8 All Terrain Crane For Sale

2018 TEREX-DEMAG AC500-8  600 US TON CLASS (500 METRIC TON) ALL TERRAIN CRANE Main Boom: 184 Feet Luffing Jib: 198 Feet SSL Superlift 396,832 LBS of Counterweight Two Winches Mercedes Diesel Engines Crane (Upper Hours): 7,088 Exceptionally clean, well maintained crane.  Additional information and photos will be added soon Priced to Sell!

1996 Demag AC 1200 All Terrain Crane For Sale

Demag AC1200 All Terrain Crane 500 ton, 190' boom, 177' fixed fly jib, 256' luffer, Superlift, Mercedes Diesels (both upper/lower), 2 hoists, 269,000 lbs. counterweight, 3-sheave hook block, headache ball. 60K miles / 16K upper hours Contact Exact Crane for additional information and any questions.

NEW! Demag AC 500-8 | 600 Ton All Terrain Crane For Sale

NEW TADANO AC 8.500-1 ALL TERRAIN CRANE CRANE (SUPERSTRUCTURE) DETAILS 600 Ton Lifting Capacity 183.7' Boom 18.7' -295.2' Boom Extension (option) 78.7' - 203.4' Jib (option) 78.7' - 295' Luffing Jib (option) 281HP Mercedes-Benz OM936 Engine  396,800 lbs. Max Counterweight IC-1 Plus Telematics CARRIER DETAILS 617HP Mercedes-Benz OM473 Engine ZF TraXon Transmission (12 forward speeds / 2 reverse) Tires: 385/95R25 (14.00R25) 4 Hydraulic Outriggers Heat/AC Cab 16 x 8 x 14 Drive 8 Axles Contact Exact Crane for more details, availability and a formal quote! ---Need additional parts, attachments or lubricants? Exact Crane is a dealer for...

NEW! Demag AC 60-3 65-Ton All Terrain Crane For Sale

TADANO AC 60-3 ALL TERRAIN CRANE 65 Ton 164' Boom 4.9' / 29.5' - 52.5' jib extension 223' max tip height 26,600 lbs. counterweight Length 38.2' x Width 8.3' x Height 12' Mercedes Benz Engine Flex Base Tadano View System ...and more! Please contact Exact Crane for pricing and availability. Need specific features – contact our sales team to purchase a crane to meet your Exact needs! -------------------------------------------------------------------------------------------------------------- NEED CRANE PARTS, ATTACHMENTS or LUBRICANTS? Exact Crane is a distributor for many top manufacturers & offer a large inventory of both NEW & USED ...

Demag AC 80-1 100-Ton All Terrain Crane For Sale

2003 DEMAG AC80-1 100 US Ton 80 Metric Ton All Terrain Crane With Following Working Spec: - 35.7ft to 164ft hydraulic boom with 1 base section and 5 telescopic sections - 30ft to 58ft lattice jib for mounting on telescopic boom - Two winches - Lower has Daimler-Benz 6-Cylinder DSL engine miles reads (inspect) - Allison transmission  - 2-speed transfer case - 18t (39,700 lbs) Full Counterweight  - Tires 20.5 R 25 - Drive 8 x 6. Performs crab functionality - Multiple-sheave hook block - Ball hook - Error free working LMI - Radio with CD-player for carrier and crane cabin - Air condition for carrier and crane cabin - 12 V-socket for carrier cabin and reverse drive alarm...

Demag AC 435 All Terrain Crane For Sale

1995 DEMAG AC435 180 US Ton 150 Metric Ton All Terrain Crane With Following Working Spec:  - 42ft to 164ft hydraulic boom with 1 base section and 4 telescopic sections - 39ft to 98ft lattice jib for mounting on telescopic boom - Two winches - Upper has Daimler-Benz 6-cylinder DSL engine hours reads (inspect) - Lower has Daimler-Benz 8-Cylinder DSL engine miles reads (inspect) - ZF Transmission - 51.75t (103,500 lbs) Full Counterweight  - Drive 10 x 8. Performs crab functionality - Multiple-sheave hook block - Ball hook - LMI - Radio with CD-player for carrier and crane cabin - Air condition for carrier and crane cabin - 12 V-socket for carrier cabin and reverse drive...

Demag AC 80-2 100-Ton All Terrain Crane For Sale

2004 DEMAG AC 80 100 US Ton (80 Metric) Ton All Terrain Crane With Following Working Spec: - 36ft to 164ft hydraulic boom with 1 base section and 5 telescopic sections, hydraulically extendable under partial load. - 30ft to 57ft double lattice luffing jib for mounting on the telescopic boom - One winch - Lower has Daimler-Benz OM 402 LA 8-Cylinder (380HP) DSL engine miles reads  - Allison automatic 2-speed transfer case - 8t (16,000 lbs) Full Counterweight  - Big tires 16 R 25 - Drive 8 x 6 - 7-sheave hook block - Ball hook - Error-free working LMI - Radio with CD player for carrier and crane cabin - Air-condition for carrier and crane cabin - 12 V-socket for carrier...

Demag AC 300 350-Ton All Terrain Crane For Sale

 DEMAG AC 300 350 US Ton (300 Metric Ton) All Terrain Crane With Following Working Spec:  - 48.2+ft to 193.6ft hydraulic boom with 1 base section and 4  telescopic sections, hydraulically extendable under load. - 65ft to 213ft double lattice manual offset swing-away jib for mounting on the telescopic boom at 0° and 20° - Upper has Daimler-Benz 6-cylinder DSL engine (233HP)  - Lower has Daimler-Benz 8-Cylinder DSL engine (570 HP) - Allison type CLBT 755 with electronic transmission control (ATEC), torque converter and hydraulic retarder. - 80t (116,800 lbs) Full Counterweight  - Drive 12 x 6 x 8. Performs crab functionality - Eddy-current brake  ...

1991 Demag AC 335 165-Ton All Terrain Mobile Crane; CranesList ID: For Sale

1991 Demag AC 335 All Terrain Crane 42'-164’ 5-Section Full Power Boom  33'– 56' Swing-Away Jib Off-settable to 0°, 15° and 30° 105' Fixed Jib 135' Luffing Jib  Superlift Attachment  Mercedes OM 366, 6-Cylinder, 134 hp Diesel Engine Upper    Main and Auxiliary Winches, 2-speed, with 7/8" rope Load moment indicator, Anti 2 block 88,000# Counterweights divisible, hydraulically stowable on carrier - consisting of three slabs that make the crane 150 Ton Capacity and 2 chic  weights that bring it up to 165 Ton Capacity 150 Ton 12 part Twin Hook Block 75 Ton 4 part ...

Demag AC 180 200-Ton All Terrain Crane For Sale

DEMAG AC180 200 US Ton (180 Metric Ton) All Terrain Crane w/ Following Working Spec: 48.2 ft to 197ft hydraulic boom w/ 1 base section and 5 telescopic sections, hydraulically extendable under load 31ft double lattice manual offset swing-away jib for mounting on telescopic boom at 0°, 20°, and 40°  Upper has Daimler-Benz 6-cylinder DSL engine (170HP) Lower has Daimler-Benz 8-Cylinder DSL engine (550HP) ZF transmatik transmission 44t (88,000 lbs) Full Counterweight  Drive 12 x 6 x 8, Performs crab functionality Eddy-current brake   1-sheave hook block Ball hook Error free working LMI Radio w/ CD-player for carrier and crane cabin Air condition...
