Sany America STH1056A Telehandler from Authorized Dealer For Sale
Location: Tulsa, Oklahoma 74102, USA Get a Shipping Quote Get Finance QuoteSany Authorized Dealer
| Status | For Sale |
|---|---|
| Year | 2026 |
| Manufacturer | Sany |
| Model | STH1056A |
| Condition | New |
| Serial Number | Confirm |
| Ton (USt) | 5.00 |
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max. Outreach Capacity | 3,000 lbs. (1,361 kg) |
| Lifting Height | 56.2' (17.11 m) |
| Base Weight (GVW) | 33,290 lb. |
| Transmission Type | Automatic |
| Engine | Cummins QSF 3.8L Tier 4 |
| Horse Power/kW | 130 |
| Category | Telehandlers |
| Show More | |
| Hide |
DESCRIPTION
(1) NEW SANY Telehandler model STH1056A (10,000 lb) with all Standard Features
100% designed and built for the North American Market to ensure years of trouble-free operations. The STH1256A telehandler offers excellent visibility for the operator to see all tires from the seated position with no unobstructed views.
Max Lift Height: 56'2" * Max Lift Capacity: 10,000 lb * Operating Weight: 33,290 lb
Cab: Fully Enclosed Cab with Heat/ Air Conditioning
Carriage 60" side-tilt Rotating carriage forks: 60"

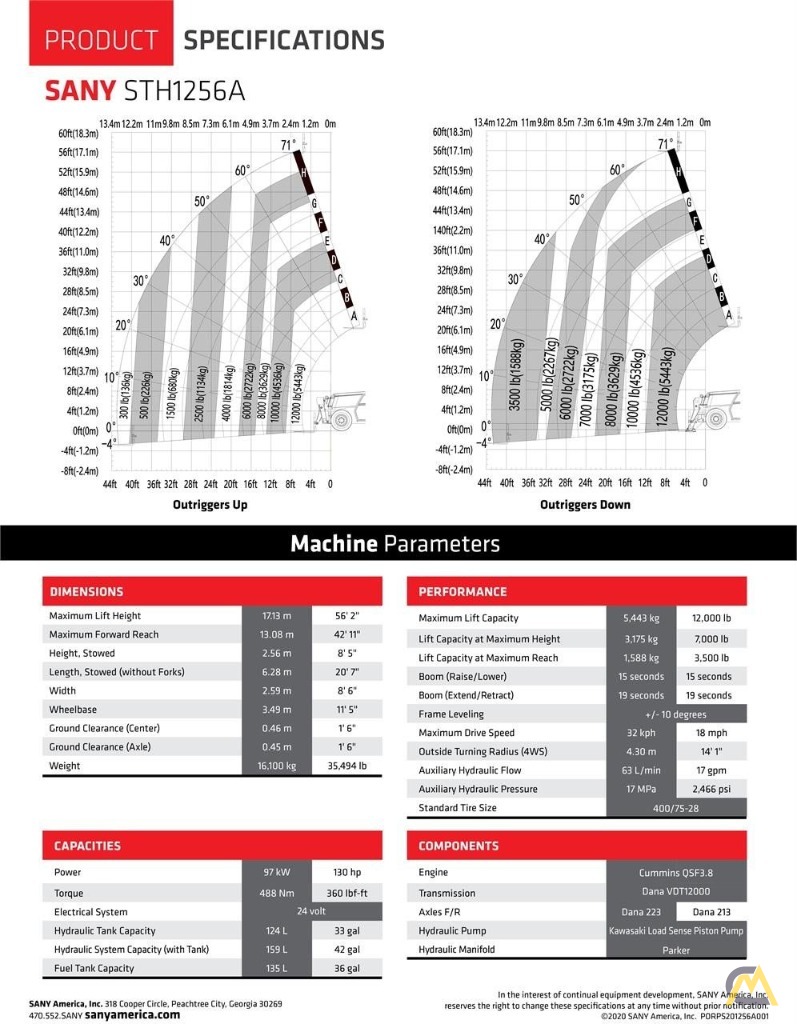

Overall Dimensions
| Maximum Lift Height |
17.13 m 56' 2" |
| Maximum Forward Reach |
13.08 m 42' 11" |
| Height, Stowed |
2.56 m 8' 5" |
| Length (Without Forks) |
6.28 m 20' 7" |
| Width |
2.59 m 8' 6" |
| Wheelbase |
3.49 m 11' 5" |
| Ground Clearance (Center) |
0.46 m 1' 6" |
| Ground Clearance (Axle) |
0.45 m 1' 6" |
| Weight |
15,100 kg 33,290 lb |
Performance
| Maximum Lift Capacity |
4,536 kg 10,000 lbs |
| Lift Capacity at Maximum Height |
2,268 kg 5,000 lbs |
| Lift Capacity at Maximum Reach |
1,361 kg 3,000 lbs |
| Boom (Raise/Lower) |
11 sec14 sec |
| Boom (Extend/Retract) |
15 sec16 sec |
| Frame Leveling | +/- 10 degrees |
| Maximum Drive Speed |
28 kph17 mph |
| Outside Turning Radius (4WS) |
4.30 m14' 11" |
| Auxiliary Hydraulic Flow |
63 L/min17 GPM |
| Auxiliary Hydraulic Pressure |
17 MPa2,466 psi |
| Standard Tire Size | 14.00-24 |
Capacities
| Power | |
| Torque |
488 Nm360 lbf-ft |
| Electrical System | 24 volt |
| Hydraulic Tank Capacity |
124 L33 gal |
| Hydraulic System Capacity |
159 L42 gal |
| Fuel Tank Capacity |
135 L36 gal |
Components
| Engine | Deutz TCD3.6 |
| Transmission | Dana VDT12000 |
| Axles F/R |
Dana 213 Dana 223 |
| Hydraulic Pump | Kawasaki Load Sense Piston Pump |
| Hydraulic Manifold | Parker |
Includes Factory Warranty. Come to our Yard to test drive and pick up a great machine for an exeptional value.
