NEW ELLIOTT HIREACH L65R ON NEW FREIGHTLINER M2-106 For Sale
Location: Milford, MA 01757, USA Get a Shipping Quote Get Finance QuoteElliott Authorized Dealer
Status | For Sale |
---|---|
Year | 2023 |
Manufacturer | Elliott |
Model | L65R |
Condition | New |
Ton (USt) | 2.95 |
Lifting Capacity | 5,900 lbs. (2,676 kg) |
Platform Capacity | 600 lbs. (272.2 kg) |
Main Boom Length | 22.4' - 53.6' (6.8 - 16.3 m) |
Platform Height | 60' (18.3 m) |
Working Height | 65′ (19.8 m) |
Horizontal Reach | 59’ (17.9 m) |
Base Weight (GVW) | 33,000 lbs. (14,970 kg) |
Transmission Type | Automatic |
Truck Chassis Make | Freightliner M2-106 |
Category | Bucket Truck Aerial Platforms |
Sub Category | Telescopic Boom |
Show More | |
Hide |
DESCRIPTION
BOOM DETAILS

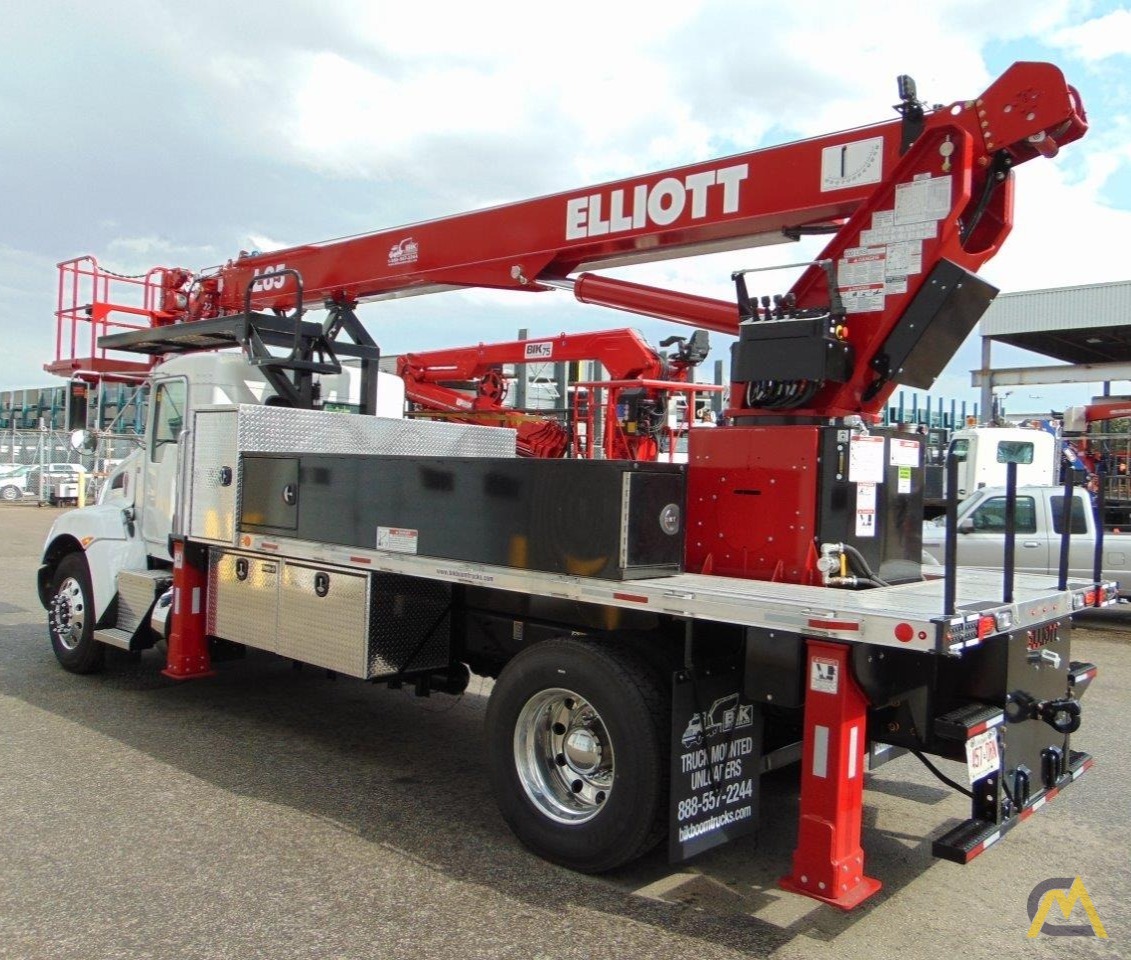

New – Elliott L65 R HiReach: Hydraulic reach to 65’ vertical working height and 59’ horizontal side reach
-
Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
-
New PTO (Chelsea), Hydraulic Pump
-
Supply and Return Lines
-
Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested. Painted Red at Factory.
Standard Features include:
-

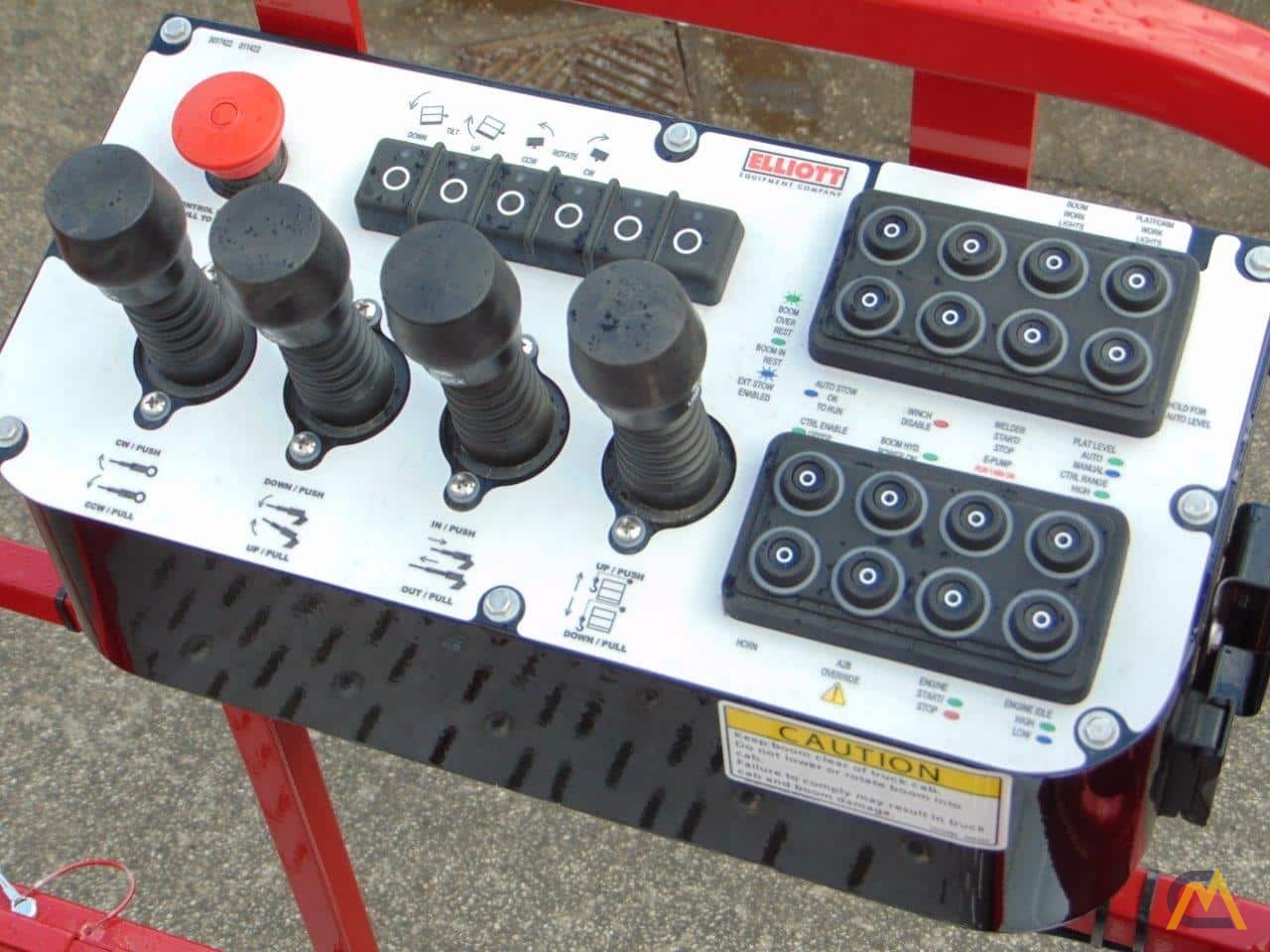

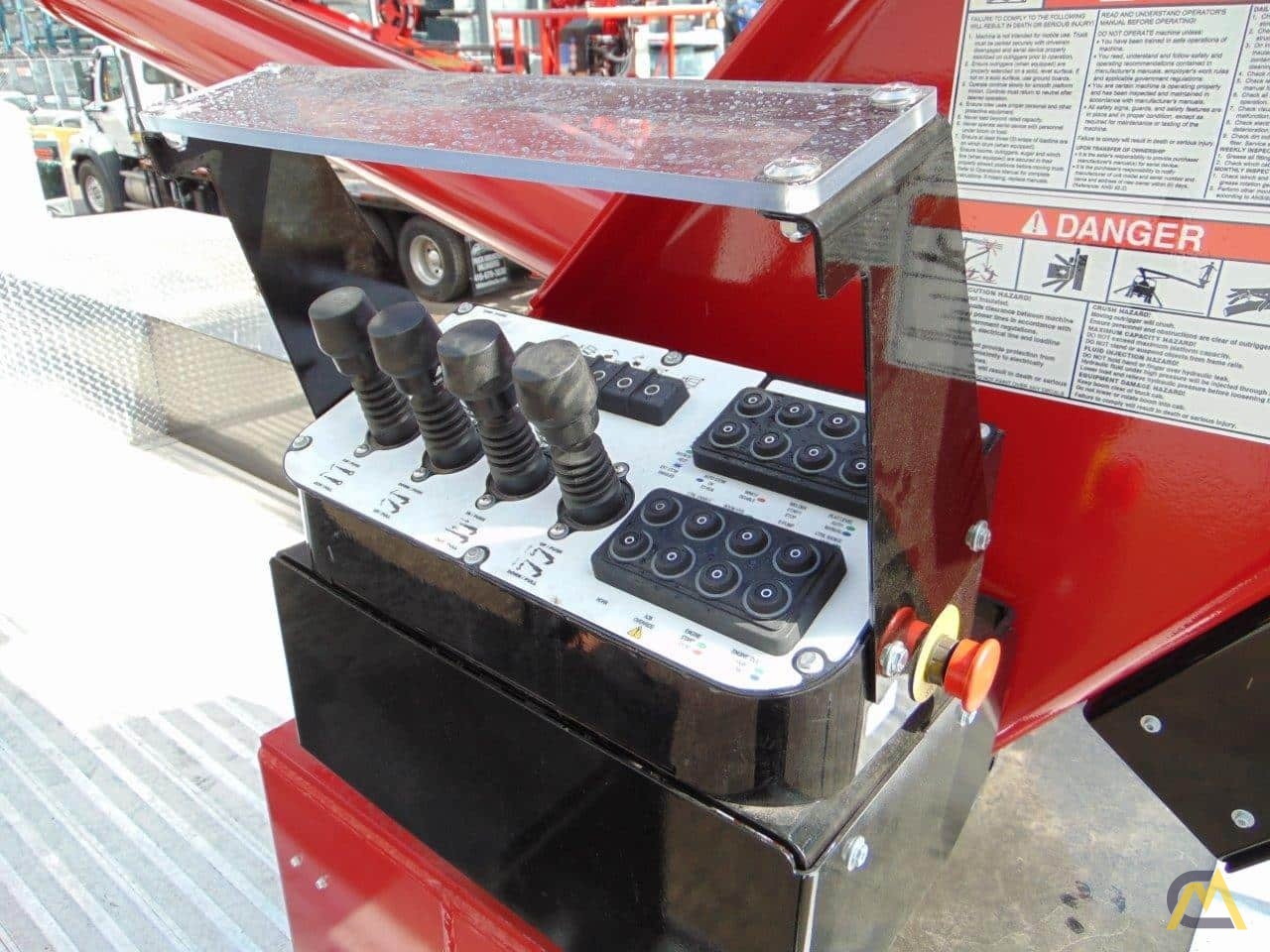

Controls in basket and at turret
-

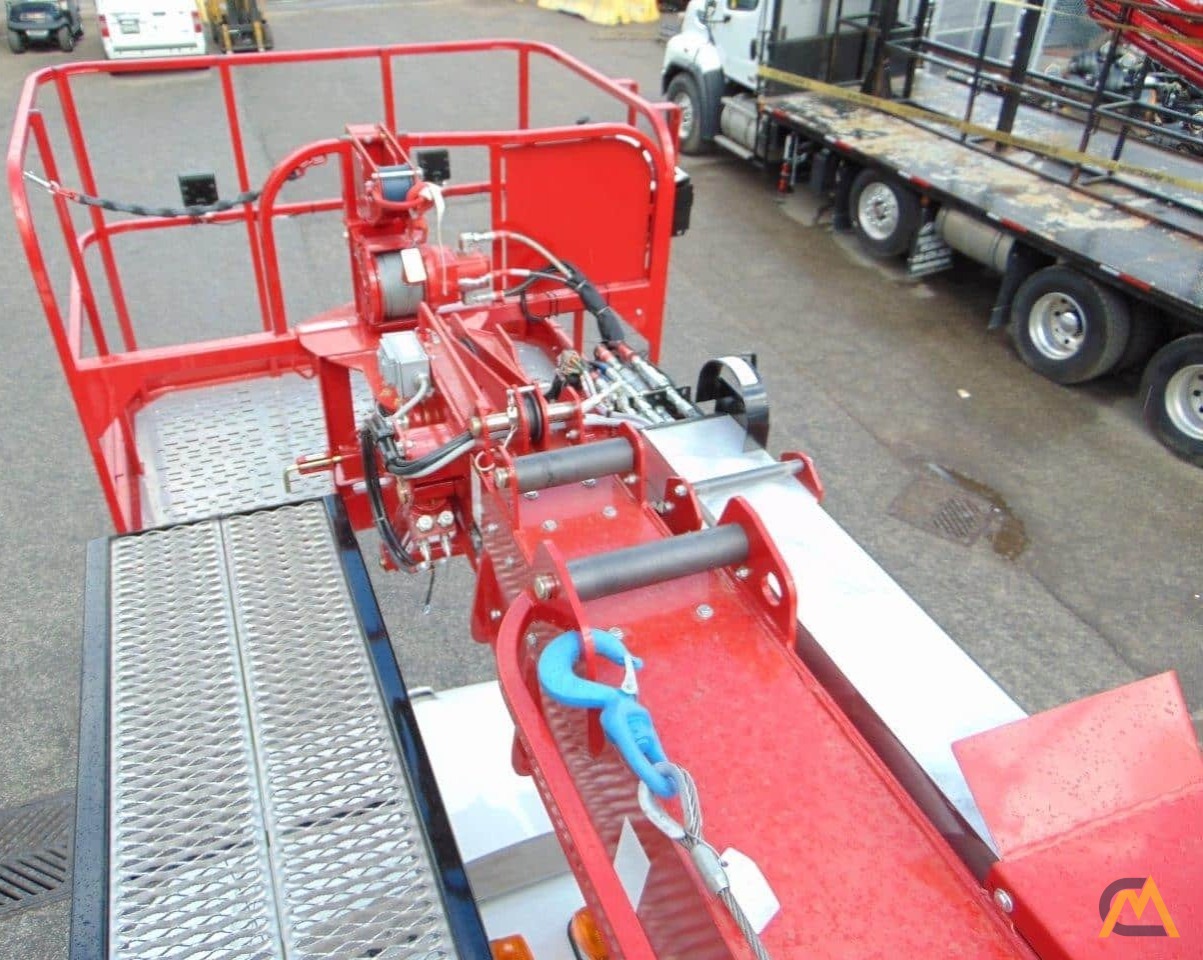

Work platform is 40”x 60” with 40” high rails, with safety attachment loops.
-
One double acting 6” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
-
Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
-
Hydraulic OUT and DOWN driver side controls with a 18’ spread. Load Holding Valves on each cylinder for Safety and Security of Operator and Load.
Included Options Are:
-
5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
-
Platform mounted stow & Go jib with hydraulic winch drum mounted on horizontal arm
-
110 V power supply to work platform, Sign forks on platform (2 pcs)
-
14’ x 96” Aluminum bed, Truck cab windshield guard, steel carrier cover
-
8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck
TRUCK DETAILS
New – Freightliner M2-106 Single axle Truck: 33,000 lb GVWR (available derate to 25,990 lb non CDL)
-
Cummins Diesel 280 hp Diesel Engine
-
Allison 2500-RDS Automatic Trans.
-
Truck cab white
-
12,000 lb front axle
-
21,000 lb rear axle on Spring Susp. with 11R22.5 tires on Polished Aluminum outer rims
-
Hydraulic brakes
-
Options Include: Exterior sun visor, chrome bumper & grille, Aluminum battery box, Air. Cond., am/fm stereo & Bluetooth, tilt steering, cruise control, power windows / locks, black/grey color interior, Air Ride Drivers Seat, 2-man passenger bench seat, 60 gal aluminum fuel tank etc.
Optional Equipment:
-
Aluminum Under Deck Storage Boxes
-
Hydraulic oil tank heater
-
Drawplate with pintle hook
Price On Request
