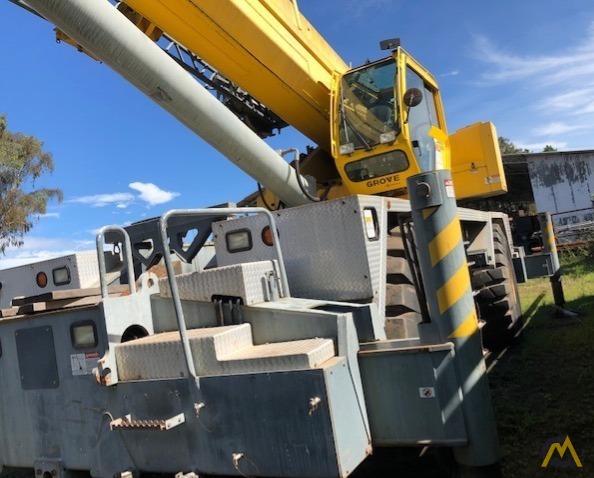

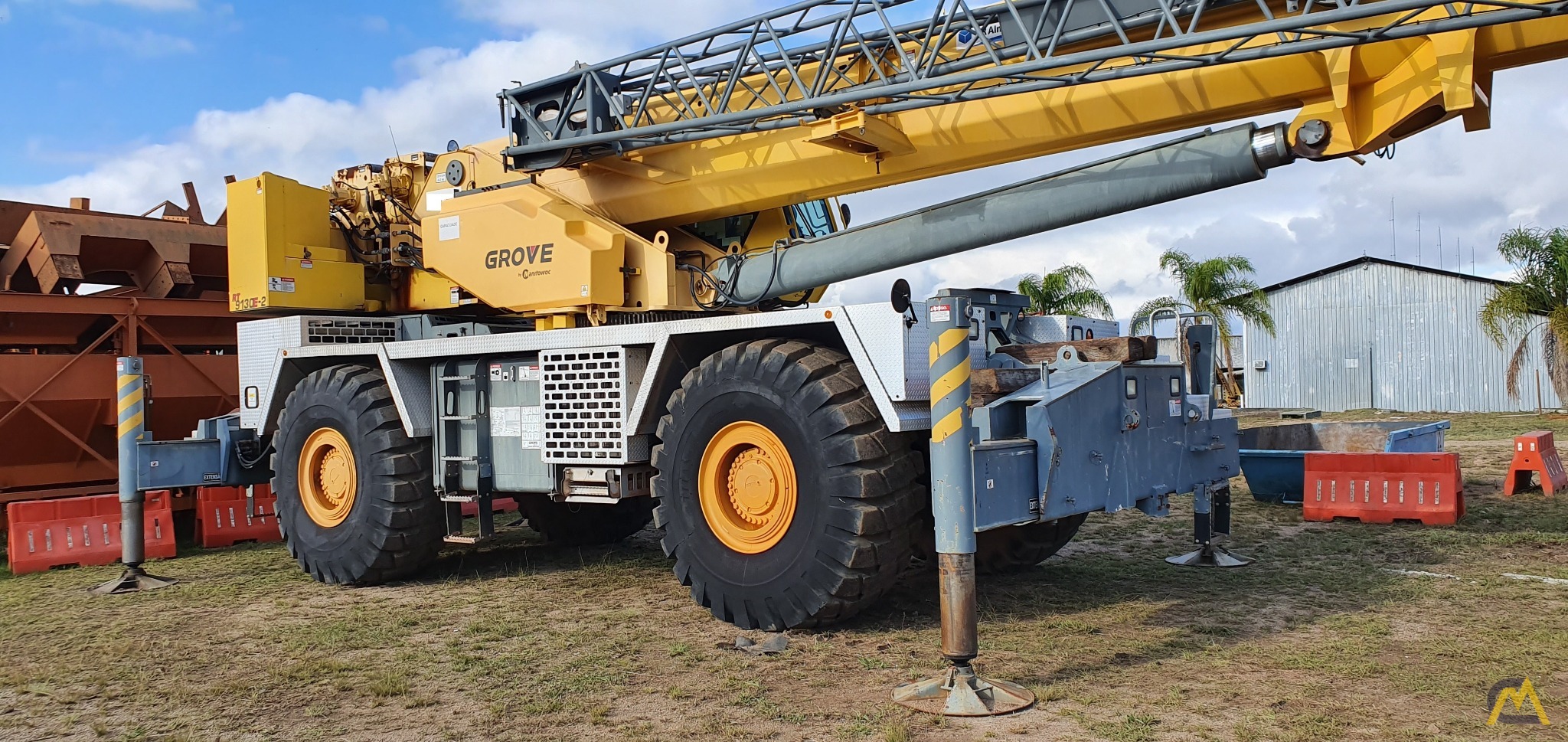

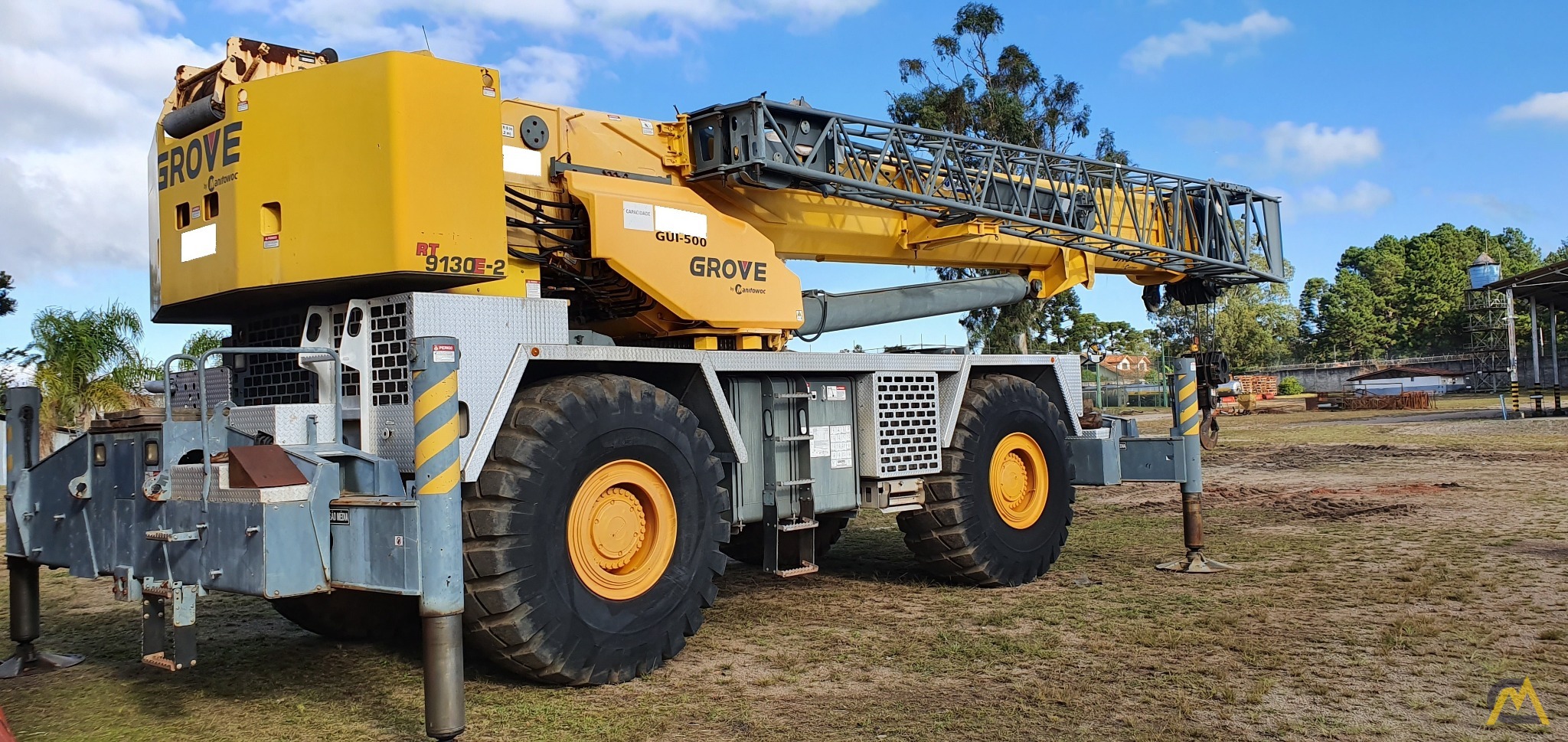

Grove RT9130E-2 130 Ton Rough Terrain Crane For SaleLocation: Brazil Get a Shipping Quote
|Main Boom Length||42' - 160'|
|Jib Length||36' - 59' + 2 x 26' Inserts|
|Engine||Cummins QSL8.9L Tier 4F Diesel|
|Maximum Counterweight||40,000 lbs.|
|Category||Rough Terrain Cranes|

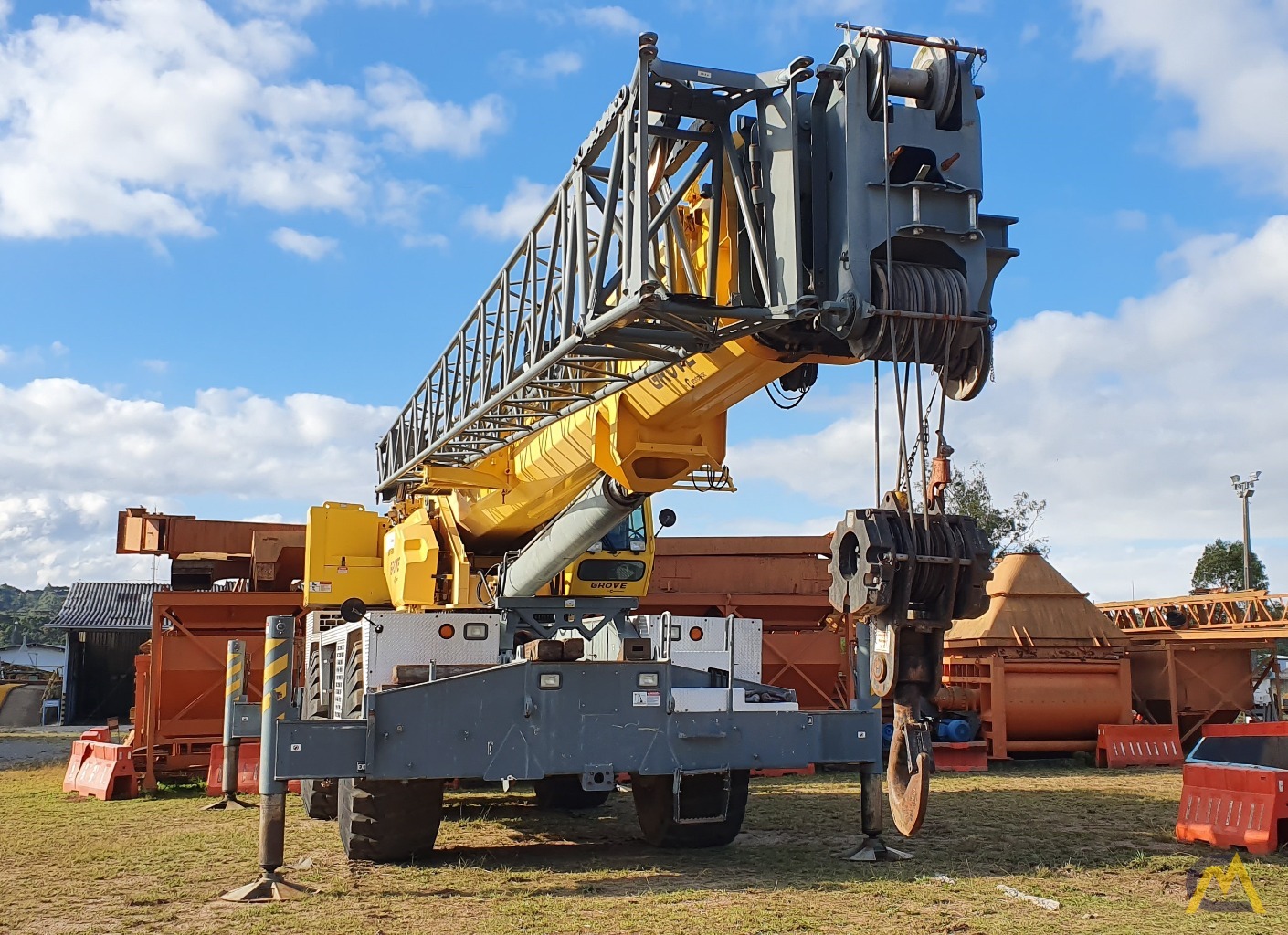

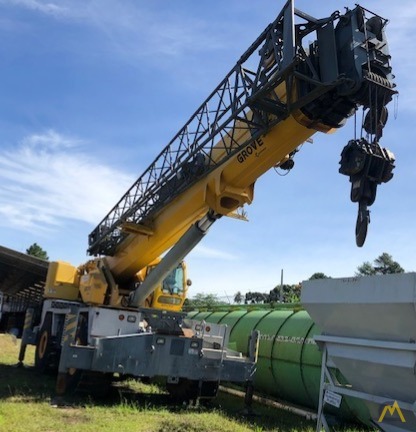

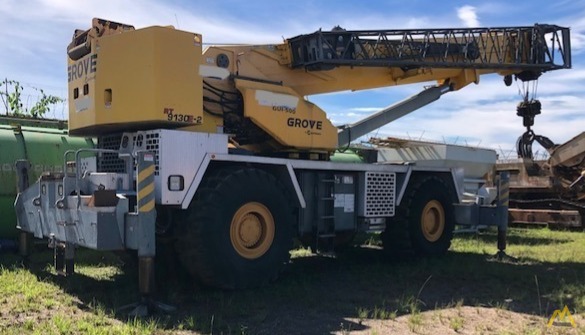

2012 Grove RT 9130E-2, 130 Ton, Rough Terrain Crane; CranesList ID: 391,

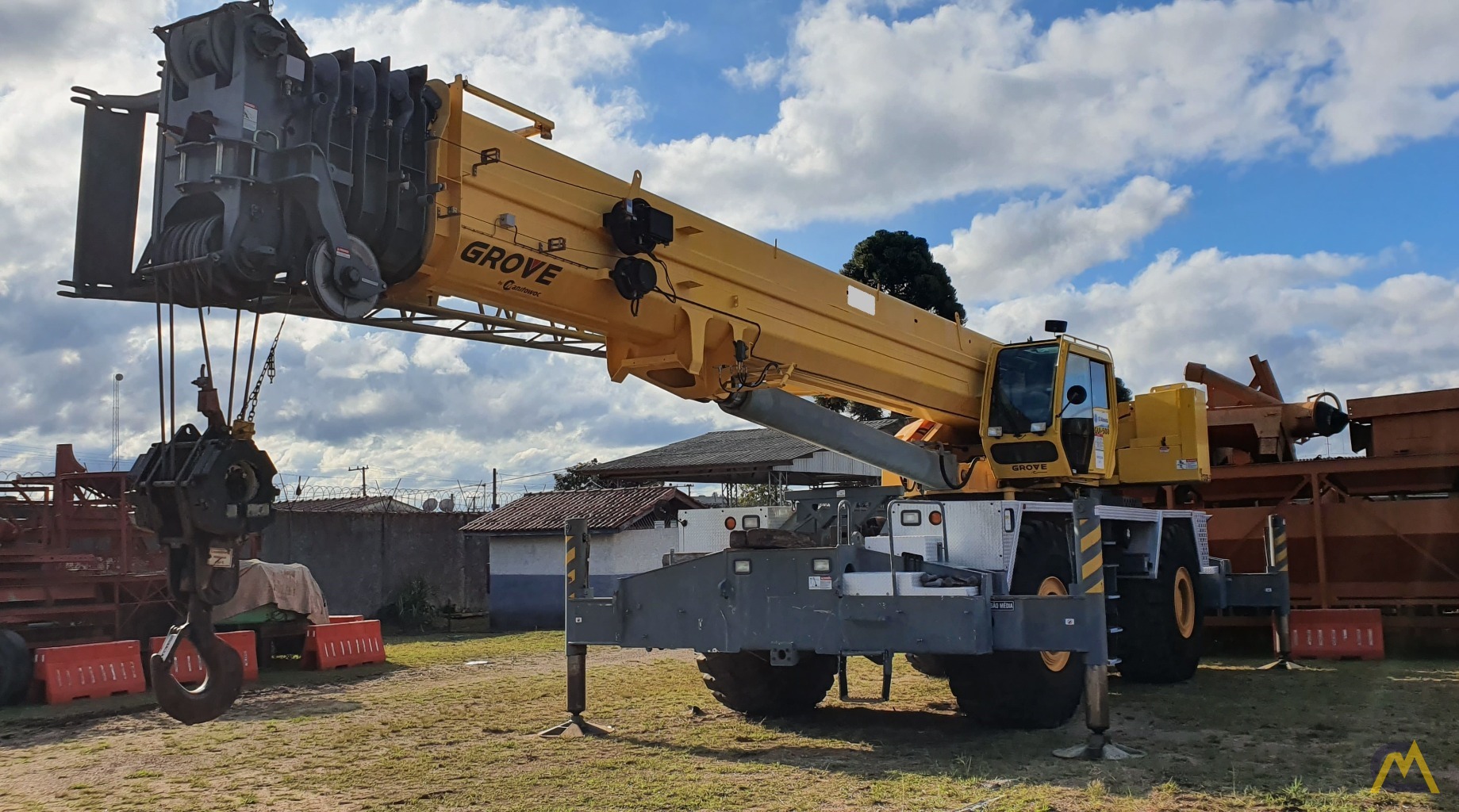

- 42' - 160' five-section, MEGAFORM sequenced synchronized full power boom with Removable auxiliary boom nose,
- 36' - 59' hydraulically offsettable bifold lattice swingaway extension (Jib). Offsets from 0° to 40°. Stows alongside base boom section,
- 2 x 26' lattice extension inserts. Installs between the boom nose and bifold extension, nonstowable,

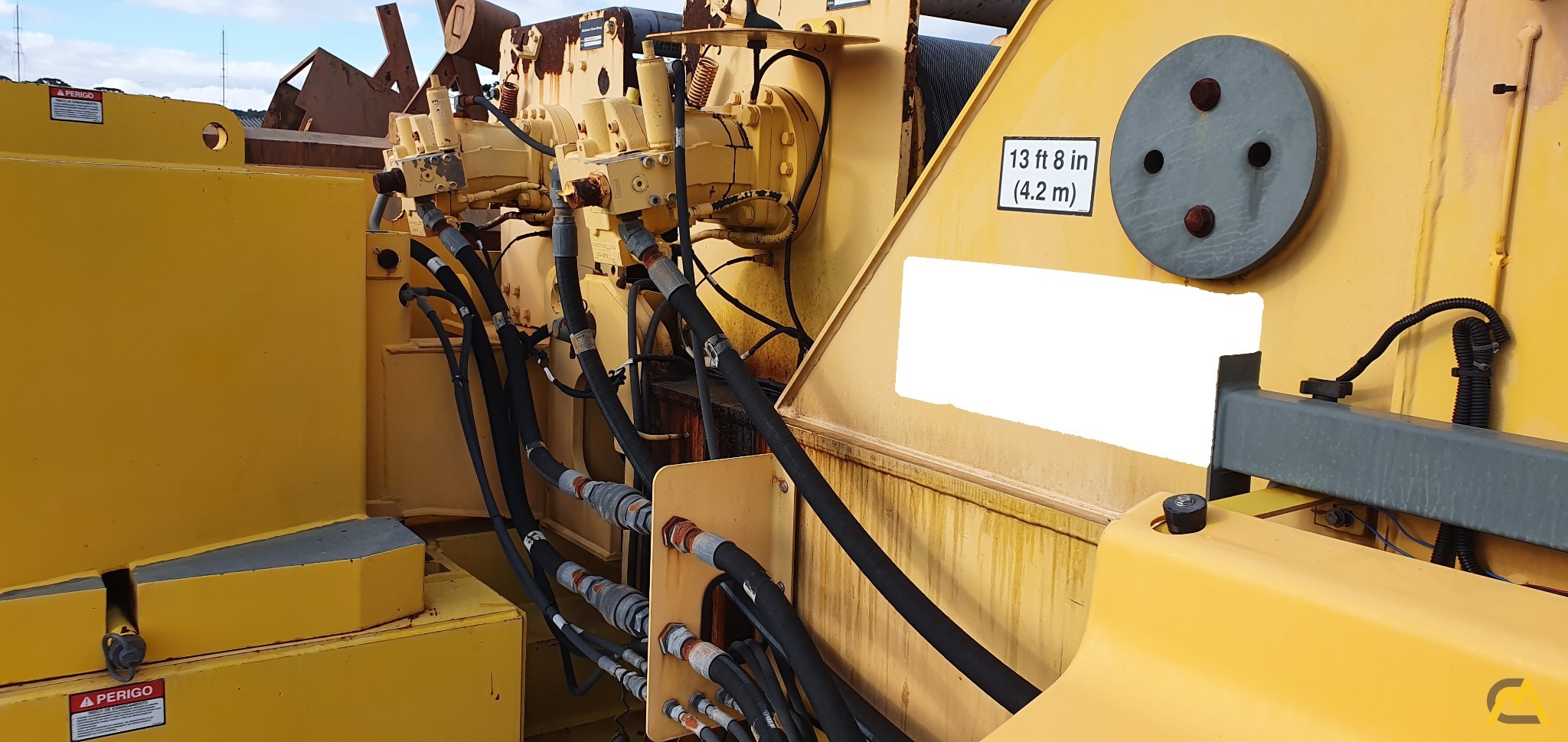

- Main winch with 3/4” wire rope,
- Drum Rotation Indicator, Two-Speed, Load moment and anti-two block system - Standard “Graphic Display” with audio-visual warning and control lever lockout. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition.
- Hook Block,
- Swing - Two speed, (2) planetary swing drives with foot applied multi-disc wet brakes. Spring applied, hydraulically released swing brakes. 360° positive swing lock and two-position mechanical house lock, both operated from cab,
- Grove 4 x 4 drive Carrier,
- Cummins QSB 8.3L Six cylinders 224 kW (300 hp) Tier III Diesel Engine,
- Full powershift with 6 forward and 3 reverse speeds. Front axle disconnect for 4 x 2 travel.,
- Front and Rear Tires: 33.25 x 29 - 38 bias ply,

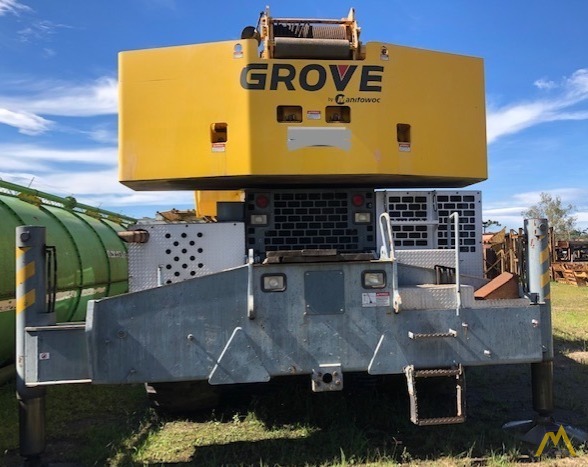

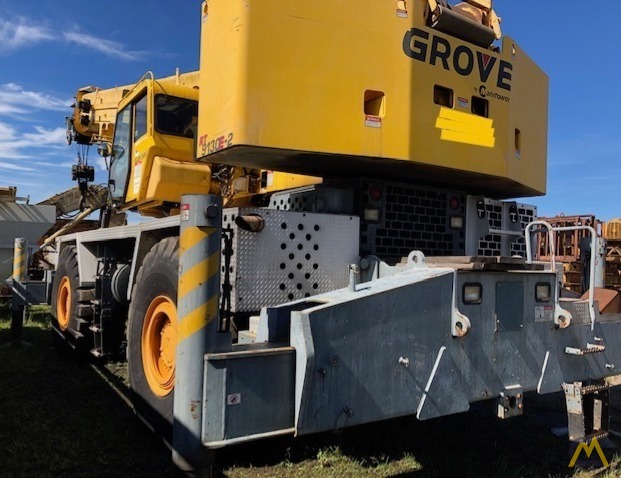

- 40,000# counterweights. Hydraulically installed and removed,

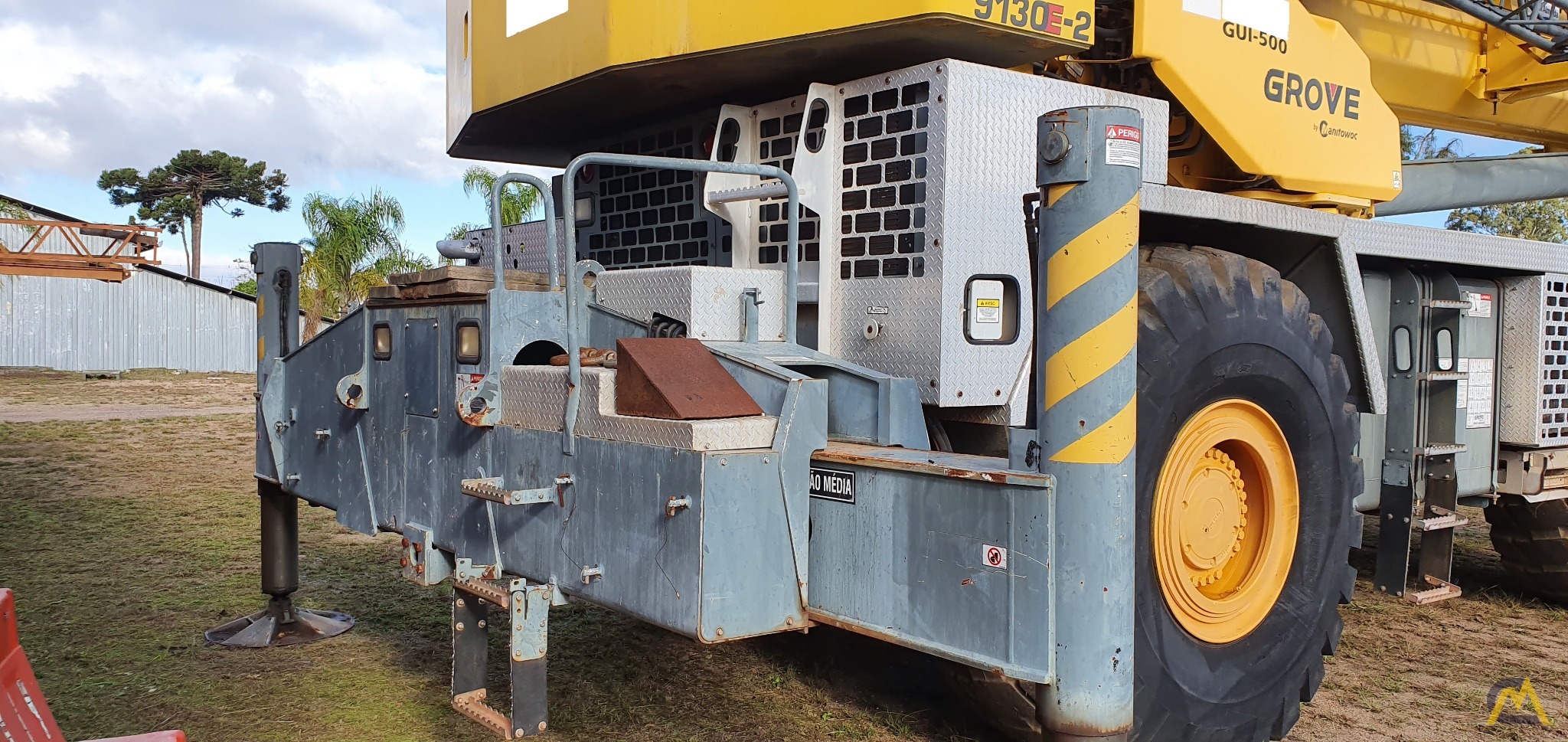

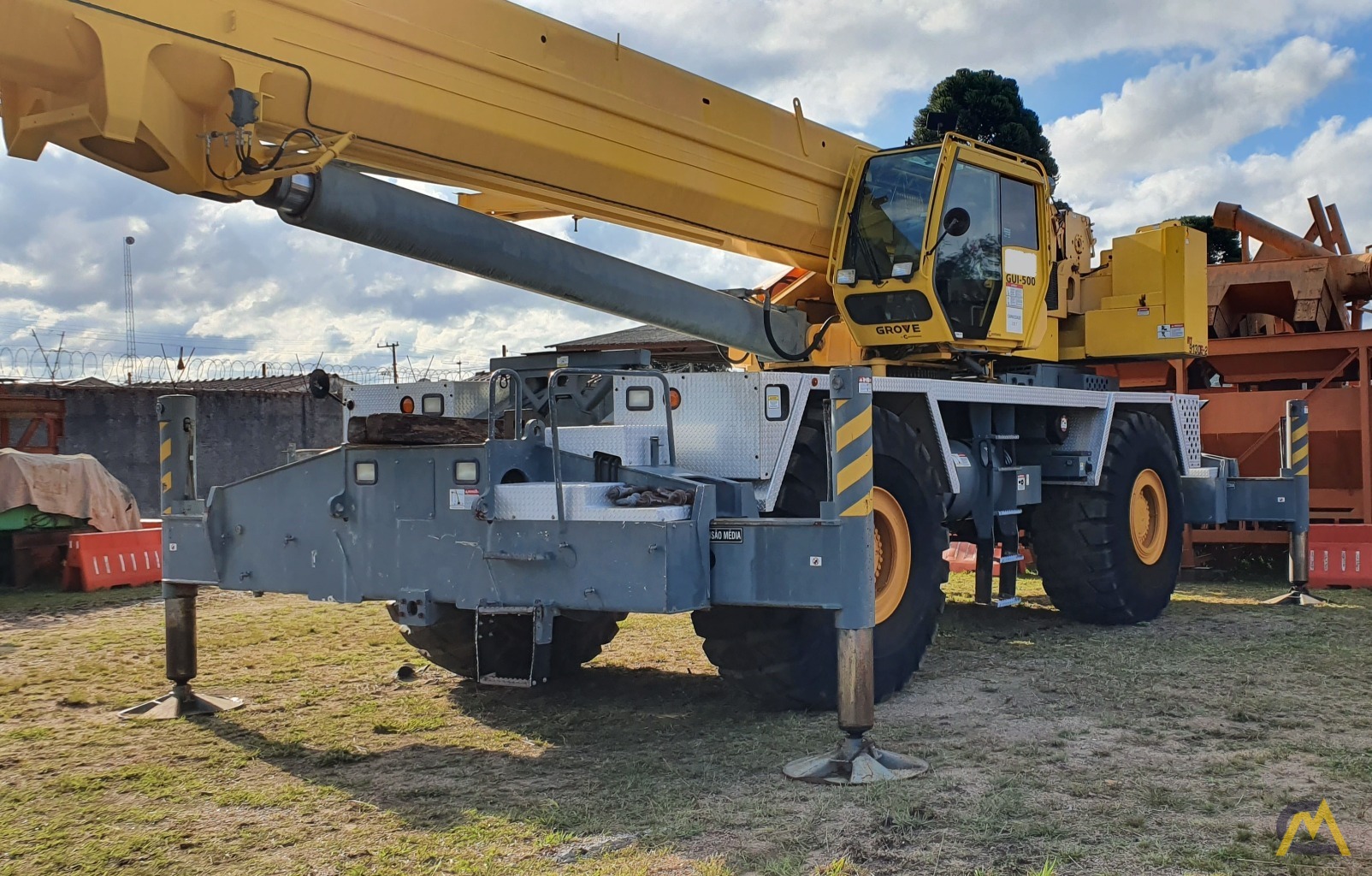

- Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position settings, 0%, 50% and fully extended. Outrigger boxes removable for ease of transportation,
- Outrigger Controls and crane level indicator located in cab.
- Single owner crane, was working in a big company fleet in Brazil. Preventive maintenance has been done. Routine service to be done prior to sale.
LOCATED IN BRAZIL!
