Grove GHC75 Telescopic Boom Crawler Crane For Sale or Rent
Location: South Easton, Easton, MA, USA Get a Shipping Quote Get Finance QuoteGrove Authorized Dealer
| Status | For Sale or Rent |
|---|---|
| Year | 2023 |
| Manufacturer | Grove |
| Model | GHC75 |
| Condition | Used |
| Serial Number | 75.5.235 |
| Ton (USt) | 77.00 |
| Lifting Capacity | 150,000 lbs. (68,038 kg) |
| Main Boom Length | 36.2' - 118.1' (11 - 36 m) |
| Jib Extension Length | 5' - 26.3' - 49.3' (1.5 - 8 - 15 m) |
| Max. Tip Height | 173' (52.7 m) |
| Max. Hook Radius | 140' (42.7 m) |
| Maximum Counterweight | 39,245 lbs. (17,801 kg) |
| Base Weight (GVW) | 143,665 lbs. (65,165 kg) |
| Engine | Cummins QSB6.7L |
| Horse Power/kW | 228 |
| Category | Crawler Cranes |
| Sub Category | Telescopic Boom |
| Show More | |
| Hide |
DESCRIPTION

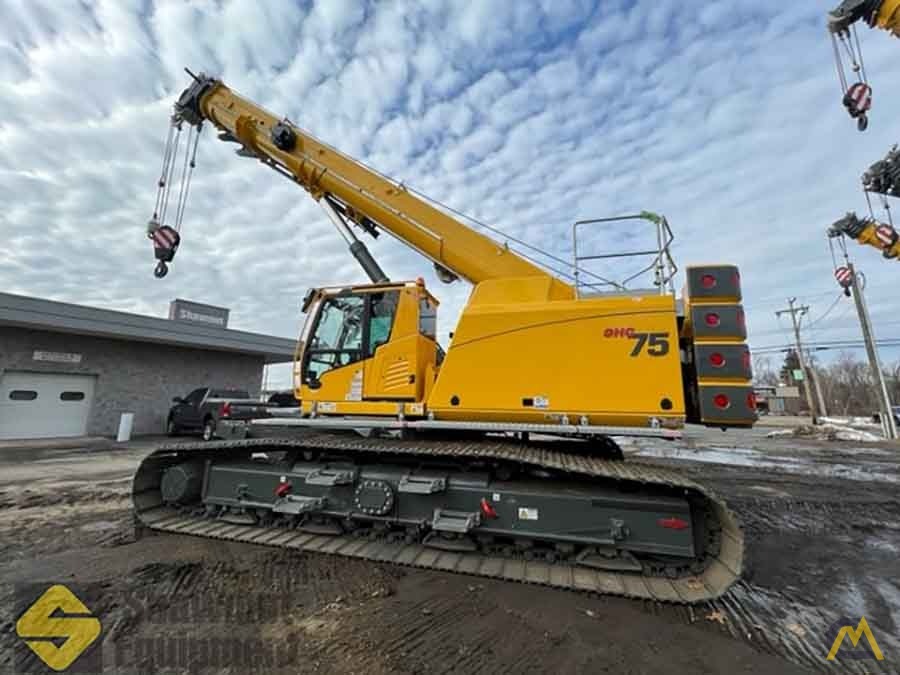

*Stock Image. Not Actual Equipment
One (1) 2023 Grove GHC75, S/N: 75.5.235, 77 Ton Capacity Telescopic Boom Crawler Crane, Equipped As Shown Below:
- 36’ – 118’ 4-Section Sequenced / Synchronized
Full Power Main Boom
- 26’ 3” Offsettable Swingaway Extension
- Swingaway Offsetts at 0, 20 and 40 Degrees
- Auxiliary Boom Nose
- Seven Sheave Main Boom Nose
- Main & Auxiliary Hoists
- Drum Rotation Indicators
- Operator’s Cab Tilts to 20 Degrees
- Ergonomic Control Panels
- Load Sensing Electric Dual Axis Control Joysticks
- Monitor In Cab for Rear, Right & Hoist Cameras
- Air Conditioning for Operator’s Cab
- 360 Degree Continuous Swing
- Swing Barrier Protection
- 36’ – 118’ 4-Section Sequenced / Synchronized
Full Power Main Boom
- 26’ 3” Offsettable Swingaway Extension
- Swingaway Offsetts at 0, 20 and 40 Degrees
- Auxiliary Boom Nose
- Seven Sheave Main Boom Nose
- Main & Auxiliary Hoists
- Drum Rotation Indicators
- Operator’s Cab Tilts to 20 Degrees
- Ergonomic Control Panels
- Load Sensing Electric Dual Axis Control Joysticks
- Monitor In Cab for Rear, Right & Hoist Cameras
- Air Conditioning for Operator’s Cab
- 360 Degree Continuous Swing
- Swing Barrier Protection - Central, Easily Accessible Lubricating Strip
- Cummins QSB6.7L (Tier IV Final) Diesel Engine
- 38,450 Lbs Total Counterweight
- Hydraulically Extendable Undercarriage
- Maintenance-Free Crawlers (62 Track Shoes)
- 36” Triple-Bar Track Shoes
- 2-Stage Track Motors for High Travel Speed
- “Graphical RCL” Load Moment Indicator
- External RCL Light Bar
- Anti Two Block System
- One Rotating Beacon Light on Top of Cab
- Two Additional LED Lights Mounted on Base Boom
- Foldable Catwalk on Both Sides of S/S
- 38.5 Ton 3-Sheave Hookblock
- 5.5 Ton Headache Ball
- Approximate Hours: 280 Hours (10/21/2024)
Price On Request
Bare Crane
Rental Available
