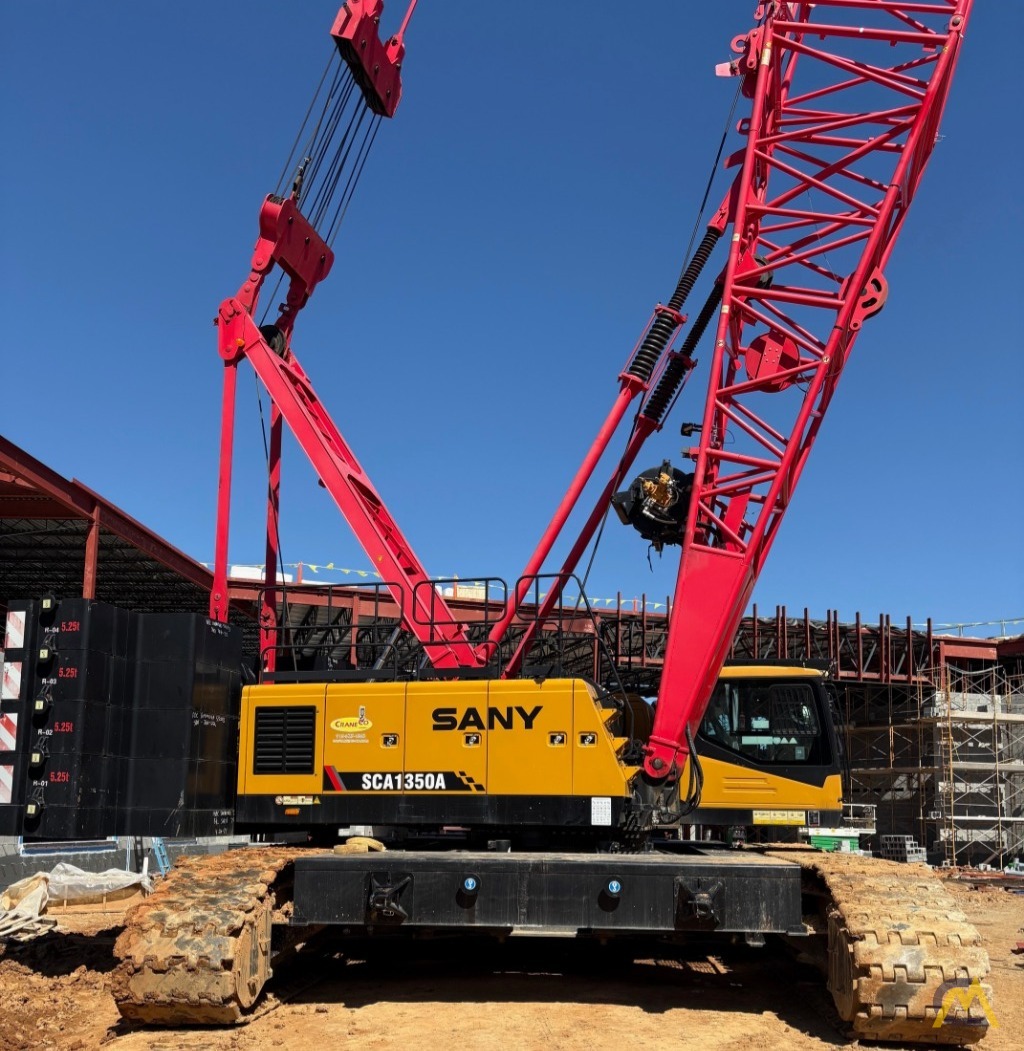

2023 Sany SCA1350A Lattice Boom Crawler Crane For Sale

One (1) Used 2023 SANY Hydraulic Crawler Crane model SCC1350A (150-ton US) Complete

With standard options including the serial number

• Boom: 76m 250ft
• Fixed Jib: 31m 100ft
• Luffing Jib: 52m 170.6ft.
• Auxiliary Main Boom Nose
• Hoist: Main & Auxiliary with Free-Fall both Hoists
• 3^rd Drum
• LMI System
• Block: 135t,80t,35t
• Ball: 13.50t
• Engine: Model: Cummins QSL9-C334 Diesel engine, Type: 4-stroke, water-cooled

Vertical in-line 6 cylinders, direct injection, turbocharger, intercooler, complied with European Off-way Tier IV Emission Standard, displacement: 8.9L, Rated power  249kw/2100rpm, Operation power: 247kW/1800rpm, Max. Torque: 1424N· M/1500rpm.

• Electrical Control System Self-developed SYIC-II integrated control system is adopted with. Higher integration, precise operation and reliable quality, Control system consists of Power system, engine system, main control system, LMI system, auxiliary system and safety monitoring system. CAN BUS is used for data communication between.

Controller, monitor and the engine, Monitor: the working parameters and status are. Shown on the monitor are the engine speed, fuel volume, engine oil pressure, Servo pressure, engine working hours, lifting conditions, and boom angle.

• Cab and Control: Novel operator's cab with fashionable profile, nice interior, and large

Window glass. There are low and high-beam lights, a back-view mirror, a heater, and an A/C, Radio and other functions. The layout of the seat, handles, and control buttons is designed. With ergonomic principles to make operation more comfortable, Cab layout: Integrated. 10.4inch touch screen, programmable smart switches, and man-machine interaction Interface are more improved, Armrest box: on the left and right armrest box are control. Handles, electrical switches, emergency stop and ignition switch, the armrest box can be. Adjusted along with the seat, seat: multi-way and multi-level floating adjustable seat with Unload switch, A/C: cool and heat air; optimized air channels and vents, Multiple Cameras can present on the monitor at the same time to realize backing video, real-time. Monitoring of the wire rope on each winch, conditions behind the counterweight and surrounding the machine

• Counterweight: Counterweight tray and blocks are piled up for easier assembly and transport

Rear counterweight is self-assembled, total 31.2t, Self-assembled counterweight: tray. 9.9t×1, left counterweight block 3.45t×3, and right counterweight block 3.45t × 3, cylinder

Bracket 0.6x1, Carbody counterweight: 5.5t×2 at the front and rear of the carbody

• Crawler Extension and Retraction the crawlers can extend and retract via cylinders. During

In work mode, the crawlers must be extended and retracted during transport with the crawlers.

When there are no restrictions

• Anemometer: It is mounted on the top of the boom/jib, and displayed on the monitor in the cab.
• Electronic Level Gauge It displays the tipping angle of crane on the monitor in real time, Protecting the machine from dangerous situations.
