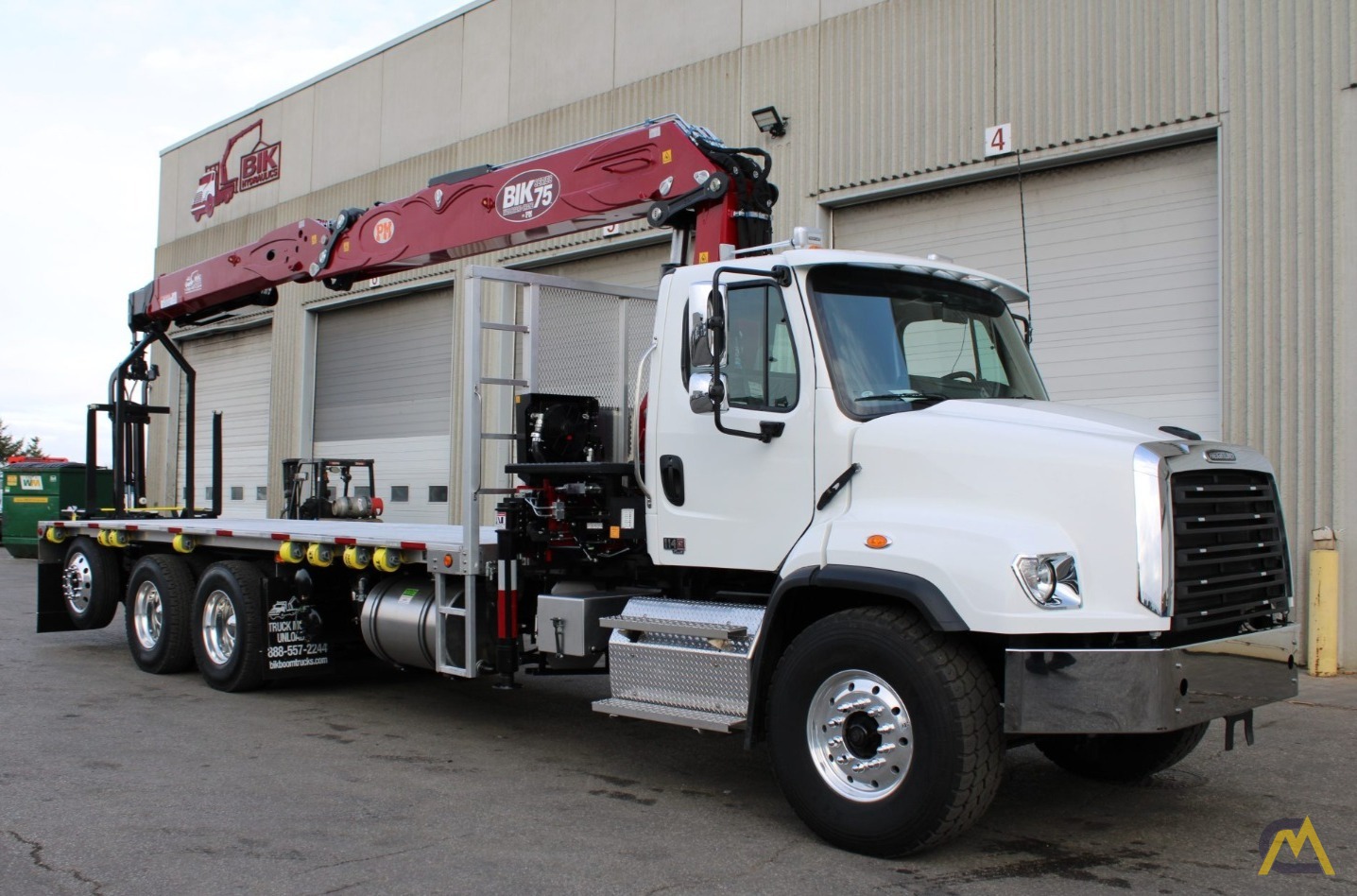

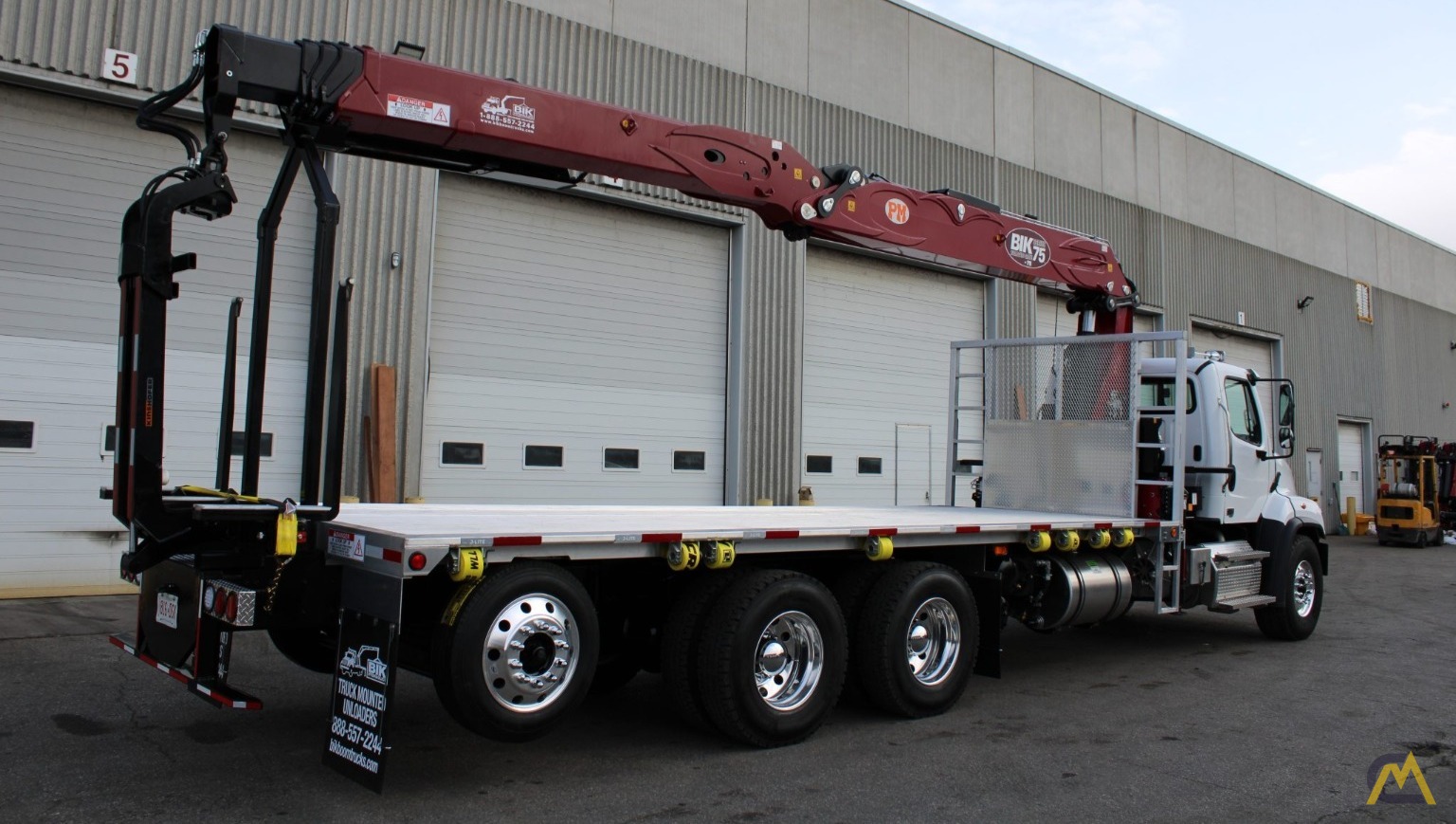

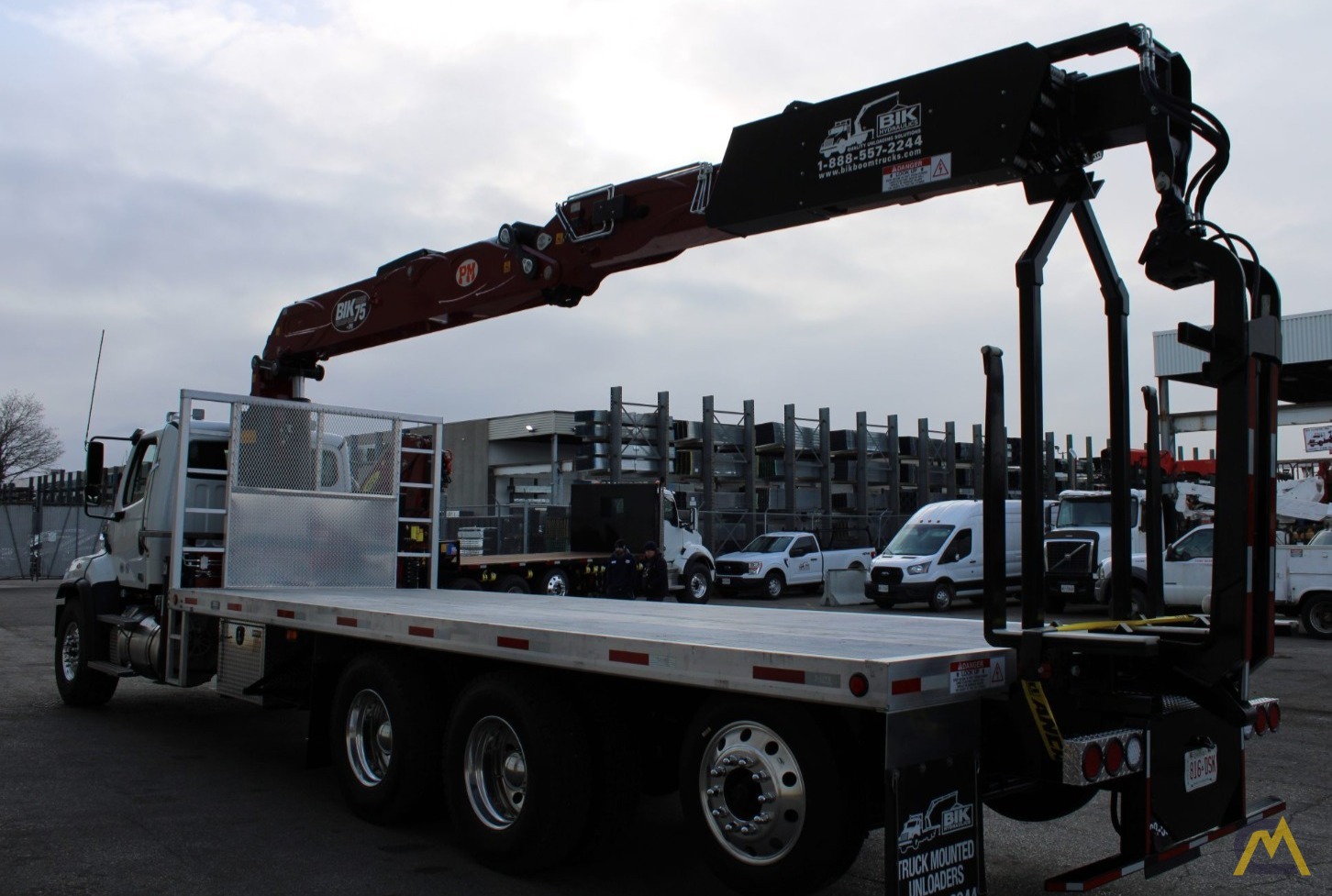

BIK SERIES WC-75 BY PM Wallboard Loader Crane on Freightliner 114SD For Sale

New – BIK “Wallboard-Crane” Series WC-75 by PM

• 8th Floor Lift Installed at rear – Best Capacity in its Class ! 4- Hyd Extensions to 62’ horizontal reach (74’ vertical )

• Vertical Boom Capacity:

  • 7,510 lbs – 70’up & 23′ out

  • 5,480 lbs – 65’up & 33′ out

• Internal cylinders on all boom extensions, Outer boom cylinder guard

• 360 Degree Continuous (Endless) Rotation and Dual Planetary Gear Drive Motors – 10 WARRANTY – on Turret Bearing

• Dual Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout

• Super Xtra Wide Stabilizers – 27’ span, hydraulic out and down type

• Power Tronic Electronic Safety System allowing constant crane monitoring & visual display

• 5-level stabilizer deployment control system – reduces boom capacity in proportion to shortened stabilizer deployment

• DANFOSS Valve Manual Boom Levers – Located on Boom Column & SCANRECO Proportional Radio Remote Control

• Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord, Continuous Rotation Kinshoffer Drywall Forks

• Flanged holding valves, double acting check valve for the down movement of the stabilizers

• Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom

• Installed back of cab, with integral sub-frame and specialized torsion bracing to meet or exceed all CMVSS Standards

Deck Details

New  – 24’4″  x 102” Aluminum Flat Deck:

• Installed on top of steel main sill

• 4” aluminum extrusion deck surface

• Removable 66” front headboard

• 8 sliding tie-down winch straps on the passenger side

• Winch bar holder and winch bar

• Access ladders on Both sides at the front

• Under deck stabilizer pad/cone/chuck holders, reflectors and 5-side lights as required.

Truck Details

New -2024 Freightliner 114SD 3-Axle Diesel Truck:   79,000 lb GVWR

• The truck cab white color

• 12L Cummins Diesel 500 hp

• Eaton Ultrashift Plus Automated 18spd trans.

• 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims

• 46,000 LB Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims

• 13,000 lb self-steer tag axle behind t/a with low profile 22.5” tires on Alum rims

• double frame chassis

• 54” spread at tandems, 278” wb

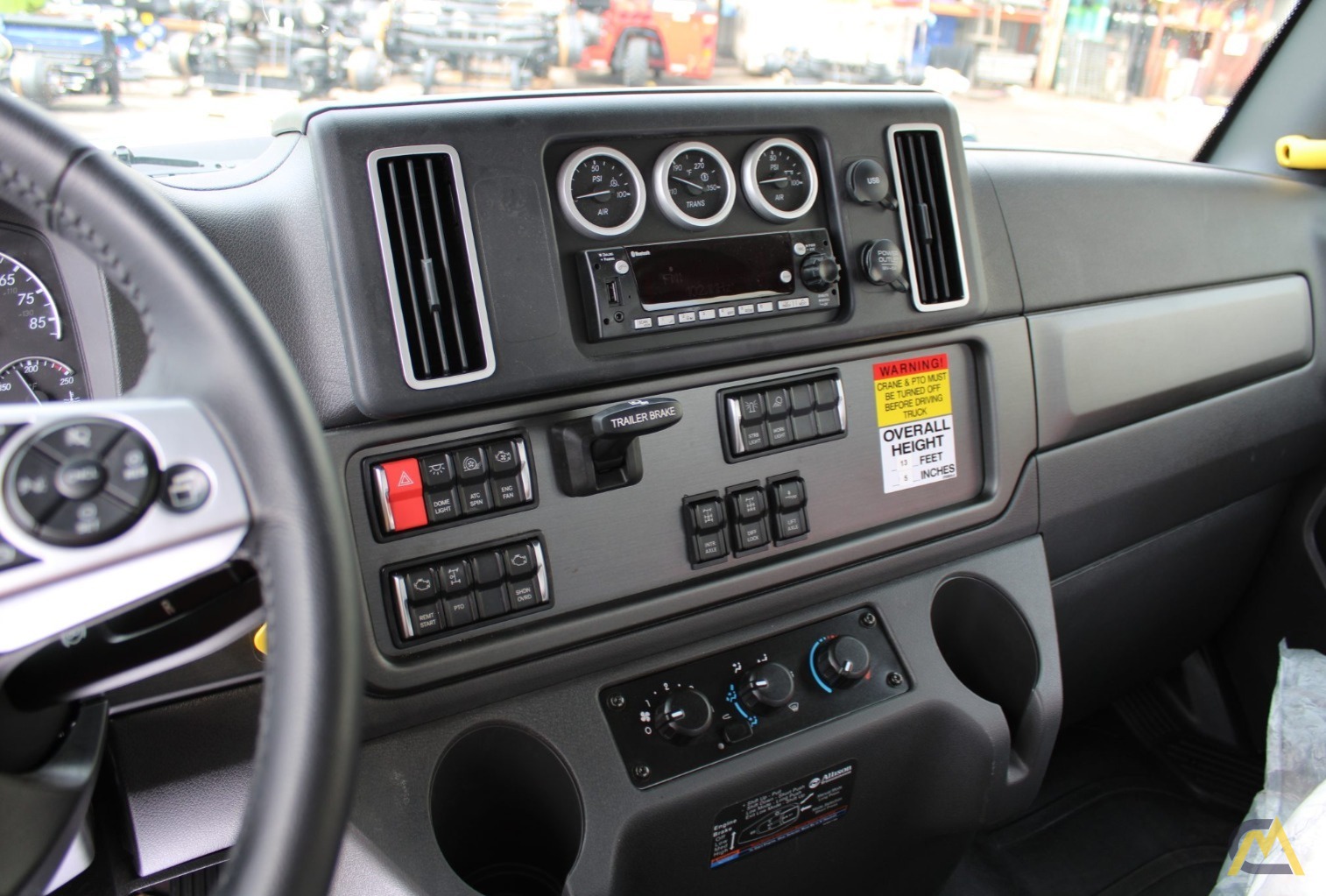

• Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power & heated mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock-ups, 80 gal alum fuel tank, etc

Also Included:

• Activate Extra Remote Features to operate: engine start/stop

• Variable RPM

• Truck horn alert

• 36” aluminum storage box

• Safety Cones (2 pcs) with holders and wheel chucks

• Pair of Aluminum stabilizer pads with holders on each side at the front of the deck.

Options at Extra Cost:

• An additional 36” aluminum storage box installed

• 13,000 lb self-steer lift axle installed behind t/a with low profile 22.5” Tires on Alum Rims

Alternative Truck:

• New 2024 West Star 47X w/500 hp 12L Cummins & Auto 18spd (same features as Fliner)
