2011 Grove GMK5275 275-ton All Terrain Crane - CranesList ID: 1078 For Sale
Location: Southern USA Get a Shipping Quote Get Finance Quote
| Status | For Sale |
|---|---|
| Year | 2011 |
| Manufacturer | Grove |
| Condition | Used |
| Stock Unit # | 1078 |
| Ton (USt) | 275.00 |
| Lifting Capacity | 550,000 lbs. (250,000 kg) |
| Main Boom Length | 44' - 223' 13.3 - 68 m) |
| Jib Extension Length | 39' - 69' (12 - 21 m) |
| Max. Hook Radius | 295' (90 m) |
| Traveling Speed | 53 mph (85 km/h) |
| Maximum Counterweight | 169,700 lbs. (77,000 kg) |
| Base Weight (GVW) | 130,040 lbs. (58,985 kg) |
| Transmission Type | Automatic |
| Miles/KM | Verify Miles |
| Category | All Terrain Cranes |
| Show More | |
| Hide |
DESCRIPTION
2011 Grove GMK5275, 275 Ton, All Terrain Crane; CranesList ID: 1078
- 44' - 223' Seven Section, Full-Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave
- 39' - 69’ Bi-fold Lattice Swing Away Extension (Jib) Hydraulically Off-settable (5° - 40°)
- Cummins Diesel Engine (Up)
- Main and Auxiliary Winches with 22 mm Wire Rope
- Drum Rotation Indicator, EKS 5 Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition
- Hook Ball and Hook Block
- 169,700# Counterweights consisting of various sections with hydraulic installation/removal system controlled from the superstructure cab.
- Air Conditioning and Heater in both cabs
- 10’ Wide, 10 x 8 x10 Drive/Steer Grove Carrier
- Cummins QSX, Diesel Engine
- Allison automatic 4000 SP, 6 speeds forward, 1 reverse 2 speed transfer case Transmission - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
- Front and Rear Tires: 525/R25
- Grove exclusive MEGATRAK suspension. Independent hydro-pneumatic system acting on all wheels with hydraulic lockout
- Outrigger System - Four hydraulic two stage outrigger beams with vertical cylinders and outrigger pads, 600 mm (23.6 in) square. Outrigger can be set in 5 positions: Full: 8,1 m (26.6 ft) Partial: 6,8 m (22.3 ft)
Partial: 5,6 m (18.4 ft) Partial: 4,4 m (14.4 ft)

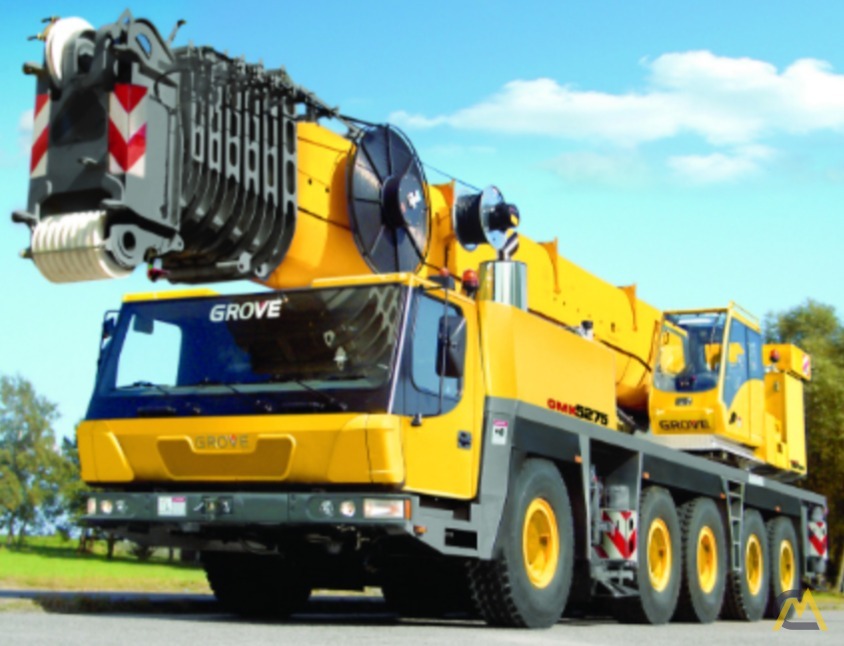

Retracted: 2,7 m (9.0 ft) Independent horizontal and vertical movement controlled from each side of carrier and the superstructure cab. Electronic crane level indicators. Hydraulic disconnect for all outrigger beams - Photos by Request. PHOTO SHOWN IS A STOCK PHOTO!
LOCATED IN THE SOUTHERN USA!
$585,000 USD
