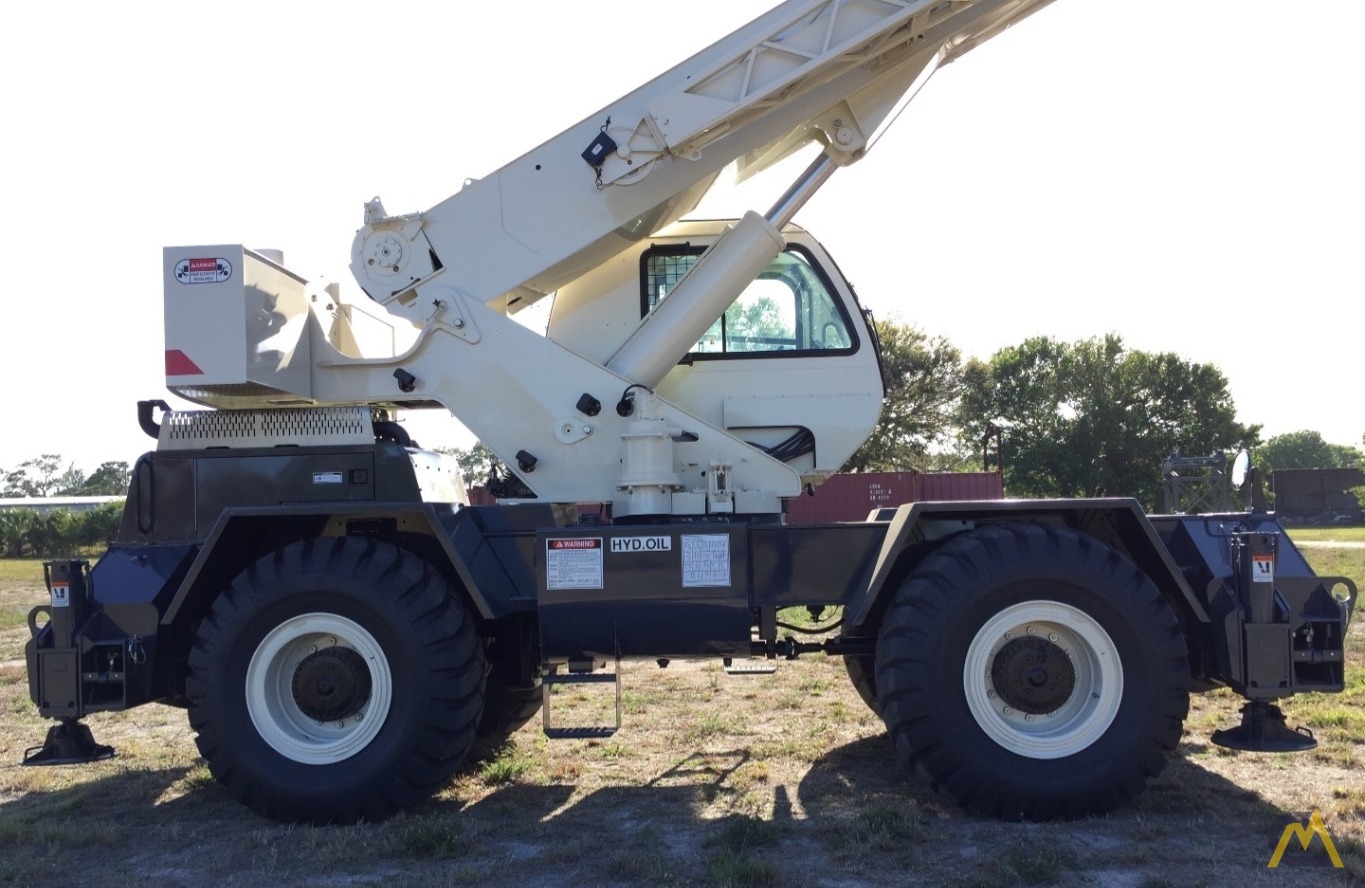

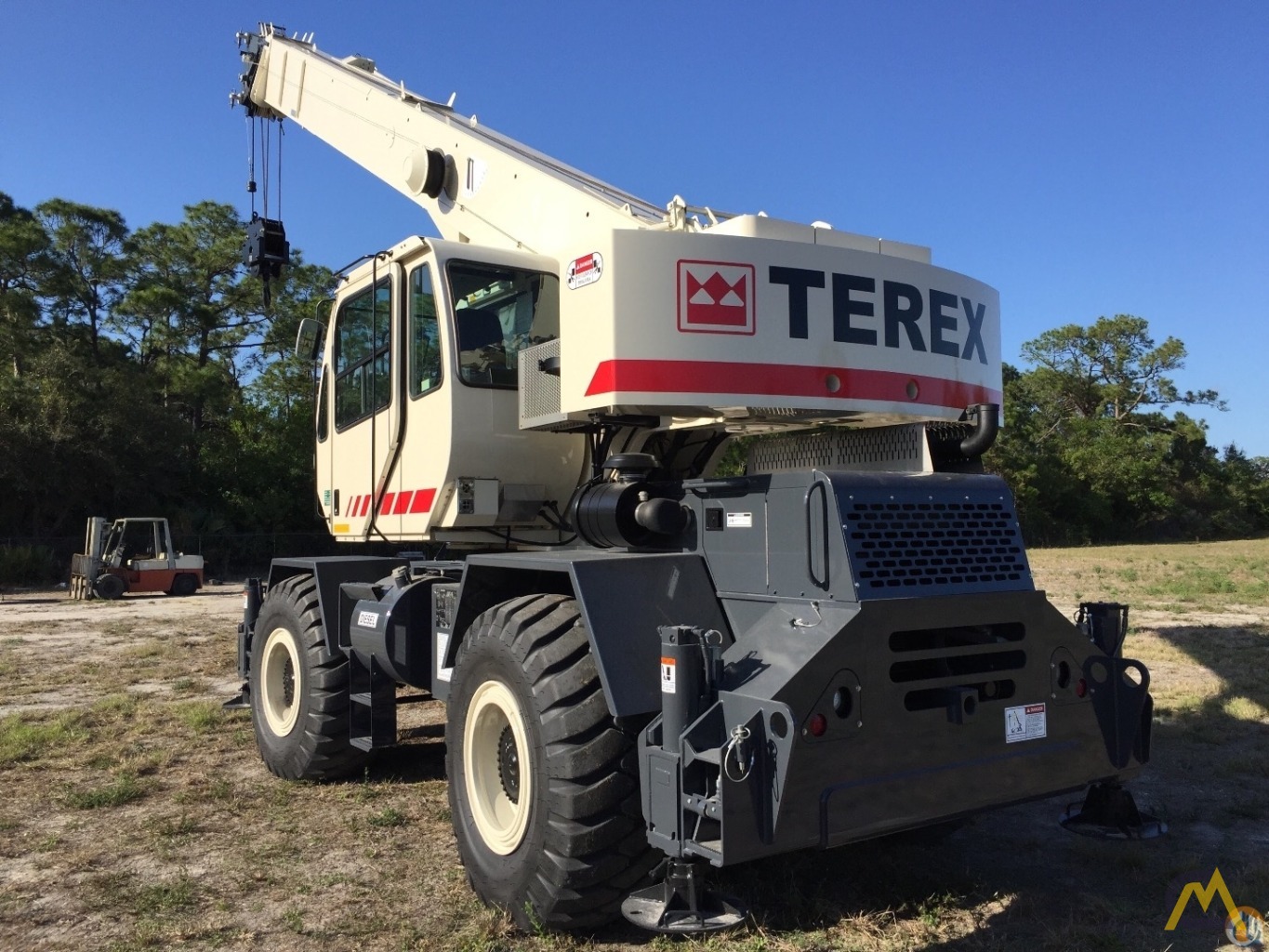

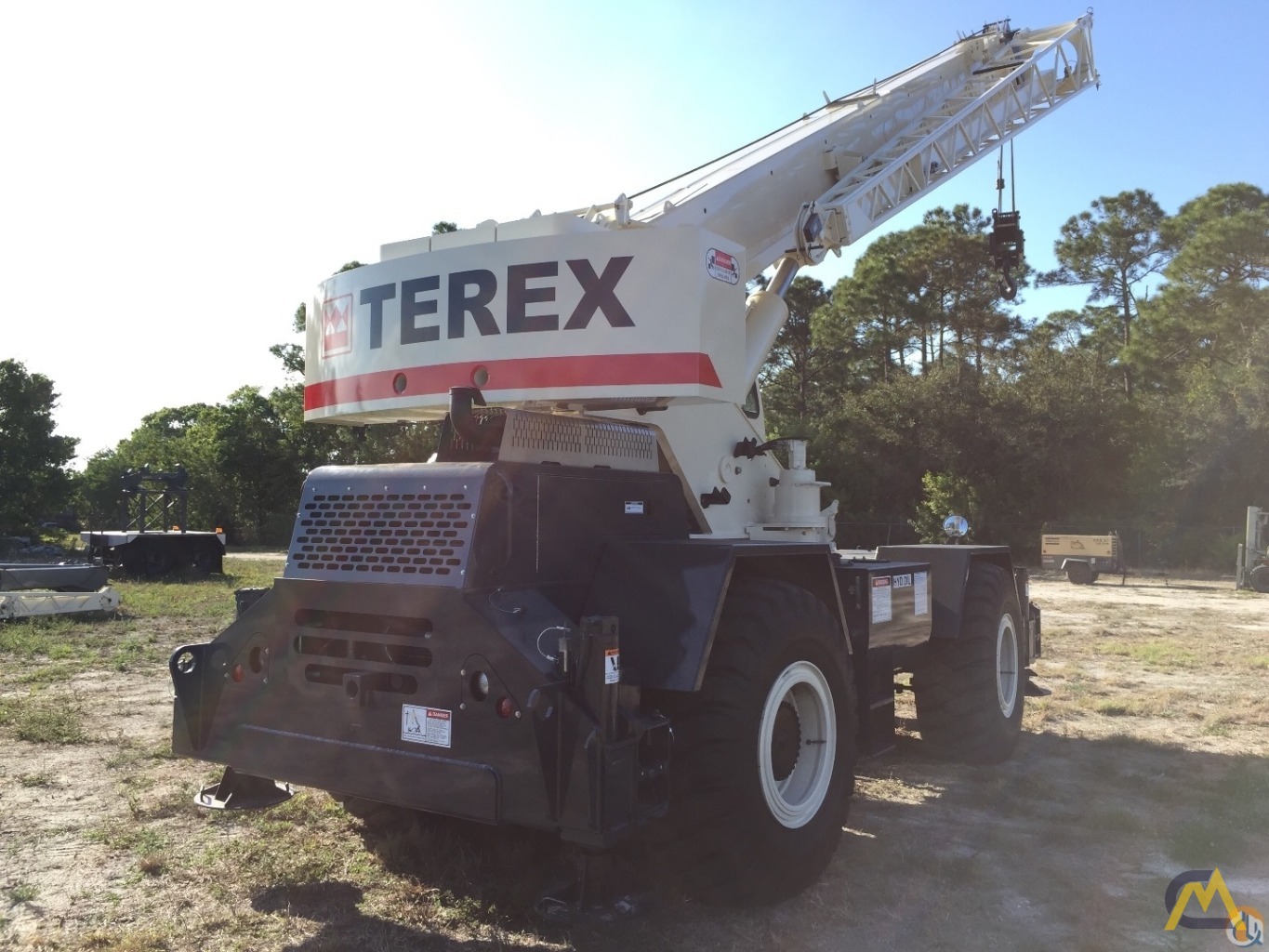

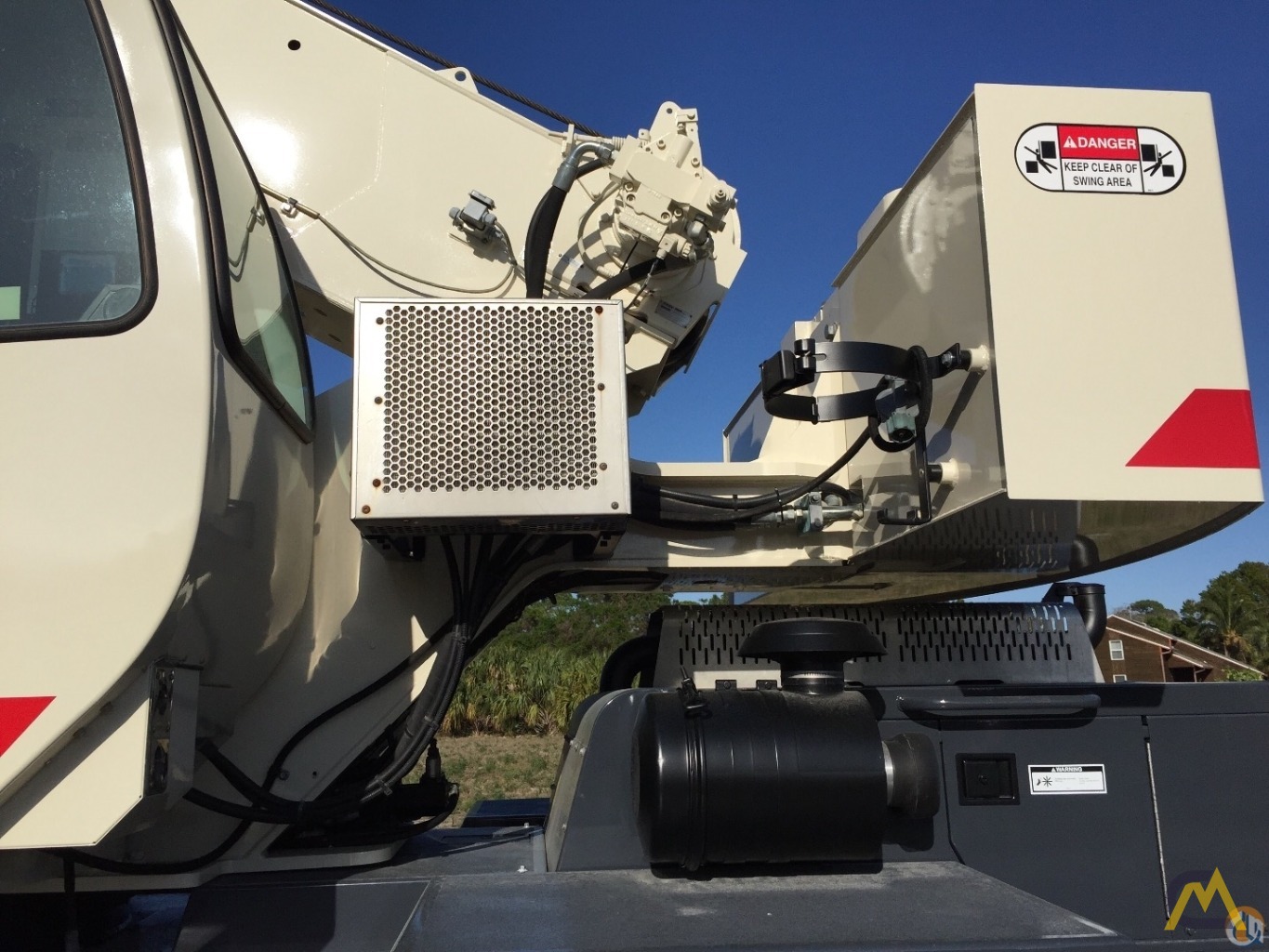

Terex RT230-1 30-Ton Rough Terrain Crane For Sale

LIKE NEW  EXCEPTIONALLY CLEAN

2008 TEREX RT230-1 30 TON

LOCATION FLORIDA

REDUCED ONLY $129,500

POWERFUL, COMPACT

ONLY 8’-6" WIDE, EASY TO TRANSPORT

FUEL EFFICIENT CUMMINS ISB4.5L

PROBABLY THE CLEANEST RT230-1 IN THE COUNTRY

NEW ANNUAL OSHA INSPECTION

30 TON, 94' FULL POWER BOOM, 43' TELESCOPIC JIB

JOYSTICK CONTROLS

HYDRAULIC A/C, PROPANE HEAT,

4X4X4 DRIVE, POWERSHIFT TRANSMISSION

LIKE NEW EXCELLENT 20.5-25 TIRES

GREER LMI SYSTEM WITH A2B

30 TON QUICK REEVE BLOCK AND BALL

EXCEPTIONAL CONDITION LOW HOUR CRANE

Boom

30 - 94 ft. (9.1 -28.7 m) Four section, full power, mechanically synchronized boom

26'-43' telescopic swing away lattice jib

Quick-reeving boom head; no need to remove wedge from socket.

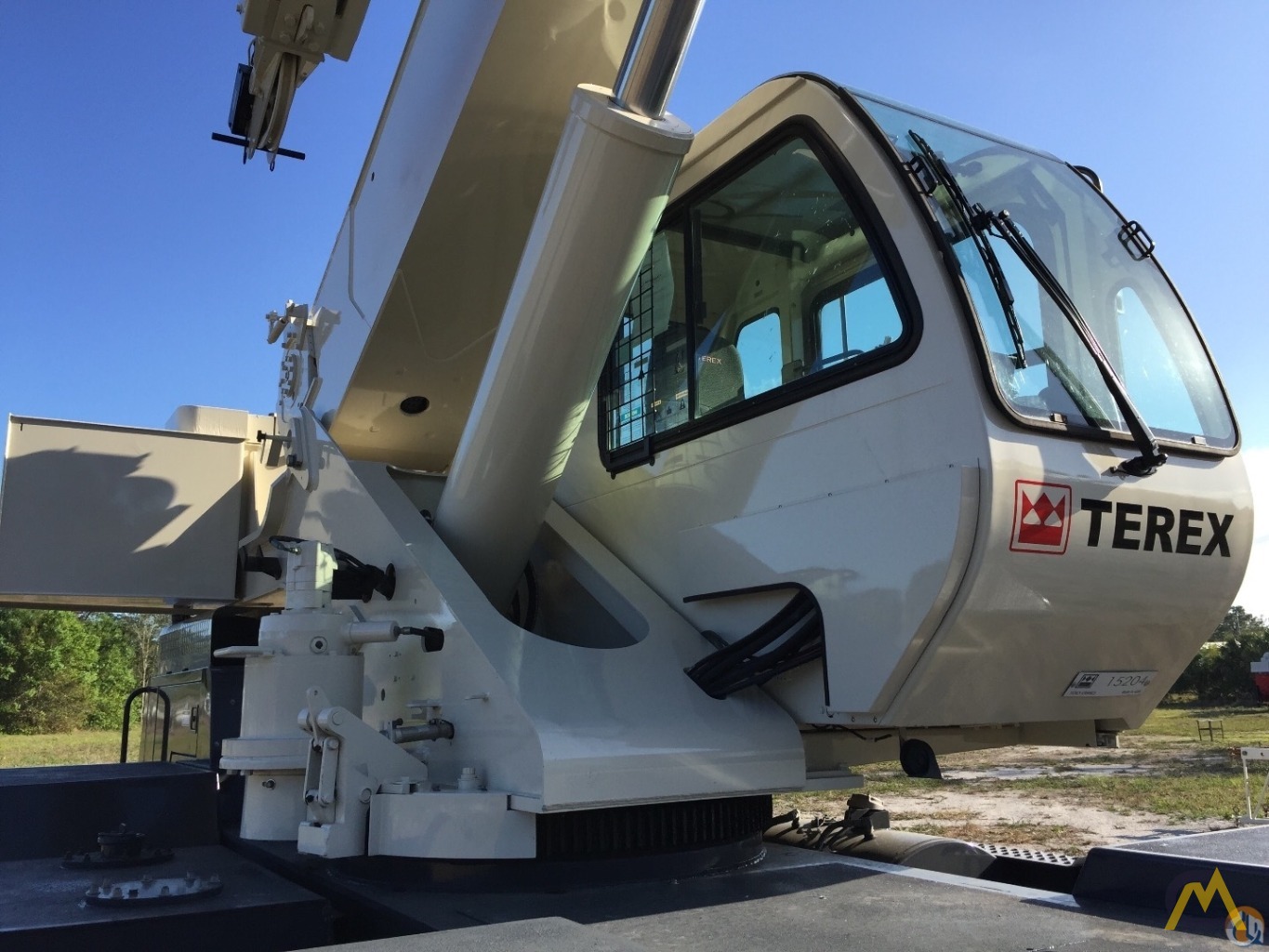

Single boom hoist cylinder provides boom elevation of -4 degrees to 76 degrees.

Hoist cylinder is equipped with integral hold valves.

Hoist System

474 fpm (144 m/min) maximum line speed, 12,510 lb (5,673 kg) maximum line pull.

Electronic drum indicators

Integral automatic brakes

Two speed main hoist.

Grooved drum, tapered flanges, and spring loaded cable roller for improved spooling.

Counterweight

Standard upper counterweight 10,000 lb (4,536 kg).

CARRIER:

Engine

Cummins QSB4.5, Tier-III, 130-HP (97 kW) @ 2,500 RPM,  4-cylinder, water-cooled, fuel injected diesel with an intercooled, turbo-charger.

Fuel tank capacity - 50 gallons (189 liters).

Heavy duty batteries [(2) 12 volt, 1600 cca].

Transmission & Axles

Range-shift type power-shift transmission with integral torque converter; neutral start; six speeds forward, six reverse.

Four wheel drive and four wheel steer (4x4x4)

Planetary drive rigid front mounted axle and planetary drive oscillating rear axle with rear axle oscillation lock when superstructure is swung 10 degrees .

Standard 20.5 x 25 24 PR Tires

Steering

Hydraulic four wheel power steering for two-wheel, four-wheel or crab steer.  Standard rear axle centering light.

Hydraulics

Hydraulilc oil tank capacity - 94 gallons (356 litres).

Standard Hydraulic oil cooler

Three gear pumps driven off the transmission. Main hoist pump, boom hoist & telescope pump, power steering, outrigger & hoist boost pump.

Standard manual pump disconnect.

Brakes

Split system air over hydraulic disc brakes on all four wheels.

Outriggers

Three position fully independent hydraulic outriggers - full extension , 1/2 extended position and fully retracted.

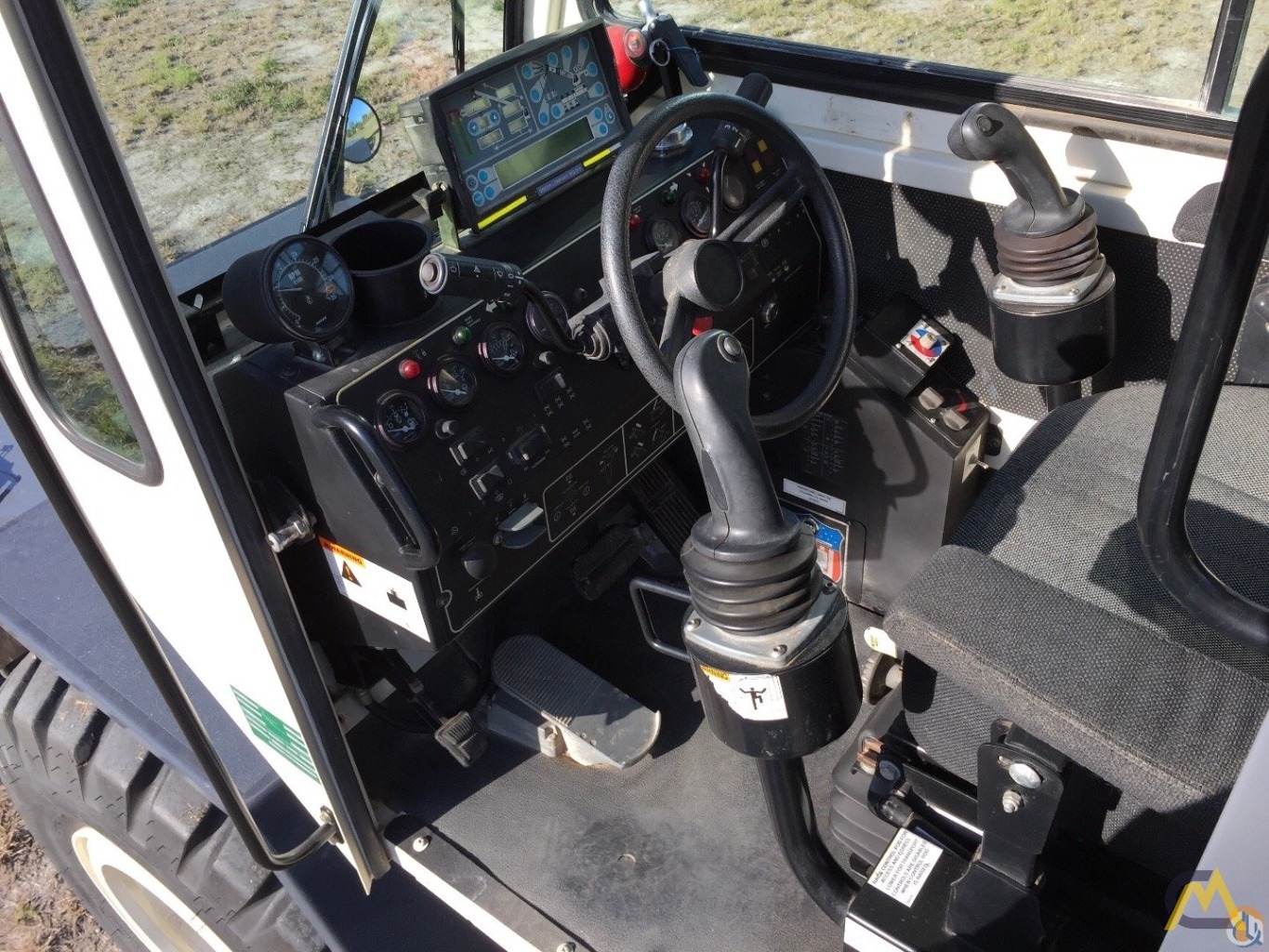

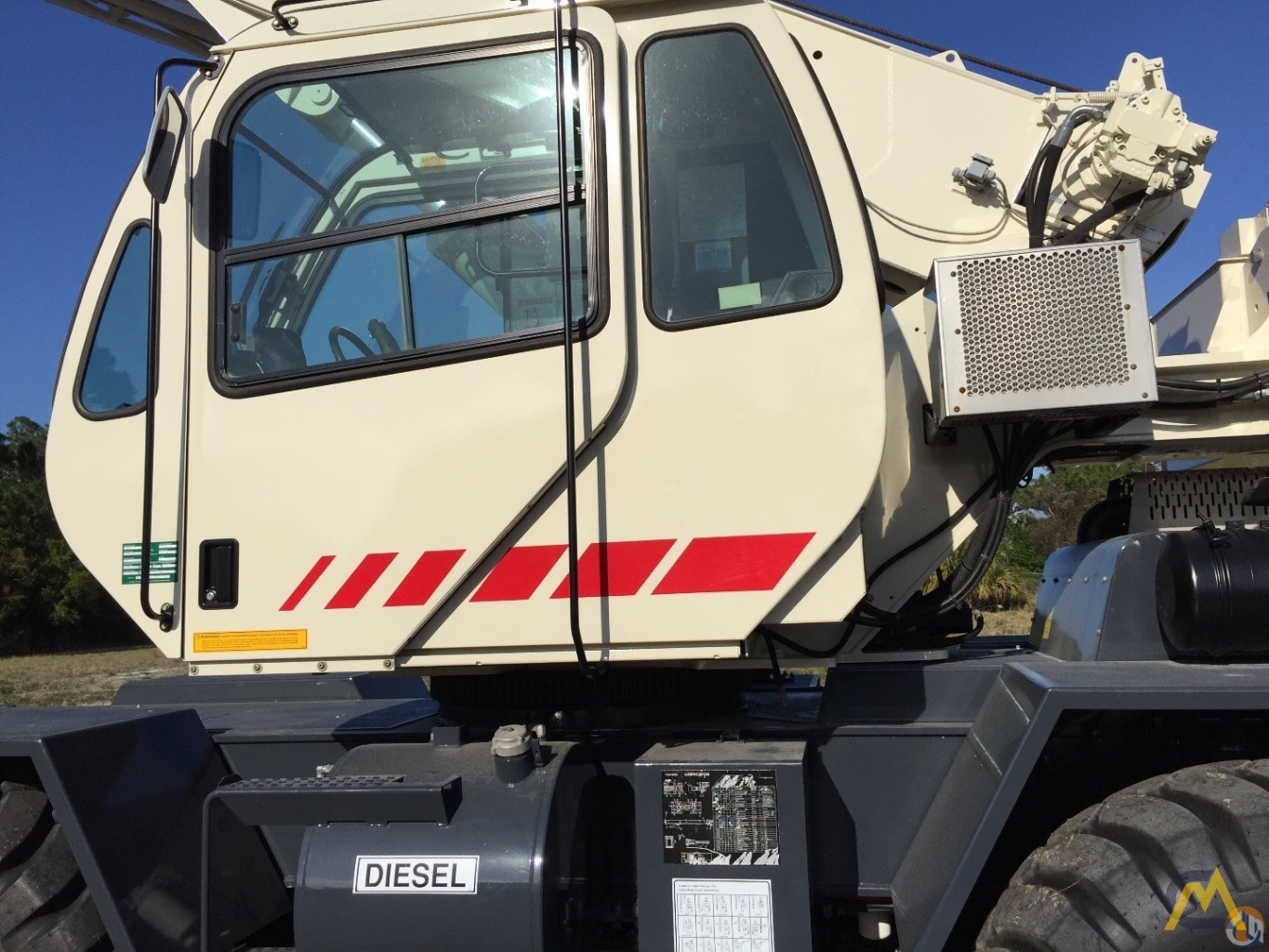

Cab

Rated Capacity Indicator (RCI) system including anti-two block system with automatic function disconnects.

Deluxe six-way adjustable operator's seat with torsion bar suspension, and adjustable head and arm rests.

Armrest mounted controls for hoists, swing and boom elevation; foot control pedals for swing brake, boom telescope and throttle.

Sound and weather insulated for comfort.

Removable front window, hinged tinted glass skylight, and sliding right-hand window.  Tinted safety glass throughout.

Environmentally sealed rocker switches.

Circuit breakers located in cab.

Complete instrumentation
