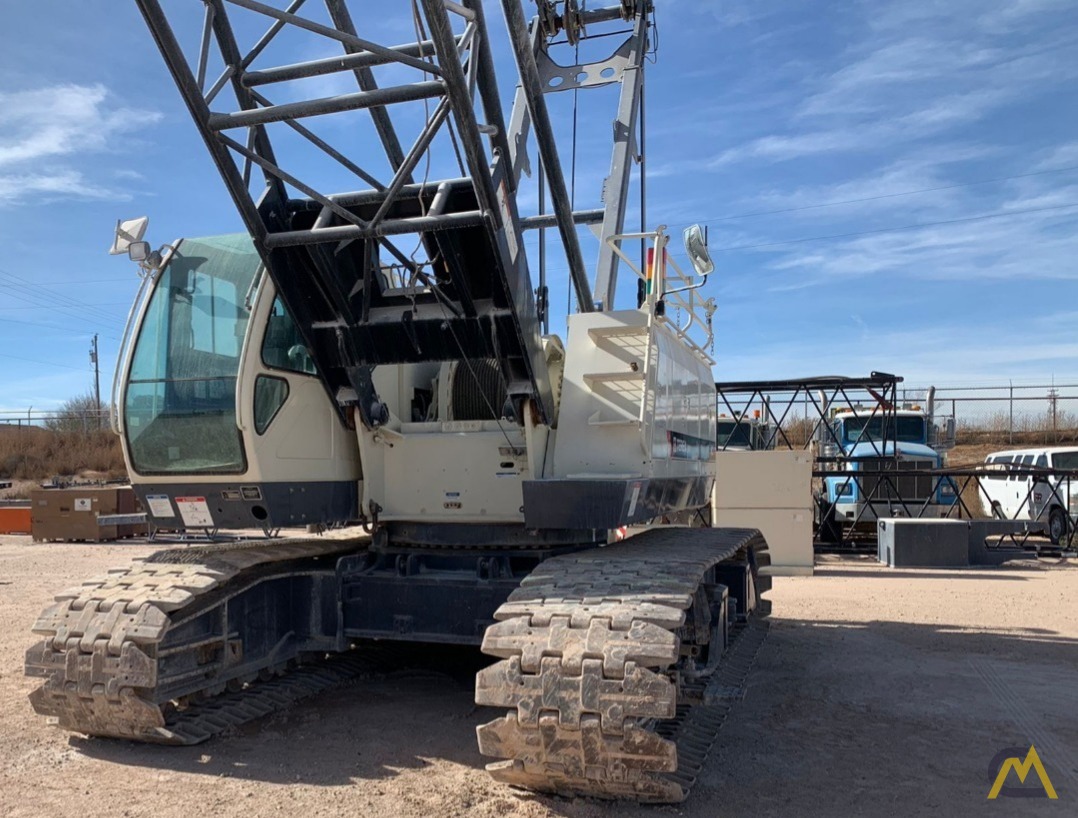

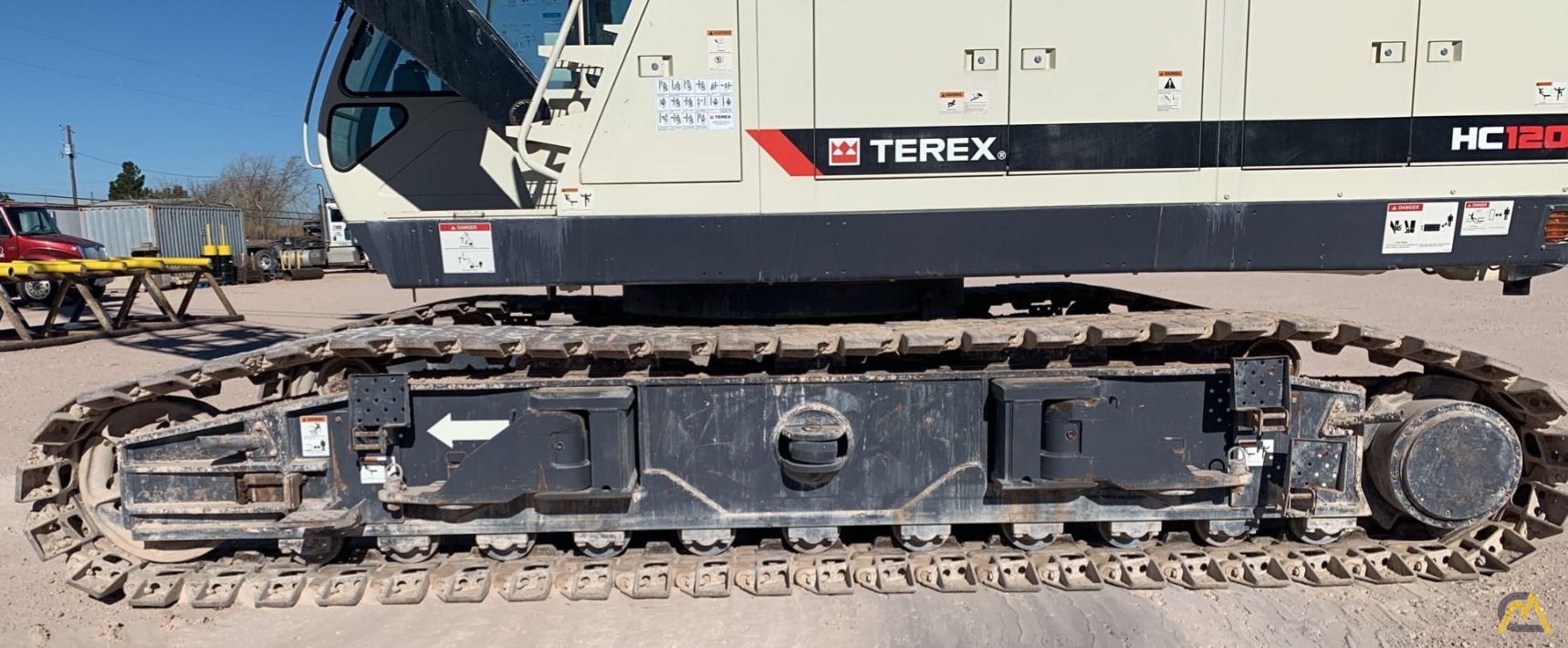

Terex HC 120 120-Ton Lattice Boom Crawler Crane For SaleLocation: Texas, USA Get a Shipping Quote
|240,000 lbs. (108,862 kg)
|Main Boom Length
|150' (45.7 m)
|101,740 lbs. (46,148 kg)
|Cummins QSB 6.7
2018 TEREX HC-120 HC 120-CC (HC110-1) 120 US TON CLASS CRAWLER CRANE FOR SALE

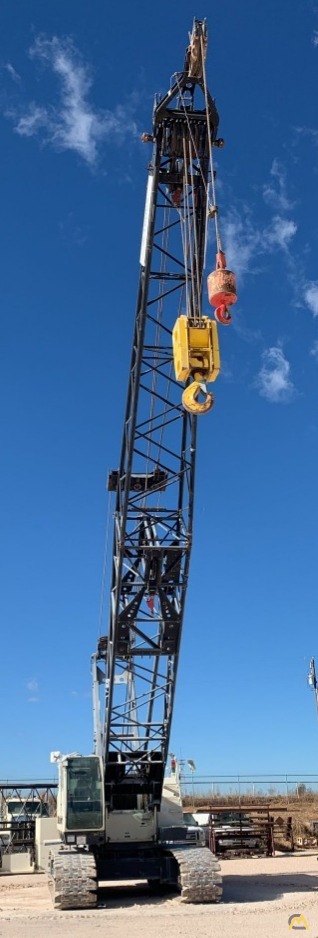

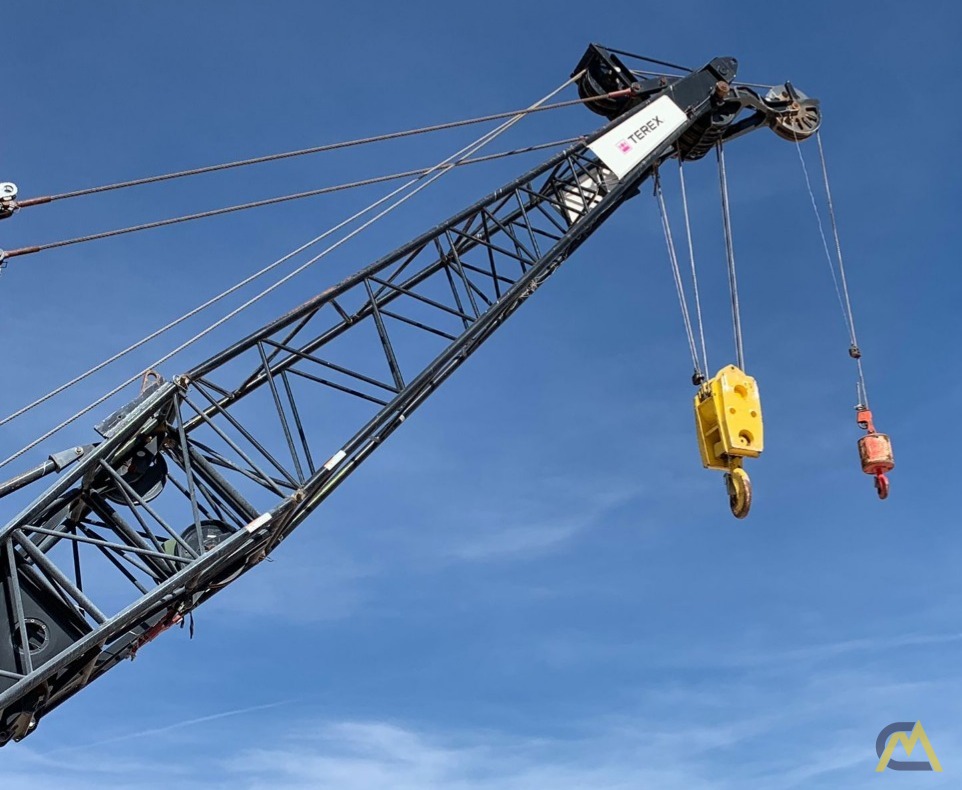

150 FEET OF 59HI BOOM WITH OFFSET TIP
ADDITIONAL BOOM AND JIB-AVAILABLE
METER READING: 4,630 HOURS
POWER UP AND DOWN STANDARD
FREE FALL ON MAIN AND AUX DRUMS-AVAILABLE
120 TON 4 SHEAVE HOOK BLOCK
15-TON HOOK BALL SINGLE SHEAVE EXTENSION
ENGINE: TIER 4F FINAL CUMMINS 250HP
LOCATED IN TEXAS
WE ACCEPT TRADE-INS,
PROMPT DELIVERY & FINANCING IS AVAILABLE.
HC 120 is the redesigned update to the HC-110 Model.
Boom length available up to 230 feet and tip height of 284 feet with jib
Transport width of 12 feet and height 10' 9" crane can be hauled with
its boom inner installed and Tracks On while remaining under 100,000 pounds.
Crane now uses carbody weights instead of track weights.
New hydraulic counterweight removal system eliminates bolts and hoses for simplified installation and removal, which reduces setup time and
gets the machine to work faster.
Redesigned Operator Cab.
The HC 120 crane’s power high-speed hoist system includes identical independent main and auxiliary drums that incorporate free fall.
Both drums have a max line speed of 566 fpm and a max single line pull of 42,108 pounds.
Each drum, including the third drum(optional), has power up/down.
Shockless stop system will gradually retard the operating speed to reduce shock dynamic effects when the crane approaches lifting load or
