Terex EXPLORER 5800 245-ton All Terrain Crane For Sale
Location: 3400 Mesa Drive, Houston, Texas 77013, USAThis equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
Status | For Sale |
---|---|
Year | 2015 |
Manufacturer | Terex |
Model | EXPLORER 5800 |
Condition | Excellent |
Hours | 892 |

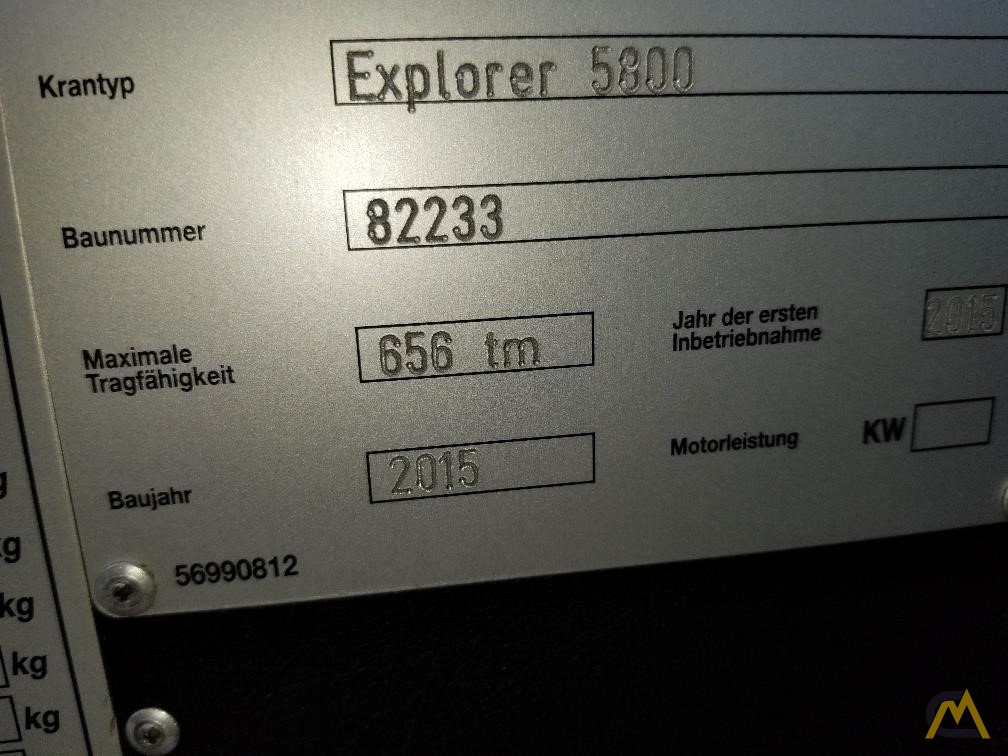

Serial Number | 82233 |
Ton (USt) | 245.00 |
Main Boom Length | 41.7' - 229.7 ' (12.7 - 70 m) |
Jib Extension Length | 36.1' - 68.9' (11 - 21 m) |
Maximum Counterweight | 154,800 lb. (70.2 t) |
Transmission Type | Automatic |
Miles/KM | 21,523 Miles |
Engine | Scania DC13 Tier IV |
Horse Power/kW | 550 |
Category | All Terrain Cranes |
Show More | |
Hide |
DESCRIPTION
The Terex Explorer 5800 is an all-terrain crane with 245 U.S. ton capacity.
It has a 5 part single-cylinder hydraulic telescoping boom, with a maximum length of 229 feet. 5 sheaves integrated into boom head for a max. capacity of 208,200 lb. It comes with two jib extensions, of 37 and 69 feet, making the maximum tip height 296 feet.
The Terex Explorer 5800 is outfitted with a Scania DC13 diesel engine; 405 kW (550 HP) at 1900 rpm, torque 2380 Nm at 1300 rpm. The engine is Tier IV compliant with EUROMOT 4/Tier 4F. Transmission is ZF AS-Tronic; automated gearbox with integrated hydraulic retarder, 12 forward speeds and 2 reverse with a 2-stage transfer case and switchable off-road gear. Five axles, 10 x 6 x 10. Dual-circuit steering system with independent rear axle steering; Axles 1, 2, 3 mechanically connected; Axles 4 and 5 electro-hydraulically connected, all axles steered with 6 different steering programs. Standard is counterweight expandable to 154,800 lb. 4 outrigger bases: 9 ft, 18.2 ft, 23 ft, 27.6 ft, manual or automatically leveling with boom dolly.
SPECIFICATIONS
Maximum Lift Capacity 245 ton
Maximum Boom Length 229 feet
Maximum Jib Length 69 feet
892 hour and 21523 KM
