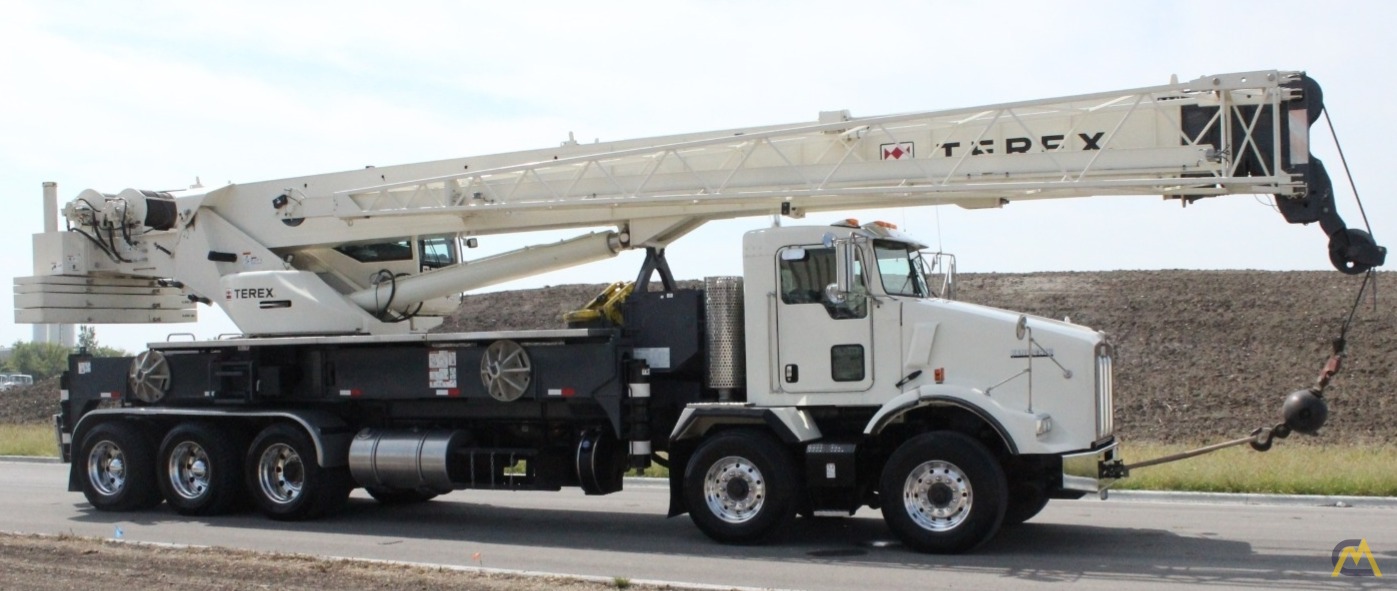

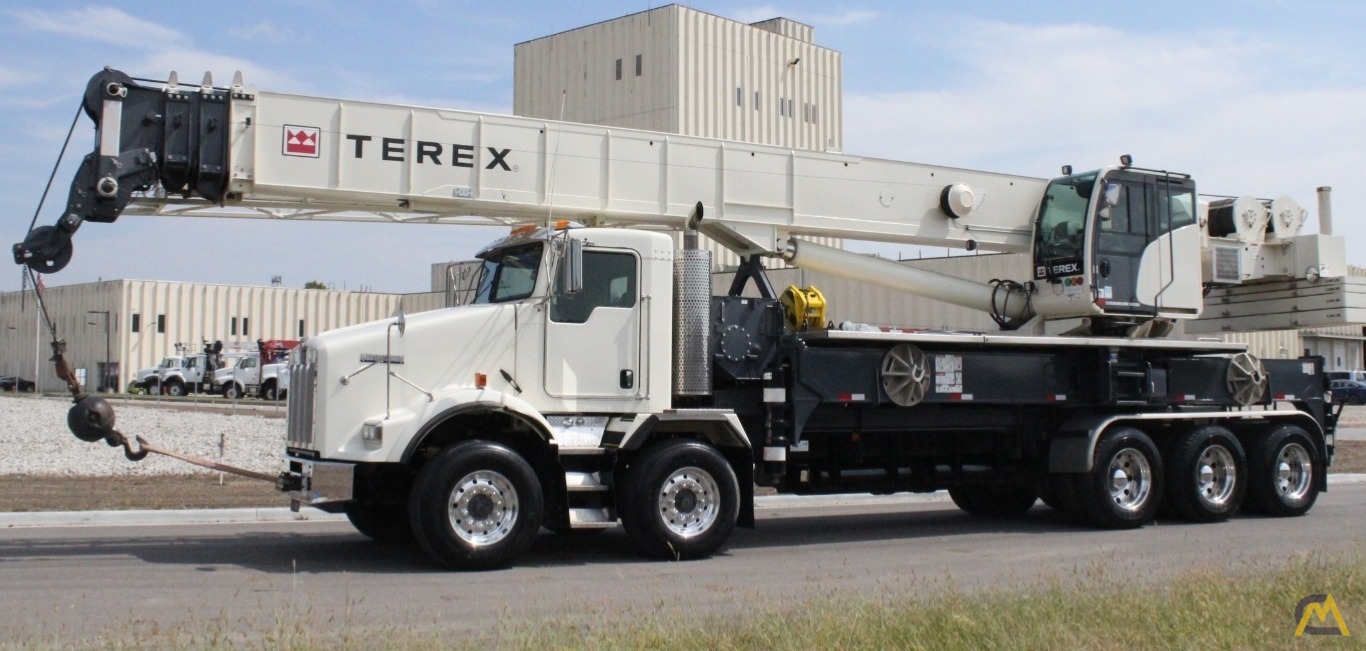

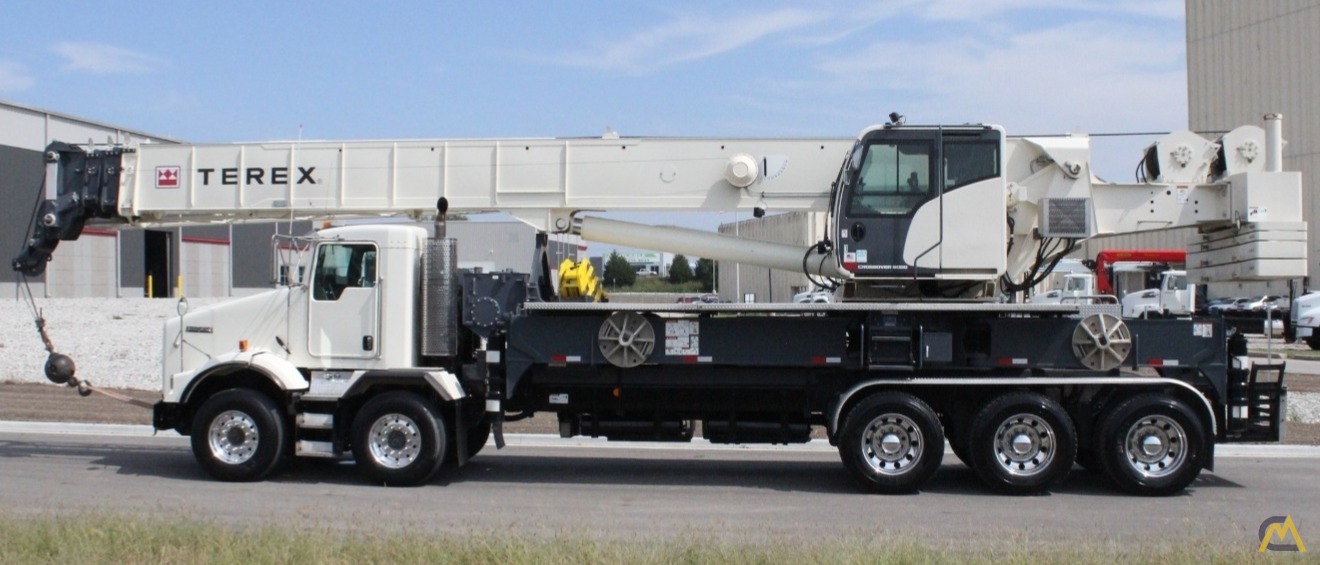

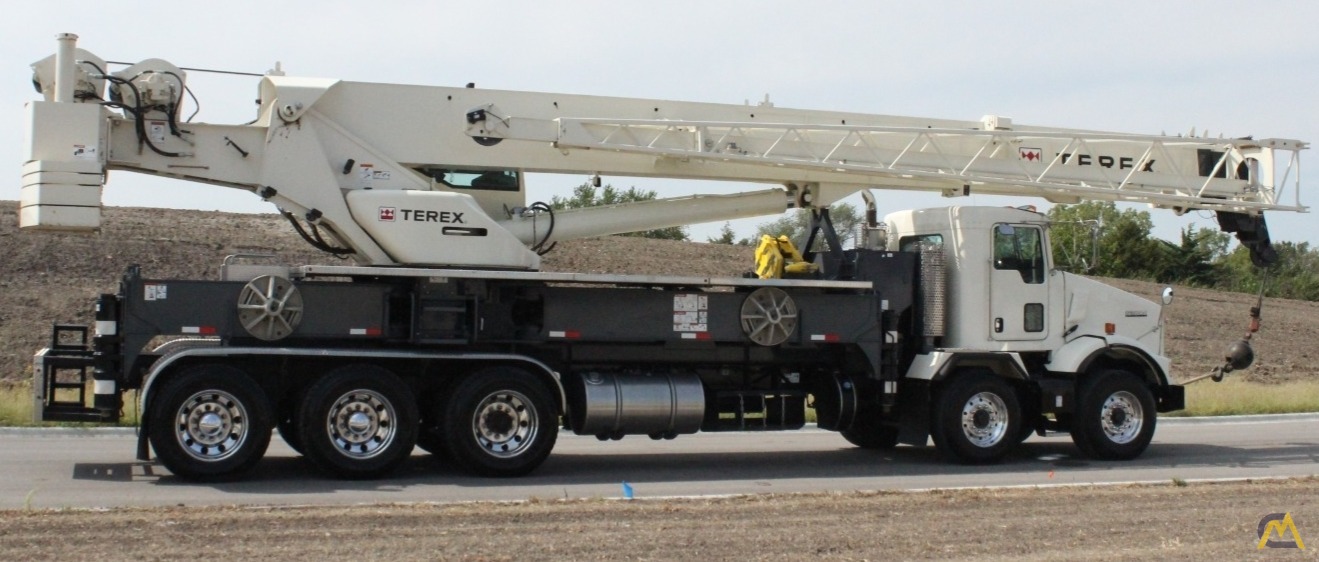

Terex Crossover 8000 80-Ton Boom Truck Crane For SaleLocation: Olathe, Kansas, USA Get a Shipping Quote
Terex Authorized Dealer
- 80 ton (72.6 mt) capacity rating @ 10 ft. (3 m) radius
- Mainframe Outrigger Hub Base and Crane Upper Super Structure consists of all-steel formed construction.
- X pattern Hyd. swing out and telescopic 3 position (retracted, mid and full extended) 4 outrigger beam system. Approximate outrigger spread is 25' 3" (7.7m) wide by 26' (7.9m) long. - Outrigger control station in the crane cab
- No front bumper outrigger required for 360° load capacity.
- Deluxe contoured aluminum fenders - Aluminum Diamond plate decking - Access ladders and steps
- Continuous rotation (no swing stop) foot peddle swing brake and 360 degree swing lock
- Hydraulic Oil cooler
- 126' Four section, full power, mechanically synchronized boom with 190' (57.9 m) max tip height (with jib).
- High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase strength.
- Single boom hoist cylinder provides boom elevation of -4° to 76°.
- Quick reeving boom head; no need to remove the wedge from socket. 5 bottom head sheaves in boom tip.
NEW S-PACE TILTING OPERATOR'S CAB
- Hydraulically tilting fully adjustable from 0 to 18 degrees
- Rated Capacity Limiter (RCL) system including anti-two block system with external cab mounted load indicating lamps (green/yellow/red).
- Deluxe six-way adjustable (heated) operator's seat with air ride & air height adjustment riser and ventilation system at seat base.
- Joystick Controls in armrests are adjustable fore and aft, pivot up 90° with shutoff controls, mounted controls in armrests for hoist(s), swing and boom elevation; Foot control pedals for swing brake and throttle.
- Sound and weather insulated for comfort. Digital engine information display
- Environmentally sealed rocker switches. Circuit breakers in cab
- 360-degree house lock standard. Removable front window and hinged tinted glass skylight. Tinted safety glass and overhead retractable UV sunscreen. Front and top glass windshield wipers/washers. 3 Cab mounted, manually adjustable work lights.
- High capacity, full flow oil filtration system with a 150 gallon (568 L) capacity reservoir.
- Single PTO DRIVEN Two pump system (1 piston, 1 gear)- Combined system output is 78 gpm and up to 4500 psi operating pressure
- Single Main Planetary 2spd Hoist -489 fpm (149 m/min) maximum line speed 18,450 lb. maximum line pull.
(Optional Choice) of 3/4" wire rope standard lay or rotation resistant
- Integral automatic brake.
- Grooved drum, tapered flanges, and spring loaded cable roller tensioner for improved spooling.
- Electronic drum rotation pulse indicators in control handles
- Standard upper counterweight with (optional) auxiliary hoist 3,000lbs, without auxiliary hoist 4,500lbs.
- Hydraulic counterweight removal system.
- (1) Hard Copy Operators Manual - (1) CDROM includes Operators/Parts/Schematics/RCL/Wire Rope (manuals)- (1) CDROM includes AEM Safety Video
Preferred Equipment Package - Basic Machine
12 Ton ball, 80 Ton hook block
Auxiliary hoist (includes single sheave extension)
Rotation resistant cable on both hoists
Deluxe AC/Flameless Heater
Remote outrigger ground control
12,000lb Heavy counterweight package
2016 Kenworth T800
Engine: Cummins ISX-15 @ 485HP
Transmission: Allison 4500RDS 6-Speed
Front Axle: 20K/20K
Rear Axle: 23K/23K/23K
Suspension: Neway Air Ride (3 Axles)
Fuel Tank: 95 Gal
Front Tires: 385/65R22.5 installed on aluminum wheels
Rear Tires: 11R22.5 installed on aluminum wheels
Full Lockers: YES
Diff. Lock: YES
