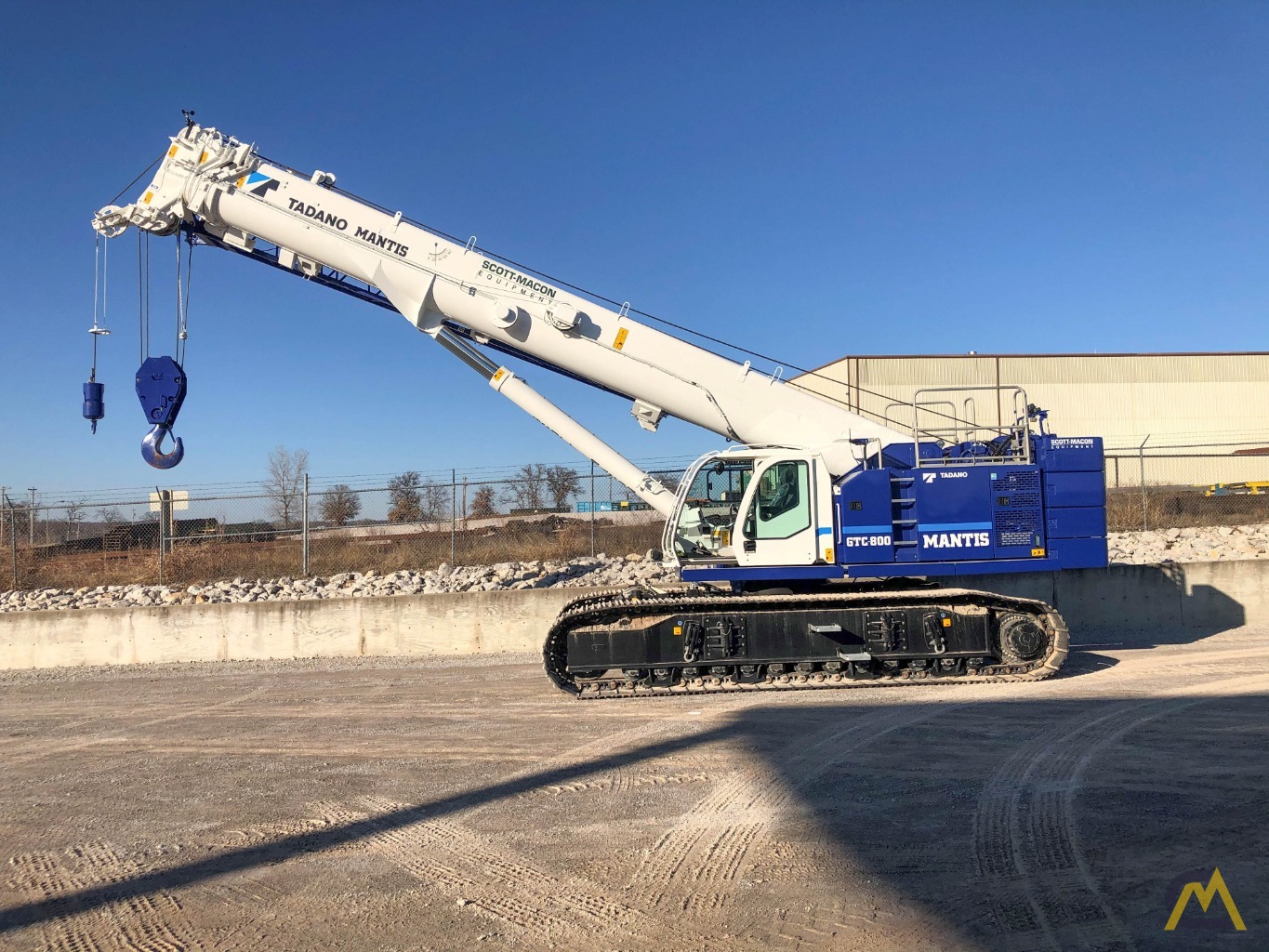

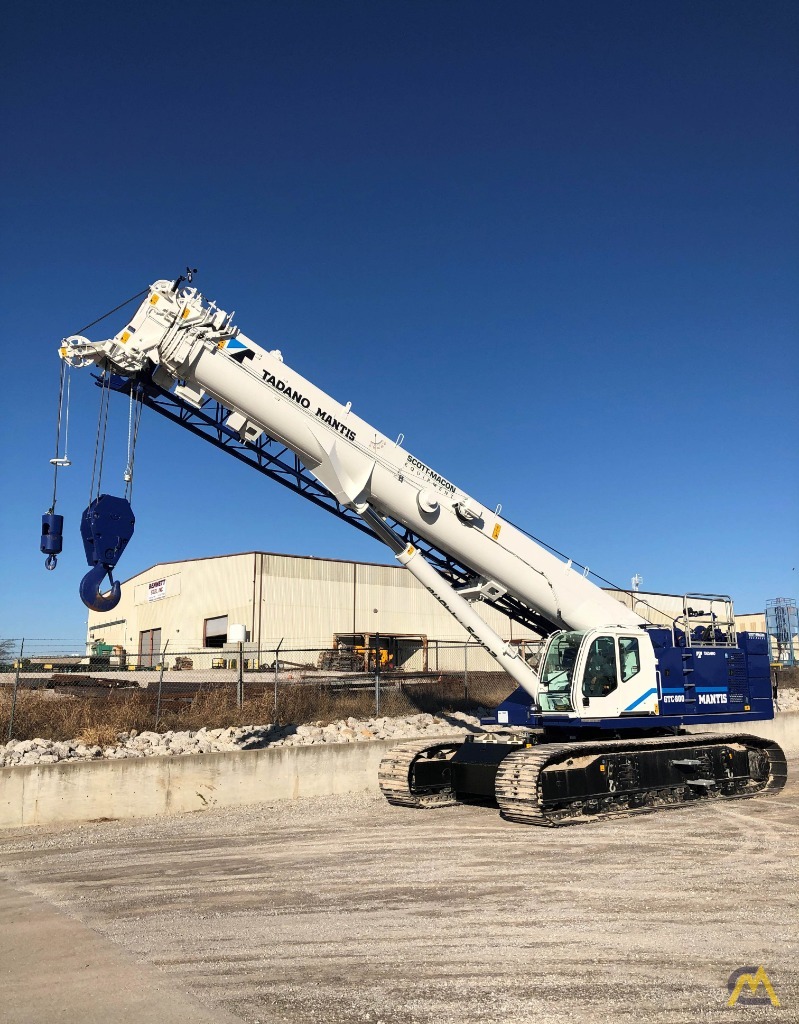

Tadano Mantis GTC-800 88-Ton Telescopic Crawler Crane For Sale
Location: Tulsa, OK, USATadano Mantis Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
Status | For Sale |
---|---|
Year | 2019 |
Manufacturer | Tadano Mantis |
Model | GTC-800 |
Condition | New |
Serial Number | 800-133 |
Ton (USt) | 88.00 |
Main Boom Length | 37'8 |
Jib Extension Length | 33.1' - 58.1' |
Maximum Counterweight | 65,000 lbs. |
Engine | Cummins QSB6.7 Tier 4f Diesel |
Horse Power/kW | 310 |
Category | Crawler Cranes |
Sub Category | Telescopic Boom |
Show More | |
Hide |
DESCRIPTION
SOLD
88 ton lift capacity
5 section 37' 8" - 141' 1" full power telescopic boom
Cummins QSB6.7 310 HP Tier 4f Diesel Engine
Standard Cab with A/C, Heat, Engine Monitoring, tilts to 20 degrees
TADANO AML-C LMI System with North American (ft - lbs) Load Charts, and A2B
TADANO HelloNet Telematics
Video Camera Monitor - 3 closed circuit cameras - winch, rear, and right side view
Work Lights - 3 halogen work lights with remote controls
Main Winch with drum rotation indicator,grooved drums, and cable follower;
695 feet, 19mm diameter rotation resistant wire rope
Auxiliary Winch with drum rotation indicator, grooved drums,and cable follower;
475 feet, 19mm diameter rotation resistant wire rope
Hydraulic Extendable Undercarriage with 3 track width zones
35.4-Inch, 3-Bar Semigrouser track shoes
45,000 lb rear counterweight with radio control removal system
20,000 lb carbody counterweight
Crane access walkways and folding aluminum upper handrail system
Hydraulic Oil - ISO VG32 - Mineral Based Oil
3 color LMI Light bar
Standard Tadano Mantis Blue/White Paint
Crane Value Package
33.1 ft / 58.1 ft bi-fold jib offsets 3.5°, 25°, and 45°
Auxiliary Boom Head
88 Ton Quick Reeve Hook Block
8.8 Ton Headache Ball
AUGER READY PACKAGE MODIFIED
Hydraulic auger boom package includes weldments,valve, and necessary components
to make complete package easily field retorofittable
Optional Equipment
ANEMOMETER - Boom Mounted Anemometer with digital display in cab
AUTOMATIC LUBRICATION SYSTEM - Lubricates slewing bearing and boom butt pin
360 DEGREE HOUSE LOCK - Mechanical house lock actuated from operator cab ISO VG-46 Hydraulic Oil
HYDRAULIC CARBODY JACKING SYSTEM FOR TRACK FRAME REMOVAL - Four hydraulic cylinder jacks with load holding valves and control valving and operating control pendant
