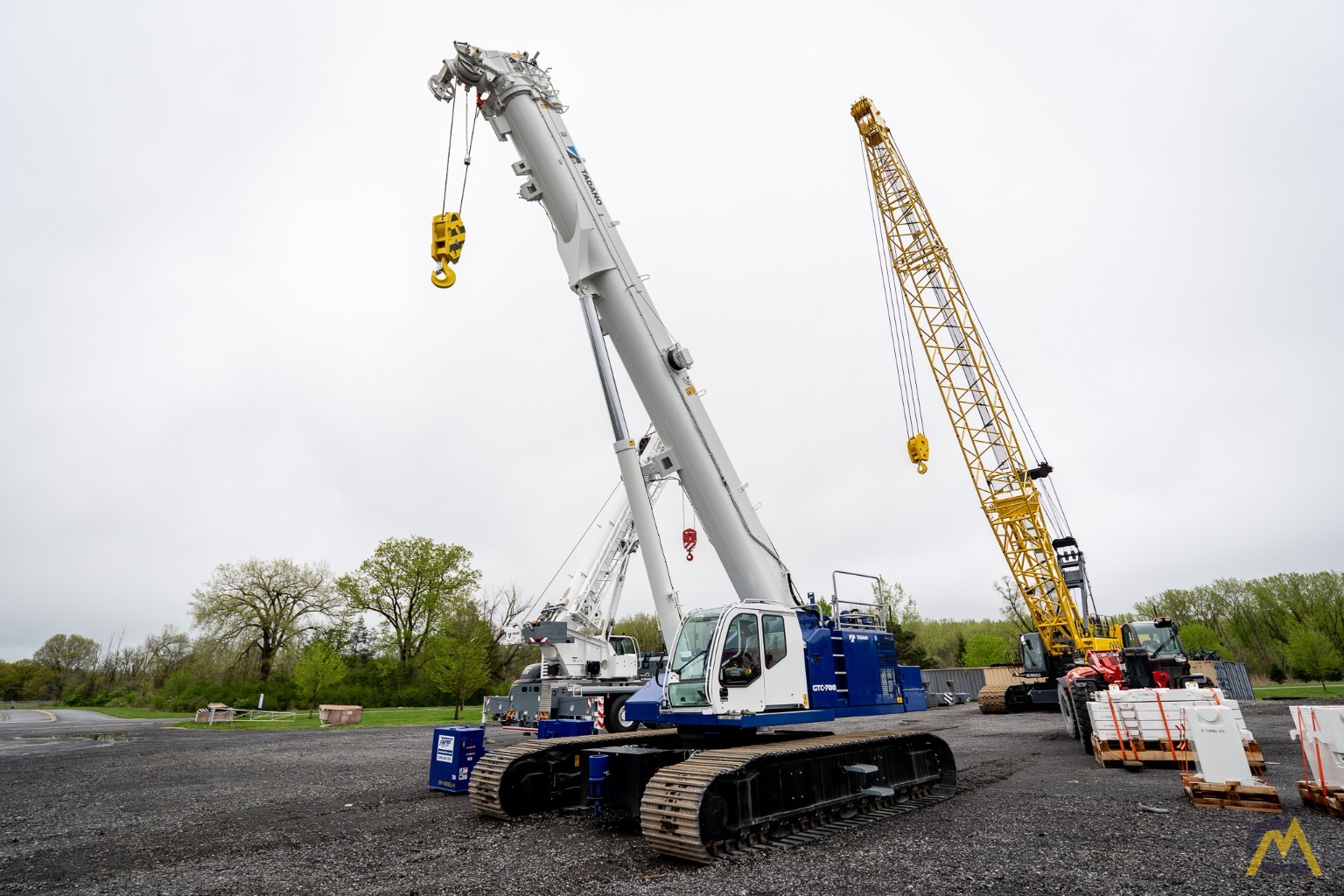

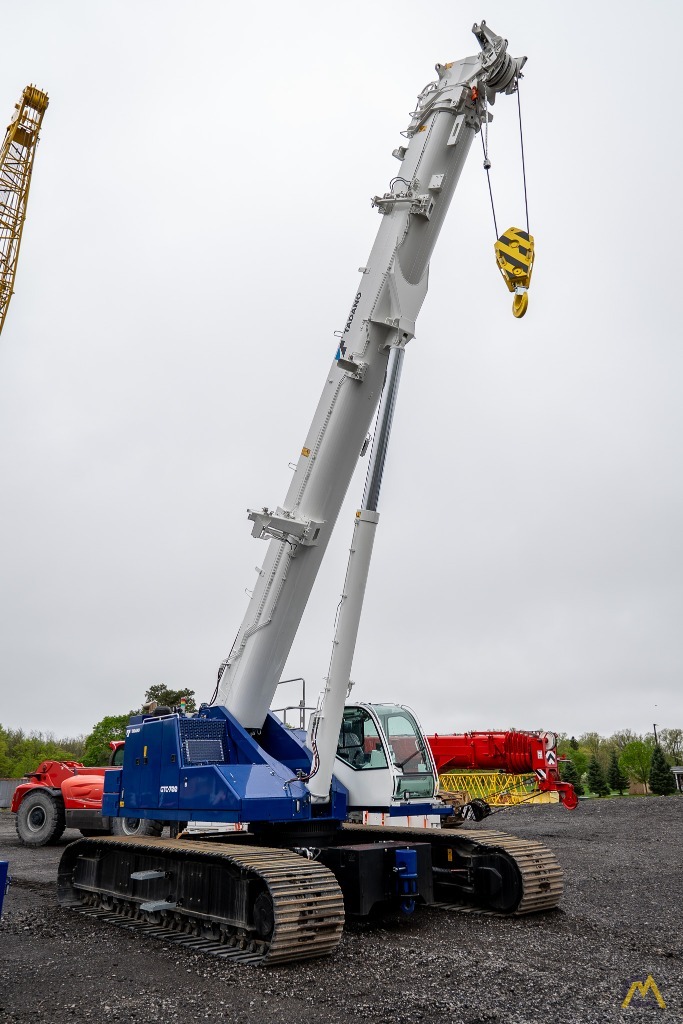

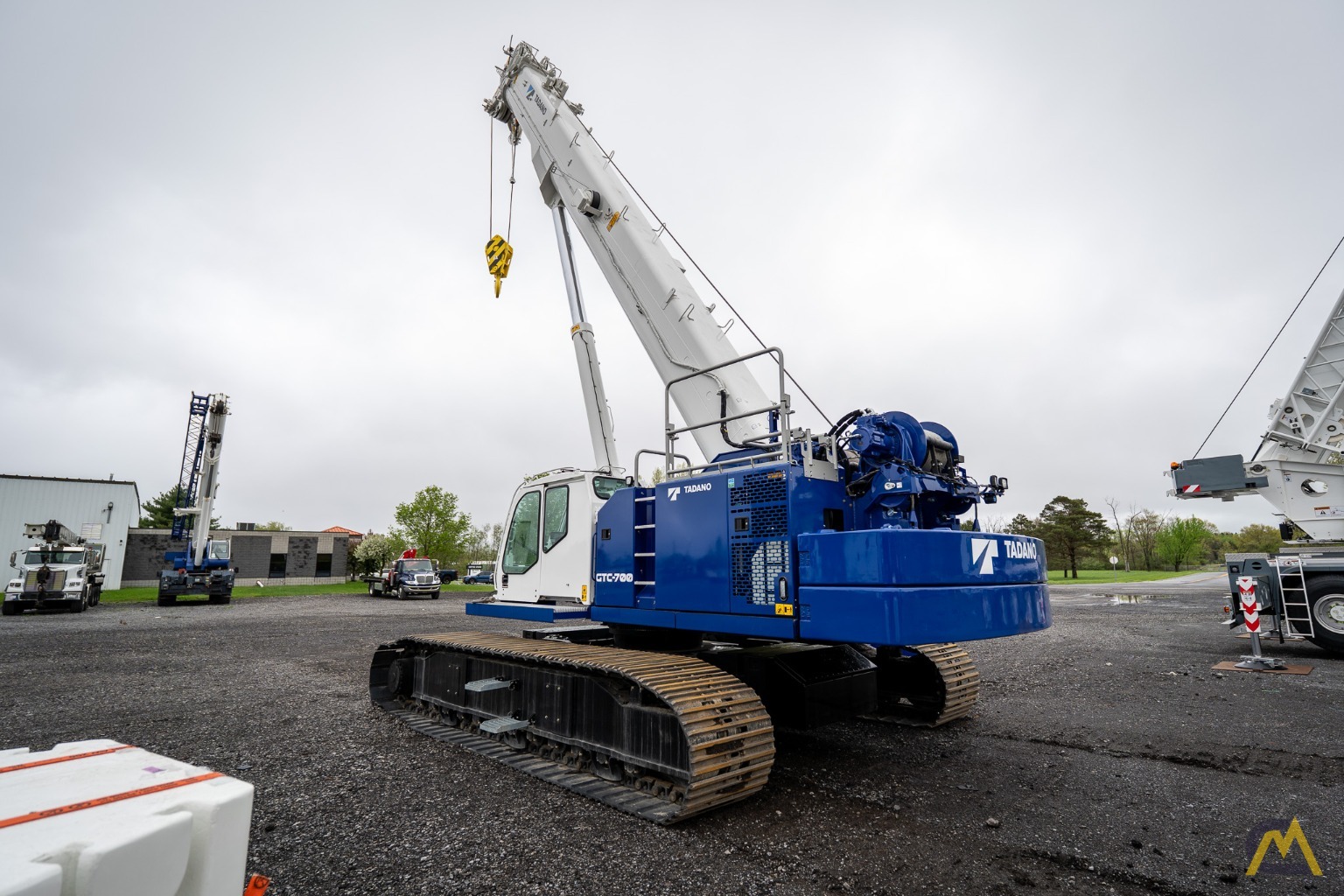

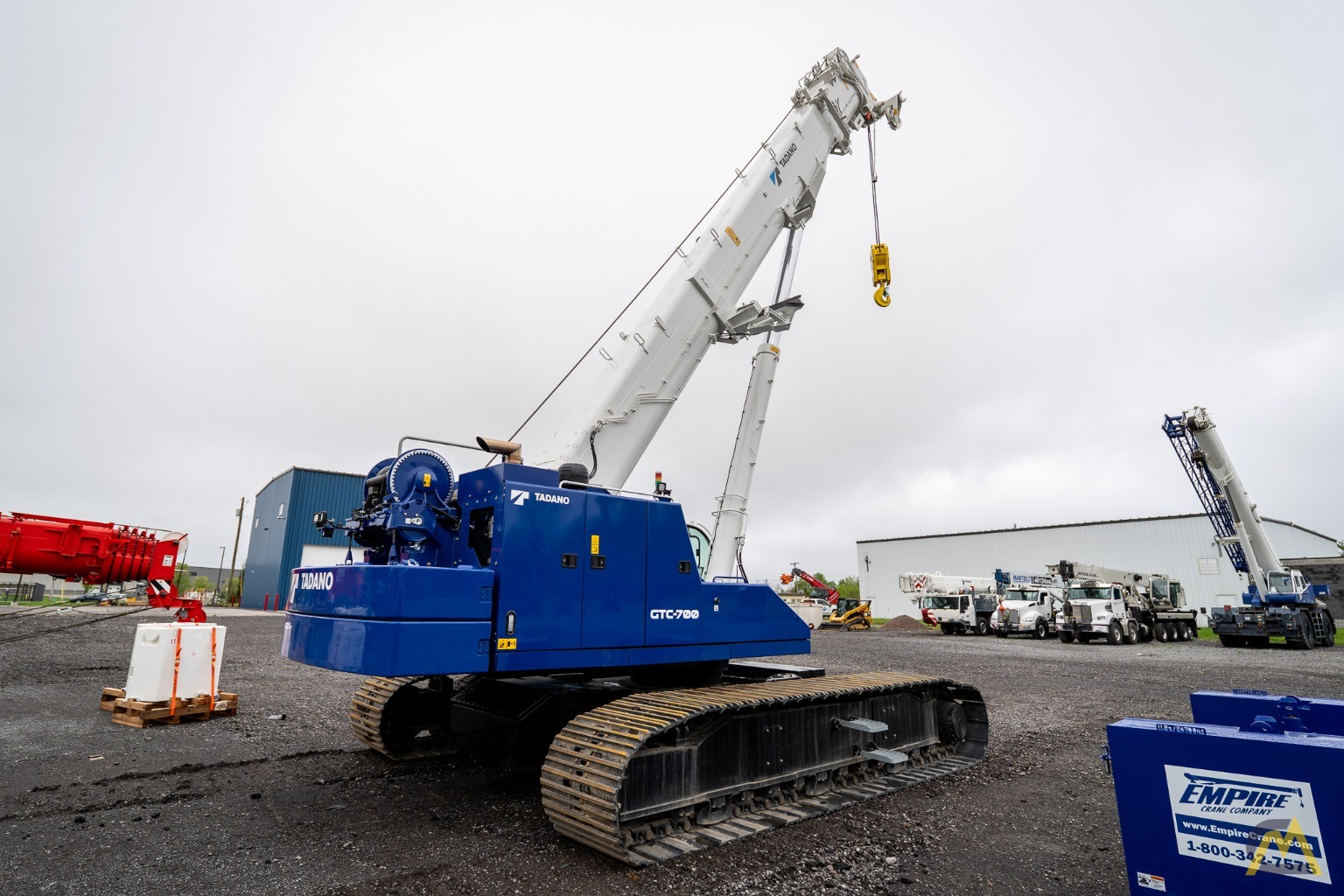

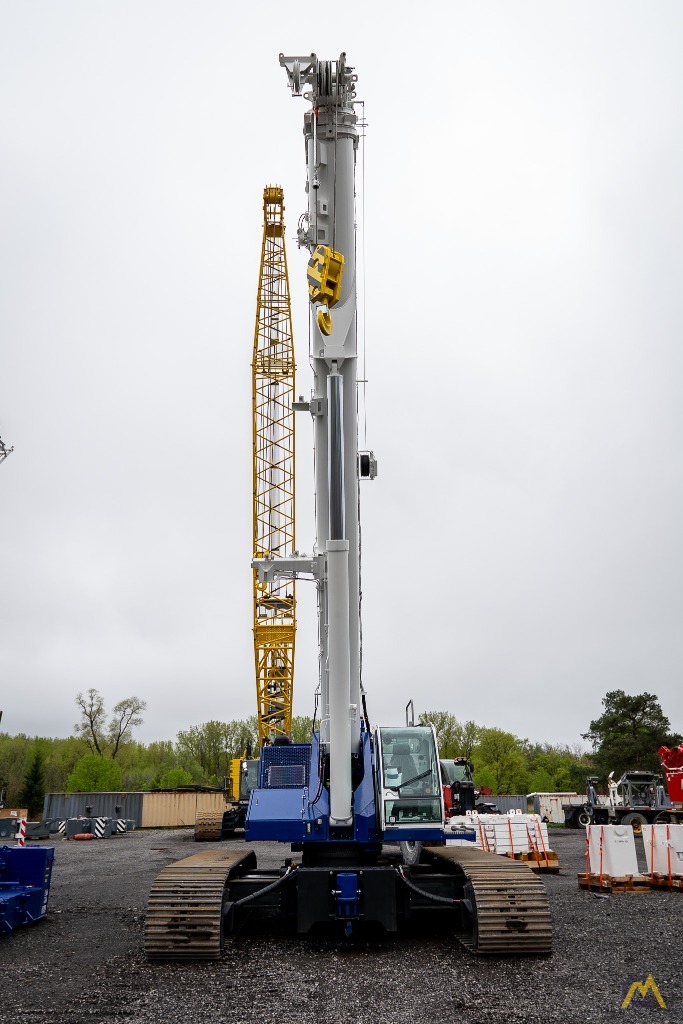

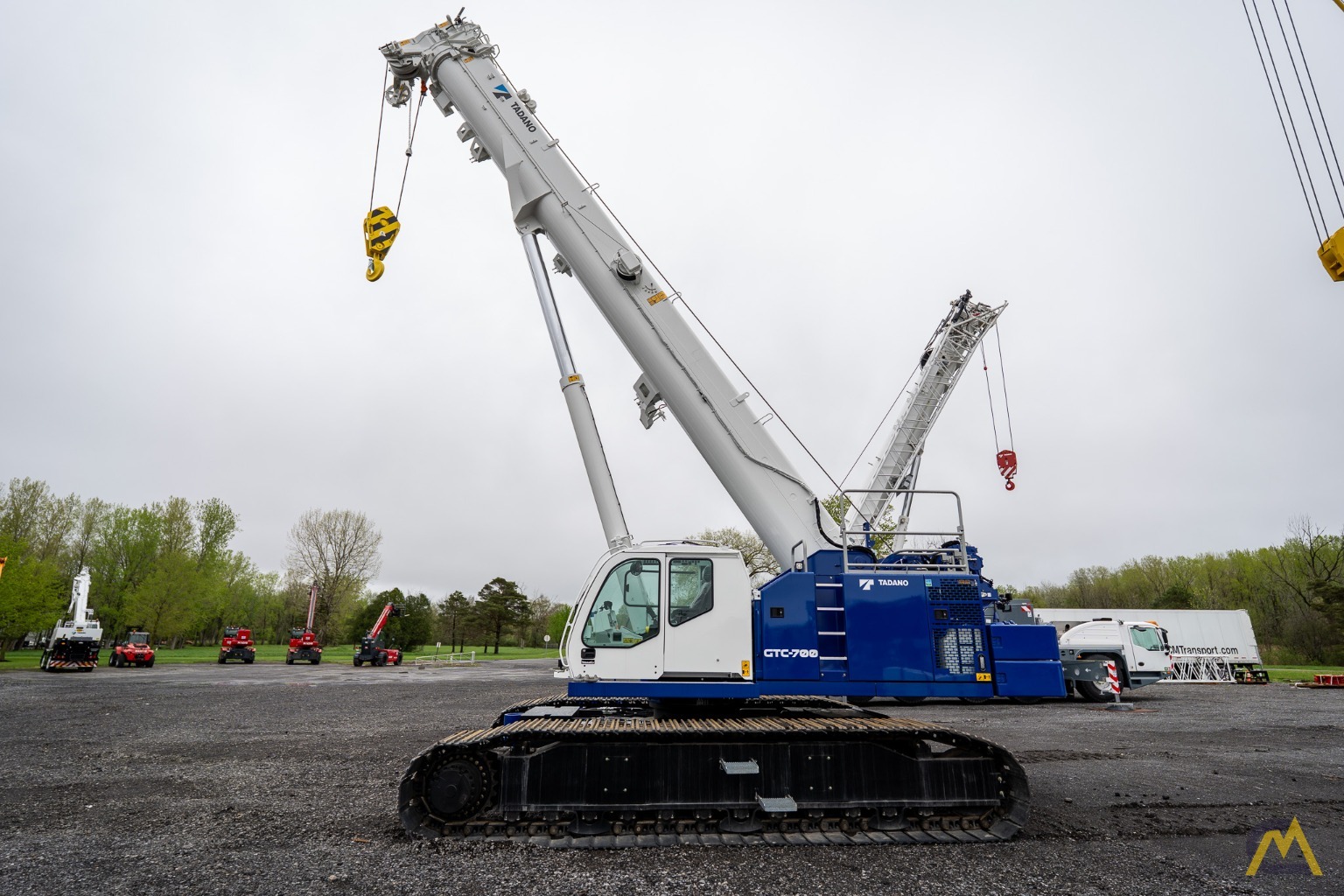

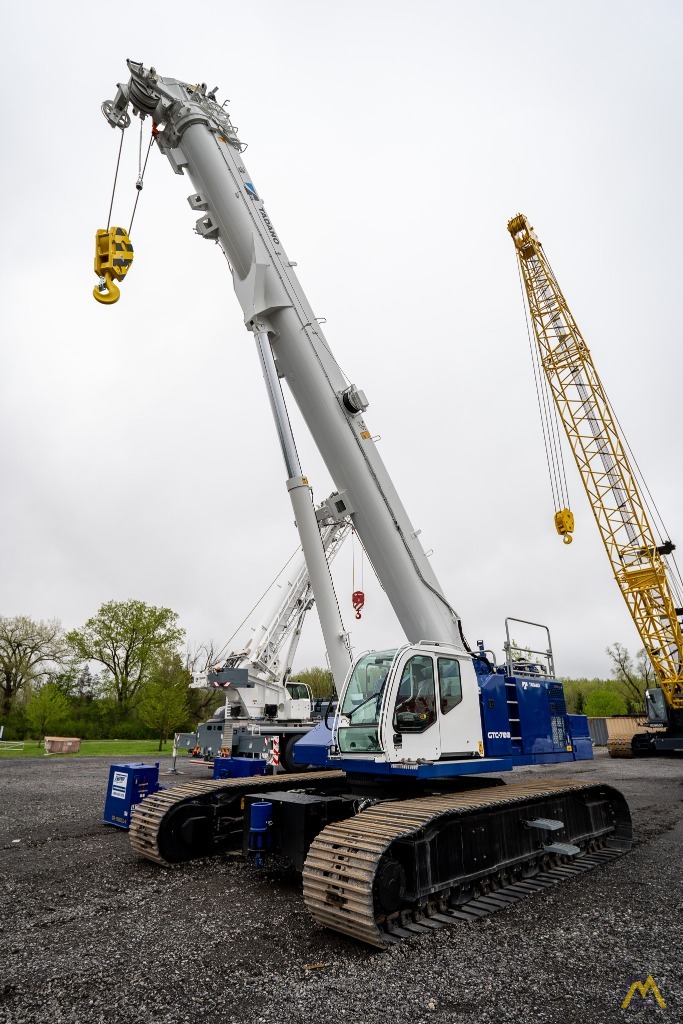

Tadano (Mantis) GTC-700 Telescopic Boom Crawler Crane For Sale

The Tadano GTC-700 is a 70 USt capacity machine offering a full power, 4‐section 37.7 ft – 118.1 ft hydraulic boom designed to perform exceptionally well for lift work, while also being capable of out‐of‐level, pick‐and‐carry, and foundation work.

• 70 USt lift capacity

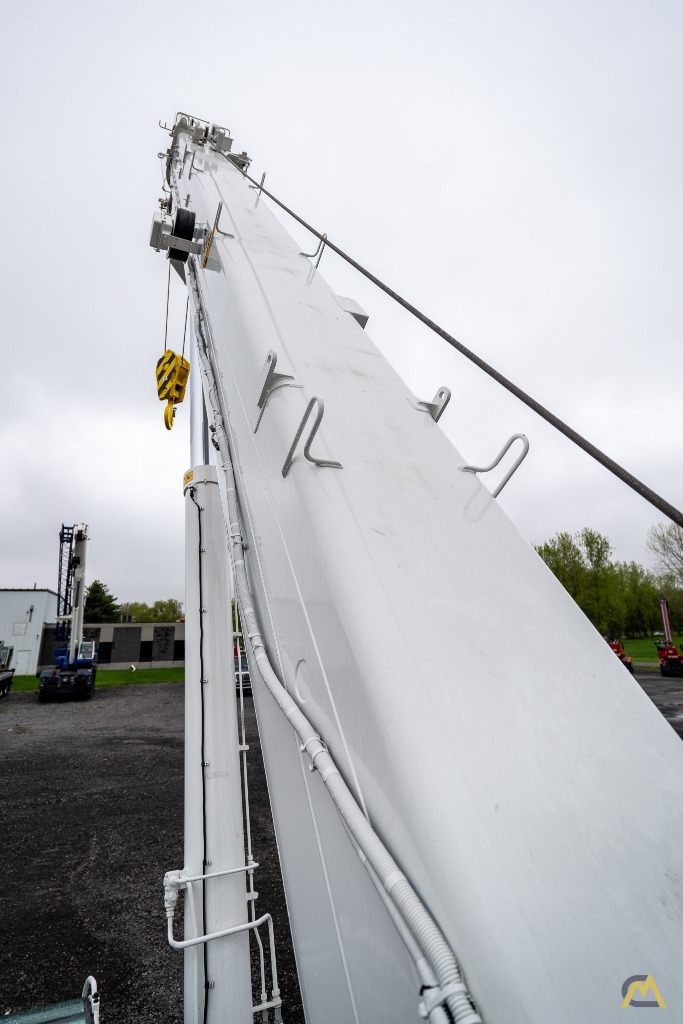

• 4-section 37.7ft - 118.1ft full power telescopic boom

• Cummins QSB6.7 310 HP EPA Tier 4f/EU Stg V Diesel Engine

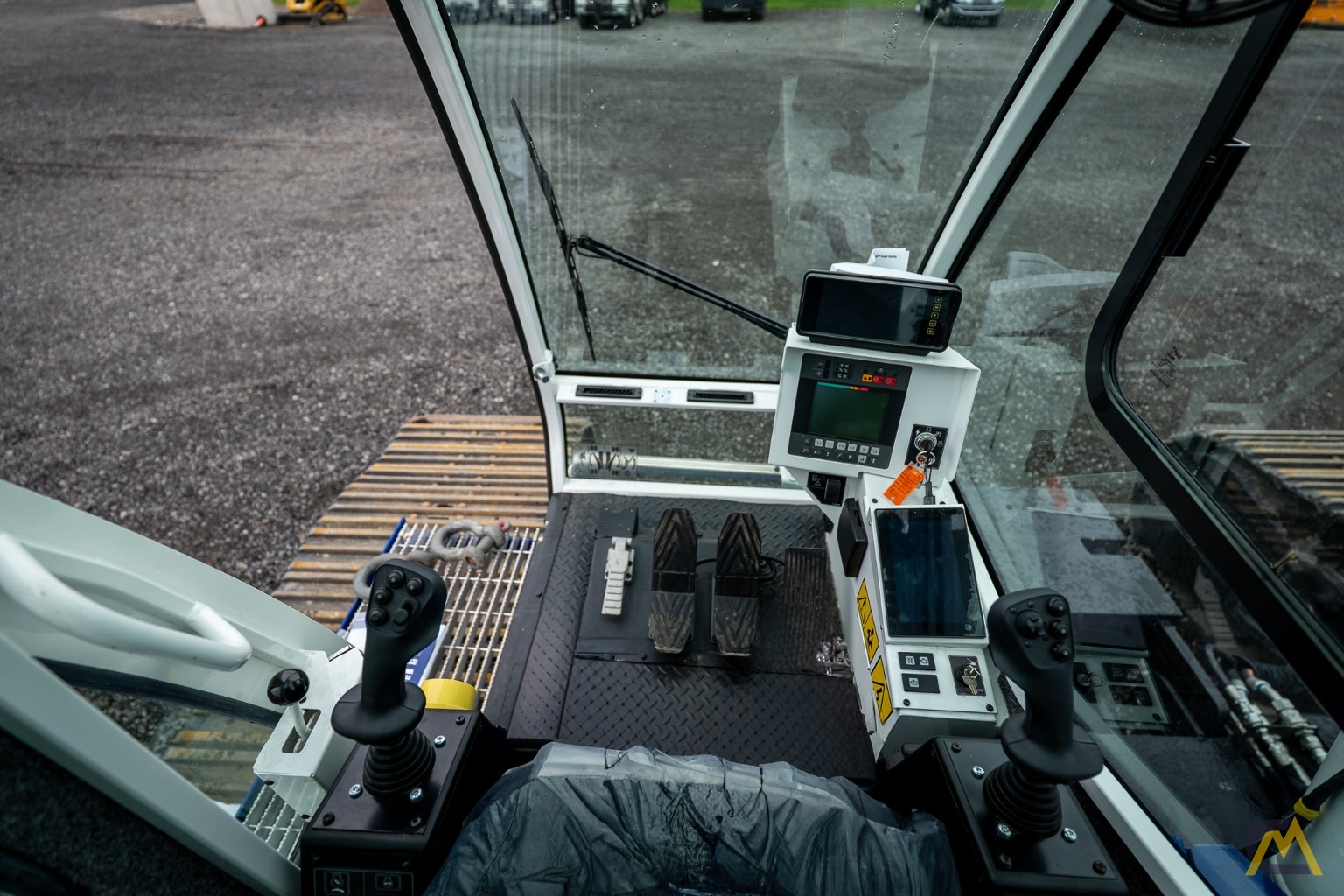

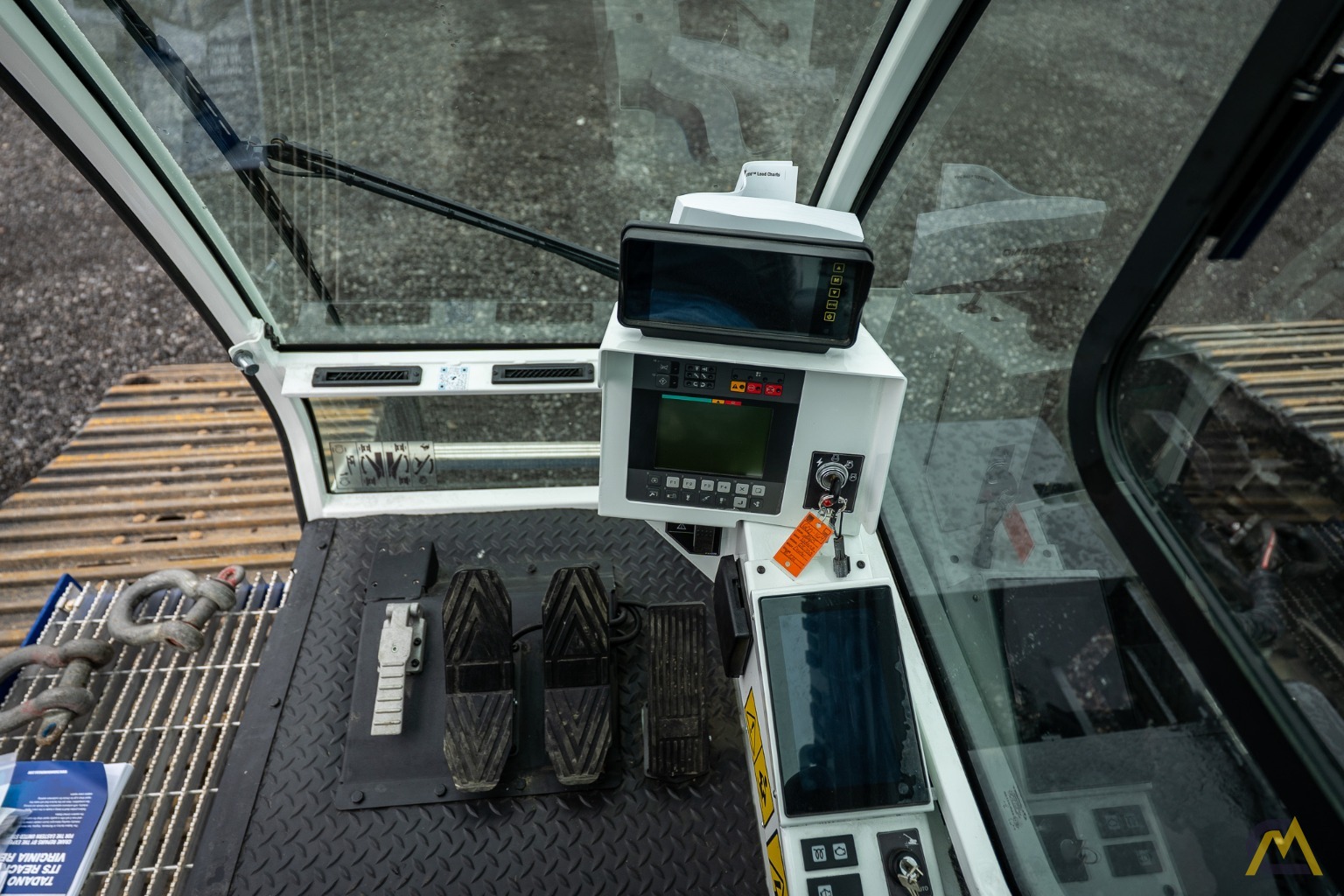

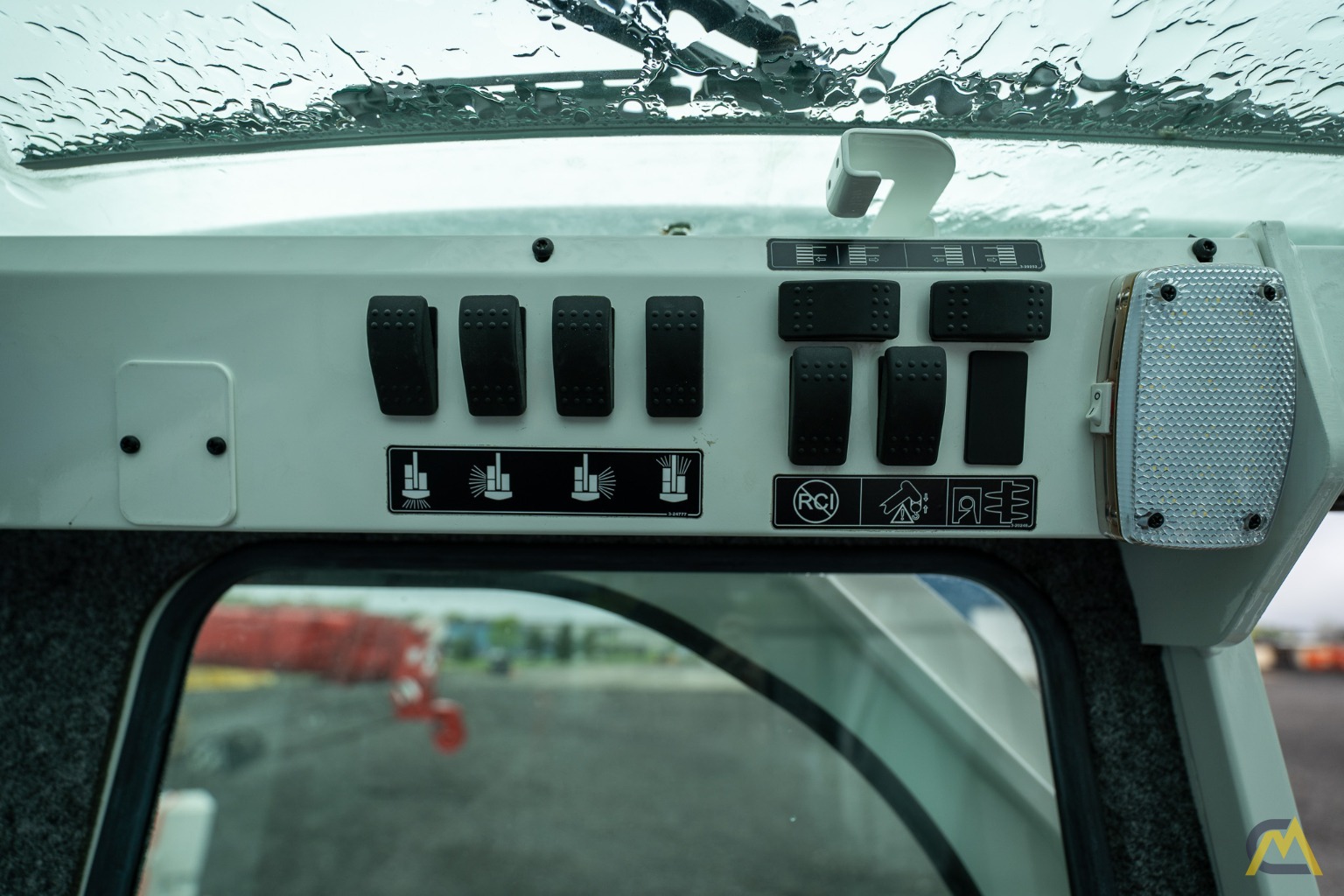

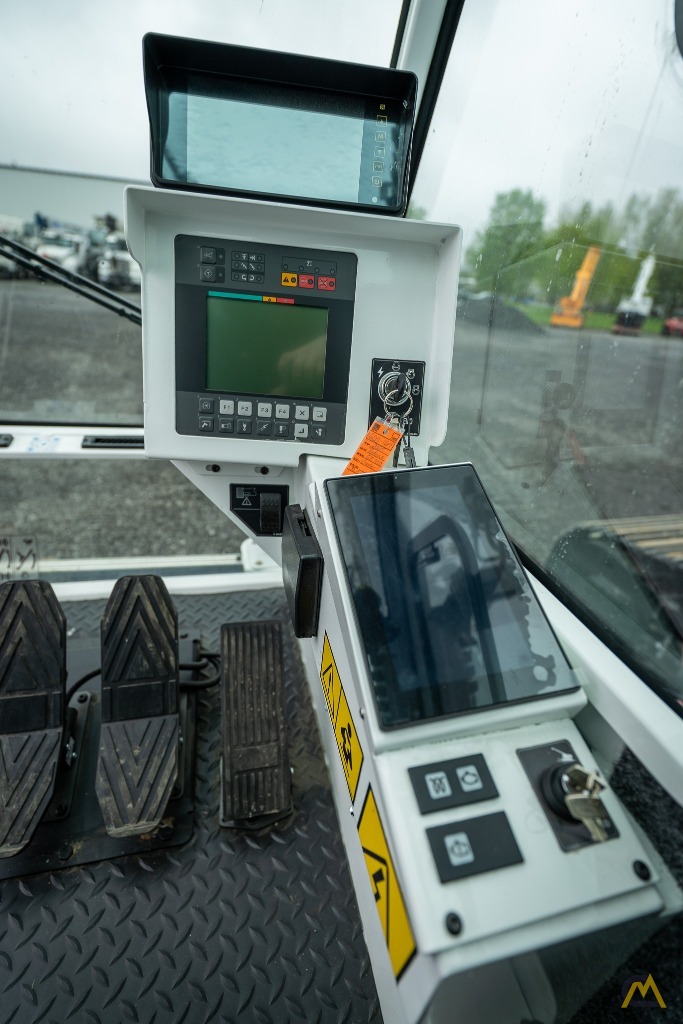

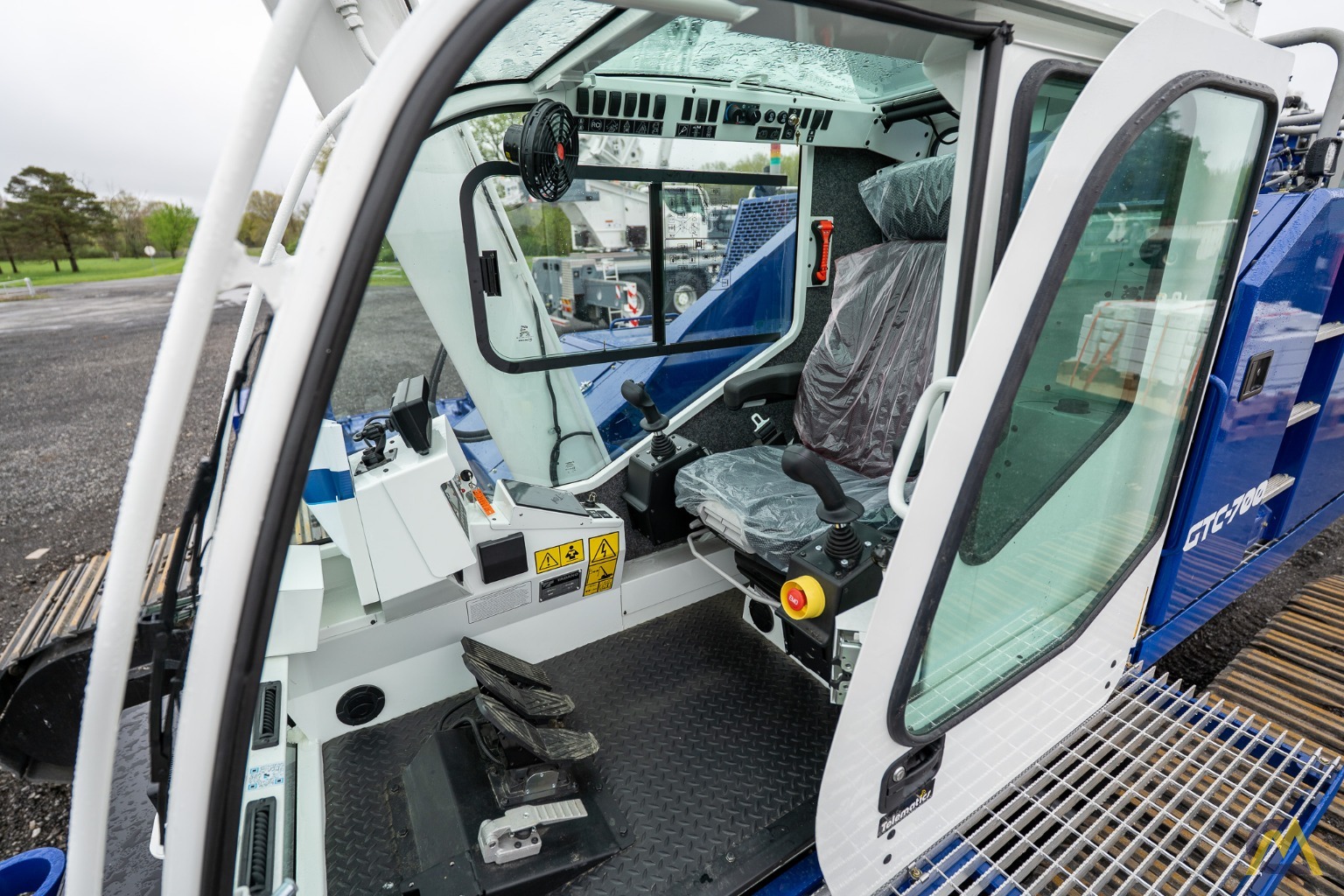

• Standard Cab with A/C, Heat, Engine Monitoring, tilts to 20 degrees

• Tadano AML-C LMI System with North American (ft - Ibs) Load Charts, for 0.5°, 1.5°, 2.5°, and 4° slope, and 3 color light bar

• Automatic & Manual Slope Selection Modes

• Cab Mounted Keyed LMI Override Enable Switch

• TADANO HelloNet Telematics

• Video Camera Monitor - 3 closed circuit cameras - winch, rear, and right-side view

• Work Light Package

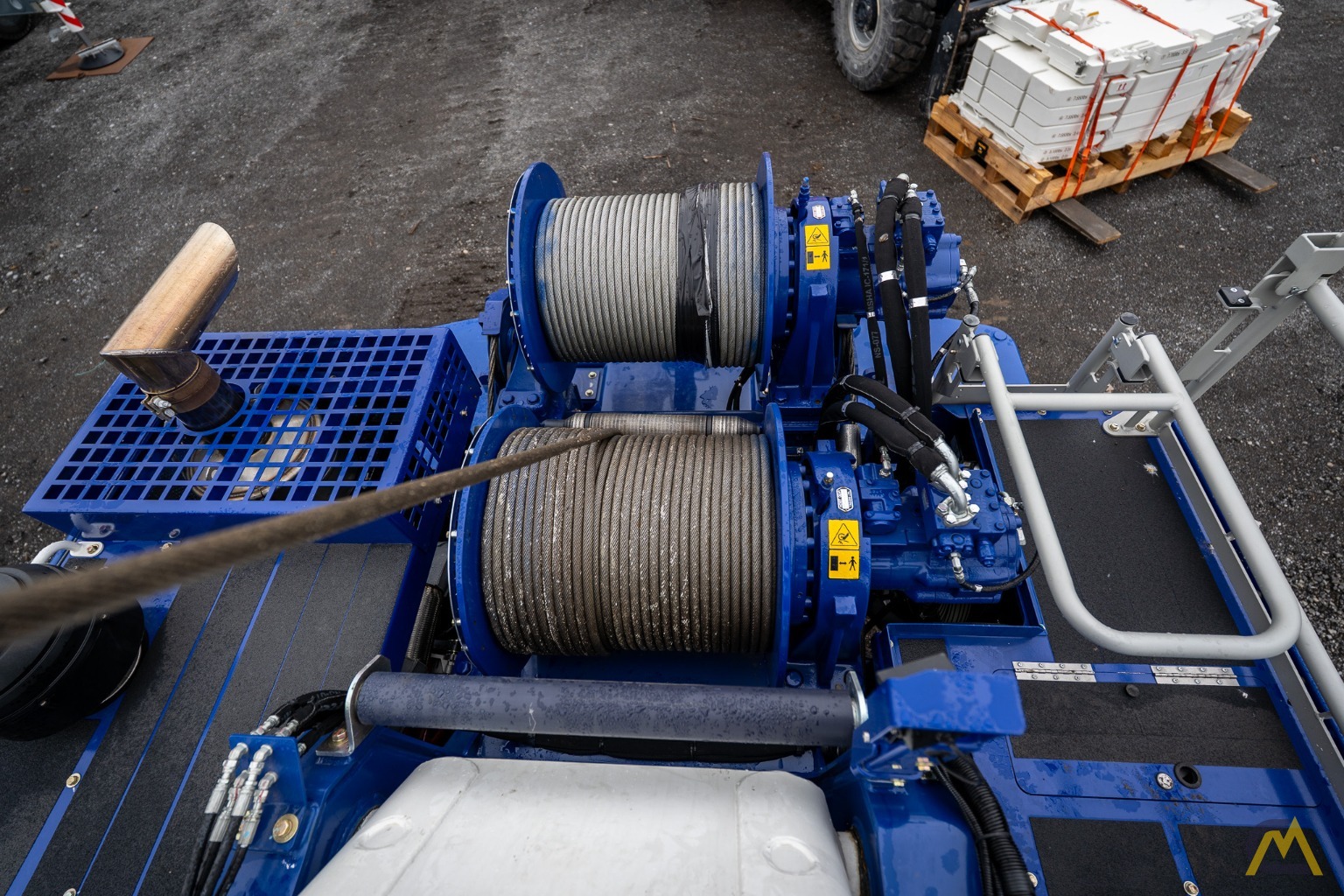

• Main Winch with grooved drum, cable follower, drum rotation & last wrap indicator, 650ft, 19mm diameter rotation resistant wire rope

• Auxiliary Winch with grooved drum, cable follower, drum rotation & last wrap indicator, 410ft, 19mm diameter rotation resistant wire rope

• Auxiliary Boom Head

• Hydraulic Extendable Undercarriage with 3 track width zones & OPTI-WIDTHT

• 35.4in (900mm) 3-Bar Semi grouser track shoes

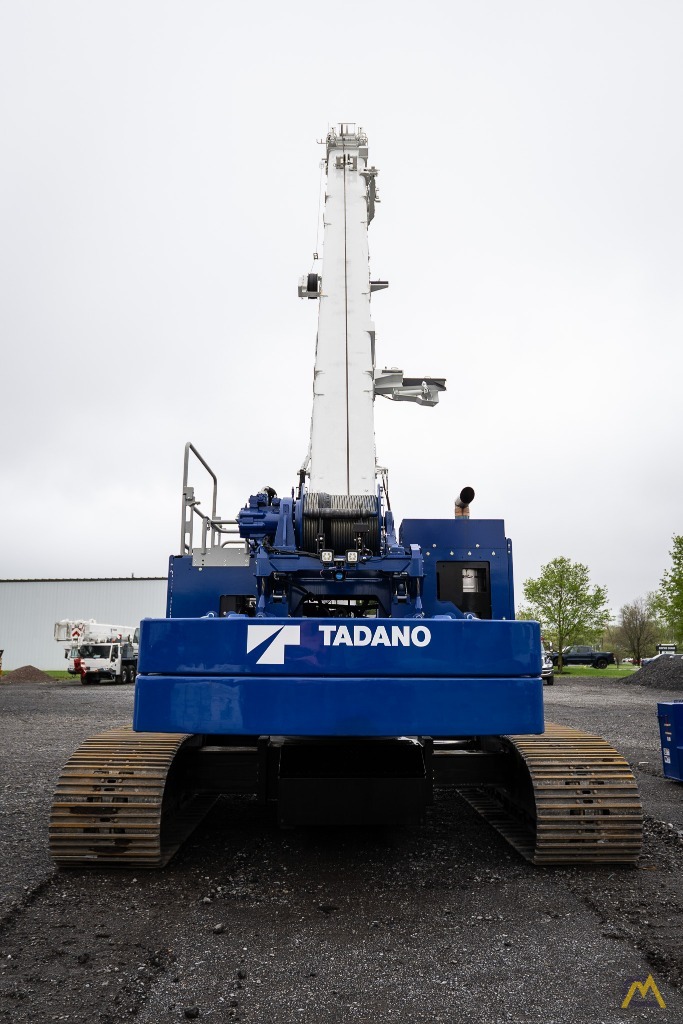

• 30,000 lb rear counterweight with radio control removal system

• 13,225 lb carbody counterweight

• Storage box mounted to Carbody Counterweight

• Crane access walkways and folding upper handrail system

• Hydraulic Oil - ISO VG32 - Mineral Based Oil

• Standard Tadano Blue/White Paint

• 1 hard copy of Load Charts and Operation Manuals, and 1 Electronic Copy of Parts Manual

• 8.8 USt Headache ball with swivel hook & safety latch

• Anemometer Boom Mounted Anemometer with digital display in cab

• Boom Beacon Boom Tip mounted 24V Red Warning Light
