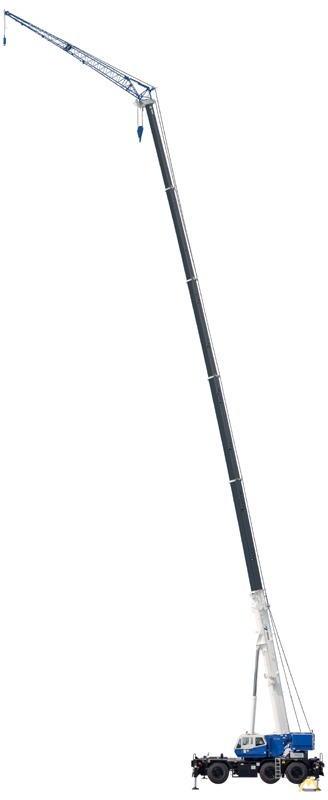

Tadano GR-1600XL-3 160-Ton Rough Terrain Crane For Sale or Rent
Location: Nisku, AB, CanadaTadano Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
| Status | For Sale or Rent |
|---|---|
| Year | 2020 |
| Manufacturer | Tadano |
| Model | GR-1600XL-3 |
| Condition | Good |
| Serial Number | FE5265 |
| Ton (USt) | 160.00 |
| Main Boom Length | 42.8' - 200.1' |
| Jib Extension Length | 33.8' / 59.1' |
| Maximum Counterweight | 40,100 lbs. |
| Engine | Mitsubishi 6M60-TLA3B Turbo |
| Horse Power/kW | 267 |
| Category | Rough Terrain Cranes |
| Show More | |
| Hide |
DESCRIPTION
- 160 Ton Capacity (145 Metric Tons)
- Six section boom, single cylinder telescoping with pinning system 42.8’~200.1’ (13.05m~61.0m)
- Hydraulic Bi-fold lattice type jib (tilt type) 33.8’ or 59.1’ (10.1m or 18.0m)
- Auxiliary lifting sheave (single top) stowable
- Variable speed main hoist with grooved drum, cable follower and 1050’ of ¾” cable
- Variable speed auxiliary hoist with grooved drum, cable follower and 738’ of ¾” cable
- Drum rotation indicator (audible, visible and thumper type) main and auxiliary hoist
- Anti-two block device (overwind cutout) and lower limit (3rd wrap).
- Boom angle indicator
- Tadano electronic load moment indicator system (AML-C)
- Outrigger extension length detector
- Tadano twin slewing system and 360 degree positive slewing lock
- Tilting Cab
- Self centering finger control levers with pilot control
- Control pedals for boom elevating and boom telescoping
- 3 way adjustable cloth seat with armrests, high back and seat belt
- Tilt-telescoping steering wheel
- Tinted safety glass and sun visor
- Front windshield wiper and washer
- Roof window wiper and washer
- Power window (cab door)
- Rear view mirrors (right and left side)
- Mirror for main and auxiliary hoists
- Cigarette lighter and ashtray
- Cab floor mat
- Air Conditioner (hot water heater and cooler)
- Pump disconnect in operator’s cab
- Hydraulic oil cooler, Positive control, Work lights
- Independently controlled outriggers
- Four outrigger extension positions
- Telematics (machine data logging and monitoring system) with HELLO-NET via internet.
- Cummins QSB6.7 turbo charged after cooled engine Tier 4 final (270 HP) with exhaust brake.
- Electronic controlled automatic transmission driven by torque converter
- 3 axle unit
- 6 x 4 x 6 drive/steer
- Automstic 2nd and 3rd axle oscillation lock out system
- 26.5 R25 tires
- Disc brakes
- Air dryer
- Water separator with filter (high filtration)
- Engine over-run alarm
- Back-up alarm
- Low oil pressure / high water temp. warning device (visual)
- 2nd and 3rd steer centering light
- Air cleaner dust indicator
- Tool storage compartment
- Tire inflation kit
- 24 volt electric system
- 7.9 ton (7.2 metric ton) Hook Ball with swivel
- Towing hooks – front and rear
- Lifting eyes
- Hook block tie-down (front bumper)
- Weighted hook storage compartment
- Fuel consumption monitor and economy mode
- Halogen head lamp
- Self-removable outrigger boxes
- Self-removable counterweight (40,100 + 24,500= 64,600 lbs)
- 110 ton (100 metric ton) 7 sheaves with swivel hook block
- Telematics(machine data logging and monitoring system)
- Eco mode system
- Emergency steering assist
- Anemometer
- Aircraft warning light
- Boom Removable assist system
- fire extinguishers, beacon lights, positive air shutoff
