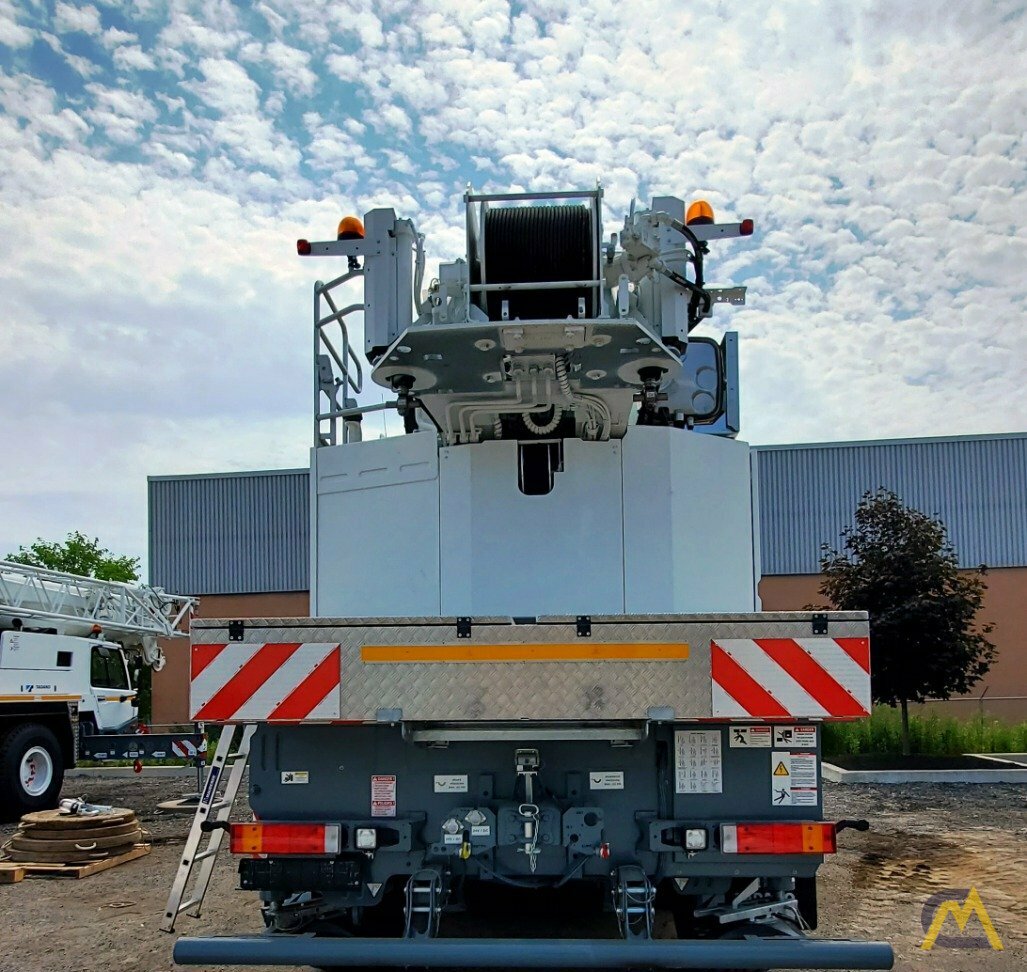

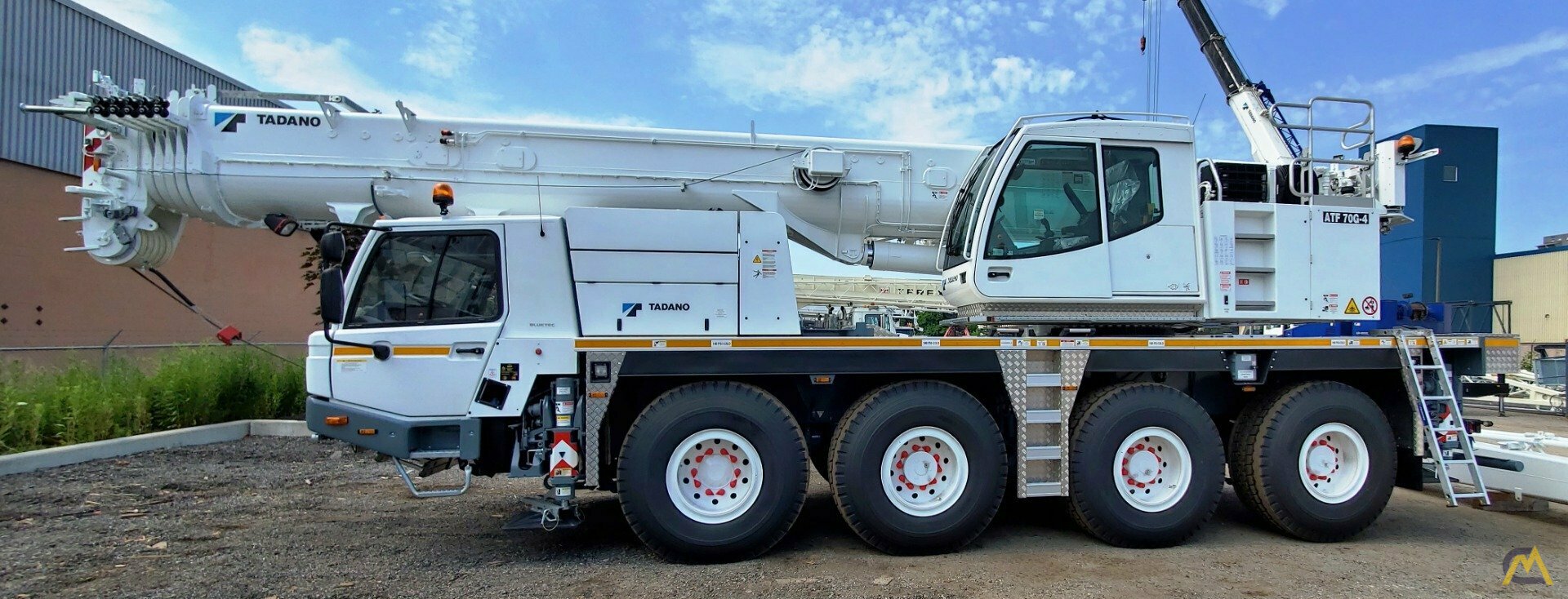

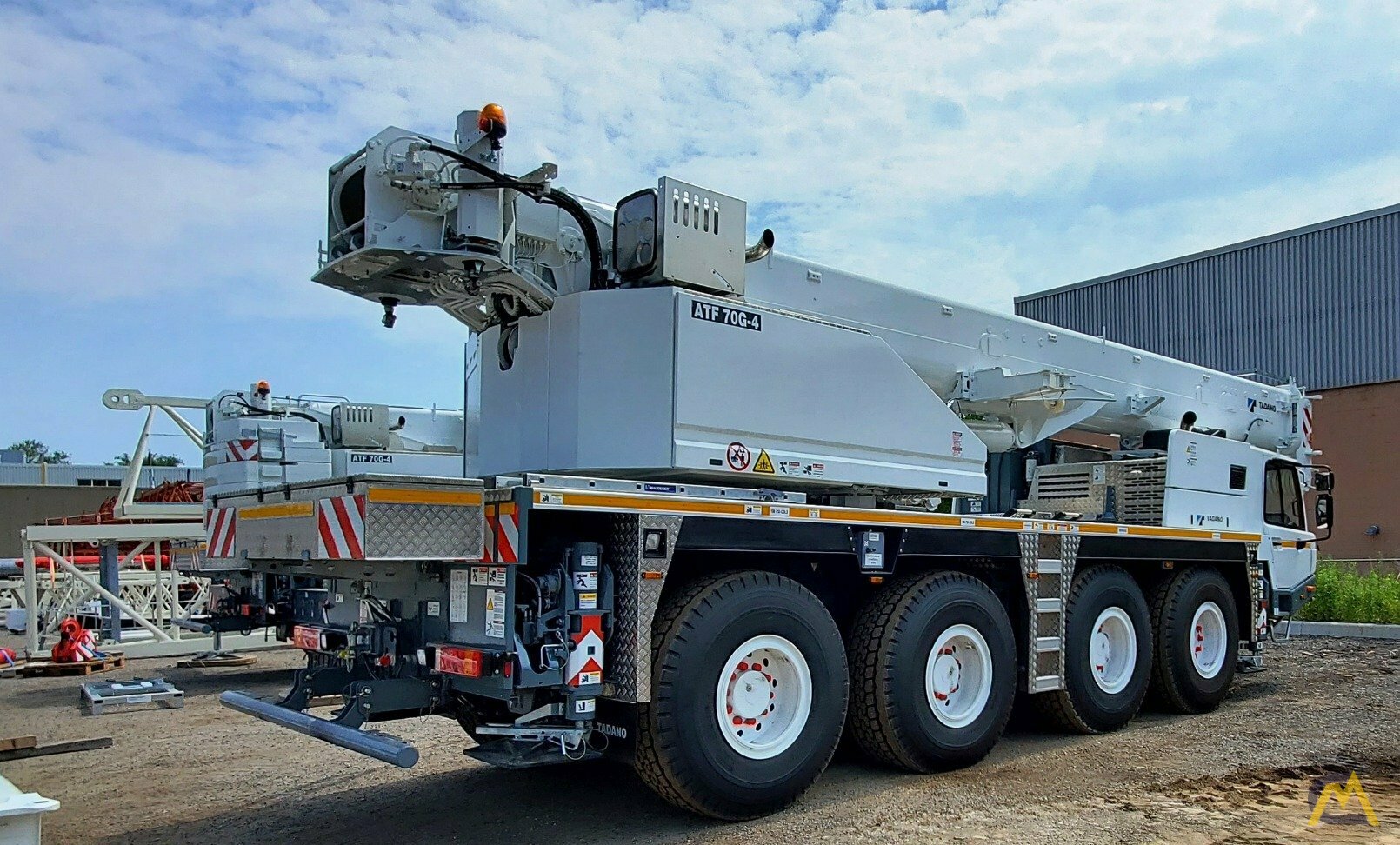

Tadano ATF 70G-4 70-ton All Terrain Crane For Sale

2020 TADANO ALL-TERRAIN CRANE ATF70G-4 (Tier4 final)

Standard machine includes:

CRANE CARRIER

• 4 axle carrier frame complete with front towing hook and tie-down lugs, storage for 6t swivel hook

• 4-point, telescopic hydraulic outriggers, spread 6.40 m / 5.40 m / 4.40m/ 2.40m

• Mercedes Benz 6 cylinder diesel engine model OM 470 LA, certified for EUROMOT IV and Tier4f, rated at 320kW (435 HP) at 1.700 rpm, stainless steel exhaust,

• ZF-AS-Tronic mechanical transmission with electro-pneumatically operated

• Dry-type clutch and automatic gear shifting with 12 forward gears and 2 reverse gears,

• Transfer case, two stage,

• 8x6x8 drive/steer,

• Hydro-pneumatic suspension with levelling adjustment,

• Dual circuit disc brake system with ABS, with integrated intarder, engine brake

• 20.5 R25 tyres (8)

• ZF-Servocom dual circuit hydraulic steering system, automatic rear axle steer, all wheel steer, crab steer,

• Spacious, panoramic two-man cab with complete controls and instrumentation for road travel,

• radio/CD, engine dependent hot water heater, Tempomat cruise control and Bremsomat,

• One-key system for carrier and superstructure cab, engine start, diesel tanks,

• air conditioning

• 24 volt DC electrical system with complete lighting including 4 working lights for outrigger extension area switchable from carrier cab, 2 rotating beacons, reversing alarm, central lubricating system,

• Standard accessories include: set of standard tools, 2 reflective vests, fire extinguisher, hazard warning triangle, first aid kit and 1 set of operating instructions and spare parts manuals (1xpaper, 1xUSB)

• Standard painting

CRANE SUPERSTRUCTURE

• Torsion resistant frame, all-welded structure of high strength steel, with single-row

• Ball-bearing slewing ring

• Mercedes-Benz 4 cylinder diesel engine model OM 934 LA, certified for EUROMOT IV and Tier 4f, rated at 129 kW (175 HP) at 2.200 rpm, stainless steel exhaust,

• Three circuit diesel-hydraulic system with 1 double axial piston pump and 2 gear pumps,

• 2 joy-stick controls for simultaneous operation of crane motions,

• 6 section telescopic boom 11.1m - 52.1m, hydraulic, extendable under partial load,

• Derricking system with 1 double acting hydraulic cylinder with integral brake and holding valve,

• Main winch with cable, lower limit switch, drum turn indicator, ‘Super-Stop’ easy reeving system

• Slewing system with two stage planetary gear with foot pedal brake and a parking brake,

• Counterweight 11,0t (controls in superstructure cab), divisible counterweight allowing different

• axle weight configurations,

• Spacious, panoramic cab with unique tilting inner-cockpit, air conditioning, radio/CD

• Safety (tinted) glass, fan, sun visor, engine independent hot water heater with engine

• pre-heat (Thermo 90), seat heater, windscreen washer and wiper for front and roof windows and

• Complete controls and instrumentation for crane operation, on-site travelling (1 forward gear and 1 reverse gear) and outriggers,

• 24 volt DC electrical system including 2 working lights integrated into front of superstructure cab,

• 1 working light on boom base section, 2 side lights on boom head, 2 rotating beacons,

• switch for adjustment of carrier engine speed, central lubricating system, 180 degrees positive slew lock, anemometer,

• Load Moment Device (LMD) with asymmetric outrigger extension width system,

• Standard LMD-programmes for 3.4t / 4.4t / 5.4t / 6.9t / 8.7t / 10.2t / 11t counterweight,

• with automatic shut-off and working area limitation (including slewing area with shut-off), AML

• External warning light

• Standard painting

OPTIONAL EQUIPMENT - CARRIER

• Towing hook - rear with air and electrical lines

• Additional independent hot water heater

• Drive 6 x 8

• Toolbox in aluminium at rear

• Reversing lights rear with on/off switch

• Fog lights

• Reversing video camera with LCD

• Cable for battery recharge and remote start connections 10m

• Emergency (engine) stop

OPTIONAL EQUIPMENT - SUPERSTRUCTURE

• Boom extension 9.0m - 16.0 m, hydraulic, incl. LMD programme

• Extended boom point sheave

• Swing and elevation free for dolly

• Boom dolly bracket

• Additional counterweight 5,5t (for max. 16,5t counterweight) incl.LMD programme for 16,5t / 12,2 t counterweight

• counterweight configuration for 11,6t axle loads

• counterweight configuration for 16,5t axle loads

• Counterweight removable incl. LMD programme for Ot counterweight

• Outrigger load display at upper cab

• Lift adjuster for main winch

• Swivel hook 6t

• Hook block type 16, 1-sheave, single hook, center suspended

• Hook block type 32, 3-sheaves,single hook, center suspended

• Auxiliary winch

• Compensation counterweight for auxiliary winch

• 2 working lights on boom base section, adjustable (XENON)

• Aircraft warning light

• Emergency (engine) stop

• Camera for hoist winch

• Camera for auxiliary winch

• Hour meter for main winch

• Hour meter for aux winch

• Additional manual 1 set O/M, P/C (std. 1 set)

• USB Manual 1 set O/M, P/C (std. 1 set)
