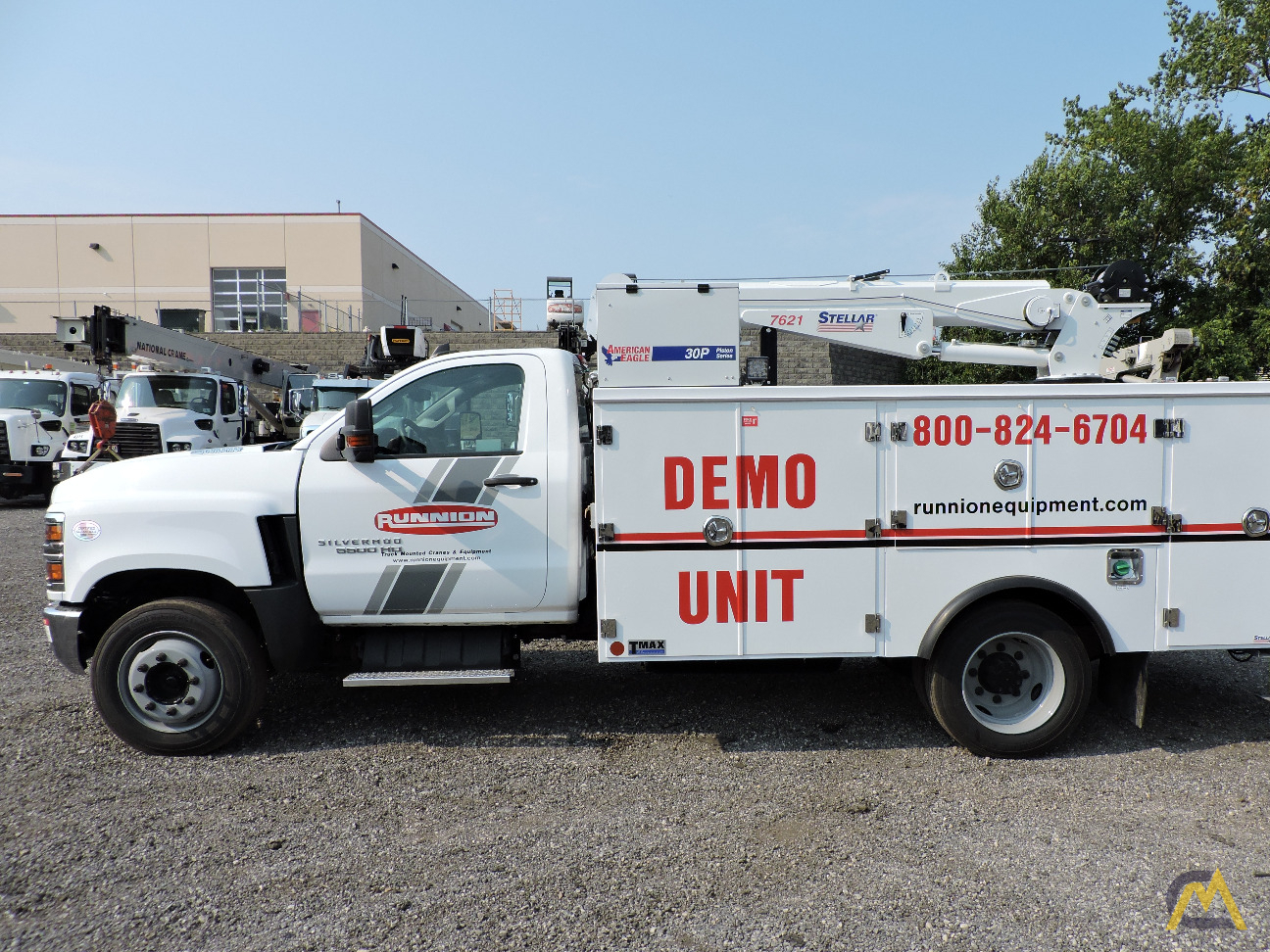

Stellar Industries Inc. 7621 3.50-Ton Service Truck Crane For Sale
Location: Hodgkins, Illinois, USAThis equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
DESCRIPTION
Stellar TMAX1-11’ V2 Aluminum Mechanic Body
- Aluminum doors and side packs
- Torsion box understructure with isolated, steel crane compartment
- Master-Lock system
- 133” long
- 50” load bed width
- Six (6) recessed cargo tie-downs
- Two (2) rear mounted grab handles
- 12” fold down tailgate – painted black
- 21” step bumper with thru compartment
- Vise mounting plate – receiver workbench mount
- Step, slide out for TMAX mechanics work bench bumper
- Rubber fenderettes
- All compartments raised to 52” H x 22” D
- Overlapped doors on SS1V/CS1V and horizontal compartments
- 2 & 3 point stainless steel compression latches
- Stainless steel “Billet Style” hinges
- Spring loaded door stops
- Dual-seal automotive type compartment weather seal
- LED compartment lights
- SS1VF – Heavy duty aluminum drawer set – 35.5” H x 34” W x 18”D
– 3-3”, 3-5”,1-7” - SS1VR – Three (3) shelves with (3) dividers
- SS Horizontal – One (1) shelf with (3) dividers

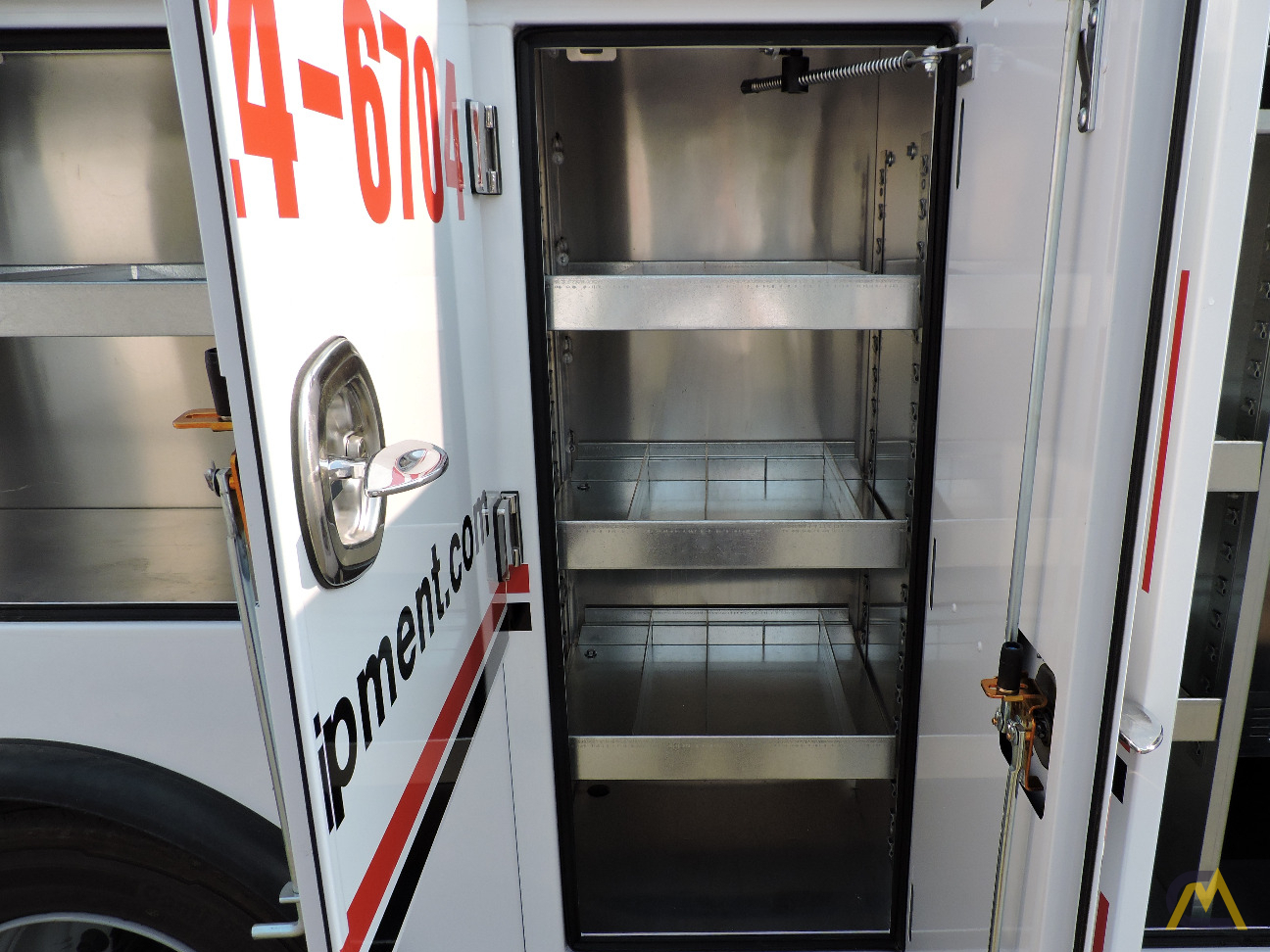

- SS Rear – Three (3) shelves with (3) dividers
- CS1V – Divider kit with shelves and, 8” drop well. Oxy-Acetylene
bottle holder holds 2 bottles - CS2V – Three (3) shelves with (3) dividers
- CS Horizontal – Shelf with 3 dividers
- CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

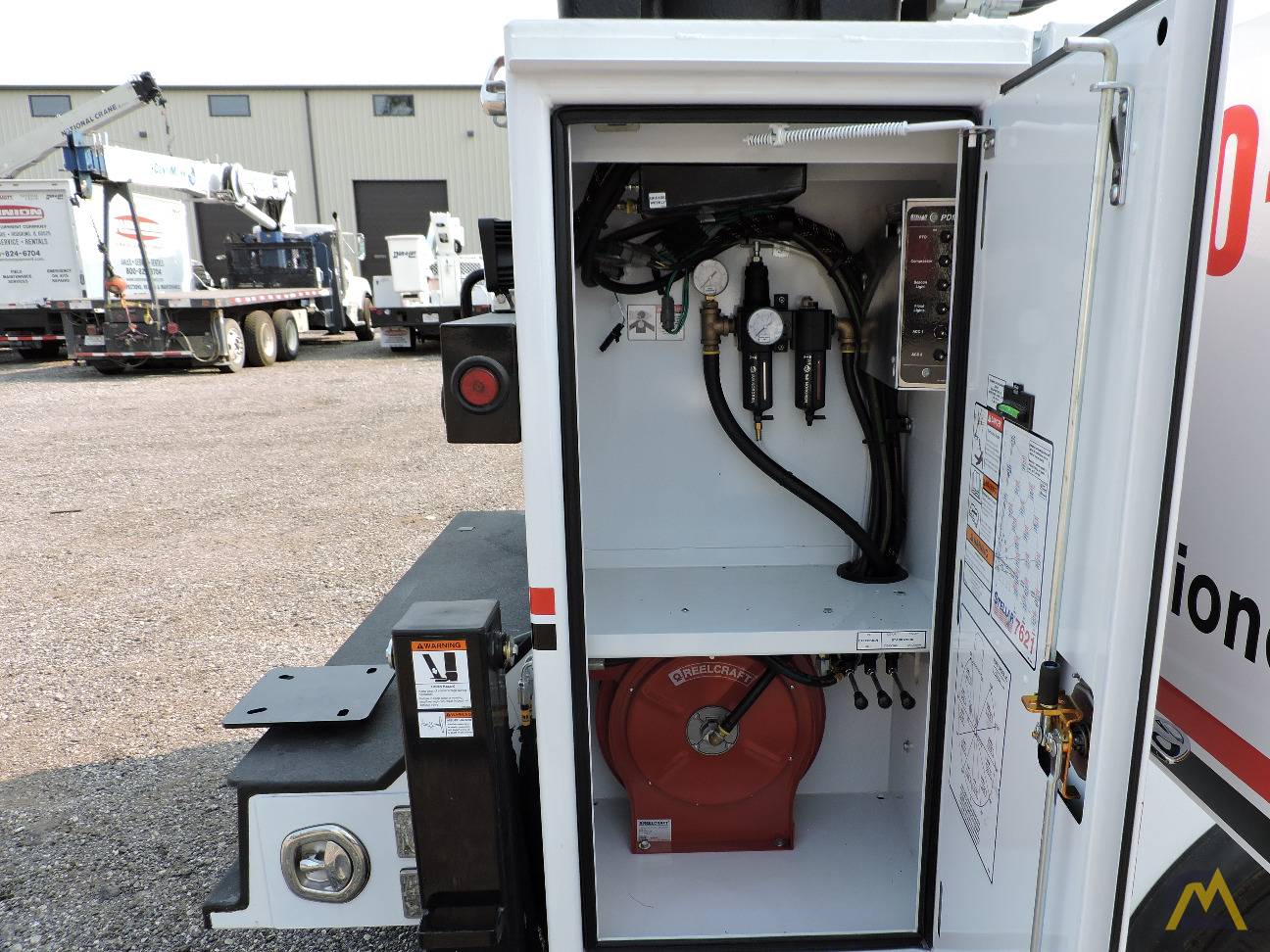

- American Eagle 30P hydraulic driver compressor – produces 30 CFM at
100 psi, 4-cylinder, single stage compressor, direct drive coupling,
and hydraulic motor - 21-gallon air tank kit
- FLR system – ¾” air feed for ½ hose reel (filter, lubricator, regulator)
- 20-gallon hydraulic reservoir – bulkhead mounted
- LED floodlights – Four (4) total. 1 on boom support, 1 SS behind
compressor, 1 on each rear taillight box - Backup alarm
- ICC safety kit – 2.5# fire extinguisher and reflector kit
- Spray-on bed liner for load bed walls and floors, and workbench
- Undercoated
- Prime painted white
Stellar 7621 telescopic crane
- 44,840 ft/lb rated when in boost mode
- 7,500# maximum capacity at 5’10’ radius
- 21’ maximum hydraulic reach – 2,135# at 21’ when in boost mode
- Hexagonal boom – optimized to deliver dramatically less boom flex
and side to side movement - Boom elevation: -10° to 80°
- 400°non-continuous rotation – durable enclosed rotation system
with a cast iron base and an internal mechanical stop - Planetary winch with 100’ of 3/8” wire rope
- Max line pull speed 60ft/min
- Quick release snatch block stow
- Adjustable boom support, roller rest
- Proportional radio remote control – LCD features real time load
capacity, maximum distance with the current load, boom angle, and
percentage of load - CDTplus boost mode allows for a momentary 18% increase in the
capacity of the crane, and a Safe Mode to keep the crane and operator
safe should a load indicating device fail to operate correctly - On-Demand speed control ramps engine RPM up only when the crane
is being used. When crane is not used for 5 seconds engine RPM
returns to idle. This lowers fuel consumption and reduces noise
pollution in the work area - Greasable pivot bushings, each pivot pin location includes bushings
and grease zerks to provide for years of use - Hydraulic stabilizers

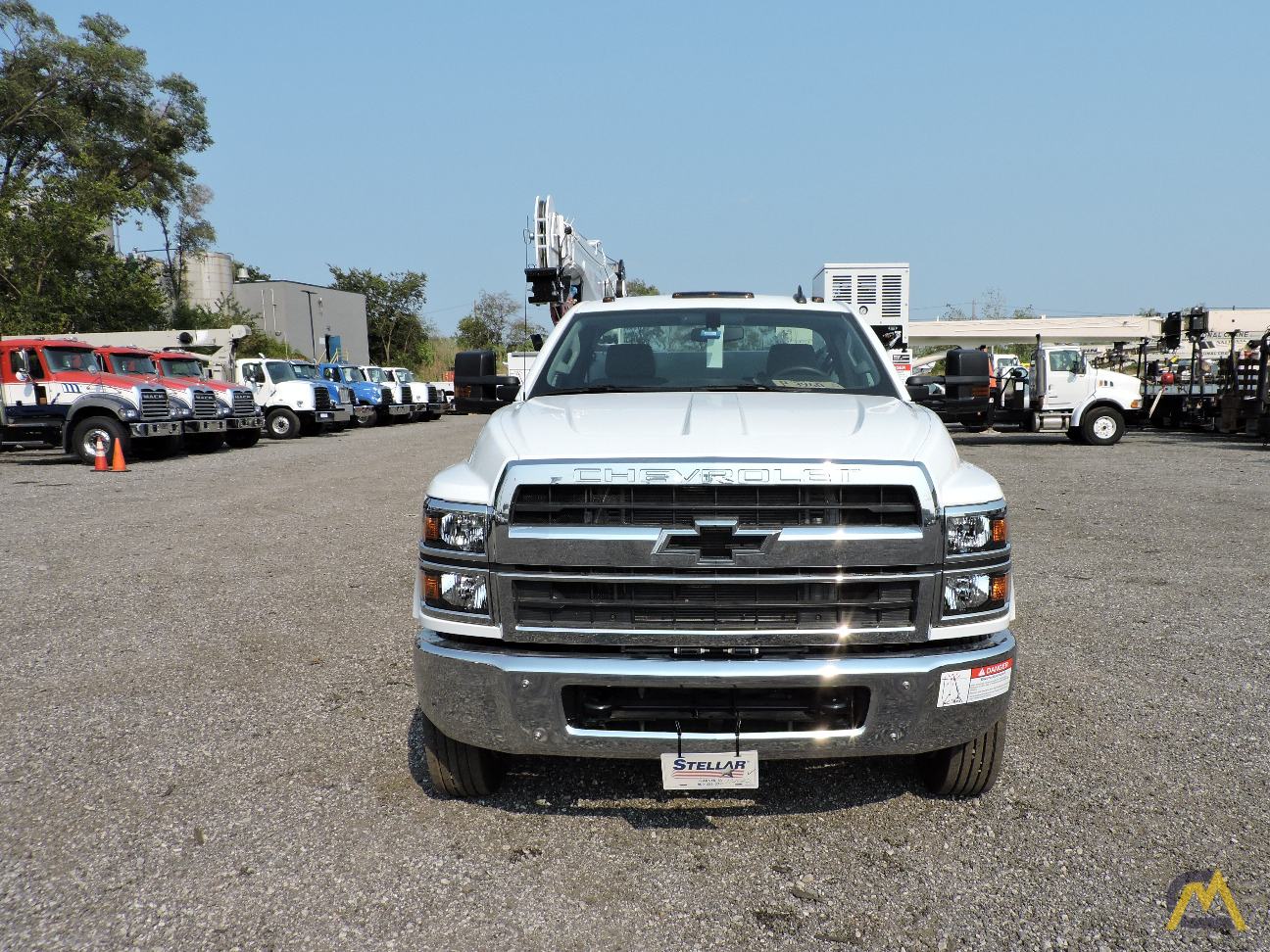

2019 Chevrolet 5500 4x2
- 19,500# GVW
- 6.6L Duramax diesel engine
- Allison automatic transmission
- 84” CA, wheelbase 165”
- 40/20/40 split bench seat-vinyl
- Cruise control
- Air conditioning
- Power group
- Upgraded radio with Bluetooth
- Backup camera
- Chrome bumper and grille
