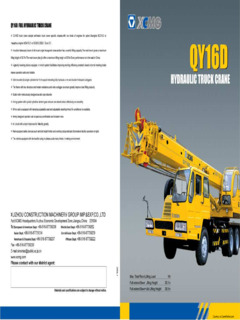

XCMG QY16D Specifications
The XCMG QY16D is a fast-moving mobile crane purpose-built as a telescopic mobile hydraulic crane.
A versatile and efficient telescopic boom truck crane manufactured by XCMG, a ... Show More
XCMG QY16D
(Cranes, Hoists & Material Handlers : Truck Cranes)
The XCMG QY16D is a fast-moving mobile crane purpose-built as a telescopic mobile hydraulic crane.
A versatile and efficient telescopic boom truck crane manufactured by XCMG, a leading manufacturer of cranes produced in China designed for the international crane marketplace. The XCMG QY16D is specifically designed for lifting applications on construction projects and industrial settings. This crane features advanced technology and exceptional performance.
The QY16D features a high lifting capacity and a long boom reach, making it suitable for lifting heavy loads at significant heights. The telescopic boom extends to 9.8' - 72.1' (3 - 22 m), and the Jib Extension Length to 16.4' - 24.6' (5 - 7.5 m) for a Tip Height of 126.3' (38.5) allowing for efficient lifting and placing of materials. The crane's exceptional load chart and precise control systems ensure safe and accurate lifting operations.
Specification
|
Classificatory |
Item |
Unit |
Parameter |
|
|
Outline dimension |
Overall length |
mm |
12000 |
|
|
Overall width |
mm |
2500 |
||
|
Overall height |
mm |
3380 |
||
|
Mass |
Total mass in travel state |
kg |
31000 |
|
|
Axle load |
Front Axle |
kg |
6440 |
|
|
Rear Axle |
kg |
24600 |
||
|
Travel performance |
Travel speed |
Max. travel speed |
km/h |
75 |
|
Turning diameter |
Min. turning diameter |
m |
22 |
|
|
Min. ground clearance |
mm |
260 |
||
|
Approach angle |
(°) |
16 |
||
|
Departure angle |
(°) |
13 |
||
|
Braking distance (at speed of 30km/h) |
m |
10 |
||
|
Max. grade-ability |
% |
30 |
||
|
Fuel consumption for 100km |
L |
37 |
||
|
Power |
Engine rated output |
kW/(r/min.) |
206/2200 |
|
|
Engine rated torque |
N.m/(r/min.) |
1112/1400 |
||
|
Engine rated speed |
rpm. |
2200 |
||
