Taylor X-550RC Specifications

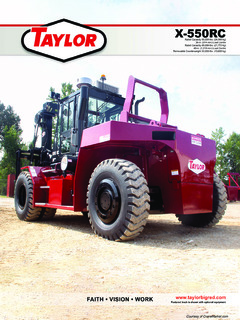

Taylor X-550RC HEAVY-DUTY LIFT TRUCK

Removable Counterweight Lift Truck

The X-550RC Heavy Duty Removable Counterweight Lift Truck is purposely built for the Port Operations Industry and is unique in its ability to be lifted into the hull of a ship to handle steel and tackle other heavy material handling needs. With a Removable Counterweight, the X-550RC Removable Counterweight Lift Truck has become an invaluable piece of the Port Operations Industry. Taylor Big Red. Engineering the Ultimate Lift Truck.

BASIC TRUCK INCLUDES

• Lockable Fuel Cap w/Strainer, fuel gauge

• Dry-type Air Cleaner w/Safety Element & Restriction Indicator and Vertical Air Intake Extension

• Muffler w/Stack Guard

• 12-Volt Electrical System; 130 Amp Alternator & Circuit Breakers

• Taylor Integrated Control System (TICS) with CANbus Technology with Diagnostics through dash-mounted display

• Anti-restart Ignition Switch

• Tilt Steering

• Heavy-duty Batteries (2-4DA) and battery disconnect switch

• Lighted Instruments

• Remote mounted hour meter gauge

• Electric Horn 118 DBA

• Keyswitch-actuated Amber Strobe Light

• Reverse-actuated Backup Alarm

• Forward actuated forward alarm

• Four work lights, 2 front mast-mounted: 2 rear a frame-mounted with one control switch

• Rear View Mirrors inside of the cab

• Powershift Transmission – fully electric, 3-speed w/Inching, Modulated, Electric Shift Control, Air/Oil Cooling with Automatic Powershift Control

• Remote Mounted Hydraulic Oil Cooler

• All welded chassis, lift eyes, 2 mast-mounted, 2 chassis mounted, not level pick

• Auxiliary Drive Line Mounted Parking Brake

• Taylor Steer Axle

• Bolted Planetary Drive Axle

• Air Cooled Wet Disc Brakes Hydraulic Actuated with Cooler for Brake Oil and Hydraulic Oil

• Hydrostatic Power Steering

• 2 Section Hydraulic Valve standard

• Electric Joystick Operated Controls and Switch Controls

• Low center-mount cab, 2-door, includes one 32, 000 BTU heater, one circulation fan, front and rear windshield wipers with control switches, front windshield washer, dome light, all glass tinted

• Door hold back latches with trip button, grey insulation, and black floor mat inside the cab. Cab color black only.

• Adjustable Black Vinyl Covered Air Suspension Seat w/Arm Rests, Orange Seat Belt and OPS Switch, Seat has left 15/ right 20 degree rotation

• Full Flow Wire Mesh Suction Strainers & Full Flow 10-Micron Return Filter in the hydraulic tank

• Accumulator in the lift circuit

• 30, 000-pound removable counterweight

• 46, 000 Vehicle Transport weight w/o counterweight

• Parker hydraulic gear-type pumps, fittings, and hoses
