Tadano Mantis GTC-1300 Cranes for Sale and Rent
Tadano Mantis GTC-1300 Specifications
The Tadano GTC-1300 telescopic crawler features a 130 USt lifting capacity and comes with a full power five-section 42 ft 1 in - 155 ft boom with a 12.5 ft -33.... Show More
Sort By:
Tadano Mantis GTC-1300 130-Ton Telescopic Crawler Crane For Sale or Rent
| Location |
DeForest, Wisconsin US 585 miles |
|---|---|
| Make | Tadano Mantis |
| Model | GTC-1300 |
| Tons | 130.00 |
| Year | 2022 |
Price On Request
2022 Tadano GTC 1300 For Sale, Rent, or RPO.
130 Ton Tele-Boom Crawler Crane. 155' main boom, 33.5' - 59.1' bi-fold jib, 6 sheave blocks, and ball .
Crane in stock and available now!!!
Tadano Mantis GTC-1300 130-Ton Telescopic Crawler Crane For Sale
| Location |
Richmond, Virginia US 1113 miles |
|---|---|
| Make | Tadano Mantis |
| Model | GTC-1300 |
| Tons | 130.00 |
| Year | 2021 |
Price On Request
2021 Tadano Mantis GTC1300 Telescopic Boom Crawler Crane for Sale
STANDARD CRANE
130 Ton (120t) lift capacity
5 section 155’ (47.2 m) boom
Cummins 350 HP QSL9 U.S. EPA Tier 4f Diesel Engine
Standard Cab with A/C, Heat, Engine Monitoring, 20-degree tilt configuration
Tadano AML-C LMI System with North American (ft-lbs) Load Charts,
automatic switching charts for 0.5°, 1.5°, 2.5°, and 4° slope, and 3 color light bar
HELLO-NET Telematics System
Video Camera Monitor - 3 closed-circuit cameras - winch, rear, and right side view
Work Lights - 3 work lights with remote controls
Main Winch with grooved drum, cable follower, drum rotation indicator,
3rd wrap ...

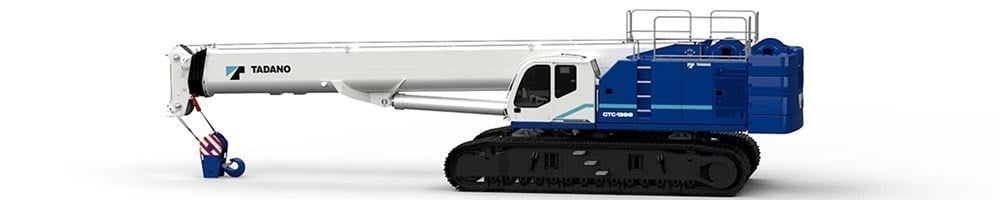

Tadano Mantis GTC-1300
(Cranes, Hoists & Material Handlers : Crawler Cranes)
The Tadano GTC-1300 telescopic crawler features a 130 USt lifting capacity and comes with a full power five-section 42 ft 1 in - 155 ft boom with a 12.5 ft -33.5 ft - 59.1 ft jib system for a max. tip height of 259 ft and is ideal for contractor and crane rental firms with out-of-level, pick-and-carry, and foundational lifting requirements.
(2) Optional 23 ft lattice inserts are available increasing the max tip height.
CRANE SPECS
- MAX. CRANE CAPACITY 130 USt / 120 t
- MAIN BOOM LENGTH 42 ft 1 in – 155 ft / 12.8 m – 47.2 m
- BOOM EXTENSION 12.5 ft – 33.5 ft – 59.1 ft / 3.8 m – 32 m
- MAX. TIP HEIGHT 259 ft / 79 m
- MAX. COUNTERWEIGHT 70, 000 lbs / 31, 750 kg
- TRACK WIDTH EXTENDED 19 ft 1 in 5.8 / 5.8 m
- TRACK WIDTH RETRACTED 12 ft 0 in /3.66 m
- HOIST LINE PULL 23, 560 lbs / 104.8 kN
- DIMENSIONS 51 ft 9 in L x 12 ft 0 in W x 14 ft 10 in H / 15.8 m L x 3.66 m W x 4.5 m H
- ENGINE Cummins QSL9
