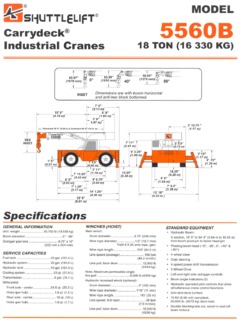

Shuttlelift 5560B Specifications

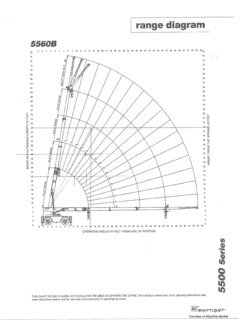

The Shuttlelift 5560B is an 18-ton (36, 000 lbs. / 6, 330 kg) lifting capacity carry deck industrial crane with a four-section 18.6' - 54.6' (5.6 - 16.6 m) telescopic boom with an optional 15' (4.6 m) jib extension for a maximum tip height of 77' (23.1 m) and a 66' (20.7 m) working radius.

The crane weight is 30, 700 lbs. (13, 926 kg) and the 5560B is powered by a standard Cummins QSB4.5L (99 / 74 kW) engine coupled with a powershift transmission that achieves a maximum travel speed of 21 mph (33.8 km/h).

While no longer in production this crane is supported by Manitowoc Group Shuttlelift distributors.
