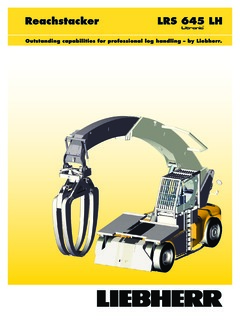

Liebherr LRS 645 LH Specifications
The Liebherr LRS 645 LH (log handler) ensures efficient timber handling with a lifting capacity of 30-tons. With the arched unique boom design, the timber handler can be rotated... Show More
Liebherr LRS 645 LH
(Forestry & Logging Equipment : Material Handlers)
The Liebherr LRS 645 LH (log handler) ensures efficient timber handling with a lifting capacity of 30-tons. With the arched unique boom design, the timber handler can be rotated 360 degrees. Handling below ground level is also possible up to six meters below the wharf edge. Among the areas of application are timber terminals, pulp mills and paper mills.
Metric
| Engine power | 270 kW |
|---|---|
| Driving speed unloaded | 25 km/h |
| Driving speed rated load | 20 km/h |
| Grab/clamshell capacity | 8.20 m² |
| Lifting capacity max. | 30 t |
| Mobility | rubber tired |
| Total length | 13.24 m |
| Width | 4.48 m |
| Height | 7.68 m |
| Wheel base | 6.50 m |
| Swing radius | 9.15 m |
| Fuel tank | 600.00 l |
Imperial
| Engine power | 362 kW |
|---|---|
| Driving speed unloaded | 15 mph |
| Driving speed rated load | 12 mph |
| Grab/clamshell capacity | 88.26 ft² |
| Lifting capacity max. | 66, 139 lbs |
| Mobility | rubber tired |
| Total length | 43.00 ft |
| Width | 15.00 ft |
| Height | 25.00 ft |
| Wheel base | 21.00 ft |
| Swing radius | 30.00 ft |
| Fuel tank | 600.00 gal |
Camera system
Optional cameras at the boom and rear of the Reachstacker facilitate handling and increase safety at the terminal grounds.
Load display
Freight under control: The weight under the load suspension device is automatically calculated and displayed on the monitor in the cab.
Fleet management
LiDAT supplies information about localisation, as well as detailed data about operation of the Reachstacker. more
System-supported load path
The guarantee of a precise horizontal and vertical load path facilitates container handling for enhanced productivity in the terminal.
Central lubrication
The central lubrication system requires less maintenance. Relevant Reachstacker parts are automatically and independently lubricated by electric pumps.
