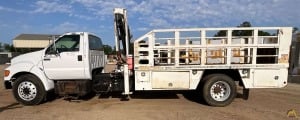

The Iowa Mold Tooling Co,  Inc. IMT 5217 articulating crane is rated at 52, 300 ft-lb and features a horizontal reach of 17' 5" with superior long-reach capabilities and radio remote control options.

• Crane Rating (ANSI B30.22): 52, 300 ft-lb (7.2 tm)
• Horizontal Reach: 17'-5'' (from centerline of rotation)
• Hydraulic Extension: 48'' (121.9 cm)
• Manual Extension: None
• Vertical Reach: 24'-1'' (from mounting surface) or 27'-5'' (from ground/40'' frame height)
• Crane Weight: 2, 890 lbs (1, 310.9 kg)
• Stabilizer Span: 12'-4'' (3.7 m)
• Stabilizer Pads: 12'' x 12'' (30.5 cm x 30.5 cm)
• Mounting Space Required: 28'' (0.71 m)
• Rotational Torque: 7, 800 ft-lb (1.1 tm)
• Optimum Pump Capacity: 9 U.S. GPM (34.1 L/min)
• System Operating Pressure: 2, 500 PSI (172.4 bar)
• Oil Reservoir Capacity: 17 U.S. gallons (44.0 L)
• Rotation: 450° (7.9 rad) in 30 seconds
• Inner Boom Elevation: -49° to +77° (-0.9 to +1.3 rad) in 24 seconds
• Outer Boom Articulation: 139° (2.4 rad) in 21 seconds
• Extension Boom: 48'' (1.2 m) in 7 seconds
• Vertical Stabilizer Stroke: 24'' (0.6 m) in 6 seconds

Additional Features:

• Hydraulic System: Open-centered, full-pressure system.
• Control Valve: Eight-spool, stack-type control valve with provisions for additional optional features.
• Operational Handles: Dual handles on both sides for convenience.
• Cylinder Holding Valves: Integral-mounted holding or counter-balance valves for safety.
• Rotation System: Turntable bearing powered by a hydraulic motor.
