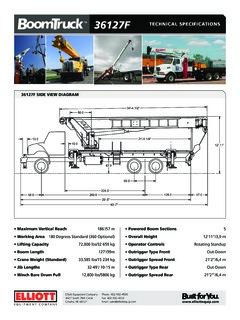

Elliott 36127F Specifications

The Elliott 36127F Boom Truck has 36-ton lifting capacity, a 127′ 5-section telescopic main boom, and a front mounted turret with the Elliott patented ‘Ride-Around... Show More

Elliott 36127F

(Cranes, Hoists & Material Handlers : Boom Trucks)

The Elliott 36127F Boom Truck has 36-ton lifting capacity, a 127′ 5-section telescopic main boom, and a front mounted turret with the Elliott patented ‘Ride-Around Standup Control Console’.

TECHNICAL SPECS

LIFTING CAPACITY

72, 000 LBS / 32 659 KG

BOOM LENGTH

127’ / 39 M

BOOM SECTIONS

JIB LENGTHS

32-49’ / 10-15 M

MAXIMUM TIP HEIGHT

186' / 57 M

WINCH BARE DRUM PULL

12, 800 LBS / 5806 KG

WINCH SINGLE LINE PULL

9, 060 LBS / 4109 KG

OPERATOR CONTROLS

ROTATING STANDUP OR CAB

OUTRIGGER TYPE FRONT

OUT-DOWN

OUTRIGGER SPREAD FRONT

21'2” / 6, 4 M

OUTRIGGER TYPE REAR

OUT-DOWN

OUTRIGGER SPREAD REAR

21’2” / 6, 4 M

UNIT WEIGHT (BARE)

33, 585 LBS / 15 234 KG

OVERALL HEIGHT

12'11" / 3, 9 M

RECOMMENDED CAB TO AXLE (CA)

224" / 569 CM

RECOMMENDED GVWR

73, 200 LBS / 33 203 KG
