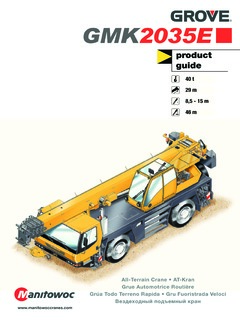

Grove GMK2035E Specifications

No longer in production, the Grove GMK2035E is an all-terrain crane that is ideal for projects where maneuverability in tight spaces is required. This AT crane boosts a max lift capacity of 40 tons (45 ton US), a 95 ft. (29 m) main boom max length, and a max jib length of 49 ft. (8.5 - 15 m). The crane is powered by a water-cooled, turbocharged 6-cylinder Mercedes-Benz OM906LA diesel engine that produces up to 274 hp (205kW) and its modest 53 gallon (300 l) fuel tank.

The hydraulic system has two separate pump circuits operating in an open circuit, with an axial piston variable load-sensing displacement pump and another geared constant-delivery pump for slewing. It also comes with a thermostatically-controlled oil cooler.

The Grove GMK2035E comes with a hydropneumatic suspension system with hydraulic lockout. This 2 axle AT crane features a longitudinal and transverse level control with an automatic on-highway leveling system, anti-lock braking system, and a fixed 3 ton (2.7 t) counterweight system.

Crane operators work inside an aluminum cab that has an engine-independent heater and a suspended, adjustable operator seat. The ergonomically designed instrumentation panel and armrest-integrated crane controls increase operator productivity. This crane features options like additional counterweights and a hydraulic removal system and an electric driveline retarder.
