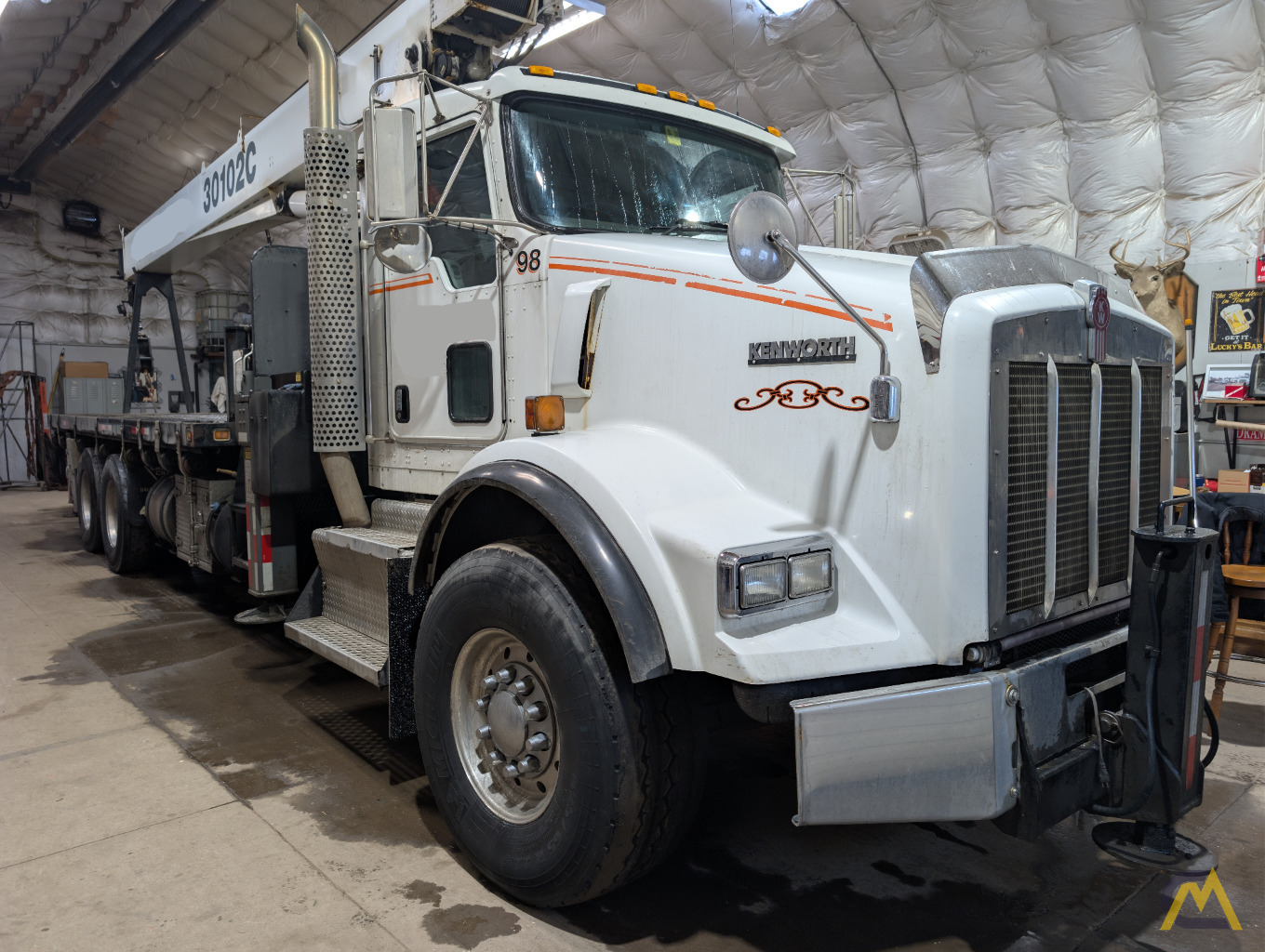

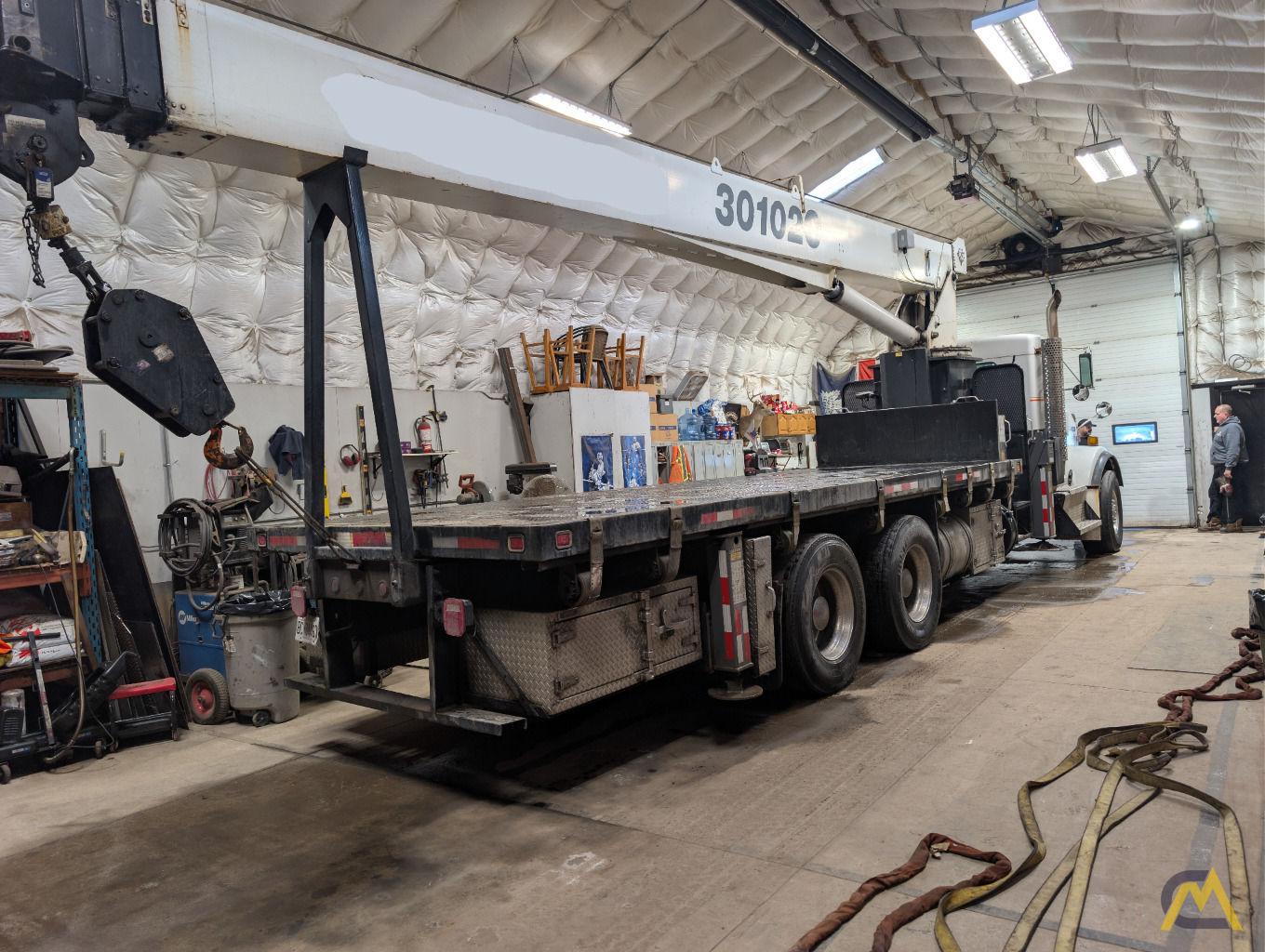

SOLD Manitex 30102C Boom Truck Crane on Kenworth For Sale
Location: Crawfordsville, IN, USA
This equipment has SOLD
This equipment has SOLD
| Status | For Sale |
|---|---|
| Year | 2013 |
| Manufacturer | Manitex |
| Model | 30102C |
| Condition | Used |
| Ton (USt) | 30.00 |
| Lifting Capacity | 60,000 lbs. (27,200 kg) |
| Main Boom Length | 30.5' - 102' (9.3 - 31.1 m) |
| Jib Extension Length | 26' - 46' (7.9 - 14 m) |
| Max. Tip Height | 157.9' (48.1 m) |
| Max. Hook Radius | 105' (32 m) |
| Transmission Type | Manual |
| Truck Chassis Make | Kenworth |
| Horse Power/kW | 425 |
| Category | Boom Trucks |
| Sub Category | Stand Up |
| Show More | |
| Hide |
DESCRIPTION
SOLD (1) Manitex 30102C Boom Truck Crane on Kenworth
-
Lifting Capacity: 30 US Tons (60,000 lbs) at a 5-foot radius.
-
Main Boom: 102 feet (4-section, proportional telescoping).
-
Maximum Tip Height: * Main Boom only: Approx. 112 feet.
-
With Jib extension: Up to 159 feet.
-
-
Jib Options: Equipped with a 26' fixed jib or a 26'–46' two-section telescopic jib.
-
Rotation: 372° non-continuous (though some configurations vary).
Crane Features
-
Operator Stations: Features dual operator platforms with standard crane controls, including foot throttles and engine start/stop.
-
Outriggers: Uses A-frame link-style front outriggers and out-and-down rear stabilizers for a solid footprint.
-
Safety Systems: Equipped with a Load Moment Indicator (LMI) that provides audio/visual alerts and shuts off crane functions if an overload is detected. It also features an anti-two-block system.
-
Hoist: A 2-speed planetary hoist with a grooved drum, providing a maximum theoretical line speed of about 247 fpm.
