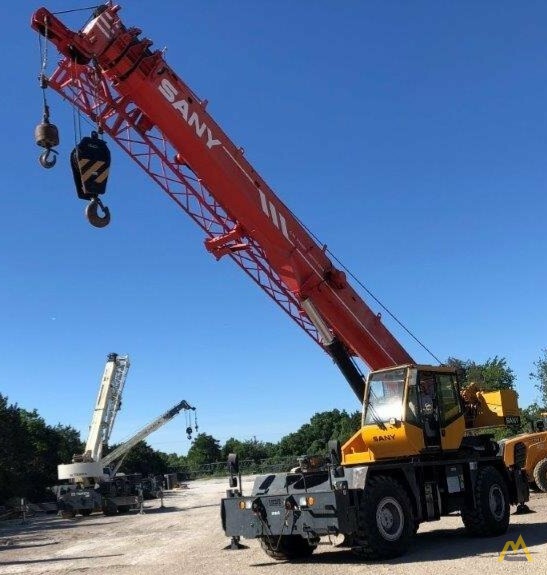

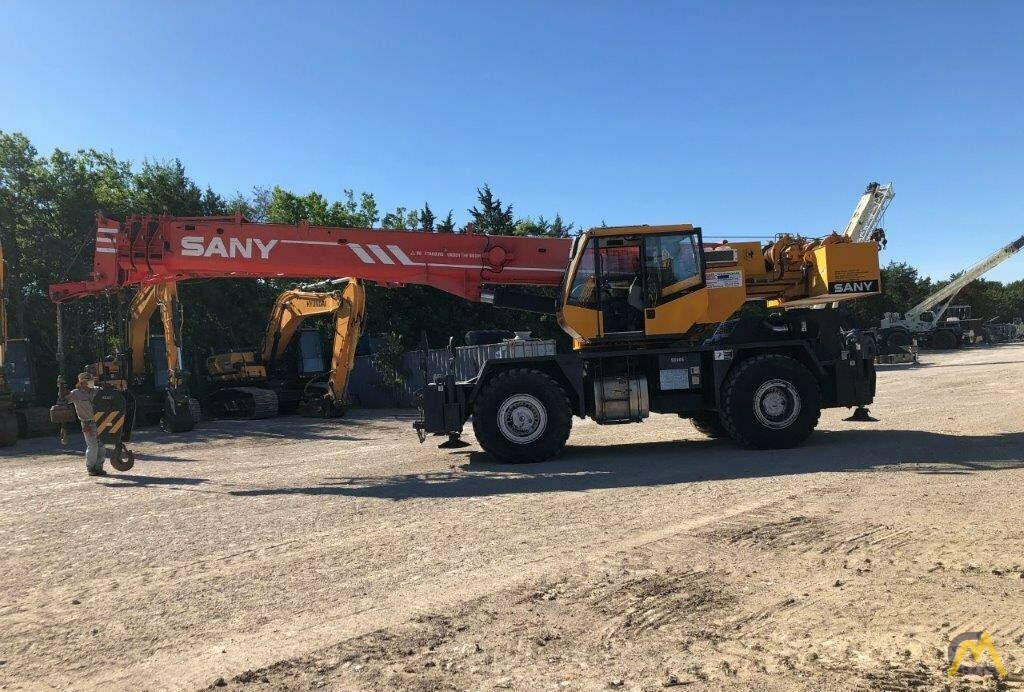

Sany SRC840 40-ton Rough Terrain Crane For Sale
Location: Dallas, Texas, USASany Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
DESCRIPTION
BOOM:
32.8' - 103.3' Four Section, full power, mechanically synchronized boom. Each hexagonal boom section is formed from high-strength steel with 2 continuously welded seams. The two-cylinder & cable extend system is smooth and reliable. Single boom hoist cylinder provides boom elevation of -3 degrees to 78 degrees for easier reeving changes and close radius operation. 26' - 45' (7.9 - 13.7 m) Lattice Jib w/Offset (0,20 or 40 Degrees)
OPERATORS CAB:
Large Sany designed display with 2 interactive screens - Crane Mode & Drive Mode. Deluxe six-way adjustable operator's seat. Sound and weather insulated for comfort. The large glass area and opening top hatch provide optimum visibility. Tinted safety glass throughout. Armrest mounted pilot-operated hydraulic joystick control levers for swing, boom lift, main, and aux hoist functions; foot control pedals for swing brake, boom telescope, engine throttle, and travel brake. Complete instrumentation, circuit breakers, environmentally sealed rocker switches, 360-degree house lock, heater/air conditioner & 12 V outlet.
ENGINE:
Cummins QSB6.7, Tier-III, 160 HP (119 kW) @ 2,500 RPM, 6-cylinder, water-cooled, fuel-injected diesel with an intercooled, turbocharger. The engine controls include one adjustable hand throttle and one-foot pedal throttle. There is a 90 gallon (340L) fuel tank, and heavy-duty batteries (2-24 volt, 1600 cca)
CHASSIS:
Rugged, east to maneuver, box-type chassis construction, with reinforcing cross members. Dana Powershift transmission with torque converter; neutral start; six speeds forward, six reverse. Hydraulic four-wheel power steering for the front wheel, rear-wheel, all-wheel coordinated, and all-wheel crab steer. Hydraulic disc brakes (dual calipers on front wheels and single calipers on rear wheels) on all four wheels and integrated park brake in the front differential. Three-position fully independent hydraulic outriggers available - fully extended position, mid-position extended position and fully retracted. Tail swing 12.75 ft (3.89 m). Standard 20.5R25 tires.
HOIST SYSTEM:
Two Speed Main and Auxiliary Winch - 460 fpm (140 m/min) maximum line speed, 14,000 lb (6,350 kg) maximum single line pull. Integral automatic brake. Electronic drum indicators. Grooved drum, tapered flanges, and spring-loaded cable roller for improved spooling. Wire Rope 5/8"x 700'(16 mm x 213 m) 6 x 37 Class EIPS.
COUNTERWEIGHT:
Standard upper counterweight - 9,500 lb (4,300 kg) [with auxiliary hoist] or 11,000 lb (5,000 kg) [without auxiliary hoist].
ELECTRICAL SYSTEM:
24 Volt systems. (3) Work lights - Carrier, Boom tip, and front of operator's cab. Battery disconnect & emergency outrigger retract switches in chassis. Sany designed Load Moment Indicator (LMI) system including an anti-two block system with automatic function disconnects.
HOOK BLOCKS:
40 Ton (36.4 mt) Three Sheave Hook Block and 8.3 Ton Capacity Overhaul Ball & Hook w/safety latch.
