NEW ELLIOTT HIREACH M43 ON NEW DODGE 5500 & 13’ ALUM BED For Sale

BOOM DETAILS

NEW – ELLIOTT M43 HiREACH

Hydraulic Reach to 48’ Working Height and 36’ Working Side Reach – Platform Capacity 500 lbs

• Installed by Elliott Factory Technicians, Prepped, Primed and Painted.

• New Air Operated PTO (Chelsea), Hydraulic Pump, Supply and Return Lines

• Hydraulic Tank Mounted on Truck Frame w/Shut-off Valve.  Load Tested

• Standard Features Include:

  • Three Individual Proportional Electronic Controllers.  Boom Ground Controls Located on Roadside of Turret, Remote Controls for Boom Operations from Platform Operate from a Removable Control Box (Hi, Low and Start/Stop Toggles are also Located in the Platform)

• Work Platform is a EZR Hydraulically Self-Levelling and Rotating, 30” X 54” with 40” High Rails Work Platform, with Safety Attachment Loops

• Front Outriggers Straight Down Rear A-Frame Type Hydraulic Stabilizers at Rear

• Hydraulically Powered Continuous Rotation with no Stops with Ball Bearing Slewing and Self-Locking Gear Box

• Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load

Included Options Are:

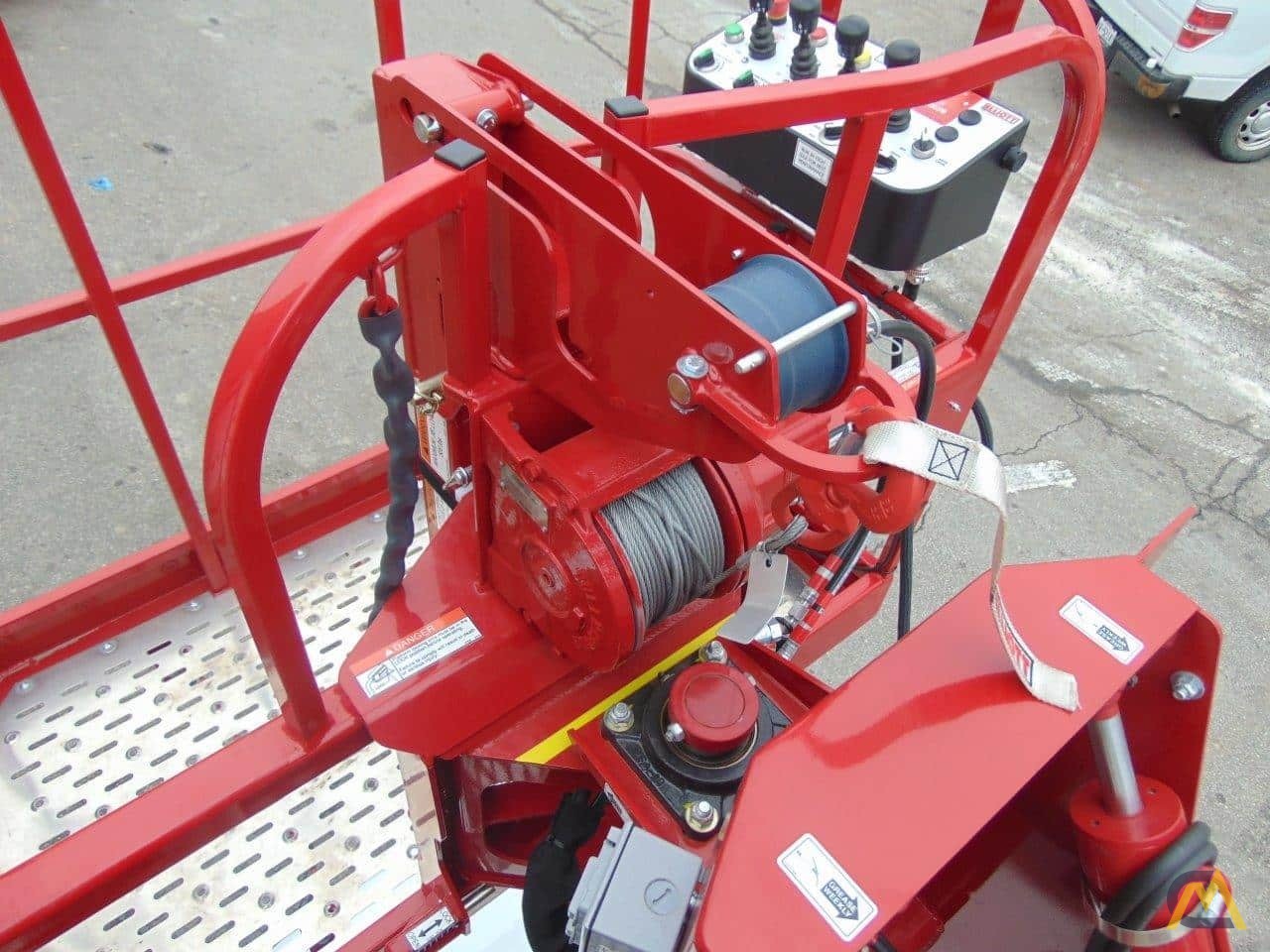

• 500 lb Cap. Jib Winch in Basket

• Deck-Mounted Cross Box 9’ Wide at Front

• 13’ Low Profile Aluminum Platform

• 2,000 lb Capacity Main Boom Winch with Anti Two Block Switch

TRUCK DETAILS

NEW – DODGE 5500 SINGLE AXLE CHASSIS:  19,500 lb GVWR – Hydraulic Brakes

• 325 hp Cummins Turbo Diesel Engine, 6 Speed Automatic Transmission, White Cab

• 7,000 lb Front Axle, 13,500 lb Rear Axle with 225/17R19.5 All Season Tires on Polished Aluminum Rims Front & Back

• Features Include:  Air Cond., AM/FM Stereo, Cruise Control, Engine Block Heater, 40/20/40 3-Person Front Seating, Chrome Package, etc…

Options at Extra Cost:

• (4) Pcs 36” Under Body Aluminum Storage Boxes with Fold Down Door Installed

• Draw Plate with Electric Connections, D Rings, Pintle Hook and Trailer Brake Actuator

• Hydraulic Oil Tank Heater
