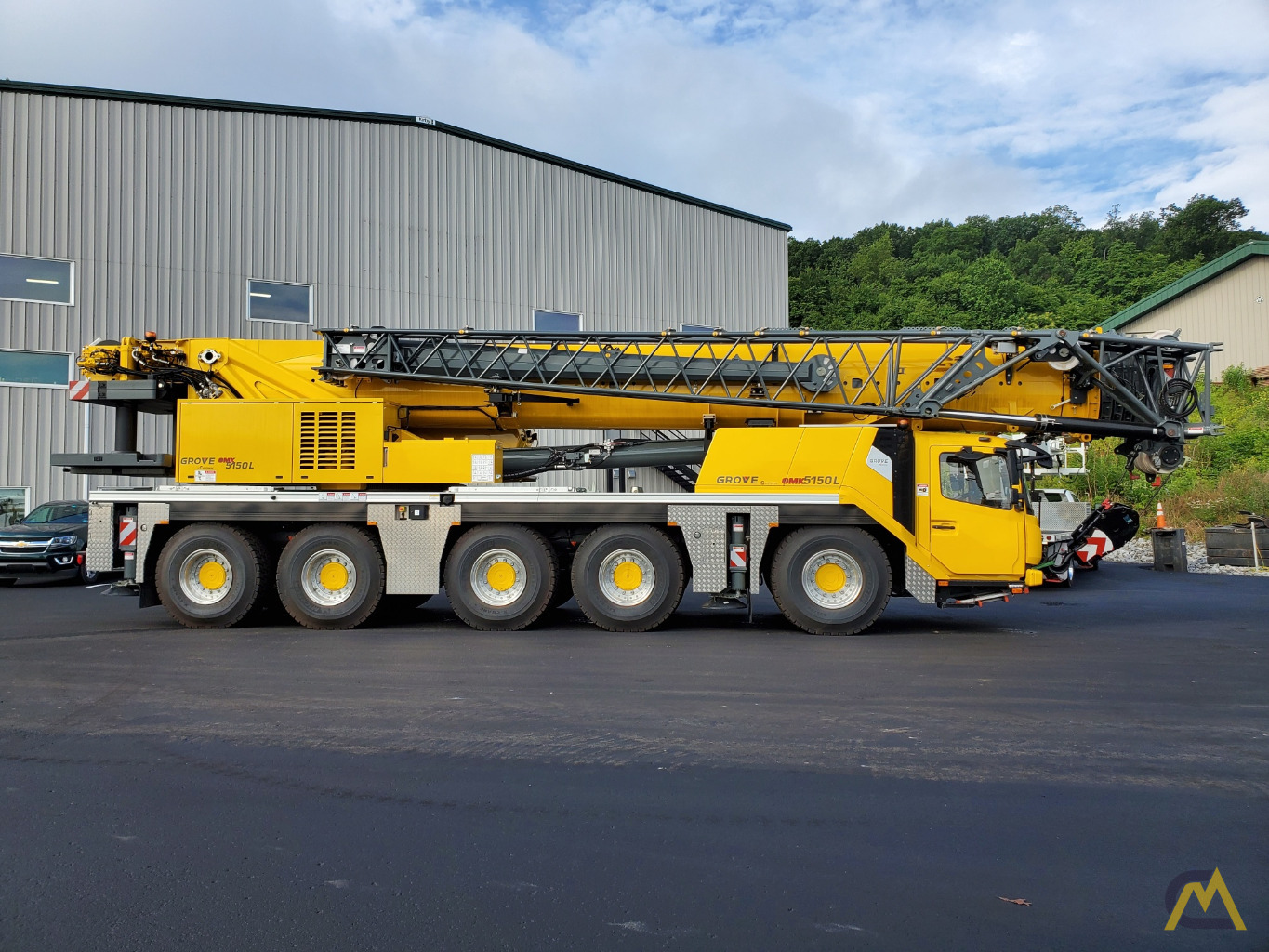

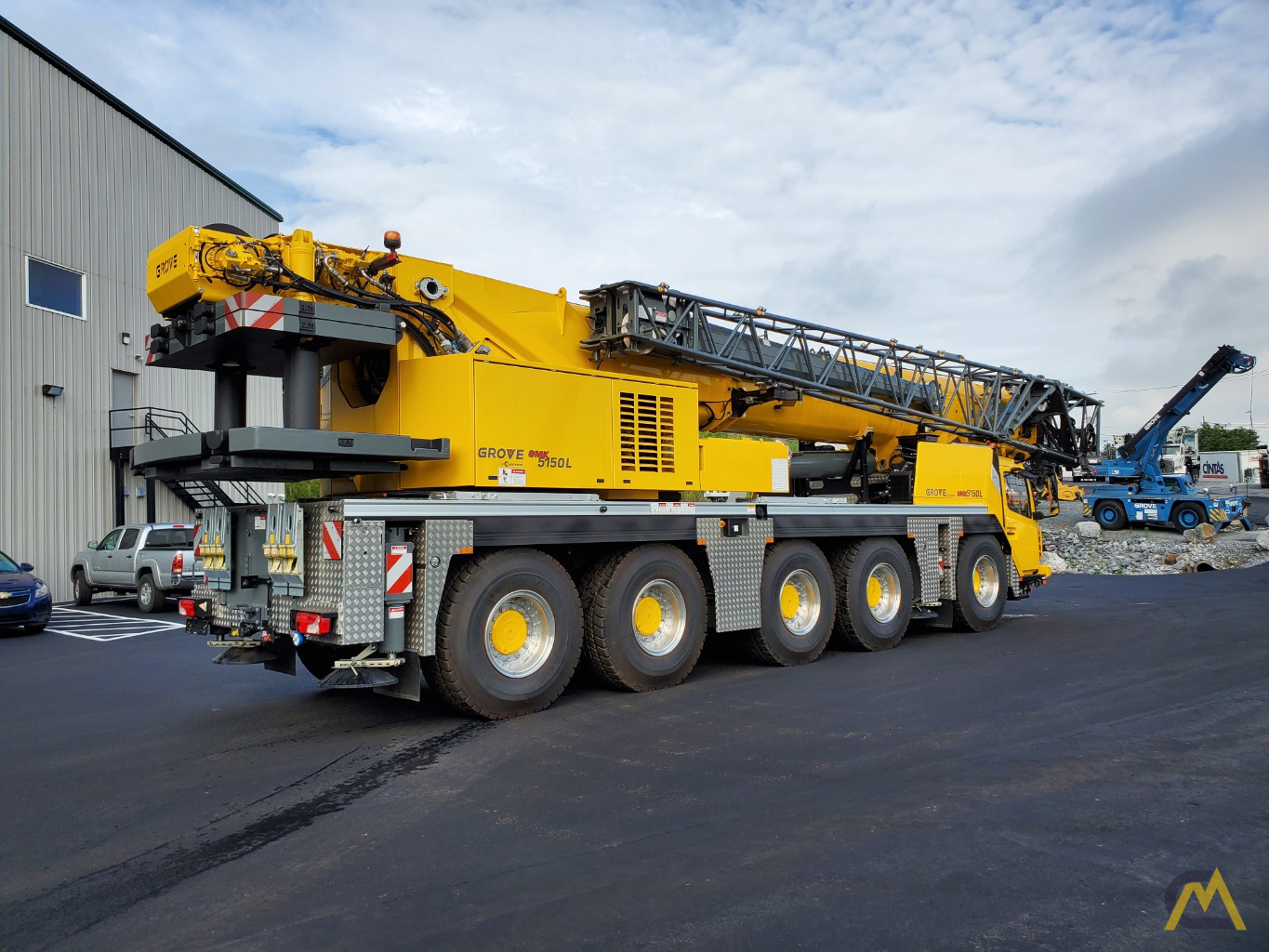

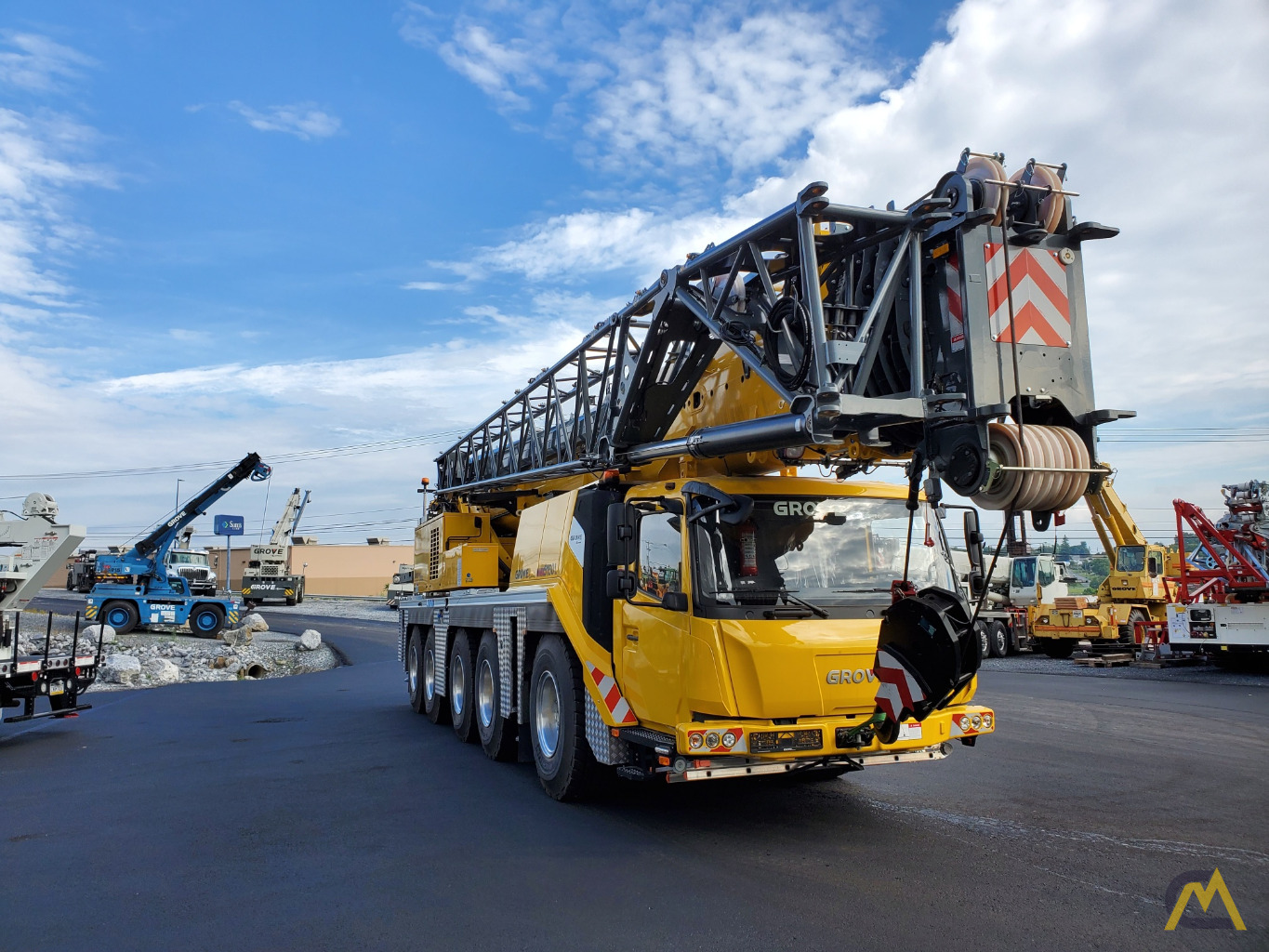

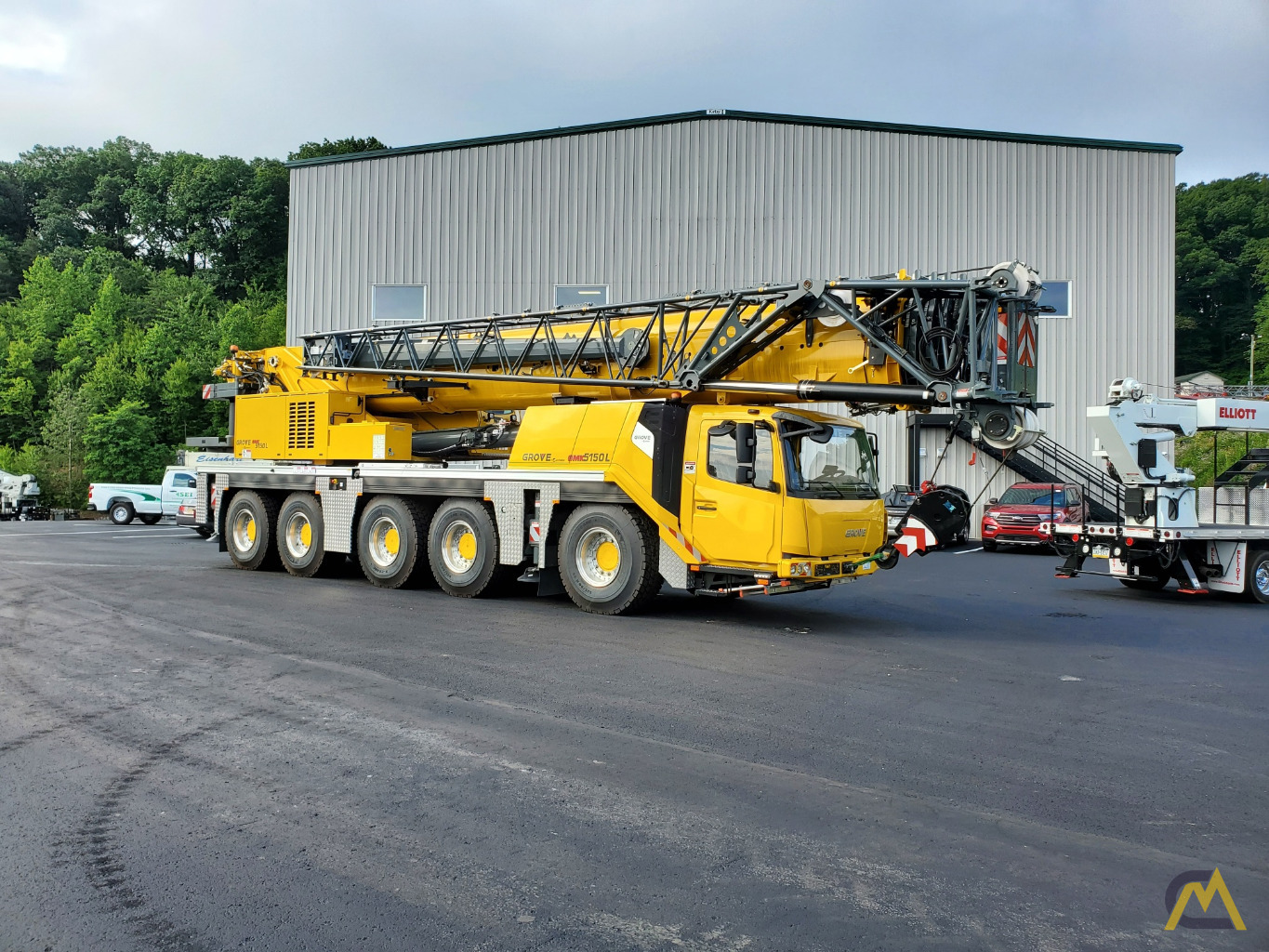

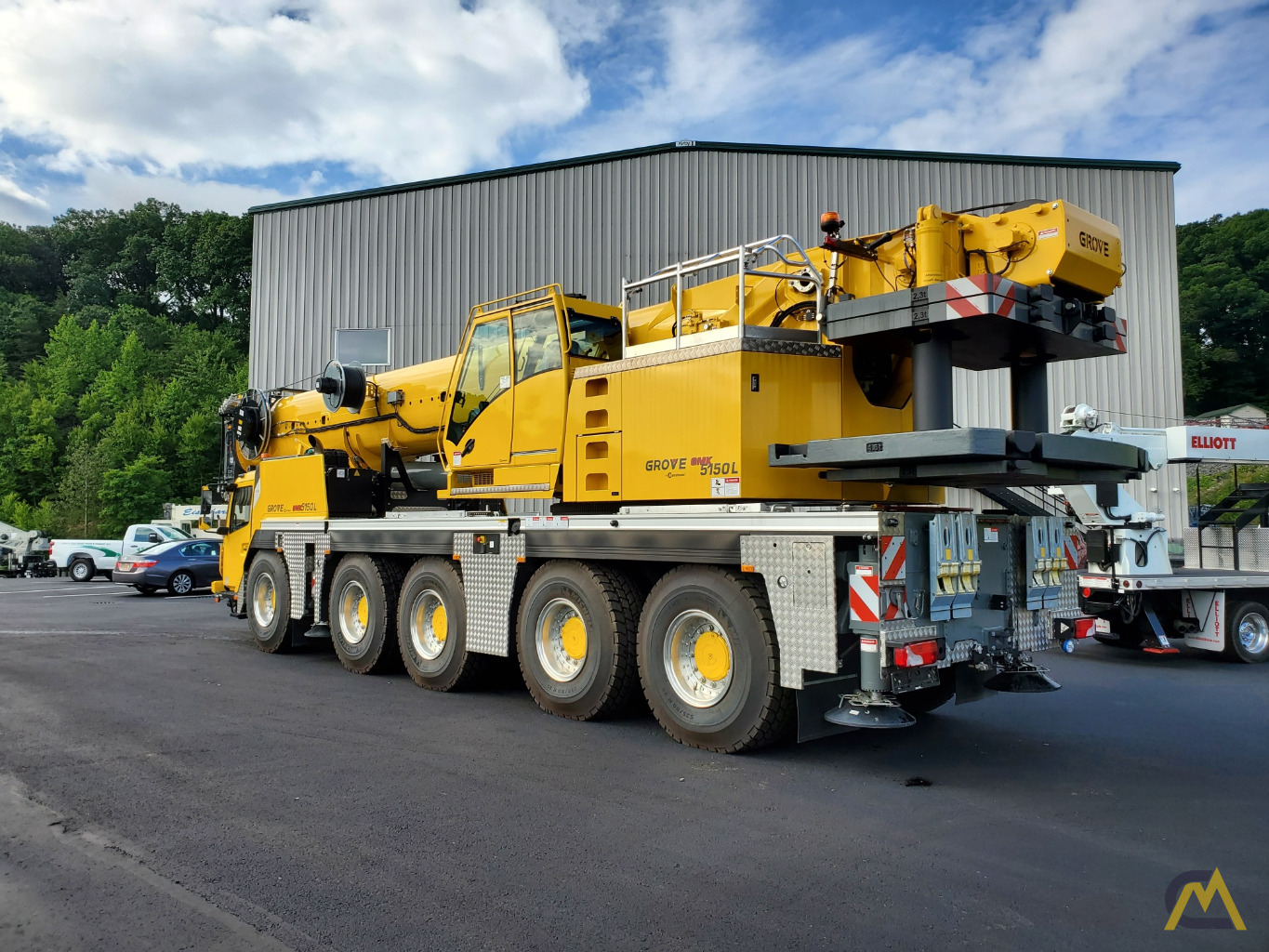

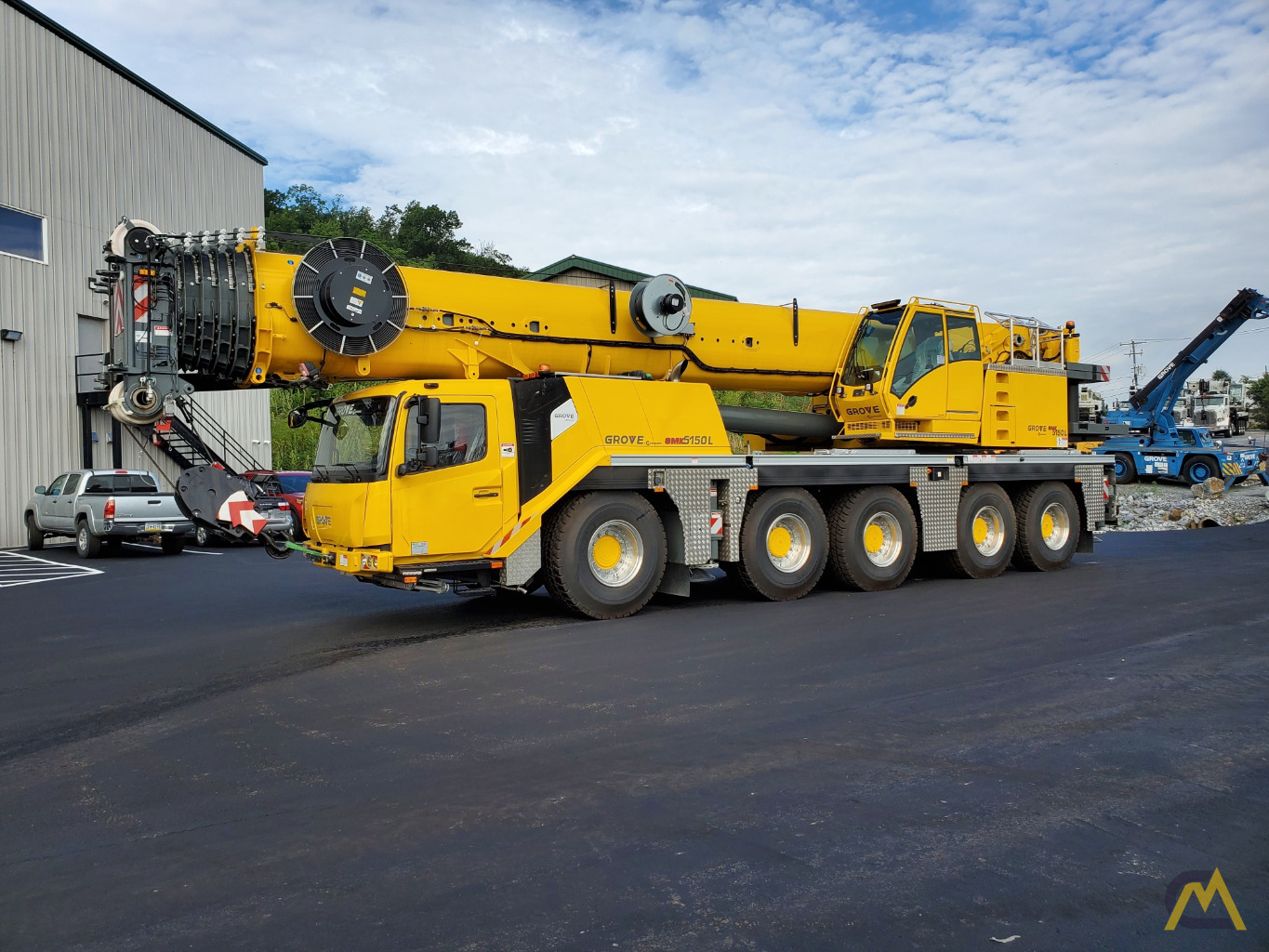

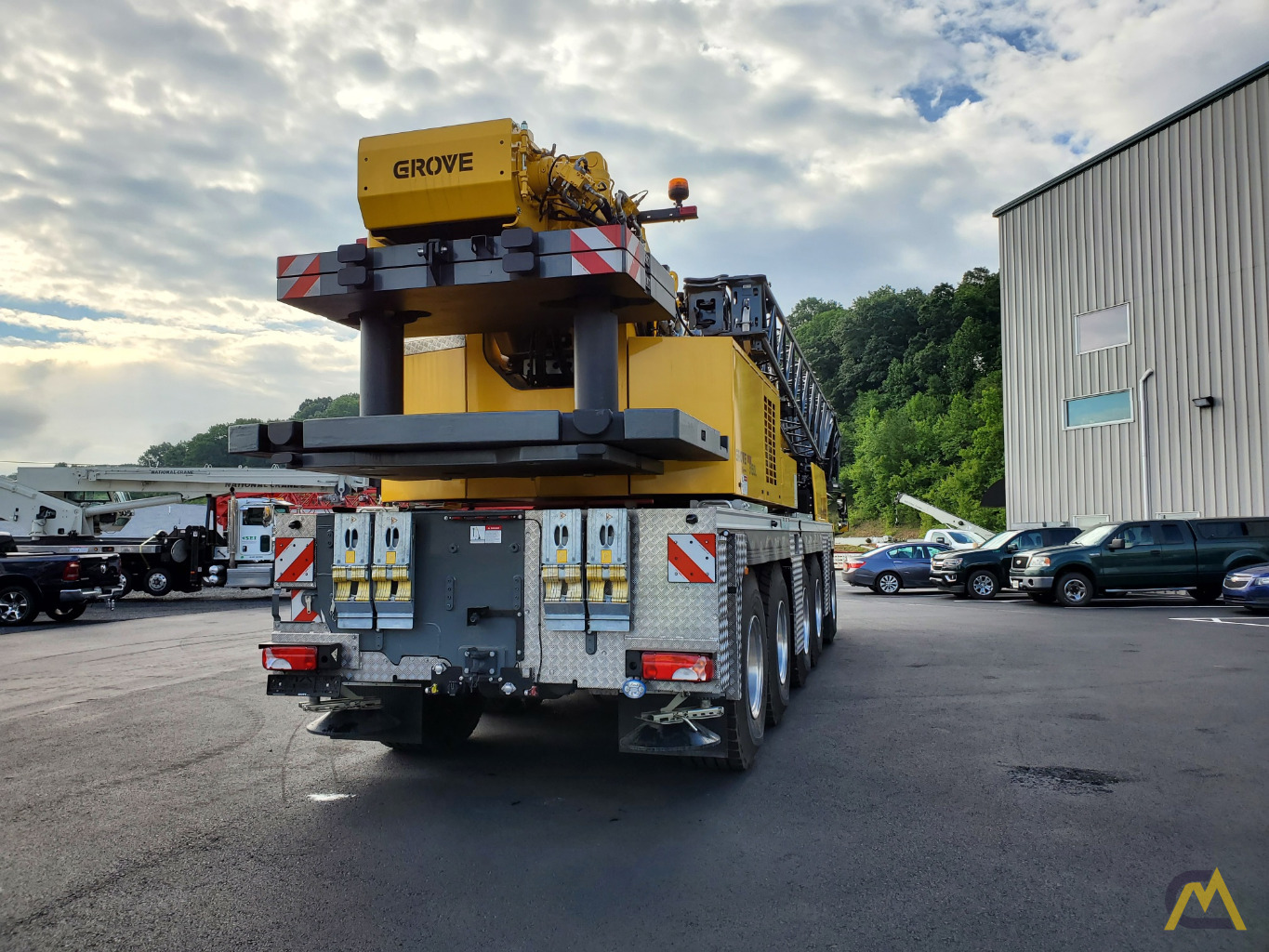

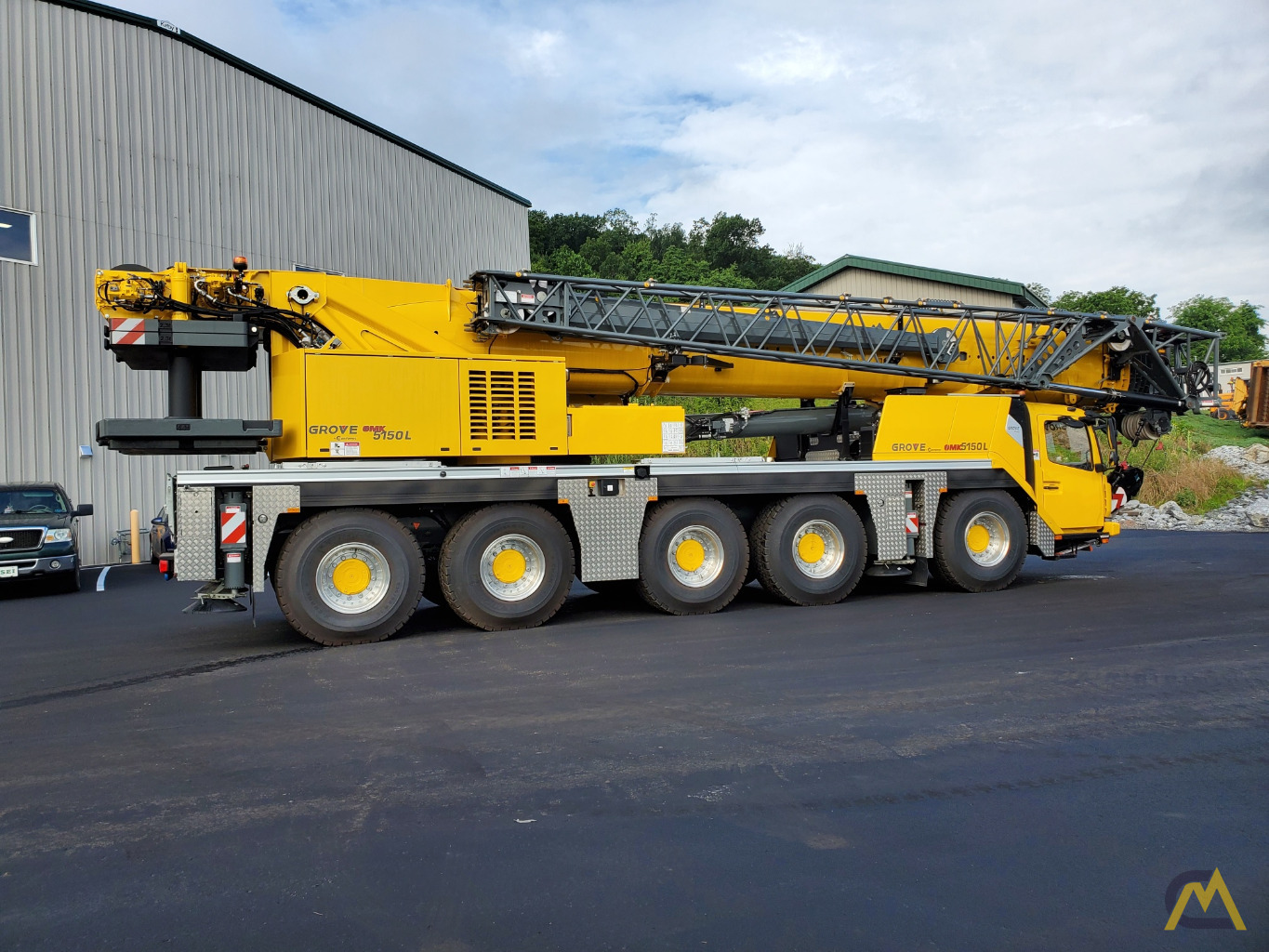

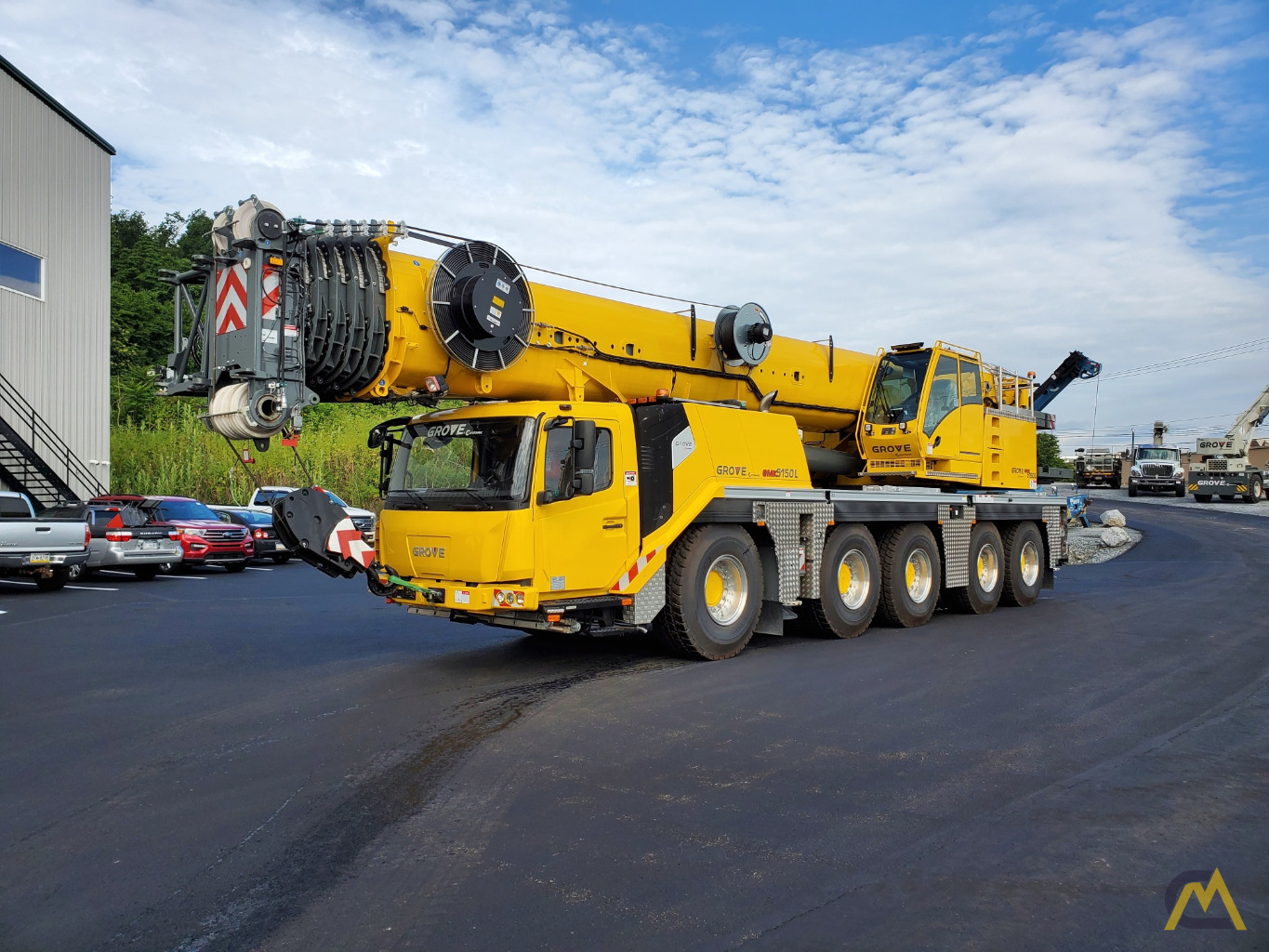

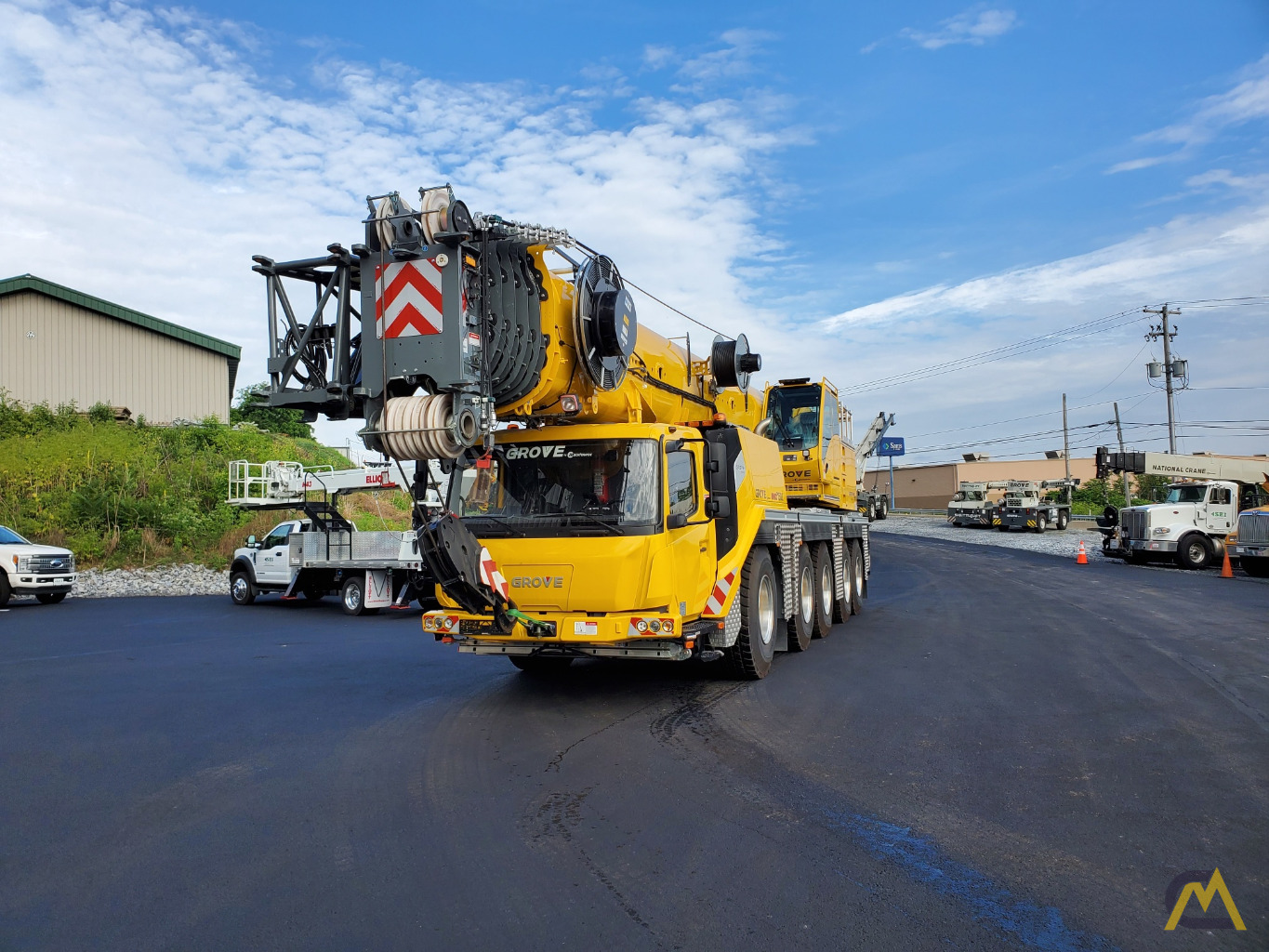

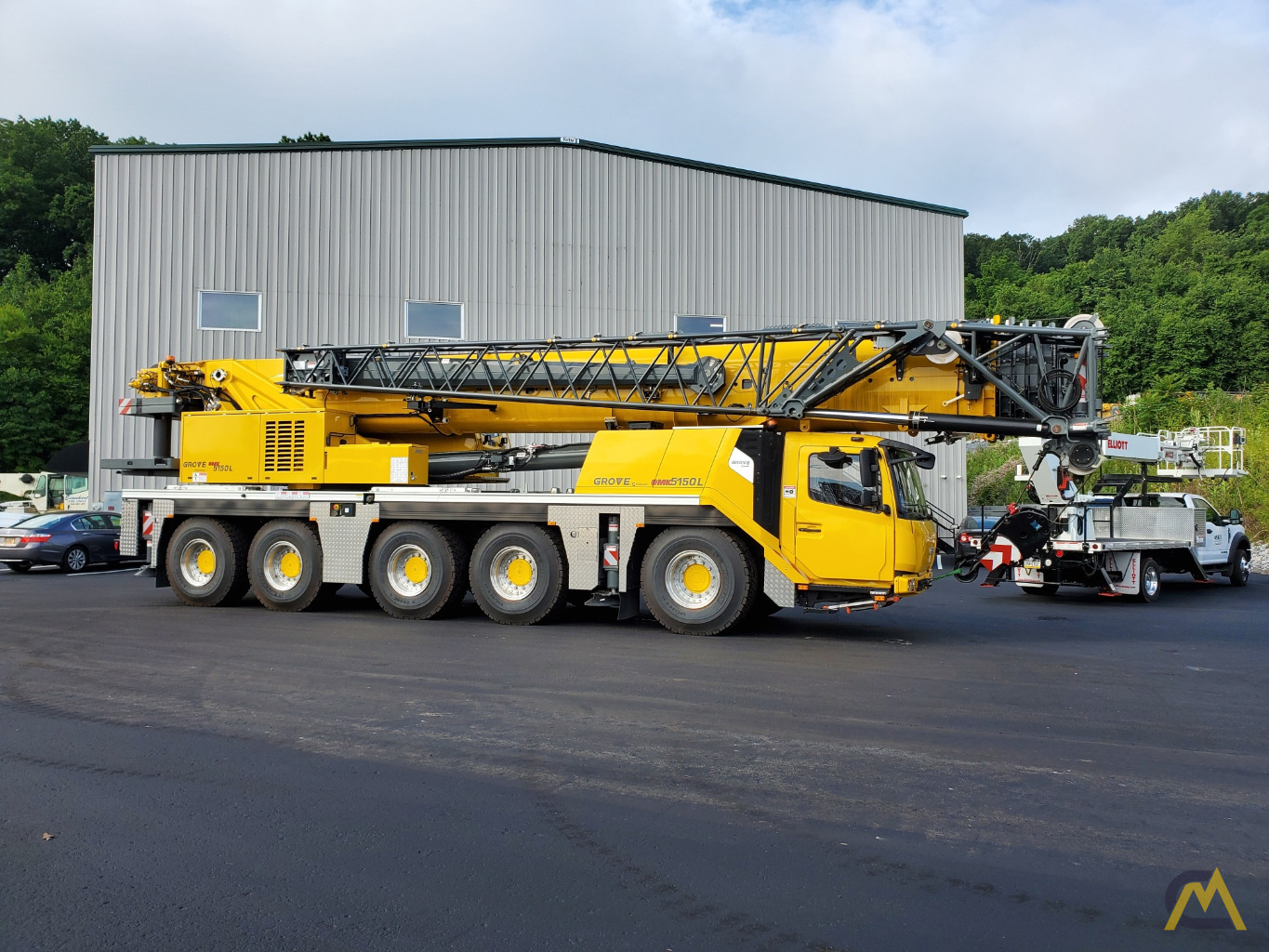

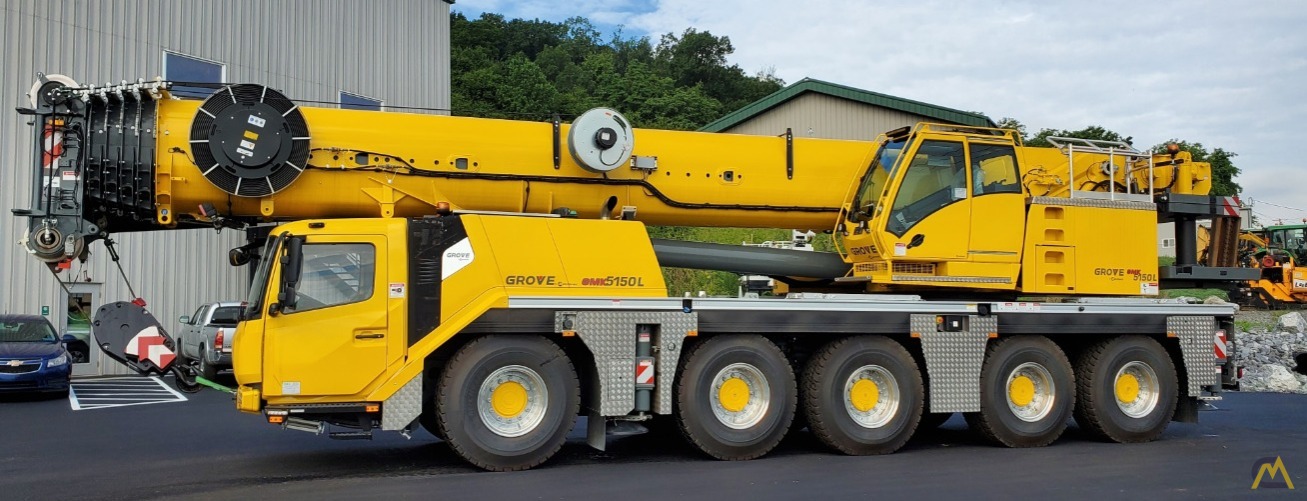

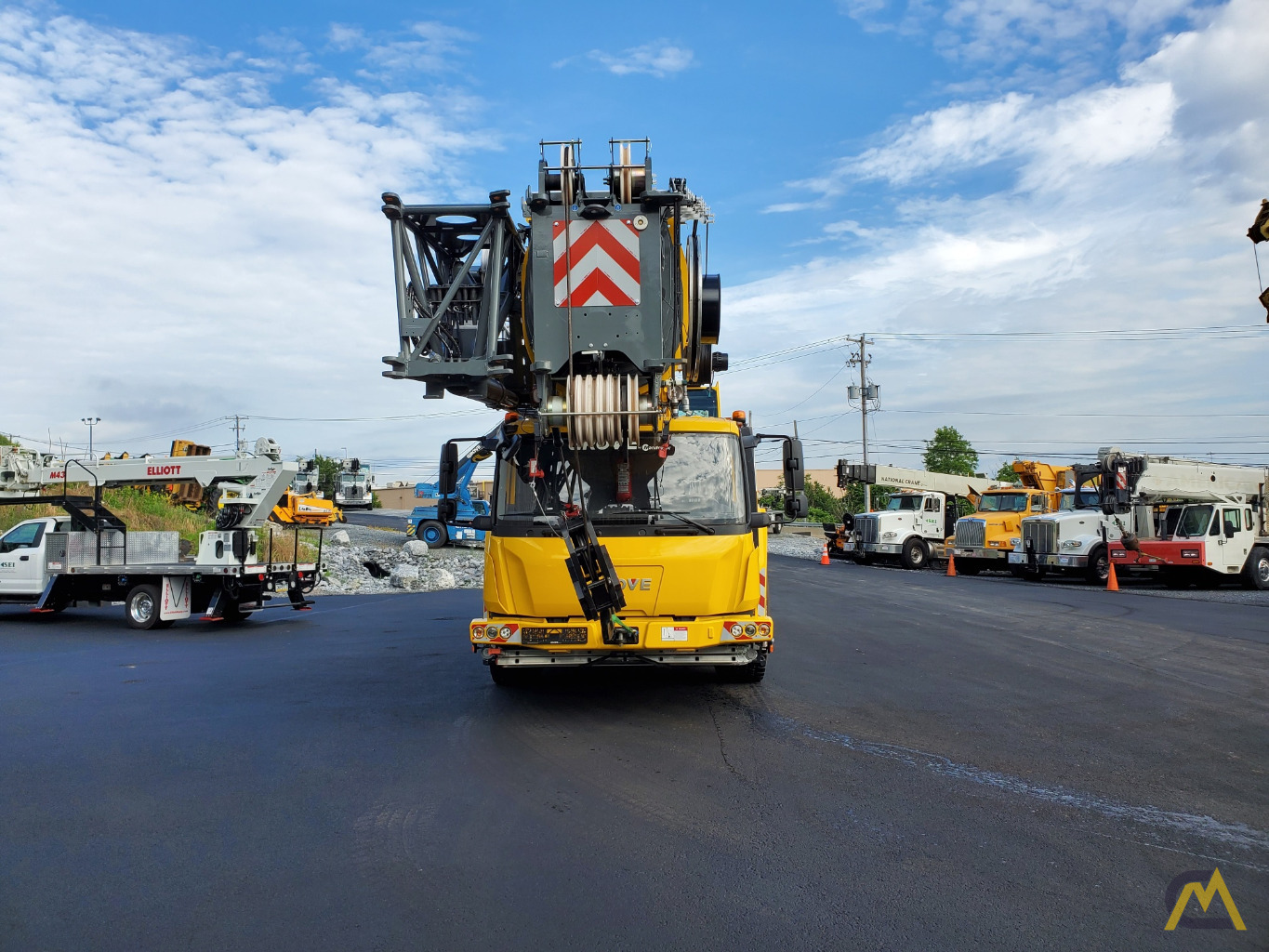

New 2019 GMK5150L 150-Ton All Terrain Crane For SaleLocation: Harrisburg, PA, USA Get a Shipping Quote
New Listing Grove Authorized Dealer
|Unit Number||SEI 9592R|
|Main Boom Length||197'|
|Jib Length||36.7' - 58.3'|
|Engine||Mercedes Benz OM471LA|
|Category||All Terrain Cranes|
Contact Ben Daugherty, 717-676-3359
175 US Ton Capacity
42 ft to 196.9 ft (12.8 m to 60 m) 6-section hydraulic pinned main boom. Six sheave boom nose.
ENGINE: Mercedes Benz OM471, 522 HP (390 kW) turbocharged diesel engine with heavy-duty air cleaner and safety cartridge. Electronic engine control. Fuel tank: 172 gallons (650 l) for carrier and superstructure.
All Standard Equipment
Boom / Attachments
36.7 ft to 58.3 ft (11.2 m to 17.8 m) bi-fold swingaway, hydraulically offset from 0° to 50°
1 x 26.2 ft (8 m) lattice boom extension for 36.7 ft to 58.3 ft (11.2 m to 17.8 m) bi-fold swingaway [Maximum possible length with other extensions is 111 ft (33.8 m)].
1 x 26.2 ft (8 m) lattice jib extension for 36.7 ft to 58.3 ft (11.2 m to 17.8 m) bi-fold swingaway [Maximum possible length with other extensions is 111 ft (33.8 m)].
2 worklights, mounted on top of boom base section (controlled from superstructure cab), xenon.
Boom nose mounted, Boom Position Indicator Light (constant).
Auxiliary boom nose using 1 part of line.
Trailing boom float kit.
Hoists / Hydraulic
Auxiliary hoist, axial piston motor with planetary gear and automatic multiple disc brake. Drum rotation indicator, 836 ft (255 m) of 19 mm wire rope. Including second upper head sheave on boom, quick connection.
Additional oil cooler for hydraulic system.
Hookblocks / Overhaul Weight
5 sheave hookblock with double hook and dead end. [105 USt (95 tonnes) hookblock capacity].
3 sheave hookblock with double hook and dead end. [66 USt (60 tonnes) hookblock capacity].
1 sheave hookblock with single hook and dead end. [29 USt (26 tonnes) hookblock capacity].
10 USt overhaul weight [9 tonnes capacity] [660 lbs (300 kg)].

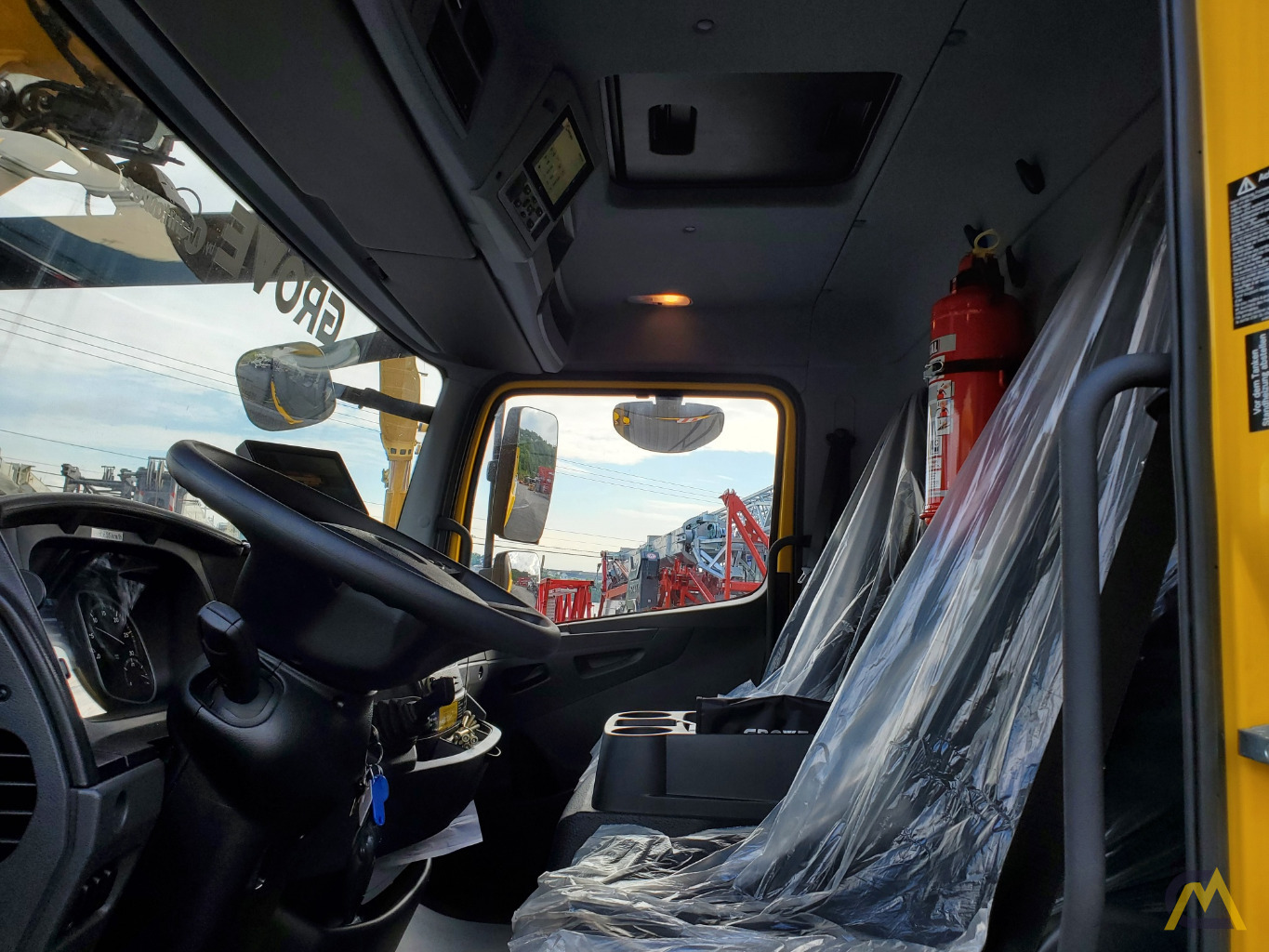

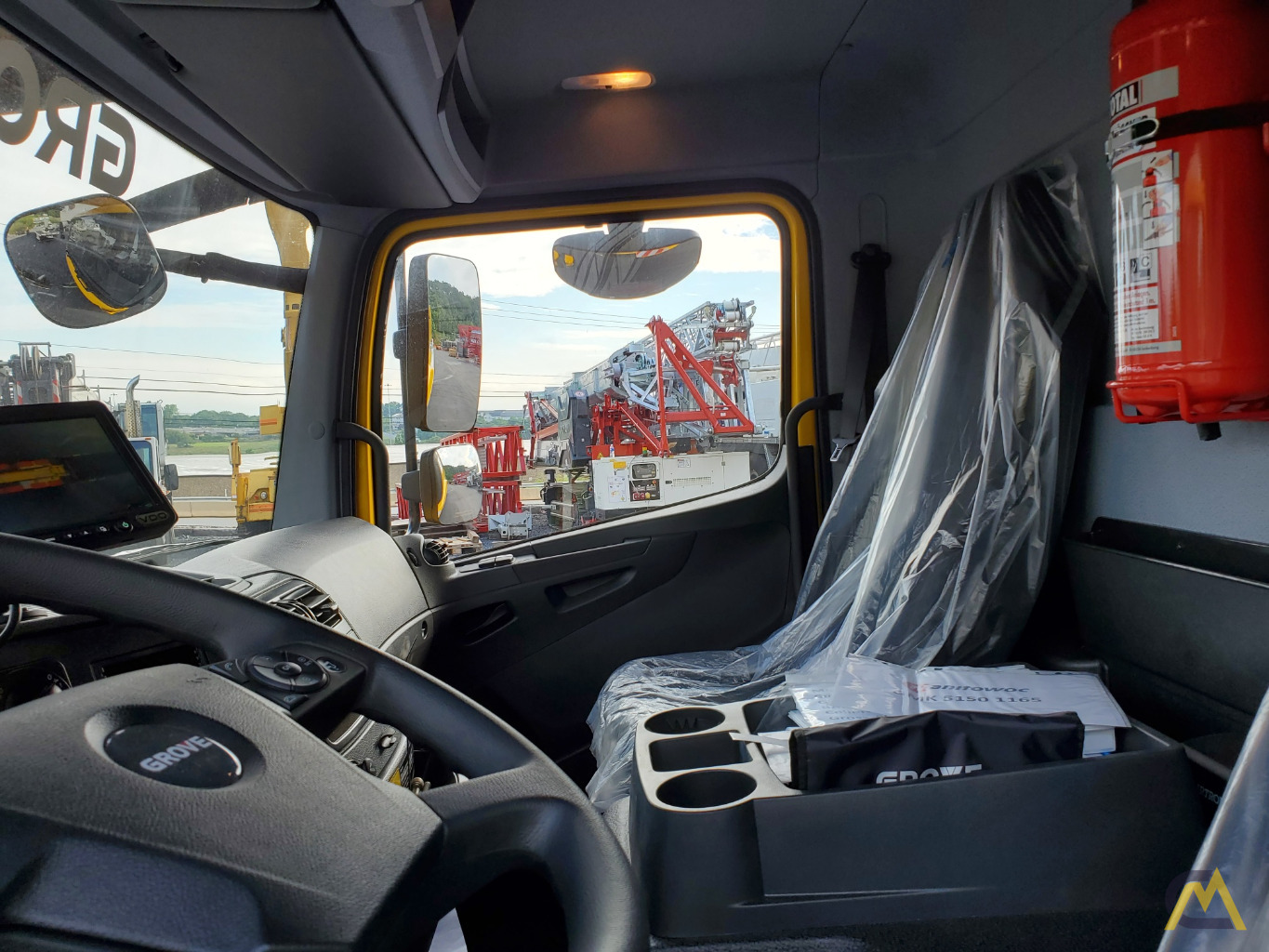

Fire extinguisher 13 lbs (6 kg) mounted inside the cab
radio with bluetooth, USB and CD player.
Air conditioning. IHVAC 6 kW cooling output.
Turntable mounted tool box.
Comfort package incl. table, tablet stowage, smart phone stowage.
Tires and Wheels
"Ten 525/80 R25 on / off highway radial tires on aluminum rims [Note: Overall width 9.5 ft (2.9 m)] Michelin provided unless Bridgestone is requested."
525/80 R25 spare aluminum wheel & tire. Michelin provided unless Bridgestone is requested.
10 x 8 x 10 drive in lieu of standard.
Secondary Water Retarder.
MAXbase - variable positioning outriggers.
Outrigger length control (mandatory in EU/USA/Canada and for MAXbase)
Engine independent diesel cab heater which also serves as engine preheater incl. 24h timer
Additional spotlight on rear side of carrier for reversing.
Stereo radio with bluetooth, USB and CD player instead of stereo radio/CD player.
Reversing camera system.
270° Bird view camera system.
Additional oil cooler for carrier hydraulic system.
Turntable pin lock.
External starting outlet.
