NEW 2018 ELLIOTT L60R For Sale

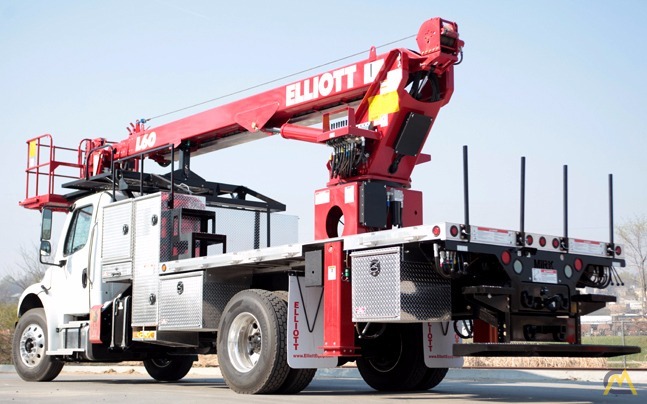

NEW ELLIOTT L60R

Standard features:
One new Elliott HiReach L60R having a 62’working height. Basic unit includes base assembly supporting rear mounted rotating turret, hydraulically powered continuous rotation mechanism, oil reservoir mounted to truck frame, oil, and manual hydraulic controls mounted to turret. Electronic proportional three stick remote controls on platform. Base mounted “MH” type hydraulically powered, individually controlled rear main outriggers and “A” secondary outriggers behind cab. Steel three section hydraulically telescoping boom with one double acting 6” lift cylinder plus a 3” piggyback extension cylinder. Exposed cable carrier to boom tip. Electronic self-leveling and rotating 40”x60” EZR work platform with remote leveling from platform and aluminum floor. Power take off and pump drive, pressure gauge, pump and holding valves on all cylinders. Remote start/stop at upper and lower controls, 12-volt emergency pump with switch at upper and lower controls, PTO hour meter, backup alarm, fire extinguisher, safety triangle kit, and two body harness and lanyard. LED lights to include all bed marker lights, stop, tail and turn. Installed on chassis, tested, checked and ready to operate. Unit certified to ANSI A92.2 for Vehicle-Mounted Elevating and Rotating Aerial Devices. Platform capacity 500 lbs.

Additional Options:
• 14’ Steel Bed with LED Lights and Grip Deck Coating
• Standard ICC Rear Bumper with Steps and Grab Handles
• Tie Down Rails on Both Sides of Bed
• Automatic Safety Rotation Lockout – Prevents Boom from Rotating to Side where MH Outriggers are not Fully Extended Horizontally. (“A” Outriggers Remain Fully Extended)
• 5,900 lb. Planetary Winch with Anti-Two-Block Switch, Horn, Two Part Hook & 180’ of 3/8” Cable & Retainer Lug
• 500 lb. Platform Mounted Jib with Hydraulic Winch. Jib Stows in Platform.
• 110 Volt Line to Platform
• (2) Sign Forks on Platform
• Hot Shift PTO for Automatic Transmission
• 12’6” Steel Bed with LED Lights and Grip Deck Coating
• 98”L x 36” W x 24” H Steel Crossbody Box (Requires 2’ Shorter Bed)
• Steel Cable Carrier Cover
• Cab Windshield Guard and Platform Walkway
• Chassis Rating – 25,999 lb. GVWR Non CDL
• Mounting Bracket Above 8’ Crossbody Box for Customer Installed Welder/Generator (Designed for Miller Bobcat 225)
• Remote Start/Kill Switch in Platform for Customer Installed Welder/Generator
• Welder Lead to Platform – (2) 1 Gauge Cables
• HiReach Unit Painted Red, Subframe Painted Black, Outriggers Painted Red (STD)

MOUNTED ON 2018 FREIGHTLINER M2 106
Mounted on a 2018 Freightliner M2 106 tractor chassis with a Cummins B6.7 240 HP diesel engine, 187” WB, 120” C.A., 100” AF Allison 2500 RDS automatic transmission, 29,000 GVWR, 10,000 lb. front axle, 19,000 lb. rear axle, 11R22.5 front & rear tires, hydraulic brakes, 50 gallon aluminum fuel tank (LH), AM/FM radio, 40/20/40 cruise control, air conditioning, air ride driver seat, two-man passenger bench seat. Color: White
