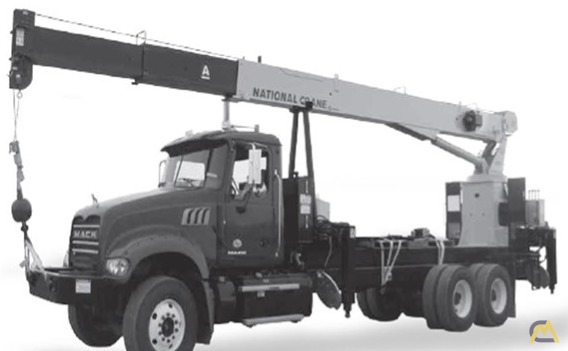

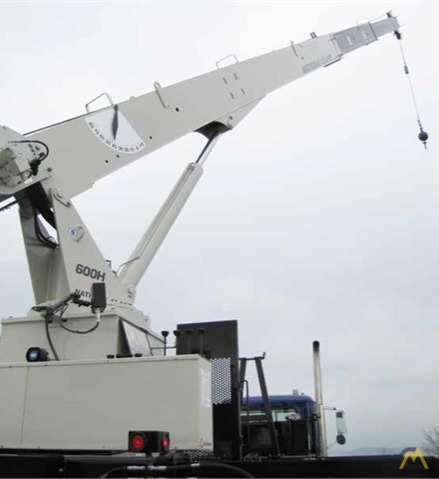

National Series 600H /690H 20-Ton Un-Mounted Boom Truck Crane For Sale

Stock Photos..

SOLD NATIONAL 690H−600H SERIES CRANES

The 690H Series delivers 18,1 t (20 USt) maximum capacity and a 30,5 m (100 ft) maximum vertical hydraulic reach with main boom.

BOOM
At 27,5 m (90 ft) the 600H series four-section boom is the longest in its size range. The longer boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency.

OVERLOAD PROTECTION
Rated Capacity Limiter (RCL) with work area definition system (WADS) is standard on all Series 600H machines. The RCL display console is weatherproof and displays all crane load lifting values simultaneously.

OUT AND DOWN STYLE OUTRIGGERS
Multiple outrigger positions of full-span, mid-span and retracted span options provide added versatility. Main outriggers are equipped with removable ball and socket aluminum foot pads as standard.

OPTIONS AND LIFT SOLUTIONS
• Hydraulic hose reels
• Factory installed toolbox options
• Bulkhead and flat-bed options
• One-option hydraulic tool circuit

JOBSITE BENEFITS
• Flexible out & down style outriggers with multiple outrigger spans allow for convenient setup on demanding job sites
• Internal anti-two-block cable on all three and four section boom options eliminates potential for damage
• Utilization enhancing options such as a hydraulic oil cooler for duty cycle applications and an auxiliary hydraulic circuit
• Pre-painted components reduce the possibility of rust, improve serviceability and enhance the appearance of the machine.
